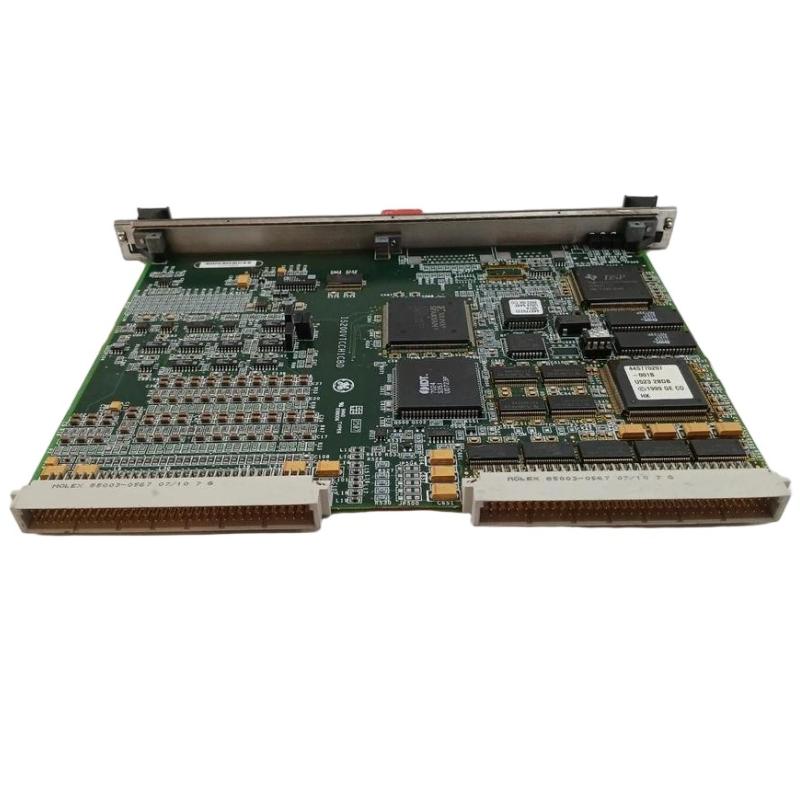

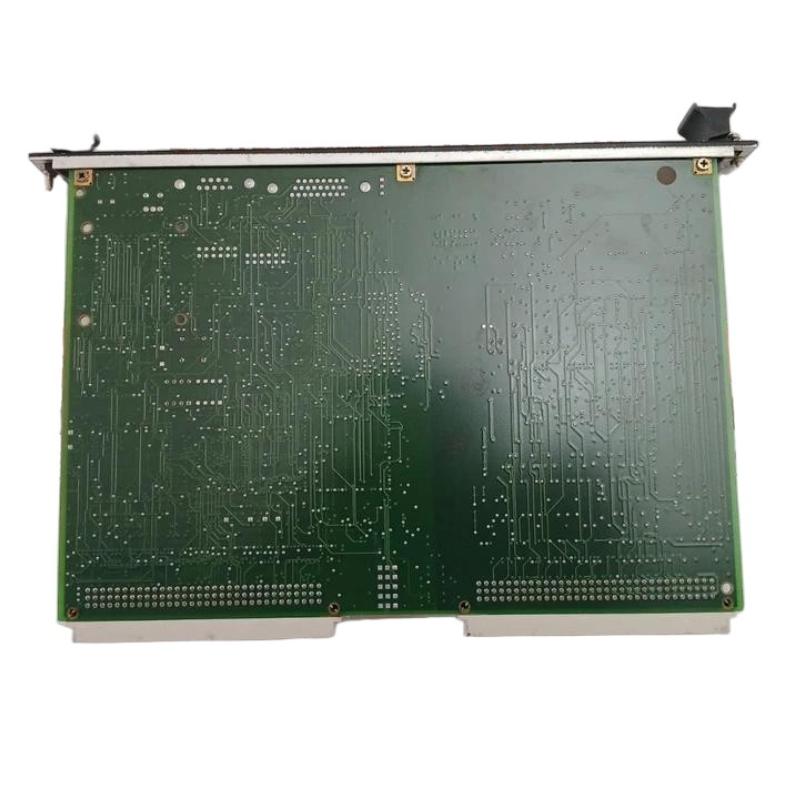

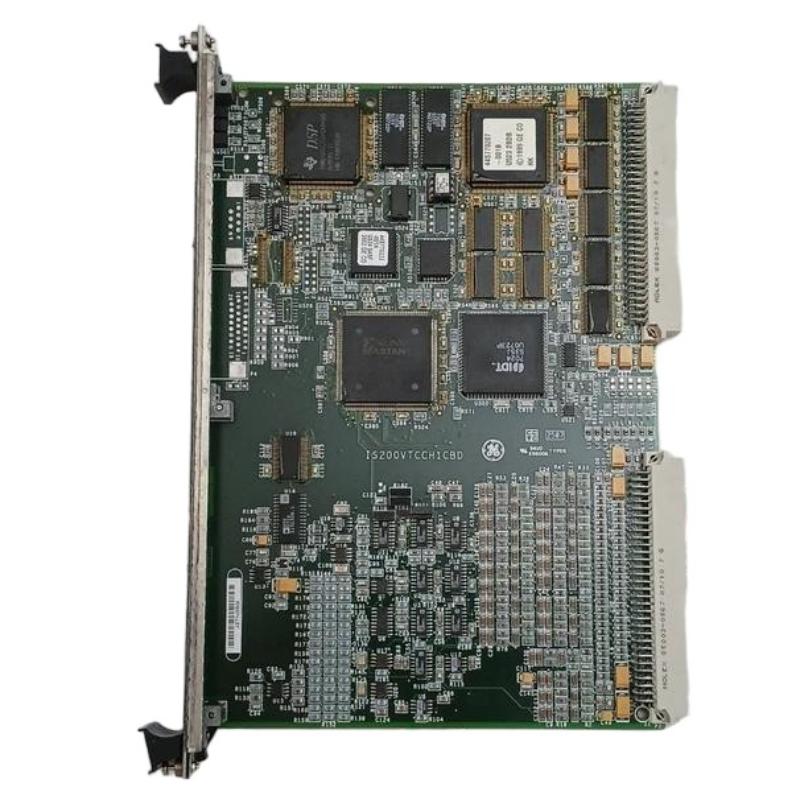

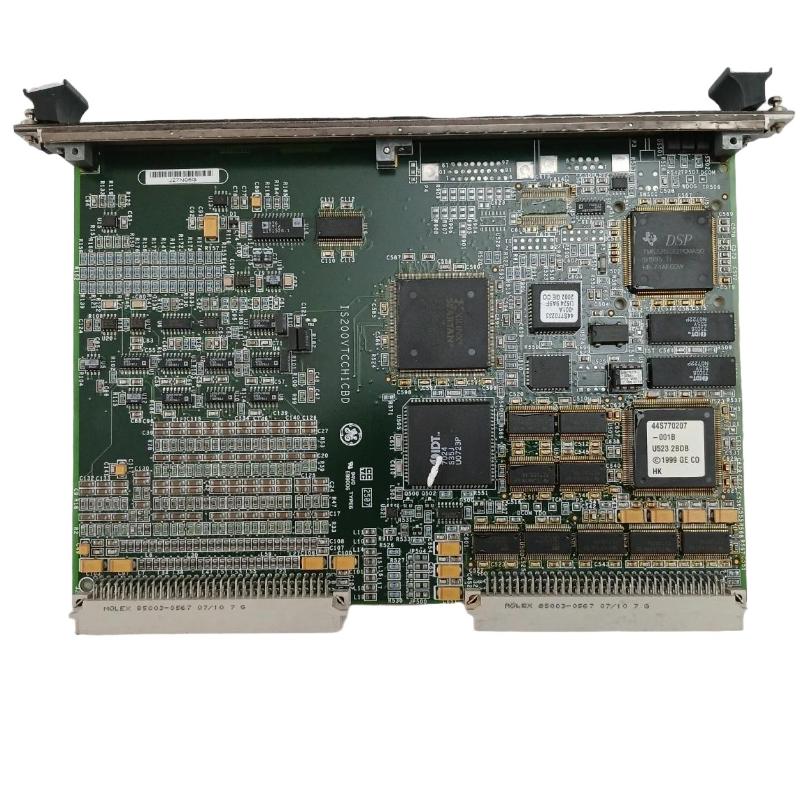

GE IS200VTCCH1CBD Thermocouple Processor Board

Overview

The GE IS200VTCCH1CBD is a high-precision thermocouple processor board designed for accurate temperature measurement and processing in industrial control systems. It is used in GE Mark VI turbine control and monitoring systems to provide reliable thermal data, enabling stable operation and precise process control in demanding industrial environments.

General Information

Part Number: IS200VTCCH1CBD

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: Thermocouple Processor Board

Mounting: Installed in Mark VI control rack systems

Technology: Thermocouple signal conditioning and digital temperature processing electronics

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power electronic module design

Protection Features: Electrical isolation and input signal protection

Indicators: System status and diagnostic LEDs through control rack interface

Communication & Interface

Input Type: Thermocouple sensor inputs

Function: Converts and processes temperature signals for system monitoring and control

Diagnostics: Fault detection, open-circuit monitoring, and signal verification

Operator Interface: Managed through GE Mark VI control system interface

Reset Capability: Supported via system-level reset functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for turbine and industrial control applications

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions: 82.6 × 41.9 mm

Weight: Approximately 0.45 kg

Accurate Temperature Processing for Critical Industrial Systems!
