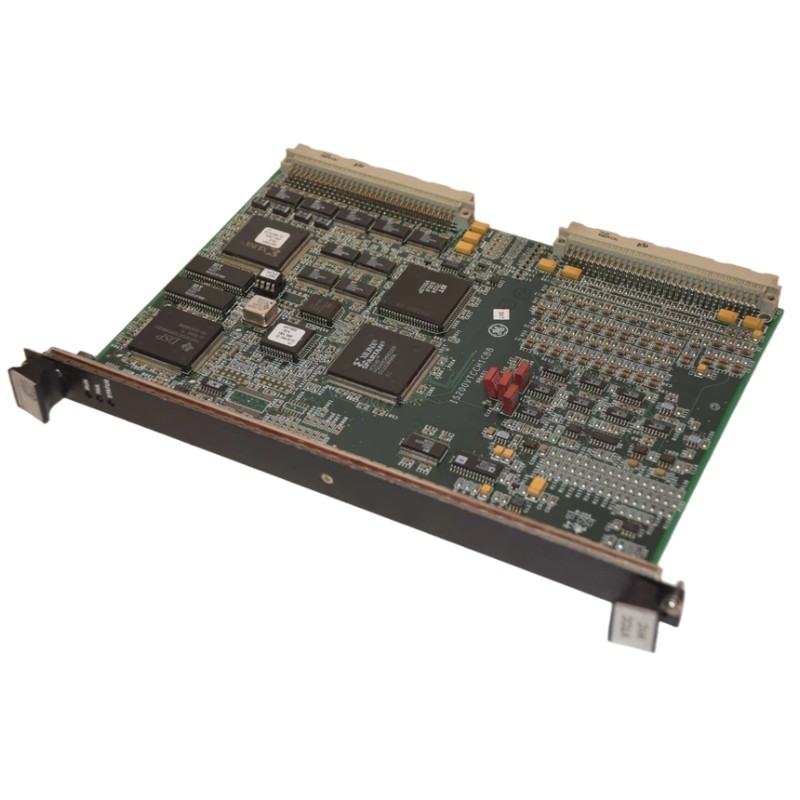

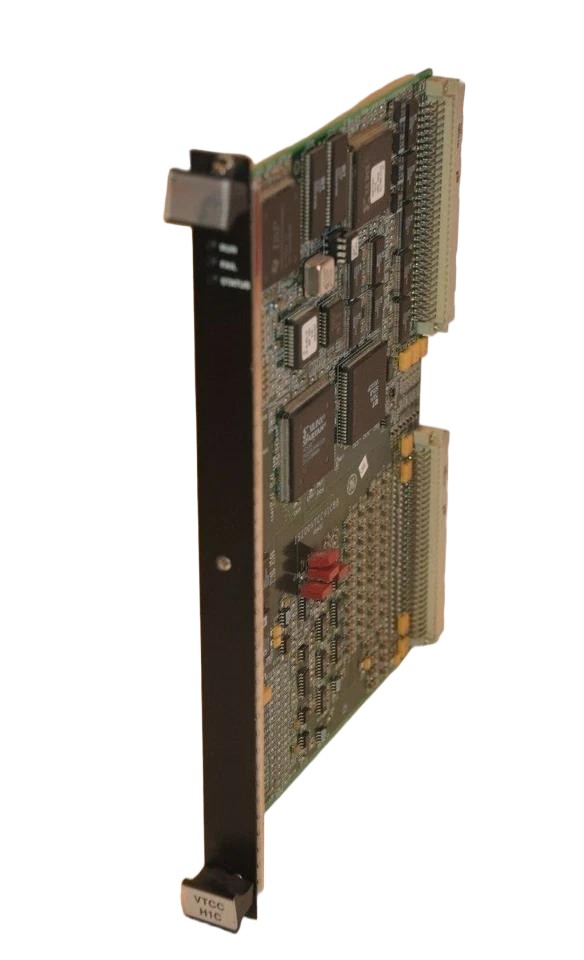

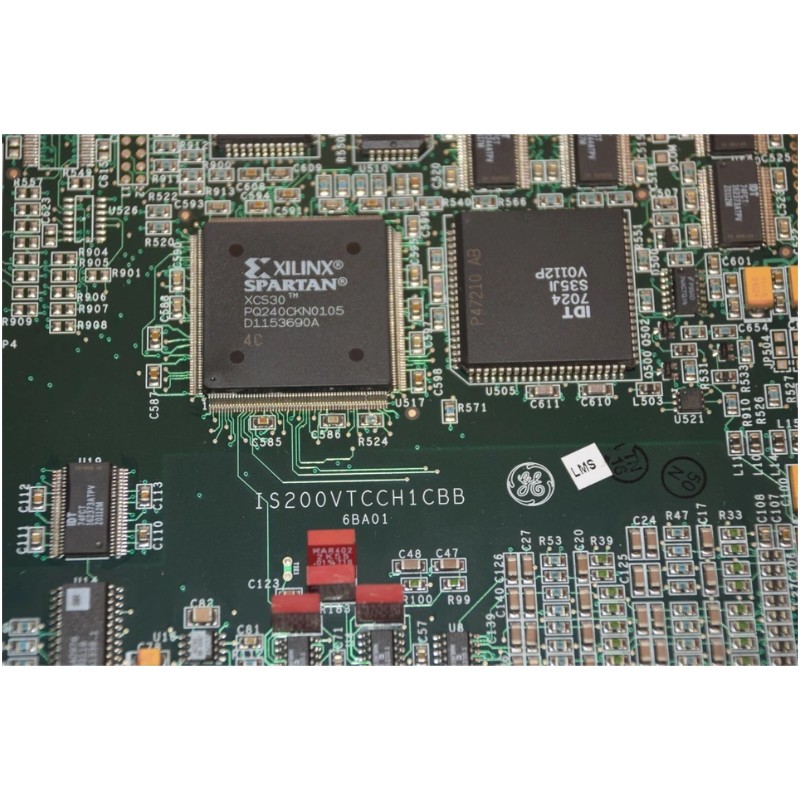

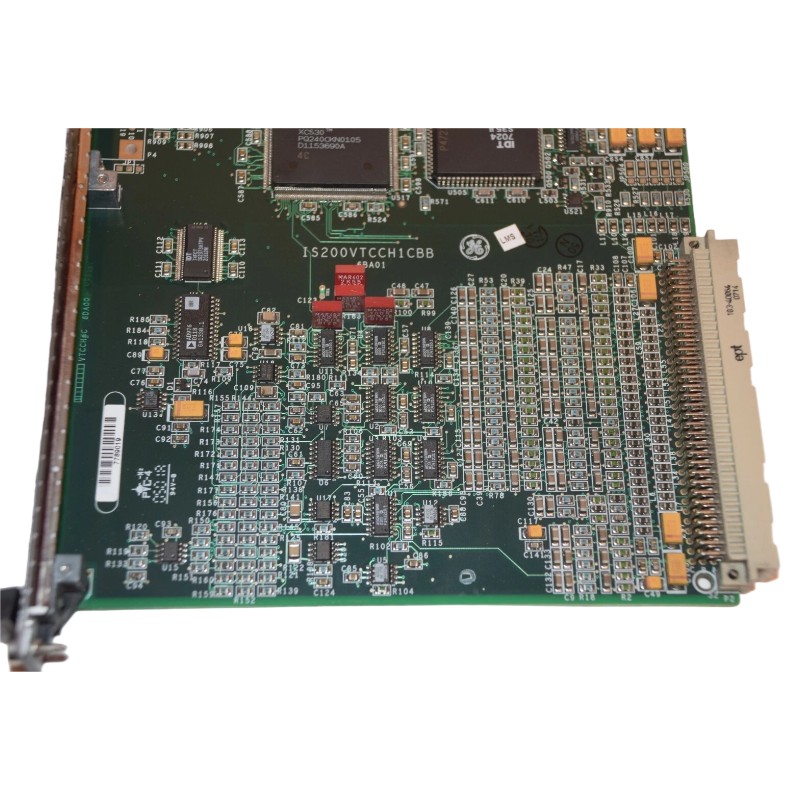

GE IS200VTCCH1CBB Thermocouple Processor Board

Overview

The GE IS200VTCCH1CBB is a thermocouple processor board designed for precise temperature measurement and signal processing in industrial control systems. It is used within GE Mark VI turbine control architectures to ensure accurate thermal monitoring, stable data acquisition, and reliable system performance in critical applications.

General Information

Part Number: IS200VTCCH1CBB

Manufacturer: GE

Brand / Country of Origin: GE / United States

Series: Mark VI Control System

Type: Thermocouple Processor Board

Mounting: Installed in Mark VI control rack system

Technology: Thermocouple signal conditioning and temperature processing electronics

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption electronic module

Protection Features: Electrical isolation and input signal protection

Indicators: Status and diagnostic LED indicators via system controller

Communication & Interface

Input Type: Thermocouple sensor inputs

Function: Processes temperature signals for monitoring and control applications

Diagnostics: Open-circuit detection, signal validation, and fault monitoring

Operator Interface: Managed through GE Mark VI system controller

Reset Capability: Supported via system-level reset and recovery functions

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for turbine and industrial control environments

Protection Rating: IP20 when installed in control cabinet

Dimensions & Weight

Dimensions: 82.6 × 41.9 mm

Weight: Approximately 0.45 kg

Precision Temperature Control for Demanding Industrial Applications!
