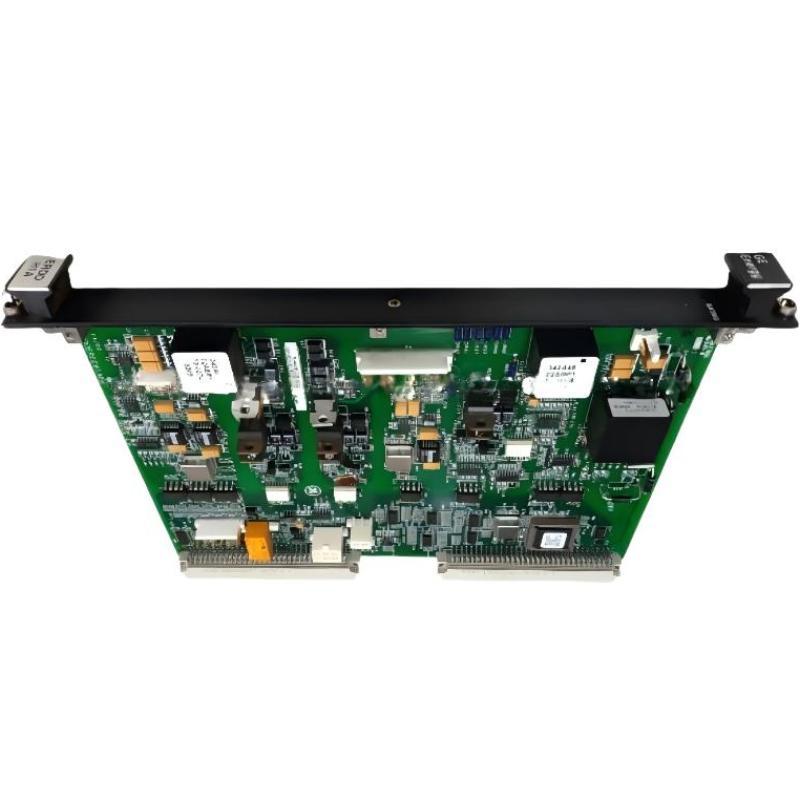

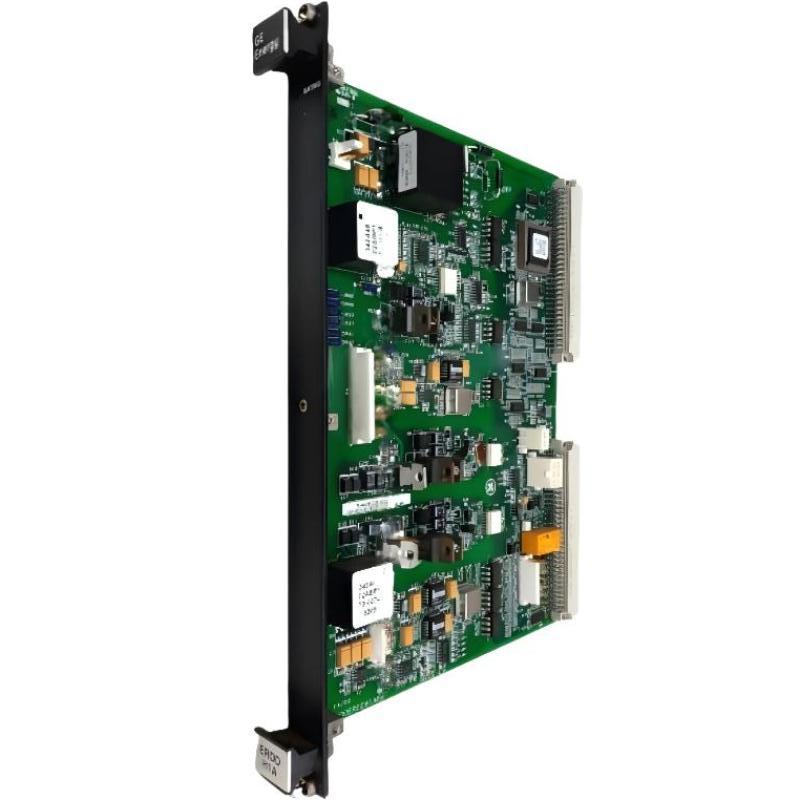

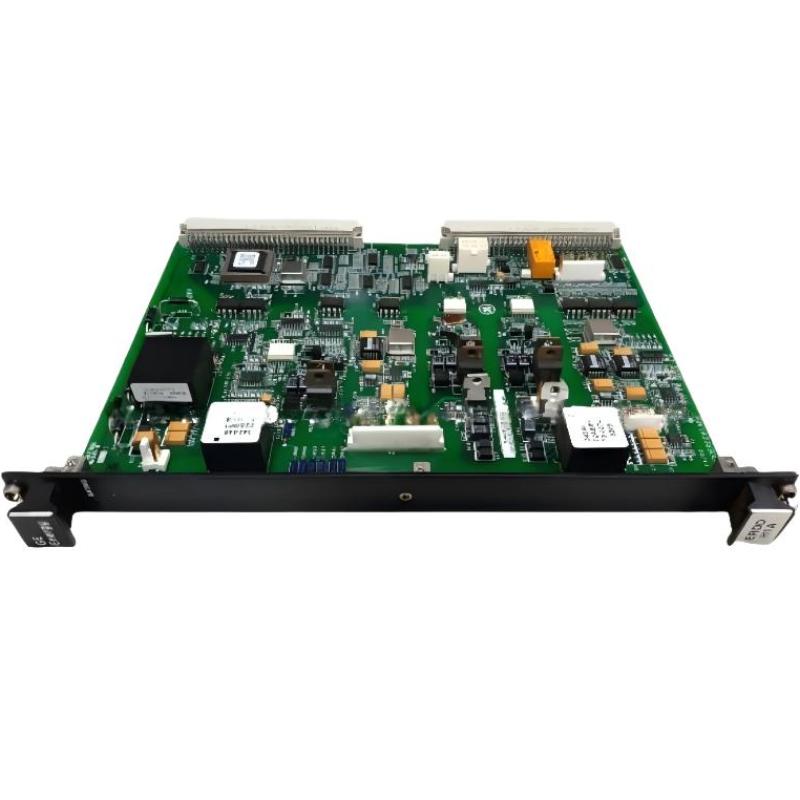

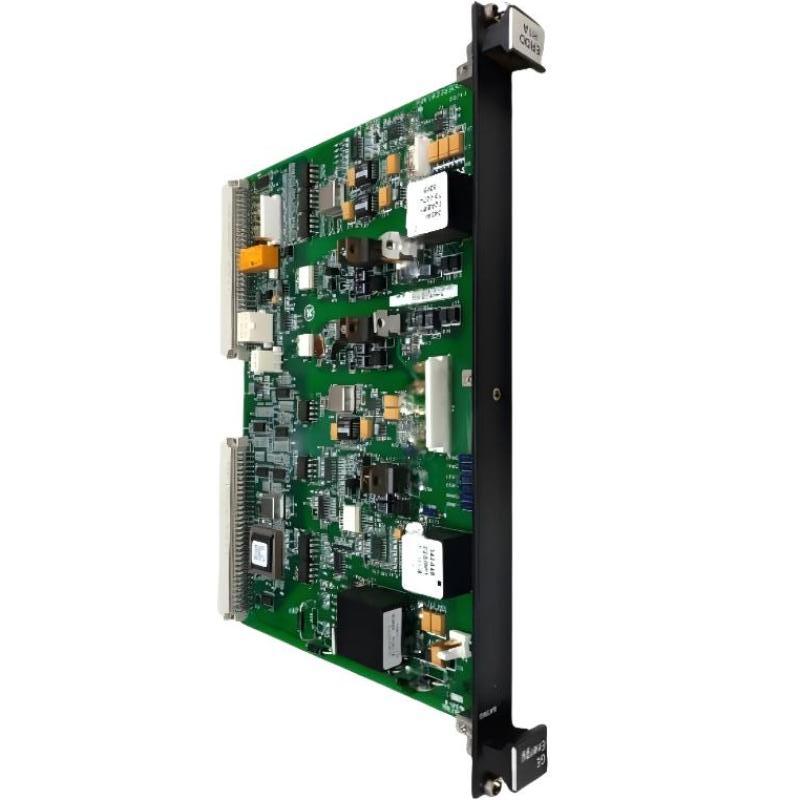

GE IS200ERDDH1A Dynamic Discharge Plate

Overview

The GE IS200ERDDH1A is a dynamic discharge plate designed for industrial automation and power generation systems. It facilitates safe and controlled discharge of electrical energy from exciter circuits, enhancing system stability and protecting components from overvoltage conditions.

General Information

Part Number: IS200ERDDH1A

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: IS200 Series

Type: Dynamic Discharge Plate / Excitation Safety Component

Mounting: Panel or rack installation within control cabinets

Technology: High-reliability discharge paths, integrated safety and grounding features

Power Specifications

Supply Voltage: N/A (passive component)

Power Consumption: N/A

Input: N/A

Protection: Prevents overvoltage and safely dissipates excess energy

Indicators: None

Communication & Interface

Interface Ports: Mechanical and electrical mounting points for exciter circuits

Network Role: Provides safe discharge path for dynamic excitation currents

Diagnostics: N/A

Operator Interface: N/A

Reset Features: N/A

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for standard industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 231.7 × 63.5 × 50.8 mm

Weight: 0.36 kg
