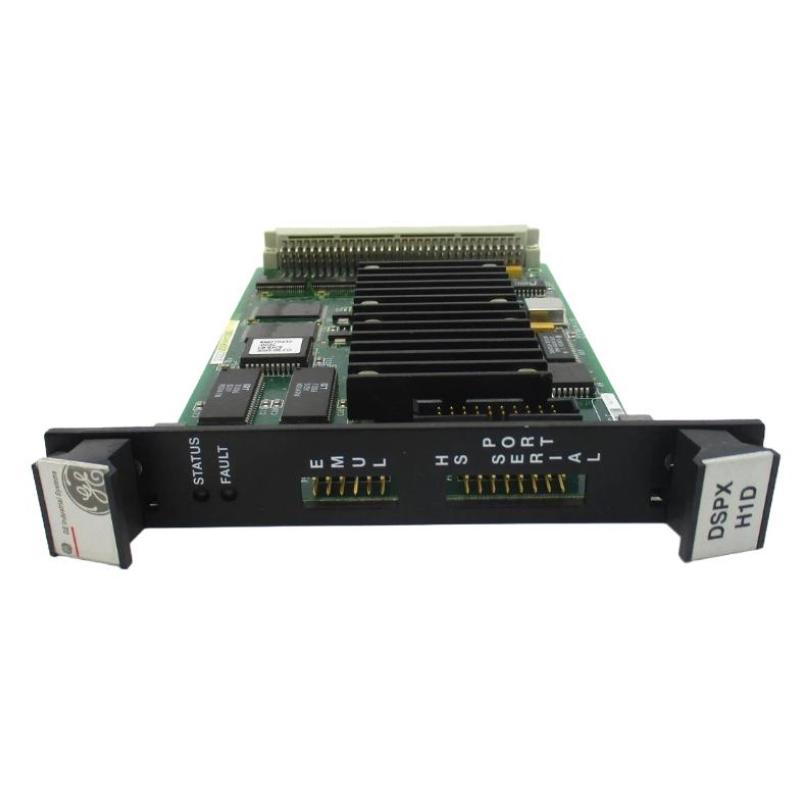

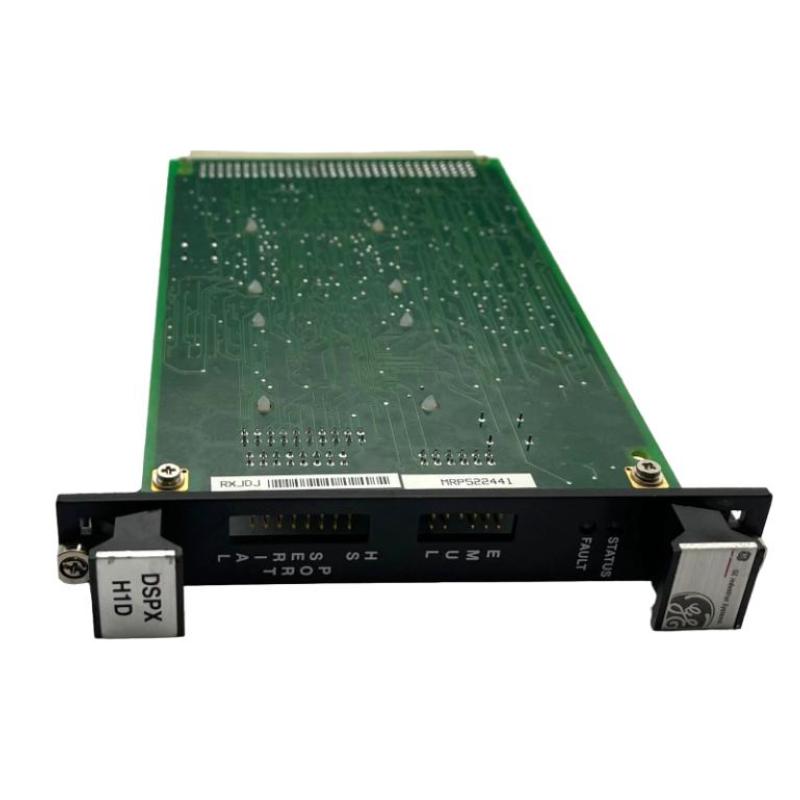

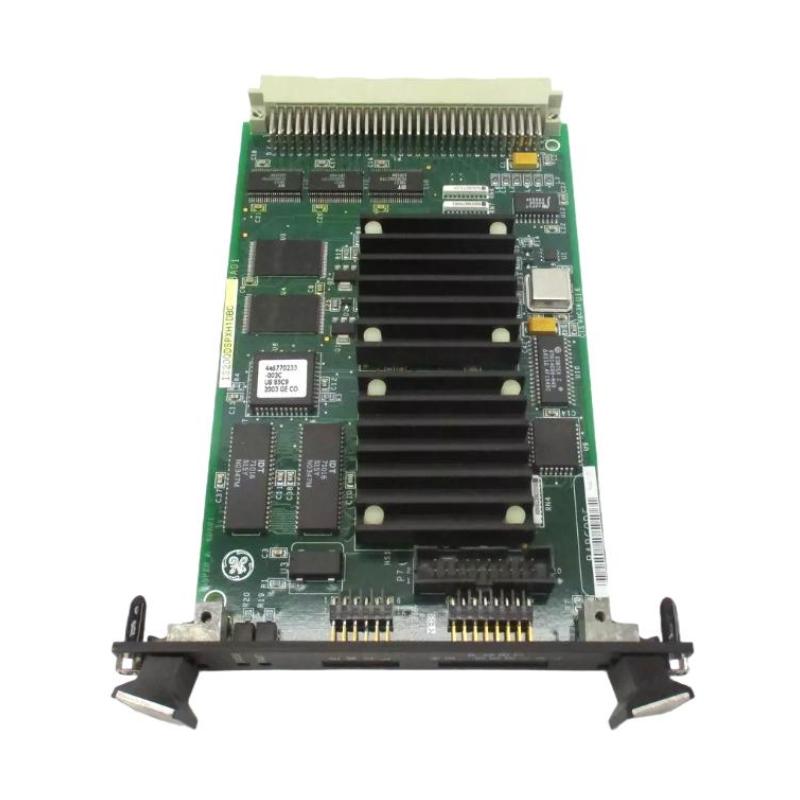

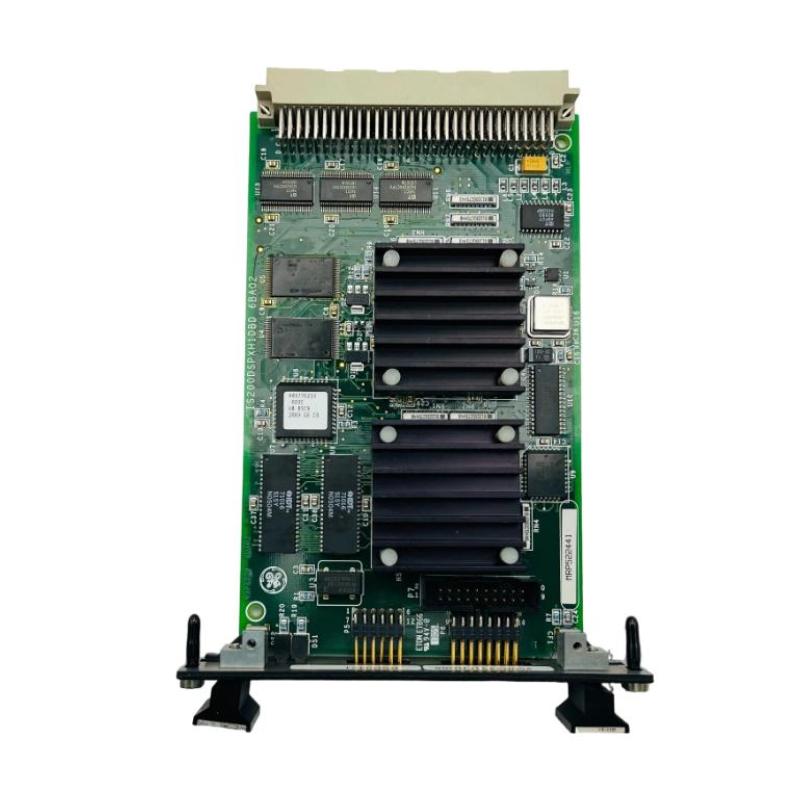

GE IS200DSPXH1D Digital Signal Processor Control Board

Overview

The GE IS200DSPXH1D is a high-performance digital signal processor (DSP) control board designed for industrial automation and process control applications. It provides precise signal processing, data management, and control functions to optimize system performance and reliability.

General Information

Part Number: IS200DSPXH1D

Manufacturer: General Electric (GE)

Brand: GE Industrial Solutions

Country of Origin: USA

Series: IS200 / I/O and Control Modules

Type: Digital Signal Processor (DSP) Control Board

Mounting: Panel or DIN rail installation within control cabinet

Technology: Advanced DSP with built-in diagnostics and error detection

Power Specifications

Supply Voltage: 24 V DC nominal

Power Consumption: ≤ 12 W

Input Power Source: Supplied through system backplane or dedicated terminal

Protection: Overvoltage, reverse polarity, and surge protection

Indicators: LED indicators for power, status, and fault conditions

Communication & Interface

Internal Communication: Backplane or bus interface with controller

Signal Type: Digital input/output and processed signals

Channels: Configurable DSP channels for data acquisition and control

Diagnostics: Continuous self-monitoring and fault reporting

Configuration: Software-configurable through control system interface

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Industrial-grade design for harsh environments

Protection Rating: IP20 (installed in control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 267 × 100 × 25 mm

Weight: 0.5 kg

In Stock Now
