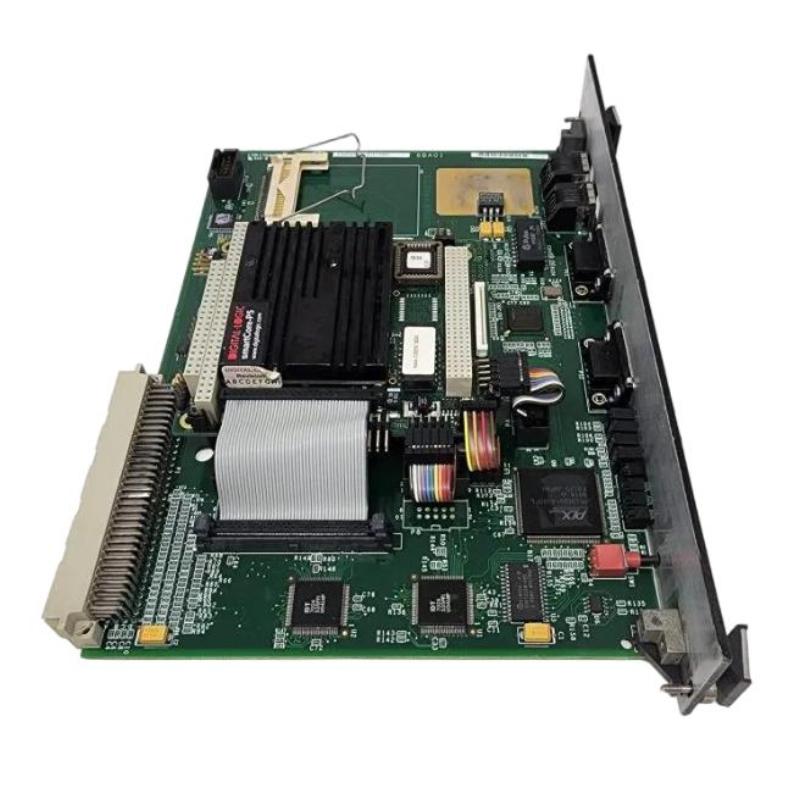

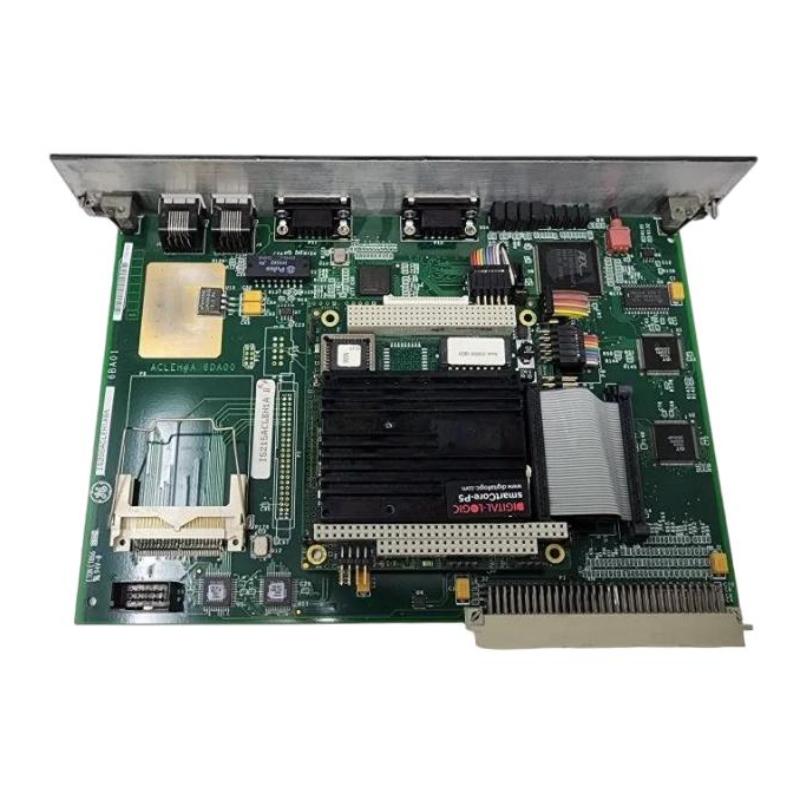

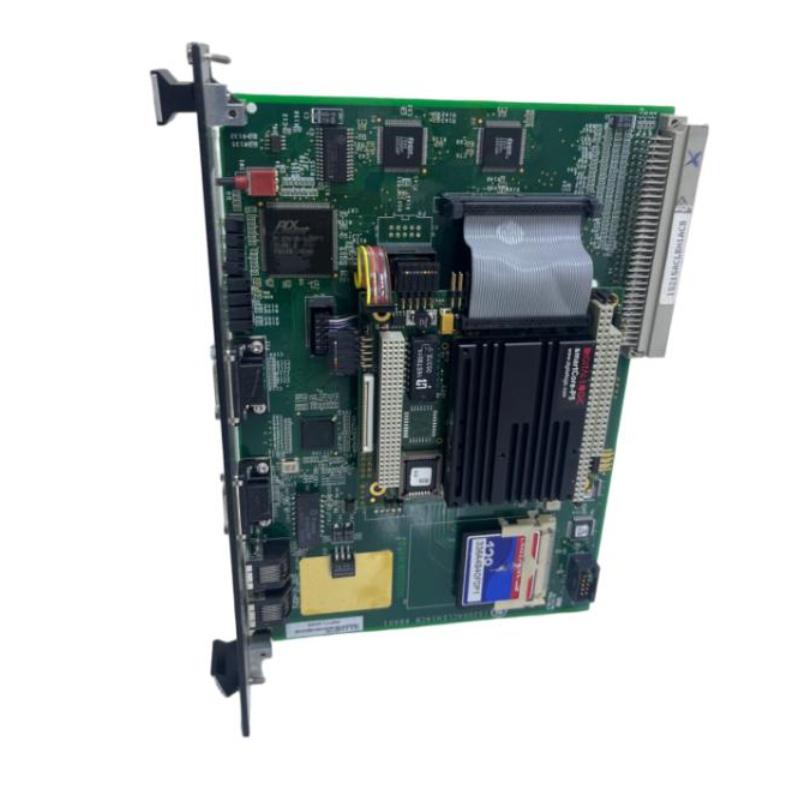

GE IS200ACLEH1A Application Control Layer Module

Overview

The GE IS200ACLEH1A is an Application Control Layer Module designed for advanced industrial control systems. It provides high-level processing and coordination functions, enabling efficient control logic execution and seamless interaction between system layers for optimized performance.

General Information

Part Number: IS200ACLEH1A

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / United States

Series: Mark VI Control System Series

Type: Application Control Layer Module

Mounting: Installed within control rack or system enclosure

Function: Handles application-level control logic and system coordination

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Moderate consumption for advanced processing tasks

Processing Capability: High-performance application-level processing

Protection: Integrated system protection and fault handling

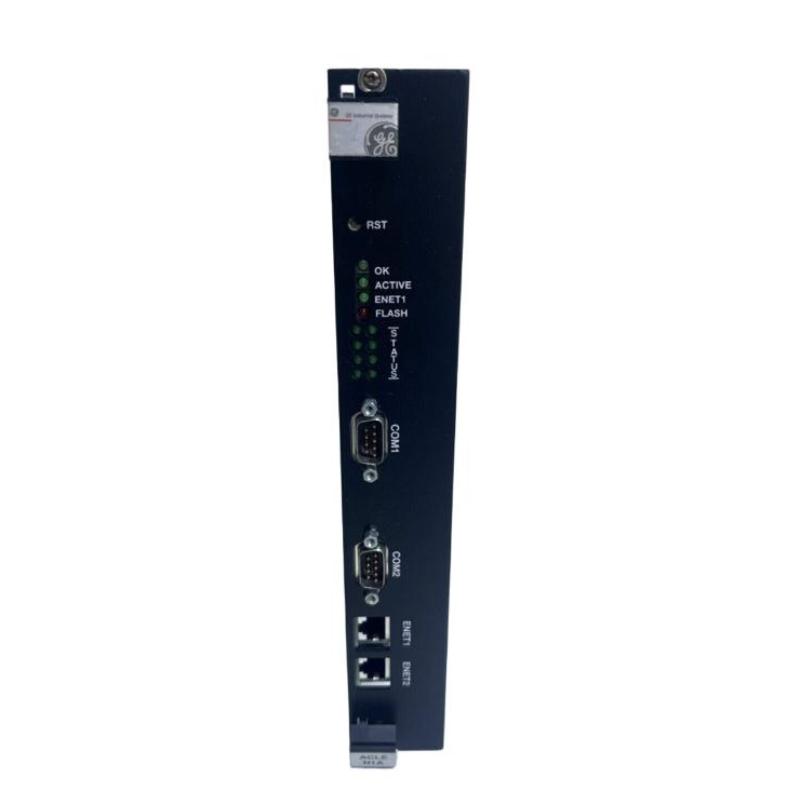

Indicators: LED indicators for power, status, and diagnostics

Communication & Interface

System Interface: Backplane connection with control system modules

Data Exchange: Supports communication between control layers and subsystems

Diagnostics: Advanced diagnostics and system monitoring capabilities

Operator Interface: LED indicators for operational status

Compatibility: Designed for GE Mark VI control systems

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for installation in industrial control cabinets

Vibration Resistance: Meets industrial standards for vibration and shock

Dimensions & Weight

Dimensions (L × W × H): 215 × 154 × 30 mm

Weight: 1.315 kg

Advanced Control Performance – Built for High-Level System Integration!
