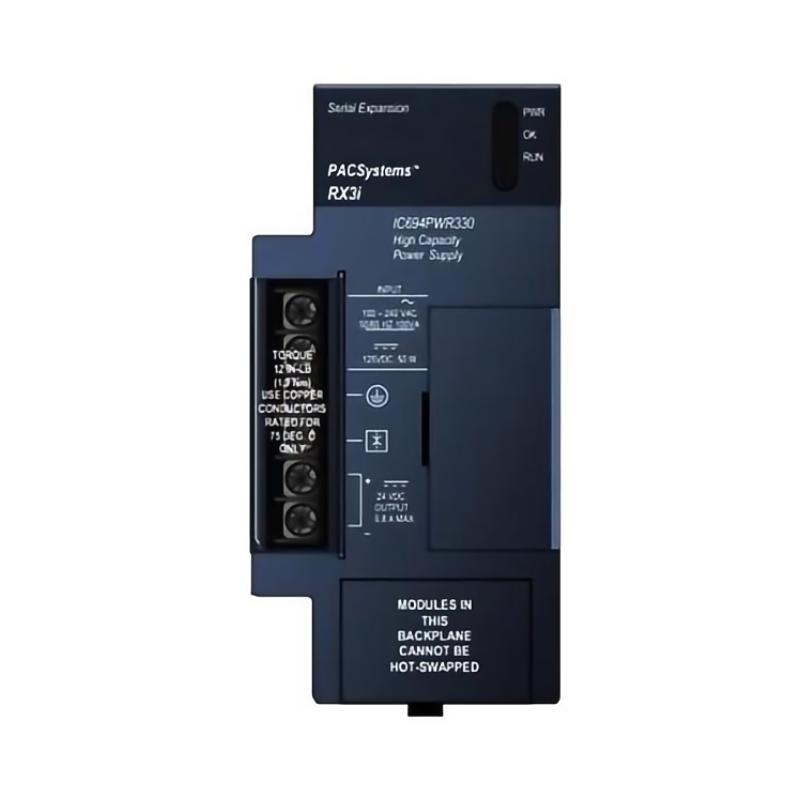

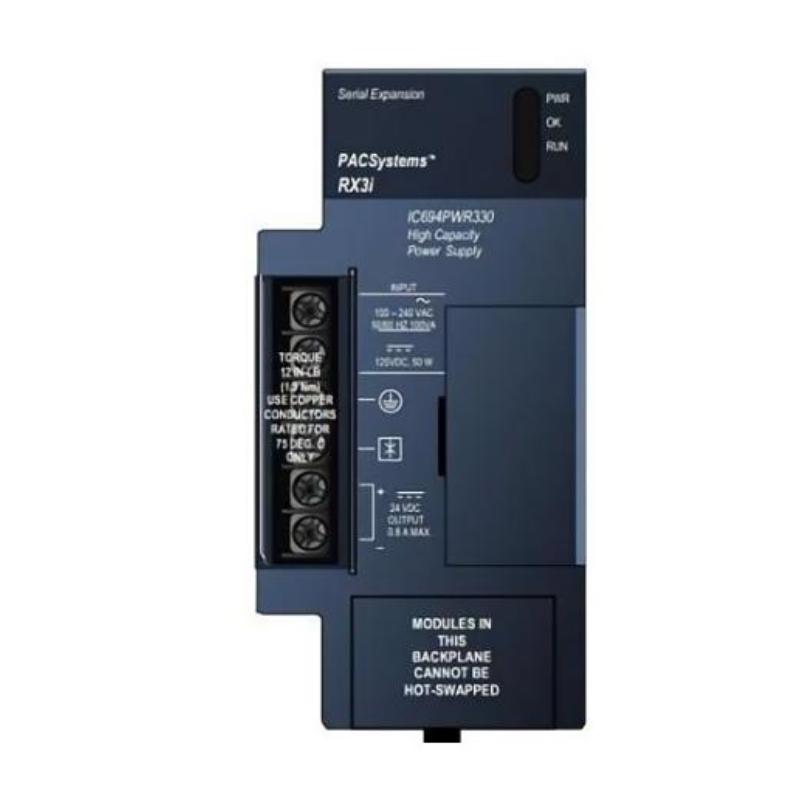

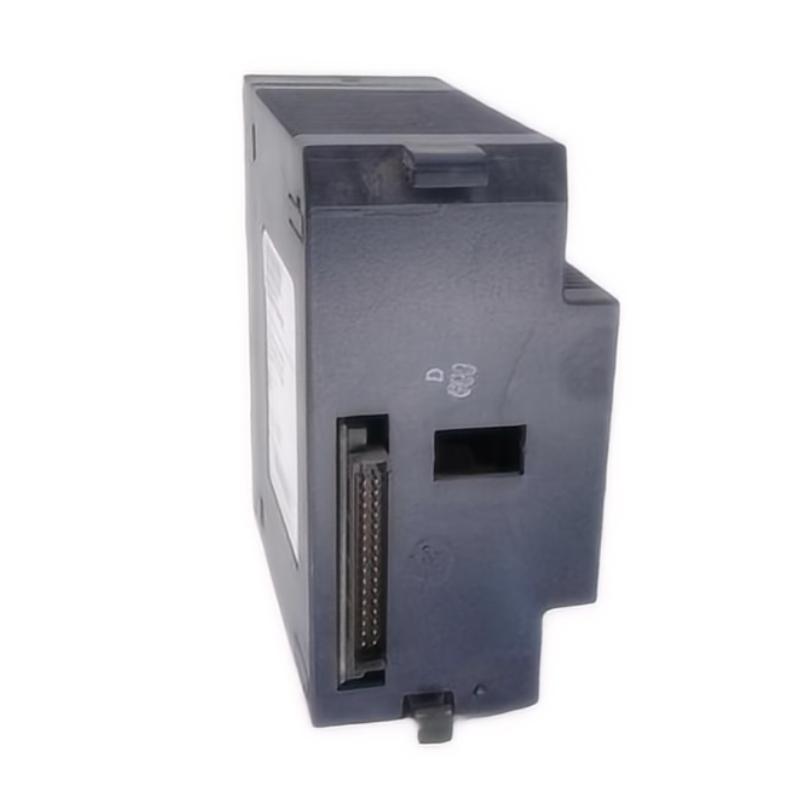

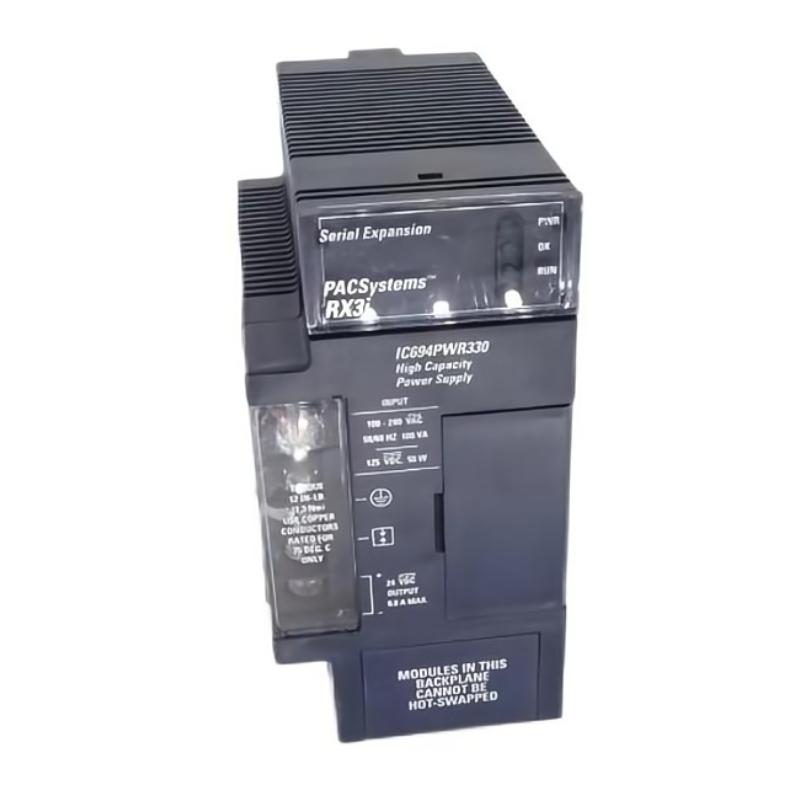

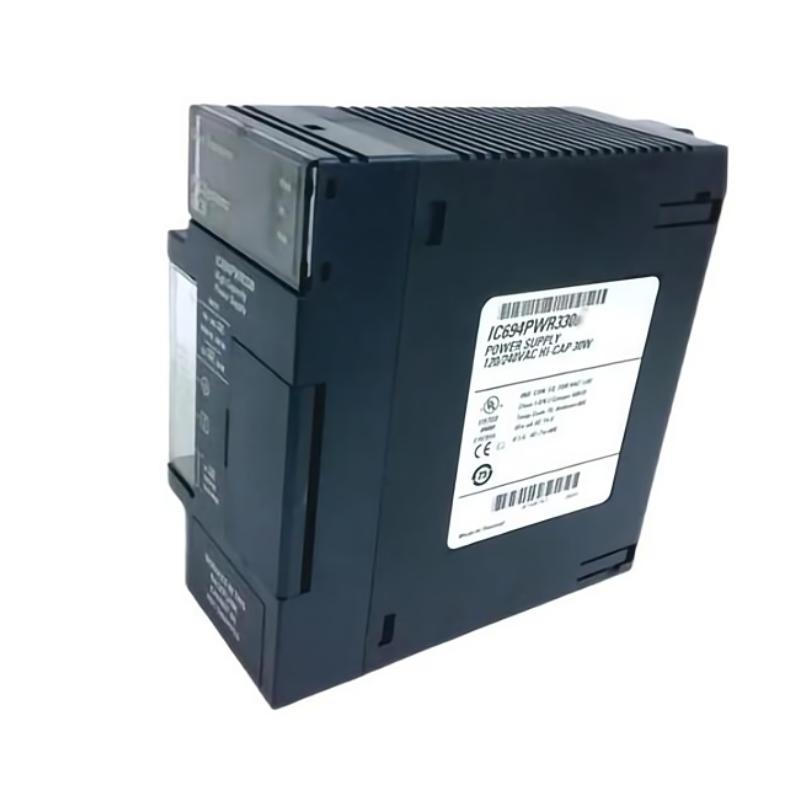

GE IC694PWR330 Power Module

Overview

The GE IC694PWR330 is a dependable power module for the RX3i programmable automation controller (PAC) series. It provides stable 24 V DC power to the backplane and connected modules, ensuring consistent performance and reliability in industrial automation systems.

General Information

Part Number: IC694PWR330

Manufacturer: GE (General Electric)

Brand / Country of Origin: GE / USA

Series: RX3i

Type: Power Module

Application: Power supply for RX3i backplane and peripheral modules

Mounting: Rack-mounted within RX3i control system chassis

Technology: High-reliability DC power output with integrated protection and diagnostics

Power Specifications

Input Voltage: 100–240 V AC

Output Voltage: 24 V DC

Output Current: 5 A max

Power Consumption: ≤ 50 W

Protection: Overvoltage, short-circuit, and thermal protection

Indicators: LED indicators for power status and fault conditions

Communication & Interface

System Interface: Direct connection to RX3i backplane

Signal Interface: Provides power to connected modules

Diagnostics: Monitors output voltage and detects faults in real-time

Configuration: Hardware-based setup; no software configuration required

Isolation: Electrical isolation between AC input and DC output

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (installed inside control cabinet)

EMC Compliance: Compliant with industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 50.8 × 146 × 137 mm

Weight: 0.3 kg
