Overview

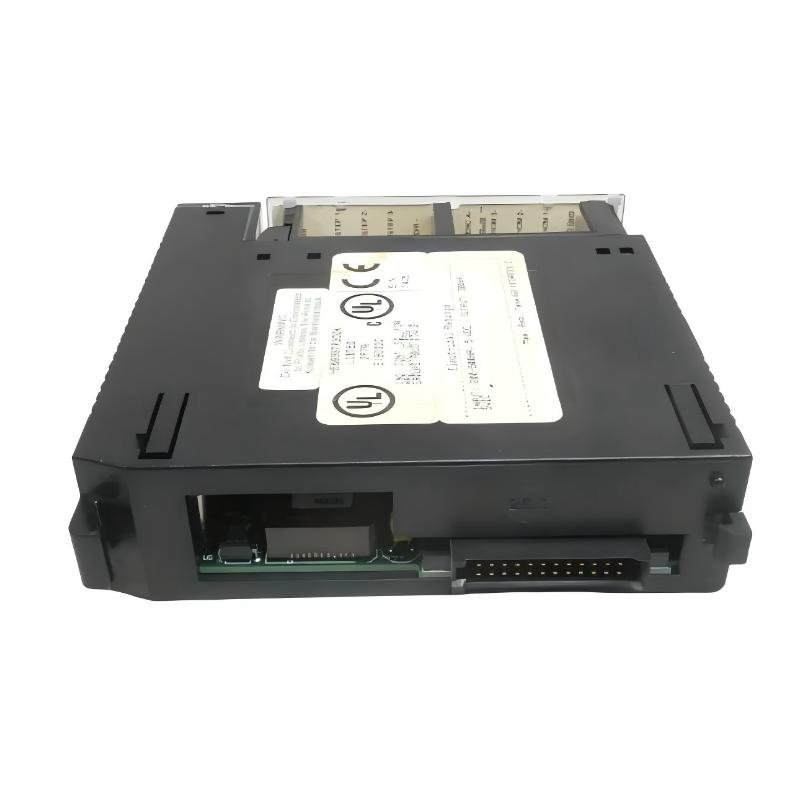

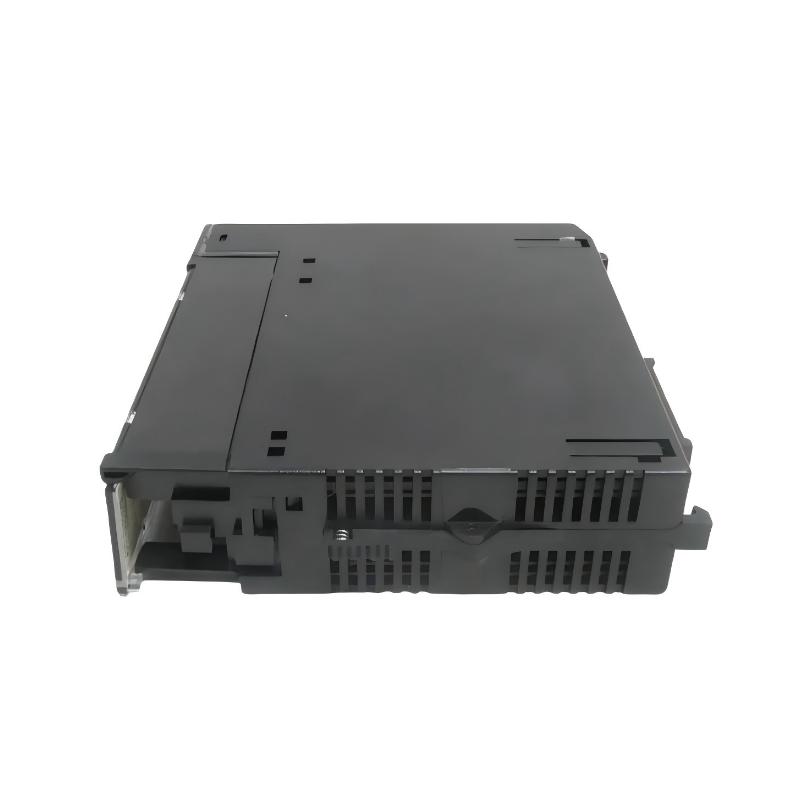

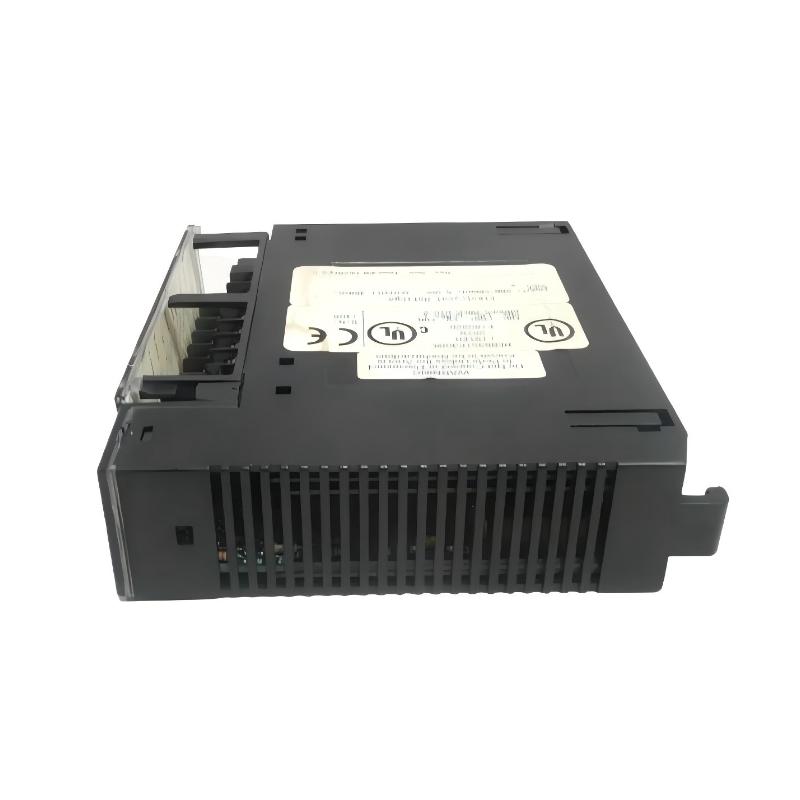

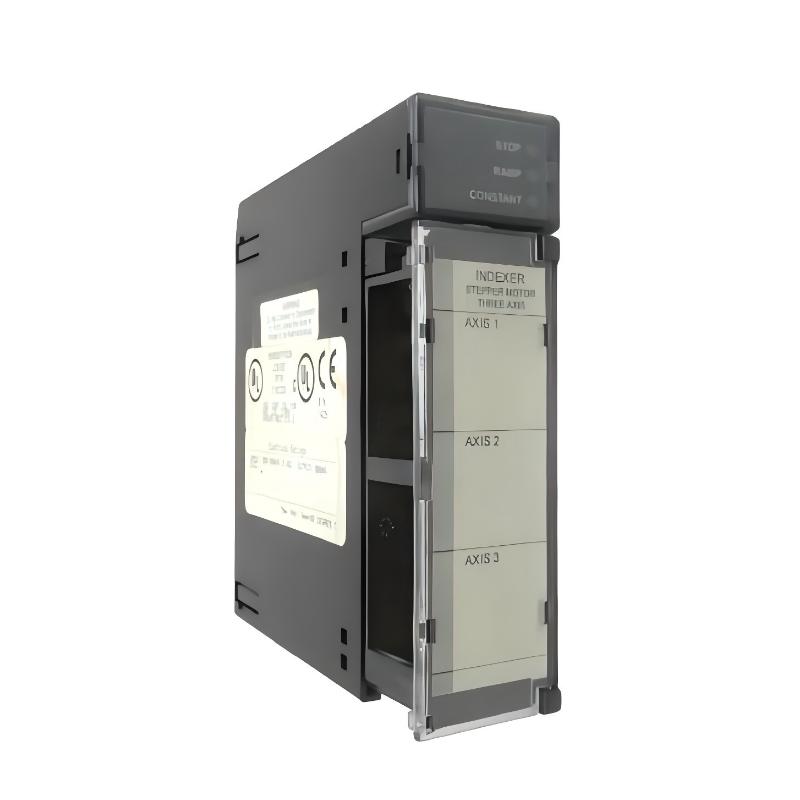

The GE Fanuc HE693STP300K Stepping Positioning Module is designed for precise motion control in industrial automation systems. It provides accurate stepping motor positioning and reliable performance, making it suitable for applications that require controlled movement, synchronization, and repeatable accuracy.
General Information
Part Number: HE693STP300K
Manufacturer: GE Fanuc
Series: 90-30 Series
Type: Stepping Positioning Module
Application: Motion and position control for stepping motors
Country of Origin: USA
Power Specifications
Supply Voltage: 5 V DC (via backplane)
Power Consumption: ≤ 5 W
Input: Powered from PLC rack backplane
Protection: Built-in electrical protection and fault detection
Communication & Interface
Interface: Compatible with GE Fanuc 90-30 PLC systems
Control Function: Pulse output for stepper motor positioning
Diagnostics: LED indicators for module and operation status
Configuration: Programmable through PLC software
Reset Features: Software-controlled reset support
Environmental
Operating Temperature: 0 to +60 °C
Humidity: 5% to 95%, non-condensing
Protection Rating: IP20, for panel installation
Dimensions & Weight
Dimensions (L × W × H): 180 × 120 × 45 mm
Weight: 0.159 kg
Precision motion control with fast delivery!
