GE DS200TCPSG1AME | Mark V Power Supply DC Input Board 100% New

Overview

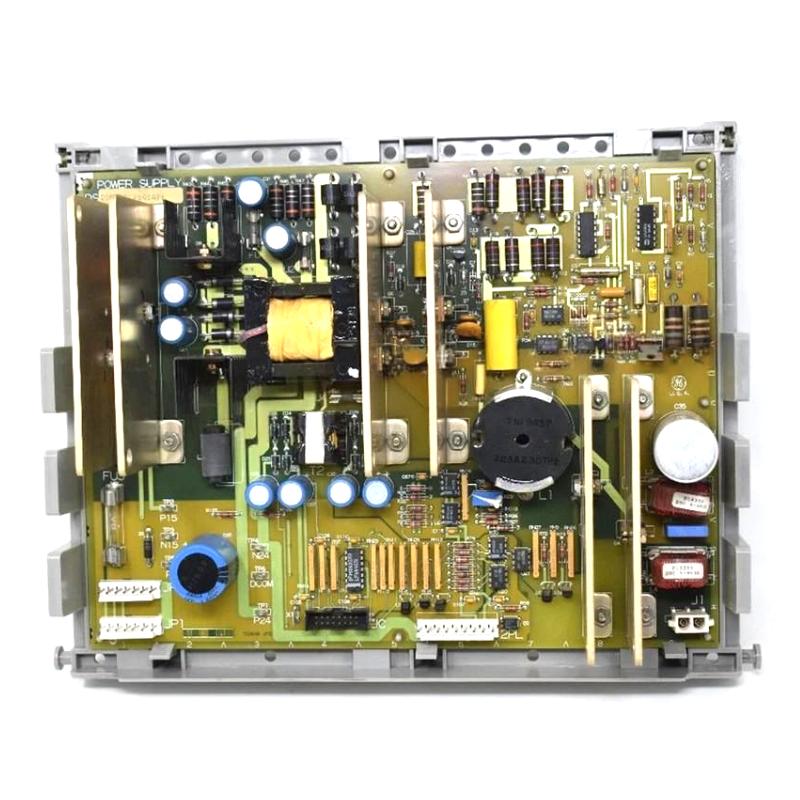

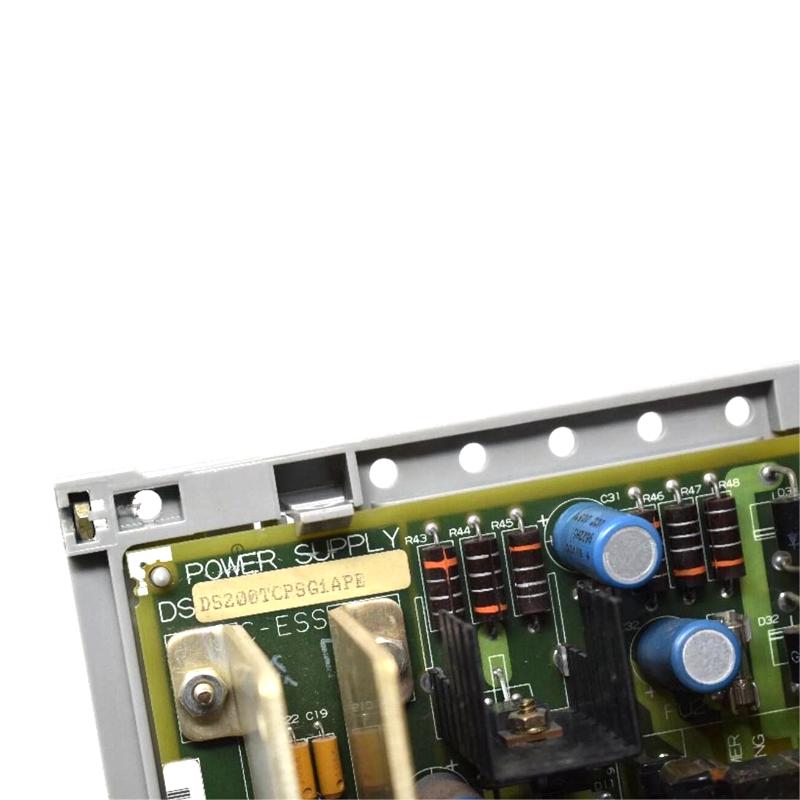

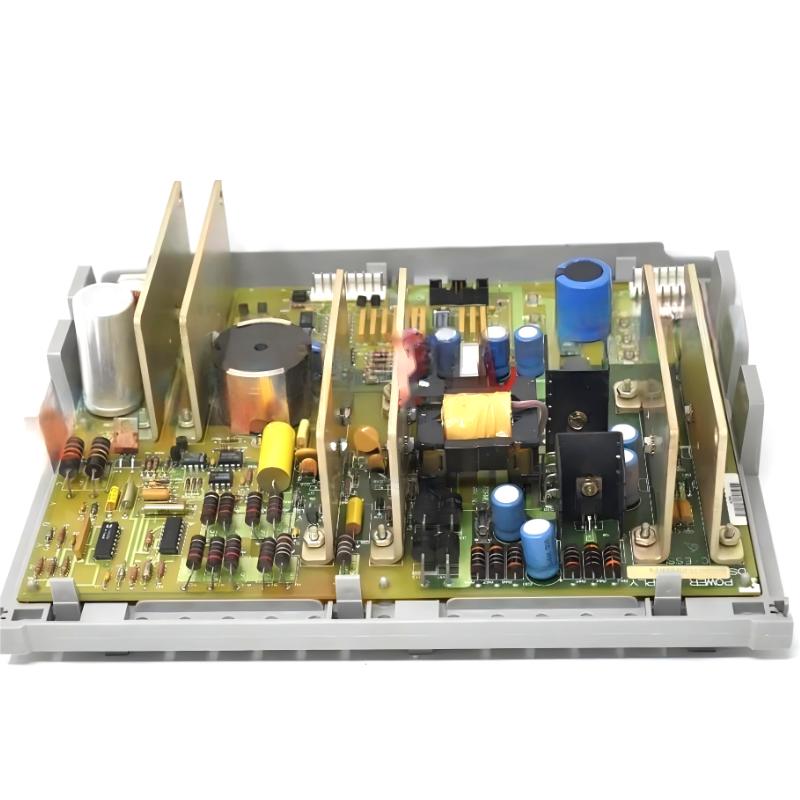

The GE DS200TCPSG1AME is a DC input power supply board used in the GE Mark V control system. It receives and conditions DC power, distributes regulated voltages, and provides protection functions essential for turbine control electronics.

General Information

Part Number: DS200TCPSG1AME
Manufacturer: GE (General Electric)
Series: Mark V
Type: DC Input Power Supply Board
Mounting: Rack-installed PCB connected through the Mark V backplane
Function: Accepts DC input, regulates output voltages, and supplies stable power to control modules

Power Specifications

Input Voltage: DC power input from system supply
Output Voltages: Multiple regulated low-voltage DC rails for control circuitry
Protection: Over-voltage protection, filtering, isolation, transient suppression
Indicators: On-board LEDs for power and status monitoring

Communication & Interface

Interfaces: Backplane power and signal connection
Role: Feeds regulated power to associated Mark V boards and modules
Stability Control: Filtering, load regulation, and internal supervision circuits
Diagnostics: Test points and LED indicators for maintenance verification

Environmental

Operating Temperature: Suitable for standard GE turbine control cabinet conditions
Humidity: Up to 95% RH, non-condensing
Installation: Enclosed and clean industrial rack environment

Dimensions & Weight

Dimensions (L × W × H): 330 × 280 × 50 mm
Weight: ~ 0.95 kg

Get genuine brand-new products today, available in stock with fast and accurate pricing.
