Overview

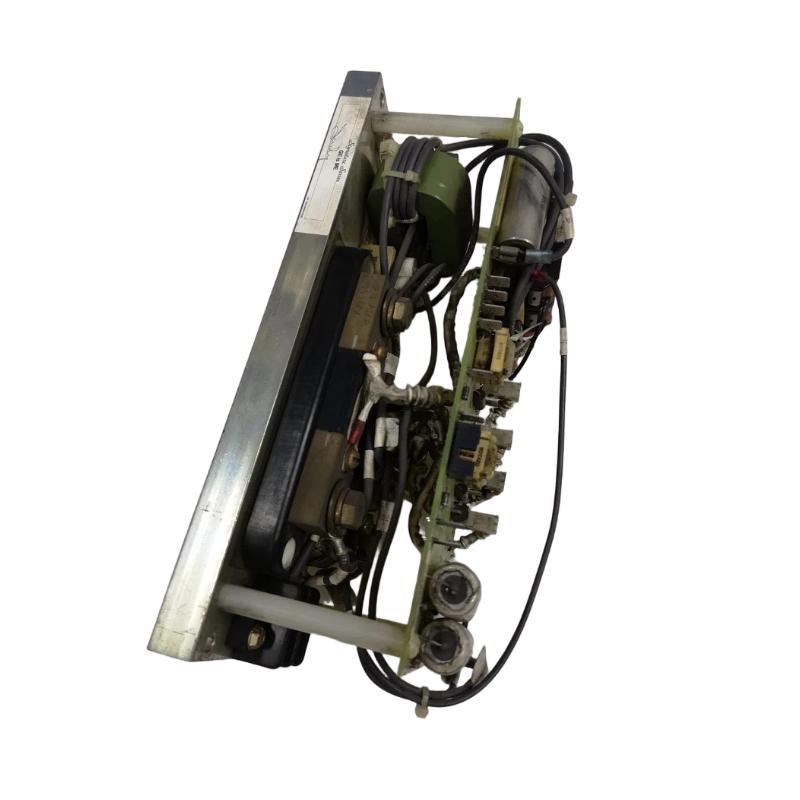

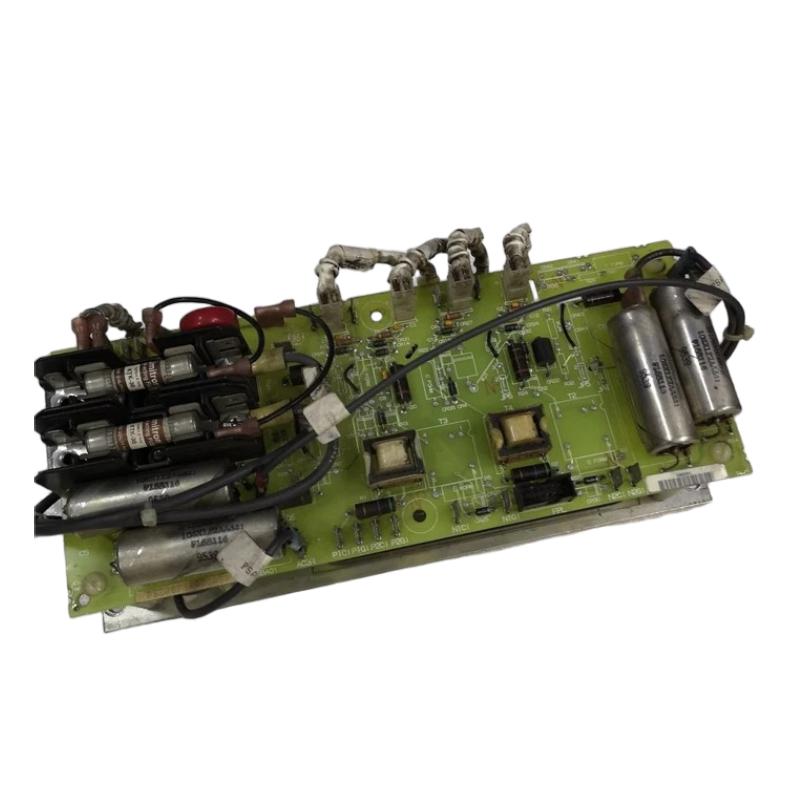

The GE DS200FSAAG2ABA is a field supply amplifier board used in GE Mark V drive and turbine control systems. It provides regulated excitation power, field signal conditioning, and stable power amplification for generator and motor field circuits, ensuring reliable performance in industrial applications.

General Information

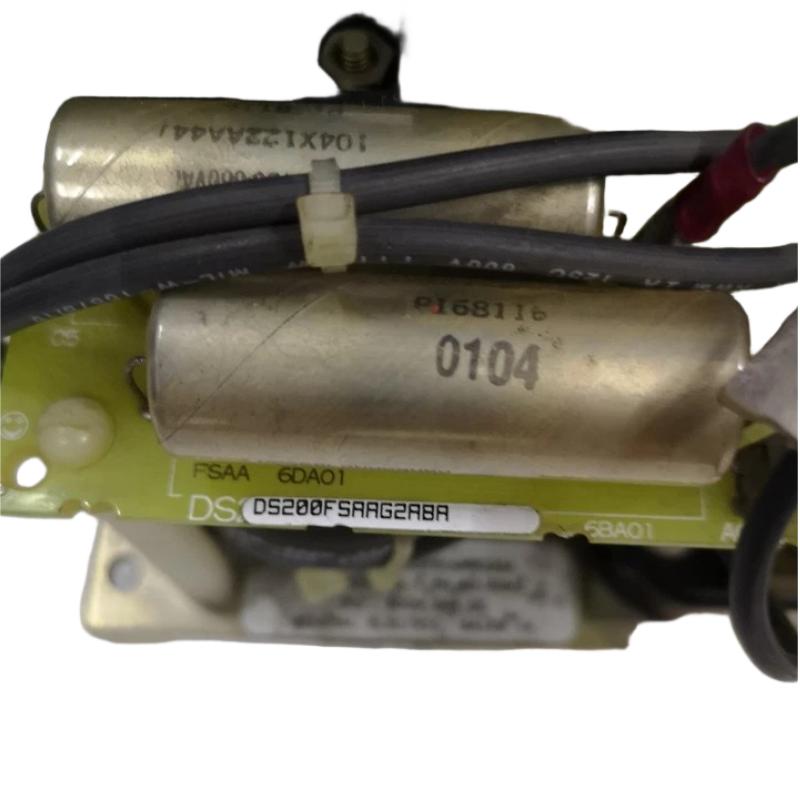

Part Number: DS200FSAAG2ABA
Manufacturer: GE (General Electric)
Series: DS200 / Mark V
Type: Field Supply Amplifier Board
Mounting: Installed inside drive cabinet or turbine control rack
Technology: Field power amplification, excitation regulation, fault monitoring

Power Specifications

Supply Voltage: Provided through the drive or control cabinet backplane
Power Function: Field excitation power regulation and amplification
Input: Control power from GE Mark V power distribution
Protection: Overcurrent and thermal protection built into the board
Indicators: LEDs for status and fault indication

Communication & Interface

Field Interface: Connects to field excitation circuits for generators or motors
Control Role: Processes control signals from the Mark V controller
Diagnostics: Monitors excitation current, temperature, and system faults
Operator Interface: LED indicators for module health and operating state
Reset Features: Supports system-level reset via controller

I/O & Channels

Relay Channels: None
External Load Support: Drives field circuits but does not support external loads
Signal Channels: Field feedback, control, and power routing paths

Environmental

Operating Temperature: Standard industrial control environment range
Humidity: Supports high-humidity, non-condensing operation
Protection Rating: Installed within protected control cabinet

Dimensions & Weight

Dimensions (L × W × H): 317.5 × 266.7 × 63.5 mm
Weight: 0.33 kg
