Overview

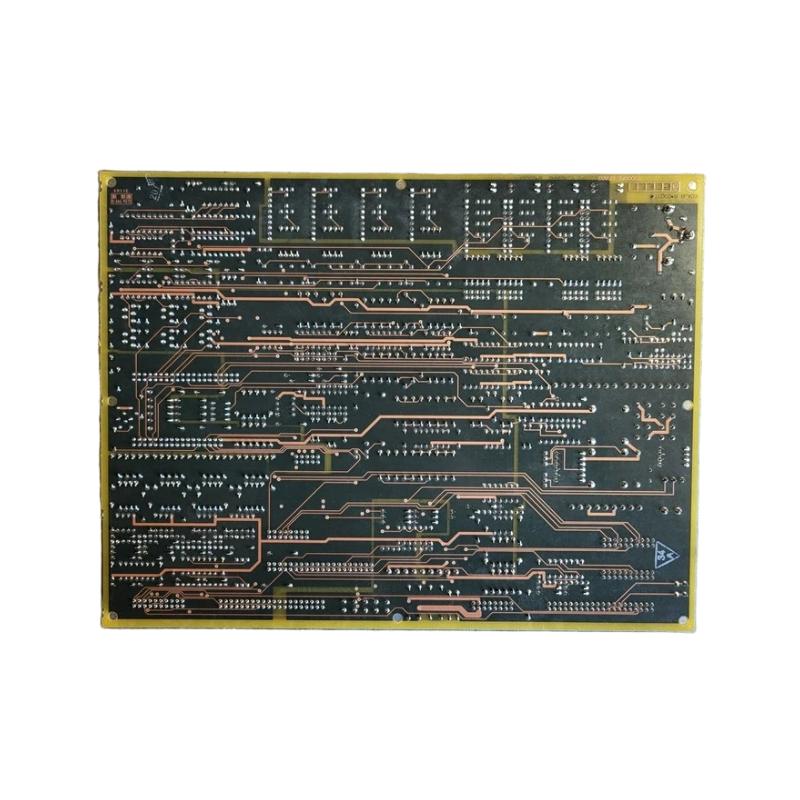

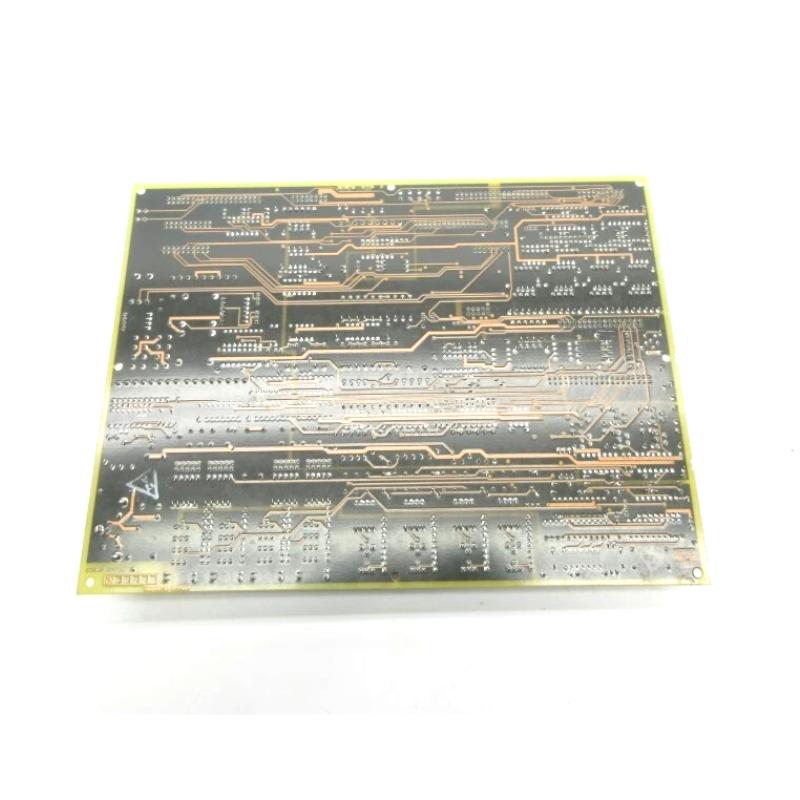

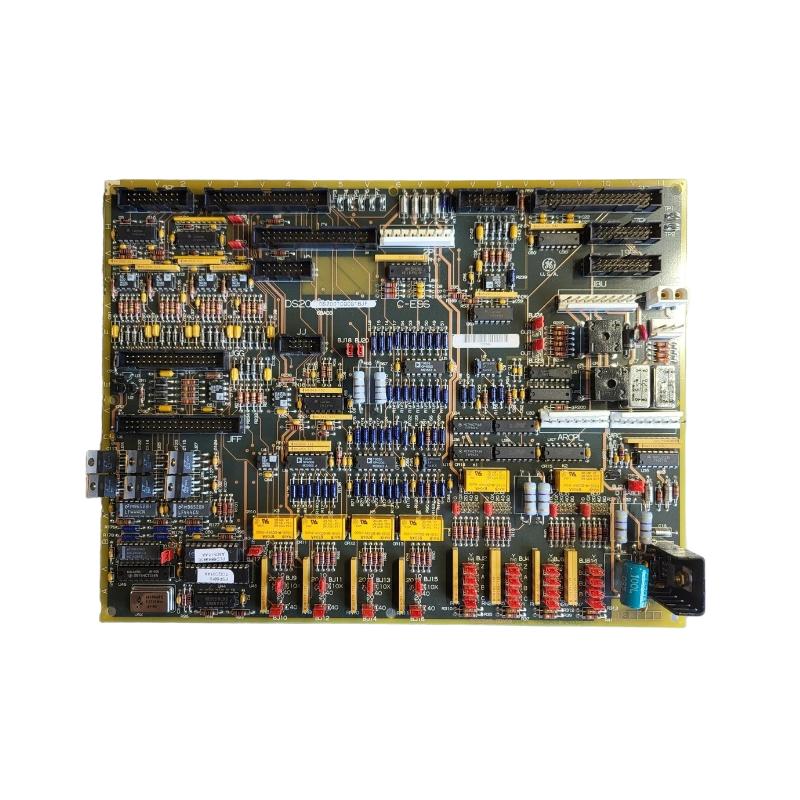

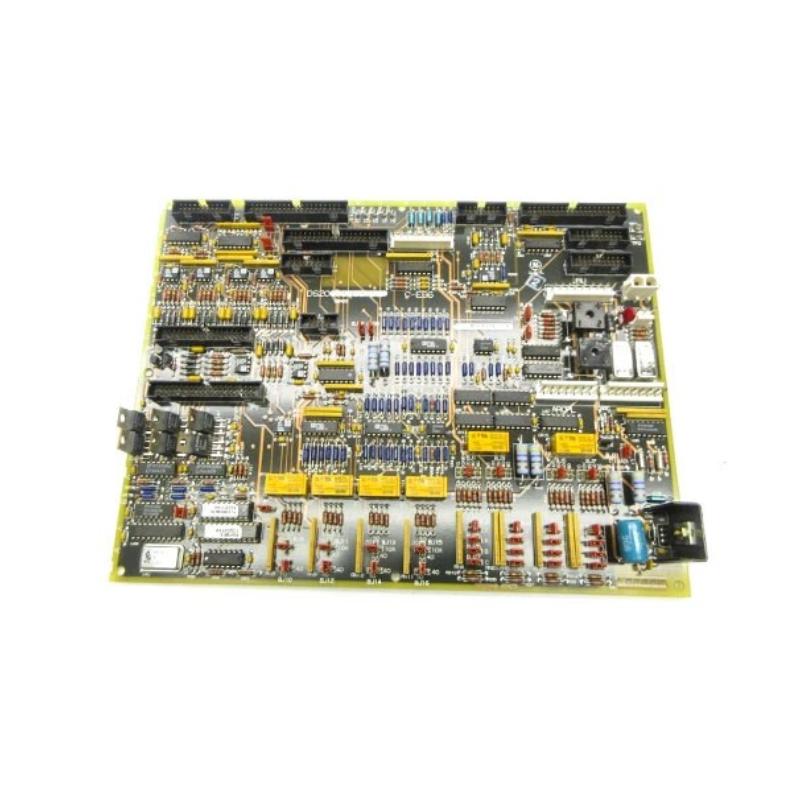

The GE DS200TCQCG1BJF is an RST Overflow Board used in the GE Mark V turbine control system. It supports signal buffering, data overflow handling, and coordination of R/S/T processor communication. This board enhances stability and ensures reliable logic execution within the Mark V control architecture.
General Information
Part Number: DS200TCQCG1BJF
Manufacturer: GE
Series: Mark V
Type: RST Overflow / Communication Support Board
Mounting: Installed on the Mark V control rack
Technology: Digital processing, buffering logic, diagnostic circuitry
Power Specifications
Supply Voltage: Powered through the Mark V backplane
Power Consumption: Low-power digital circuitry
Input Source: Internal rack power distribution
Protection: Noise filtering, surge suppression
Indicators: LED indicators for communication status and board health
Communication & Interface
Interface: Ribbon cable connectors and backplane links
Board Role: Handles overflow communication between R/S/T processors
Diagnostics: Self-test, communication integrity monitoring
Operator Interface: LED indicators and labeled connectors
Reset Features: Supports system-level reset routines
I/O & Channels
I/O Type: Digital buffering and logic routing
Function: Data overflow management and processor coordination
External Load Support: None
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial control cabinet use
Dimensions & Weight
Dimensions (L × W × H): 330 × 280 × 25 mm
Weight: ~ 0.45 kg
