Overview

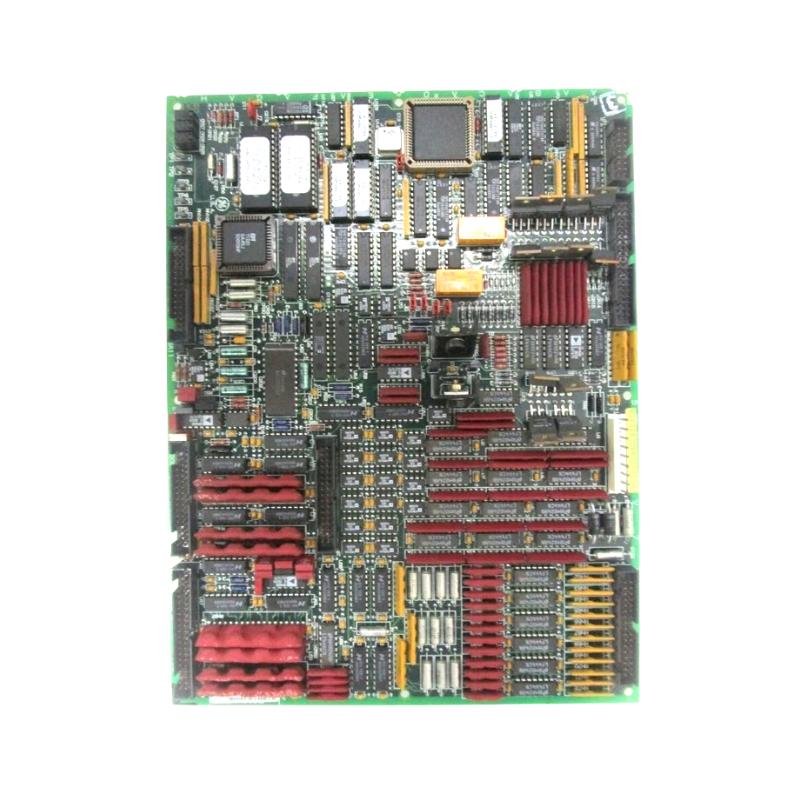

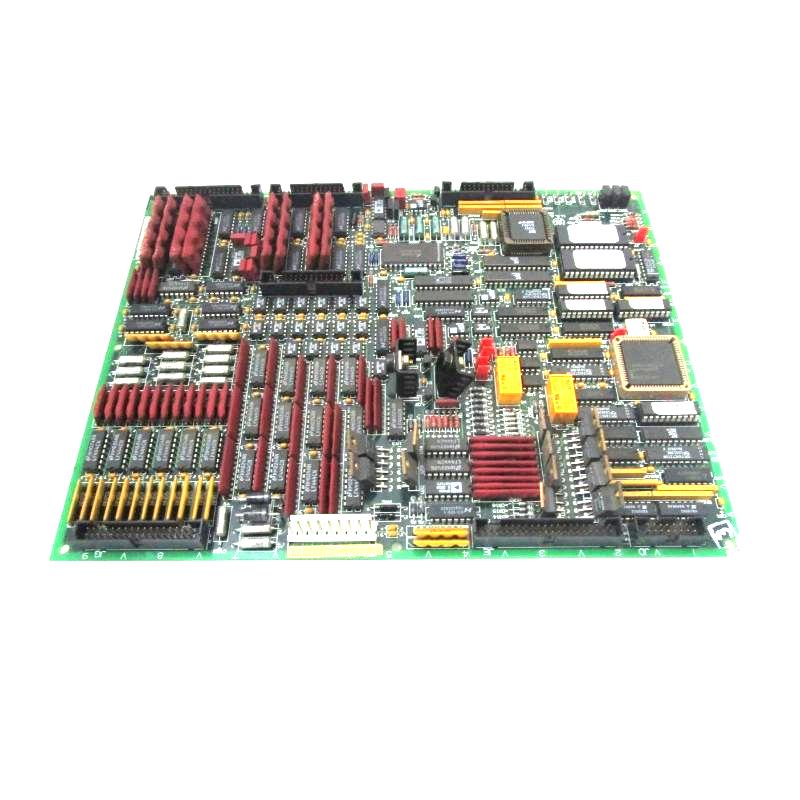

The GE DS200TCQAG1BHF is a high-performance control board used in the GE Mark V turbine control system. It processes critical control, sequencing, and protection logic for gas and steam turbines. The board handles multiple analog and digital signals, supports closed-loop control, and ensures stable operation through integrated diagnostics and redundancy features.
General Information
Part Number: DS200TCQAG1BHF
Manufacturer: GE (General Electric)
Series: Mark V
Type: Control Board
Mounting: Installed within the Mark V control cabinet rack system
Technology: Microprocessor-based logic processing with diagnostic capability
Power Specifications
Supply Voltage: Powered through the Mark V backplane
Power Consumption: Low-power control electronics
Input Power Source: Control rack distribution
Protection: On-board filtering, surge protection, signal conditioning
Indicators: Status LEDs for channel operation and fault monitoring
Communication & Interface

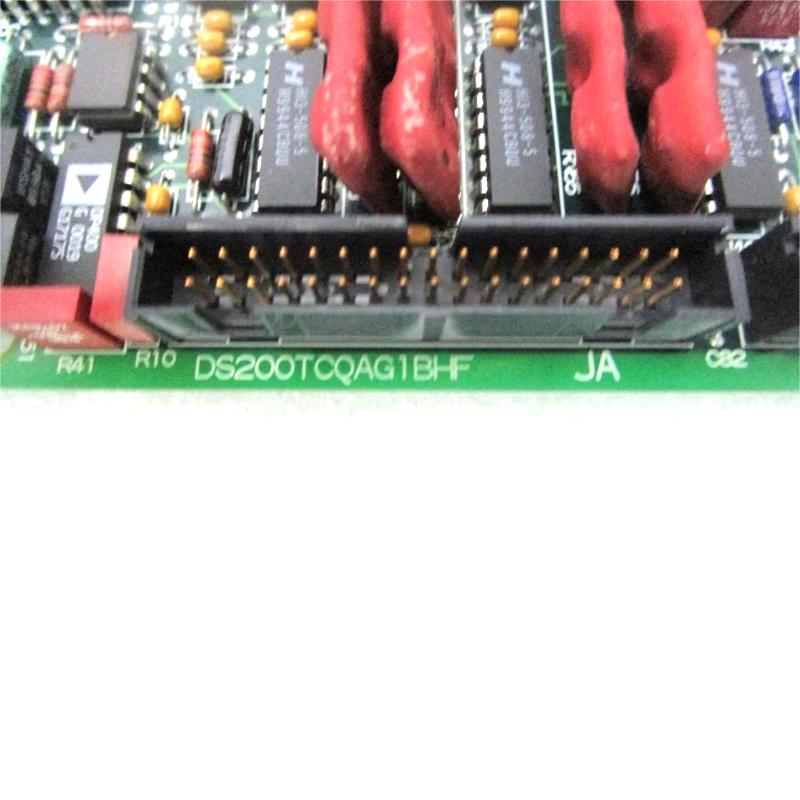

Interface Ports: Ribbon cable connectors and backplane interfaces
Control Role: Executes turbine sequencing, logic, and I/O processing
Diagnostics: Self-test routines, fault detection, CPU health monitoring
Operator Interface: LED indicators and labeled connectors for maintenance
Reset Features: Supports software and system-level reset actions
I/O & Channels
I/O Type: Mixed digital and analog signal handling
Primary Functions: Control logic execution, signal conditioning, system coordination
External Load Support: Not applicable (logic processing only)
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for indoor industrial control enclosure installation
Dimensions & Weight
Dimensions: 330 × 280 × 25 mm
Weight: ~ 0.454 kg
