Overview

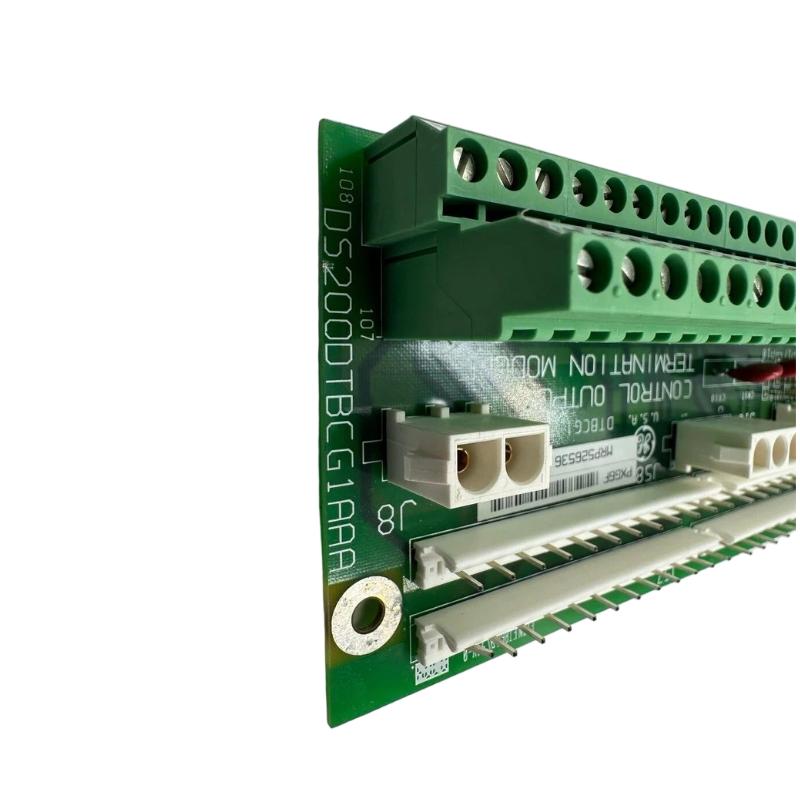

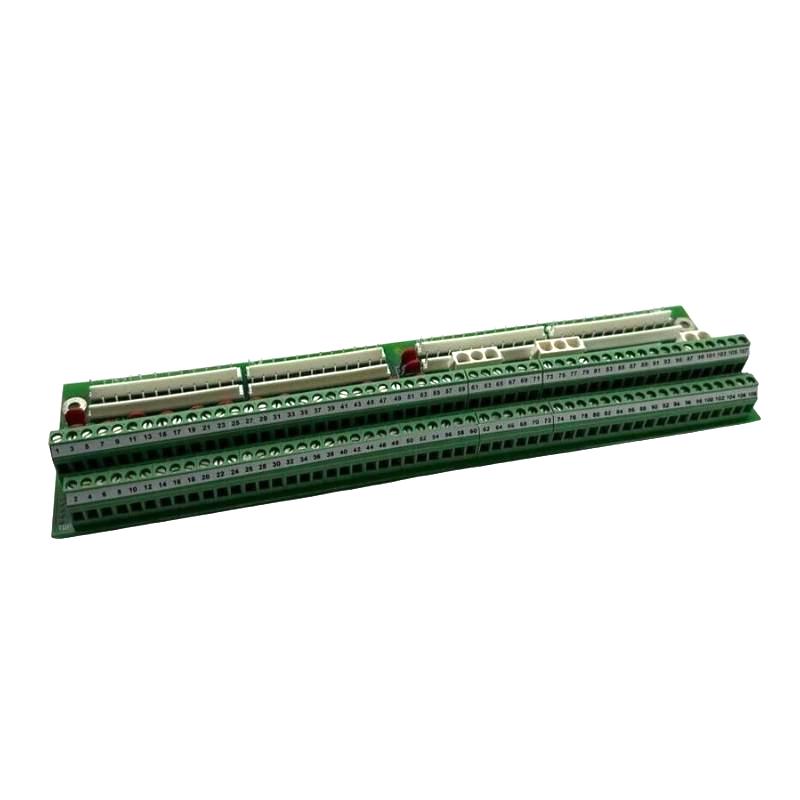

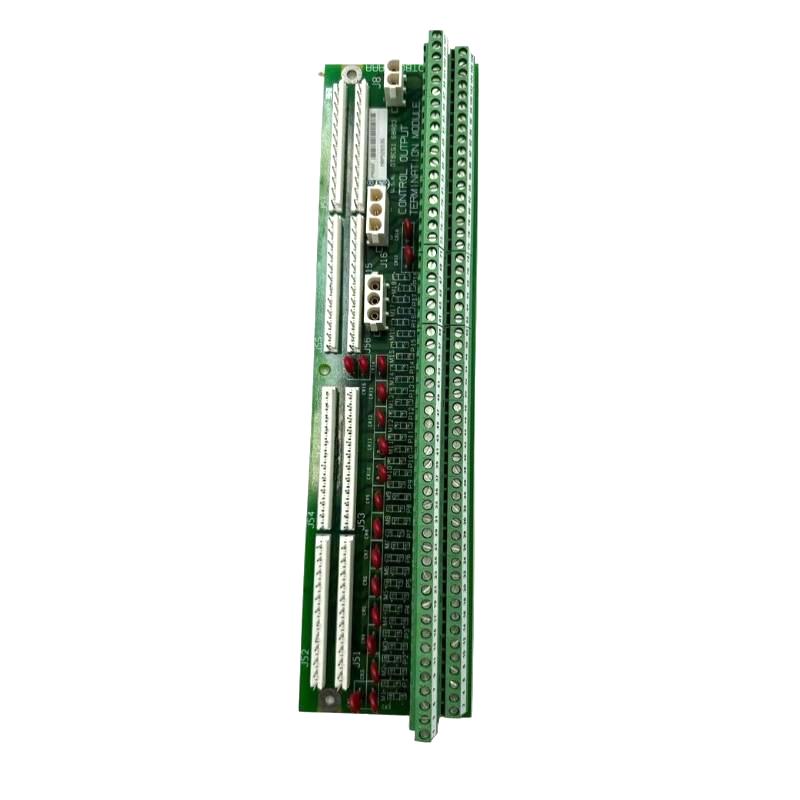

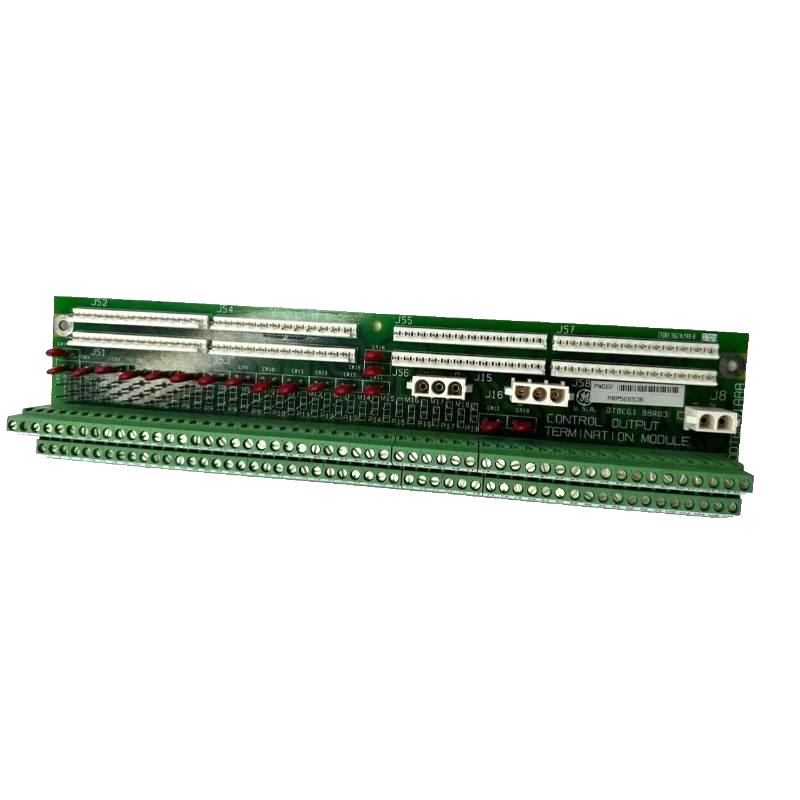

The GE DS200DTBCG1AAA is a connector relay terminal board used within the GE Mark V turbine control system. It provides field wiring termination points for discrete input and output signals, enabling secure and organized interfacing between field devices and the control rack. The board also supports relay signal routing and isolation for enhanced system reliability.
General Information
Part Number: DS200DTBCG1AAA
Manufacturer: GE (General Electric)
Series: Mark V
Type: Connector / Relay Terminal Board
Mounting: Rack-mounted or panel-mounted within the Mark V cabinet
Technology: Passive termination board with relay signal distribution
Power Specifications
Supply Voltage: Receives operating signals from the main control modules
Power Consumption: Minimal, passive board
Input Power Source: Mark V rack signal interface
Protection: Noise filtering, fused signal paths (model dependent)
Indicators: May include basic status labeling for wiring identification
Communication & Interface
Interface Role: Provides terminal points for relay I/O and discrete signals
Connector Type: Pluggable terminal blocks and ribbon cable connectors
Signal Routing: Supports relay output routing and digital input interfacing
Diagnostics: Physical labeling and wiring identification marks
Operator Interface: Front-access terminal connections for easy maintenance
Reset Features: Not applicable for passive boards
I/O & Channels
I/O Support: Multiple discrete channels depending on connected modules
Function: Terminates field wiring for relays, switches, alarms, and contact inputs
External Load Support: Routing only; no load driving capability
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation inside industrial control enclosures
Dimensions & Weight
Dimensions: 330 × 280 mm
Weight: ~ 0.55 kg
