Overview

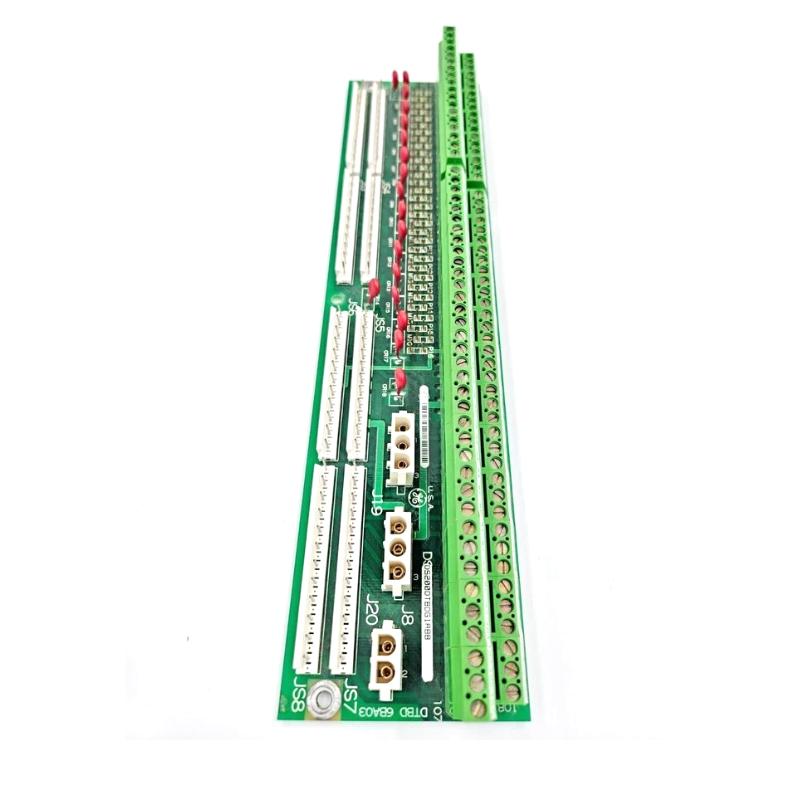

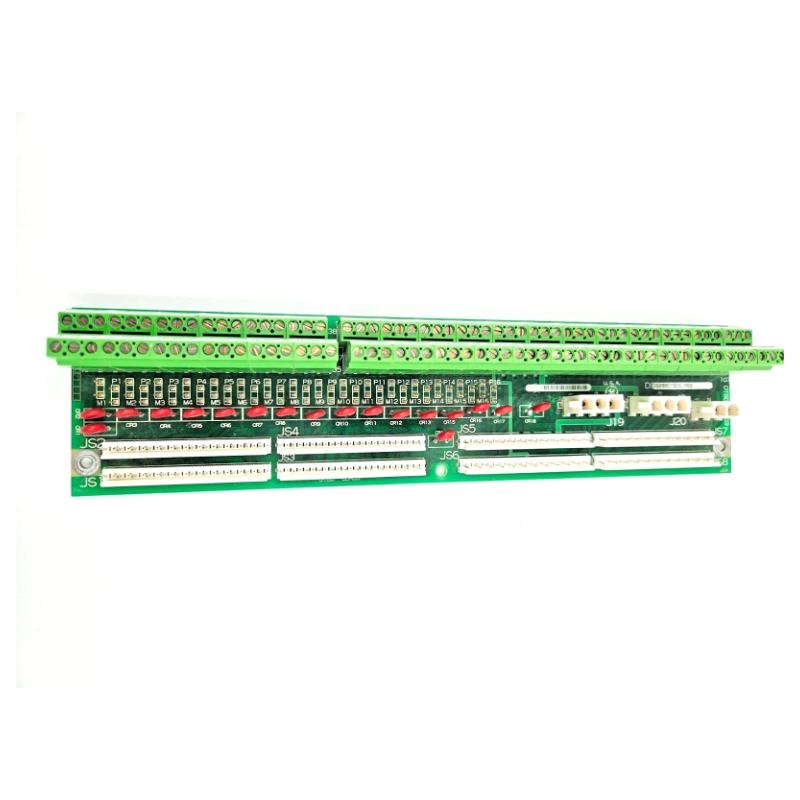

The GE DS200DTBDG1ABB is a termination and expansion board used in the GE Mark V control system. It provides structured wiring for large quantities of relay and contact output signals, acting as an interface between the controller and field devices such as solenoids, relays, and auxiliary actuators.
General Information
Part Number: DS200DTBDG1ABB
Manufacturer: GE (General Electric)
Series: Mark V / DS200
Type: Output Termination / Expansion Terminal Board
Mounting: Control cabinet panel mounting
Technology: Passive PCB with terminal blocks, jumpers, and standard Mark V components
Power Specifications
Supply Voltage: Not required (passive board)
Power Consumption: None
Input: Accepts output signals coming from Mark V control modules
Protection: Includes voltage-limiting components for circuit protection
Indicators: None
Communication & Interface

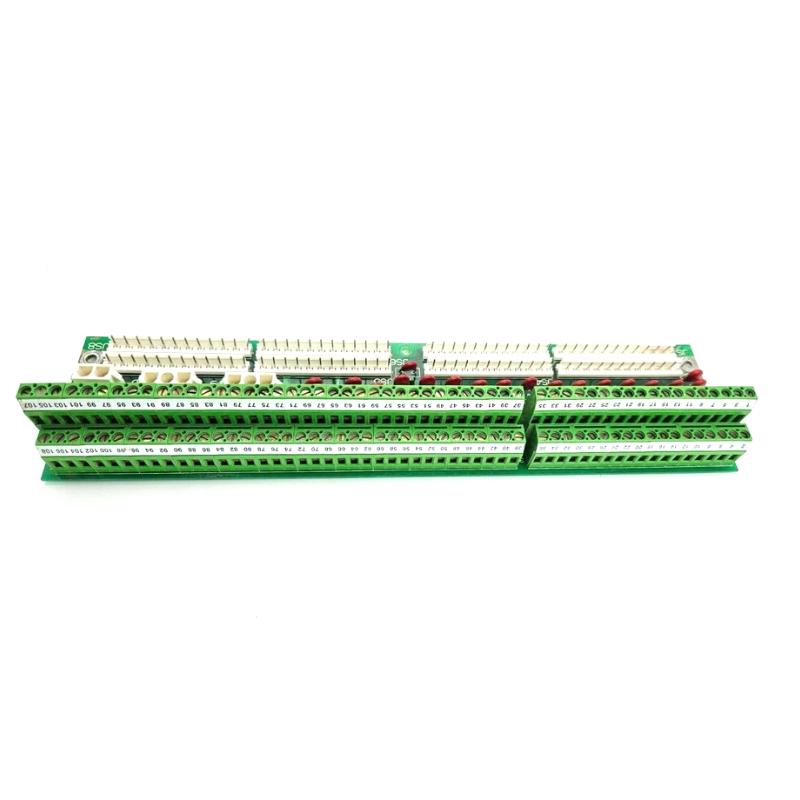

Terminal Blocks: Two high-capacity terminal blocks, each supporting 107 terminals

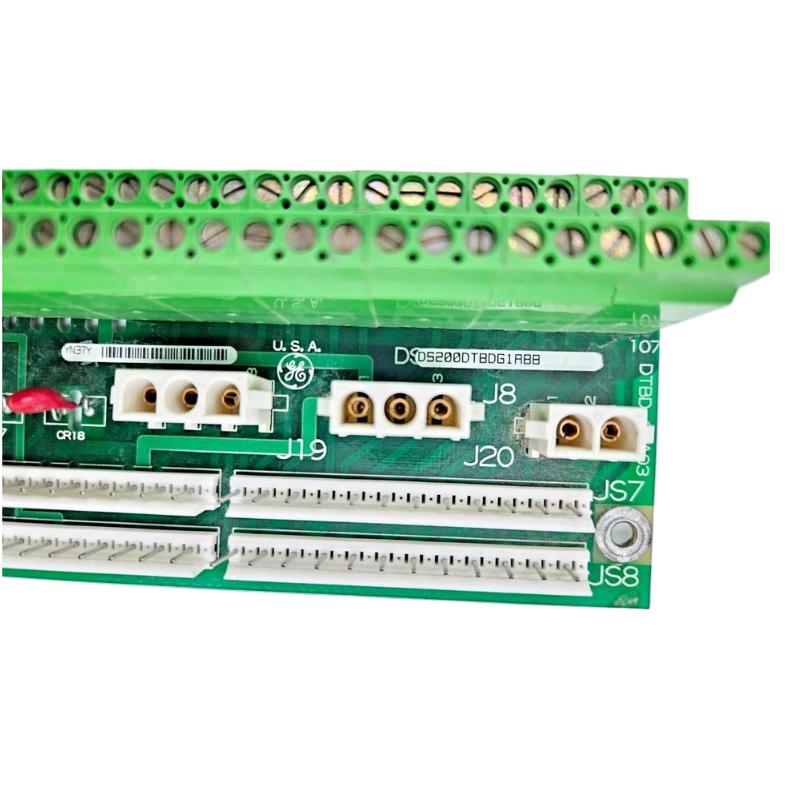

Connectors: Multiple board-to-board connectors including 34-pin and 40-pin types
Jumpers: Two jumpers for configuration of specific output paths
Diagnostics: Test points available for signal verification
Operator Interface: Direct screw-type terminal access
Reset Features: Not applicable
I/O & Channels
Relay Channels: Supports numerous contact and relay output lines
External Load Support: Provides wiring interface only; does not supply power to loads
Output Types: Solenoid outputs, relay coil outputs, and general on/off field outputs
Environmental
Operating Temperature: Suitable for cabinet-mounted industrial environments
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial PCB protection
Dimensions & Weight
Dimensions (L × W): 287 × 76 mm
Weight: 0.907 kg
