Overview

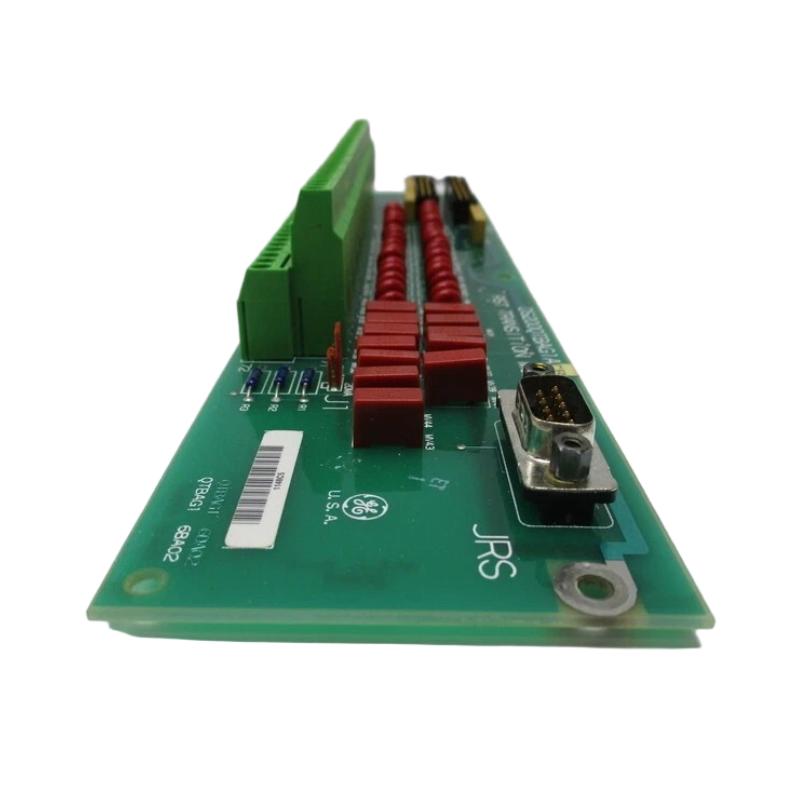

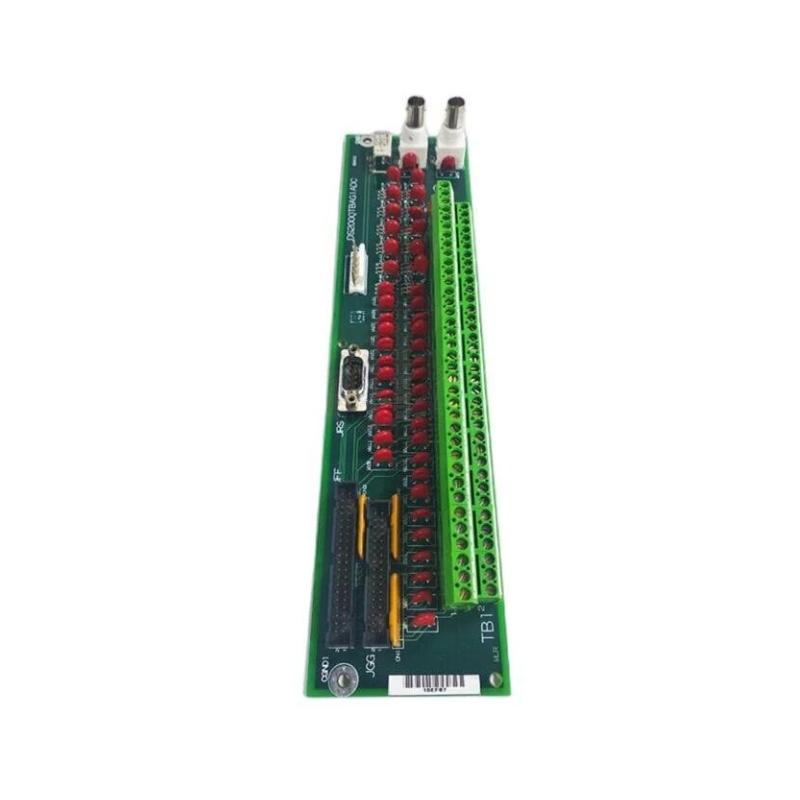

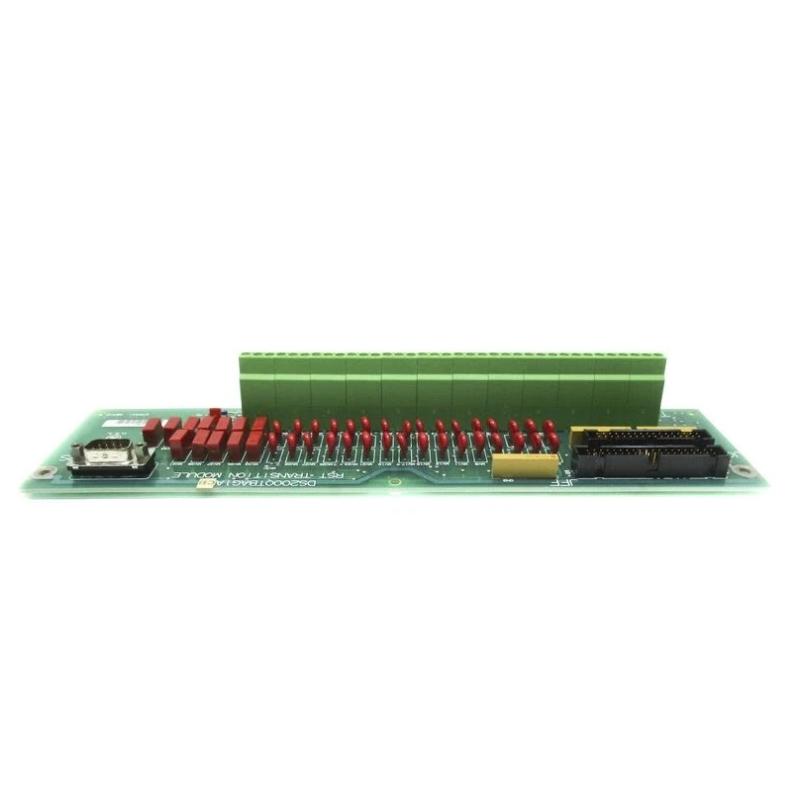

The GE DS200QTBAG1ACB is an RST termination panel used in the GE Mark V / DS200 turbine control system. It provides organized terminal access for magnetic pickups, servo signals, LVDT wiring, and other turbine-side signals, routing them cleanly to the control modules inside the cabinet.

General Information

Part Number: DS200QTBAG1ACB

Manufacturer: GE (General Electric)

Series: Mark V / DS200

Type: Terminal / Termination Panel

Mounting: Installed on the panel backplate or cabinet rack

Technology: Passive signal termination with high-density terminal blocks

Power & Electrical Characteristics

Electrical Role: Routes low-voltage control, measurement, and servo signals

Signal Types Supported: Speed pickups, servo valve commands, LVDT, excitation, flow divider signals

PCB Type: Standard coated board

Communication & Interface

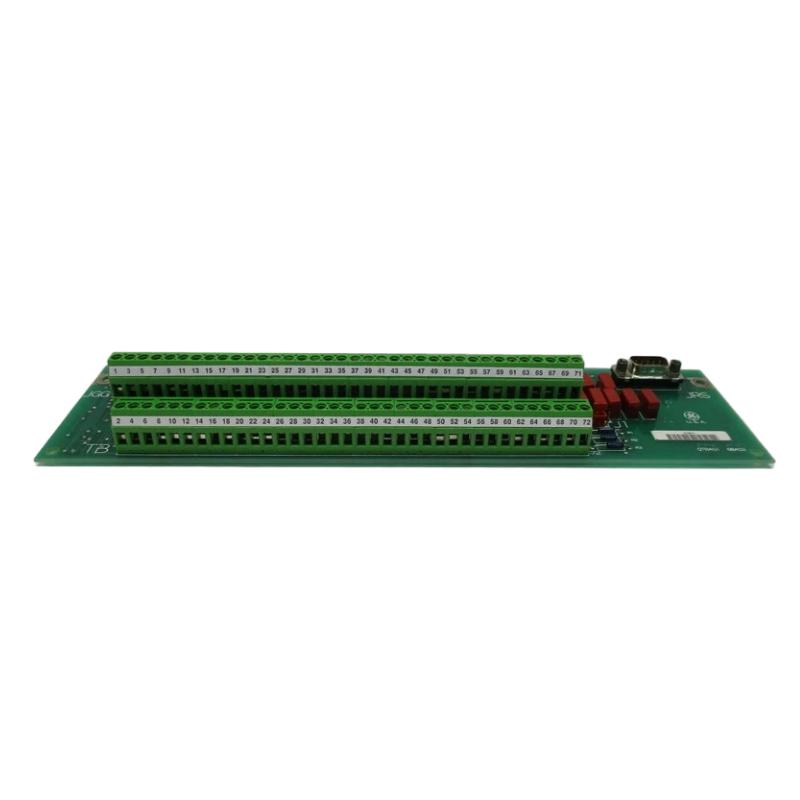

Terminal Blocks: Two high-capacity terminal blocks supporting up to 144 wires total

Connectors:
40-pin ribbon connector
Serial interface connector
Additional multi-pin connector for internal cabinet signal routing

Interface Role: Provides all R/S/T field wiring termination into the Mark V control

Diagnostics: No onboard LEDs or diagnostic components

I/O & Channels

I/O Channels: Provides termination for numerous analog, digital, and speed pickup channels

External Load Support: None (signal-level only)

Environmental

Operating Temperature: Suitable for turbine control cabinet environments

Humidity: Up to 95% RH, non-condensing

Protection Rating: Open-frame PCB; protected by system enclosure

Dimensions & Weight

Dimensions (L × W × H): 135 × 130 × 35 mm

Weight: ~0.567 kg
