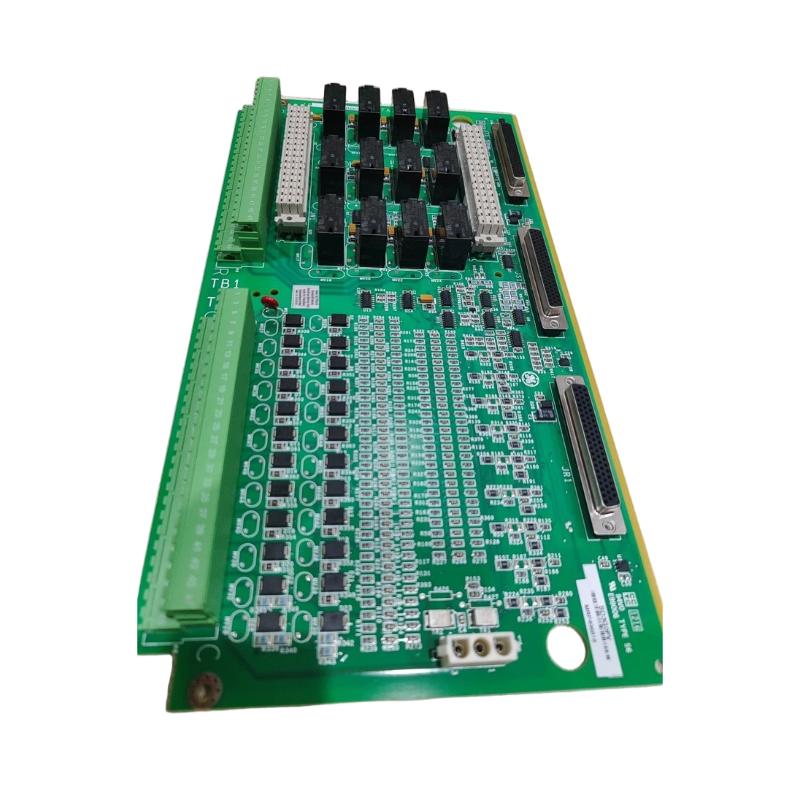

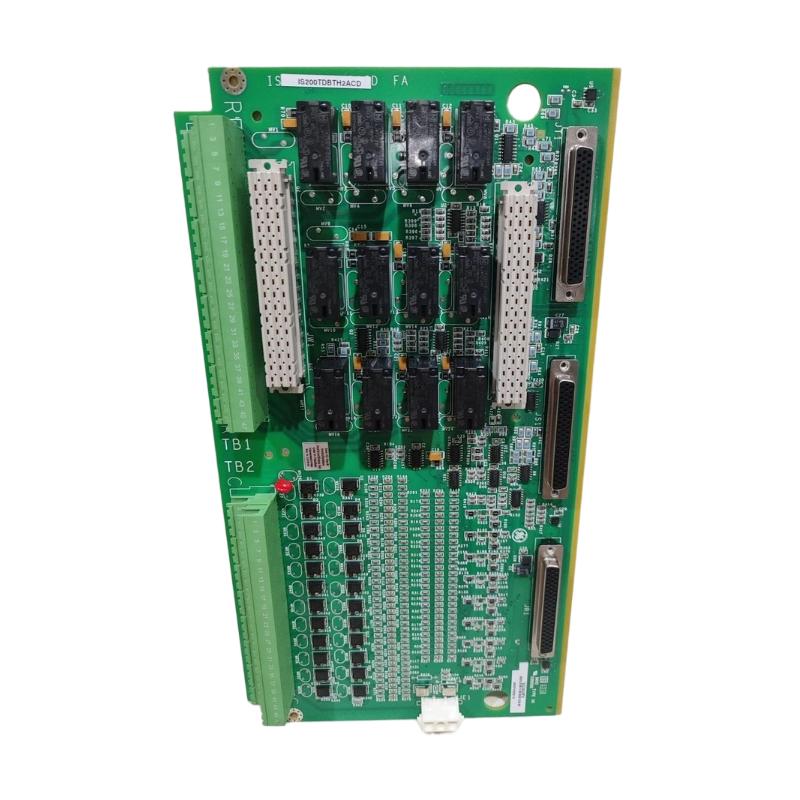

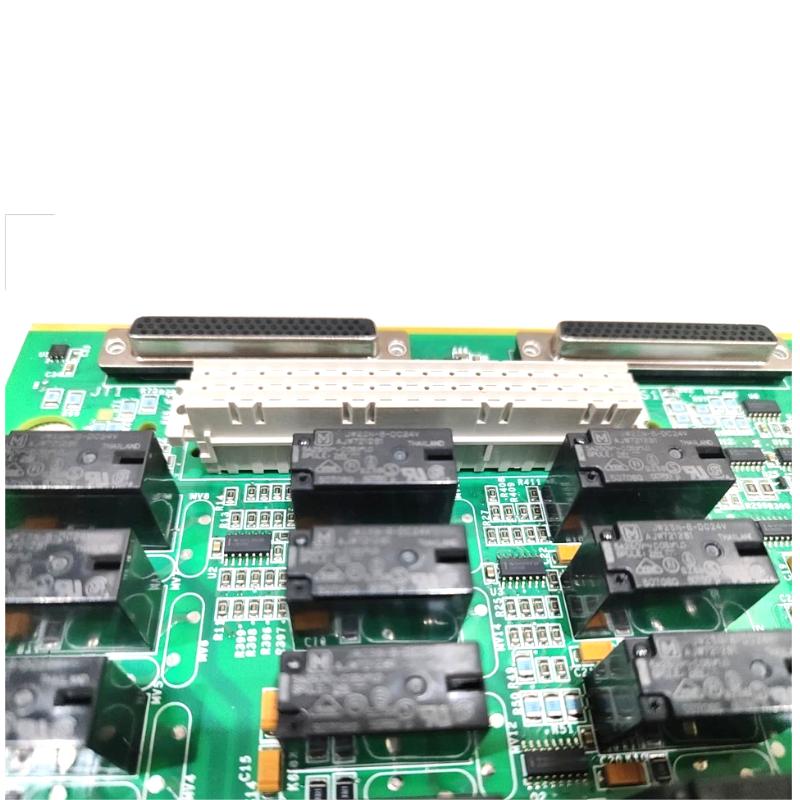

GE IS230TDBTH2A IS200TDBTH2ACD | Discrete Terminal Board New In Stock

Overview

The GE IS230TDBTH2A / IS200TDBTH2ACD is a discrete terminal board used in the Mark VIe control system. It provides field wiring connections for discrete input and output signals, offering stable signal conditioning, isolation, and reliable integration with industrial equipment.

General Information

Part Number: IS230TDBTH2A / IS200TDBTH2ACD
Manufacturer: GE
Series: Mark VIe
Type: Discrete Terminal Board
Mounting: Panel or enclosure installation through screw terminals
Technology: Industrial-grade PCB with isolated signal circuits

Power Specifications

Supply Voltage: Provided through associated I/O pack
Power Consumption: Defined by connected I/O modules
Input Source: Controller backplane or I/O interface module
Protection: Built-in transient suppression and wiring fault protection
Indicators: Channel status LEDs (depending on version)

Communication & Interface

I/O Interface: Works with compatible Mark VIe I/O Packs
Signal Type: Dry contact or wet contact discrete signals
Diagnostics: Wiring integrity check, channel status monitoring
Operator Interface: Status LEDs and terminal labeling
Reset Features: None (passive terminal board)

I/O & Channels

Input/Output Channels: Supports multiple discrete inputs and outputs
Channel Type: Contact sensing, relay or transistor output (system-dependent)
External Load Support: No direct load driving capability

Environmental

Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (Approx.): 200 × 130 × 40 mm
Weight: ~ 0.45 kg

100% new original inventory, contact us for instant pricing.
