Overview

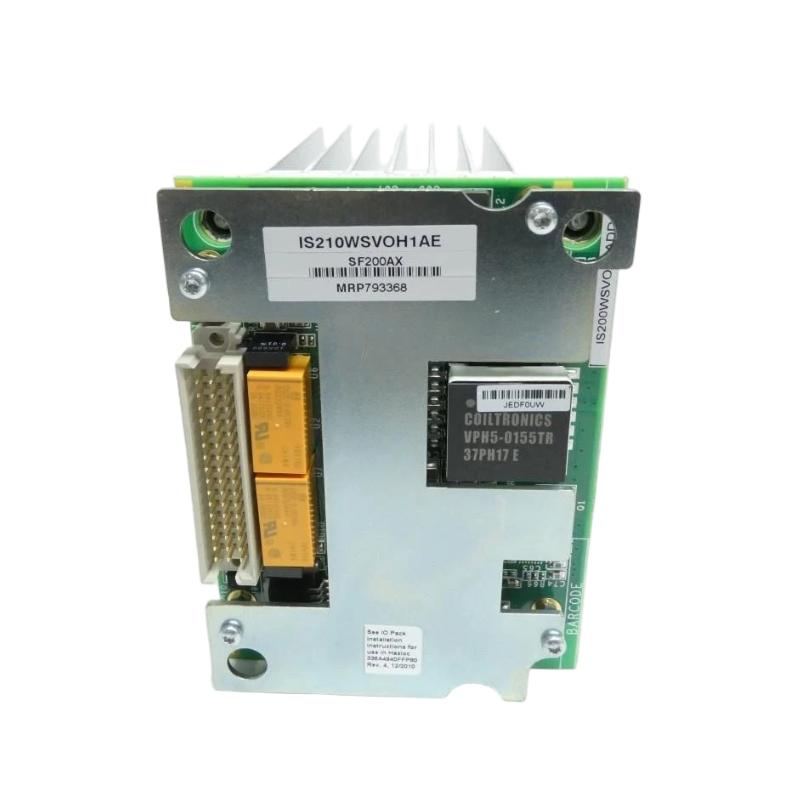

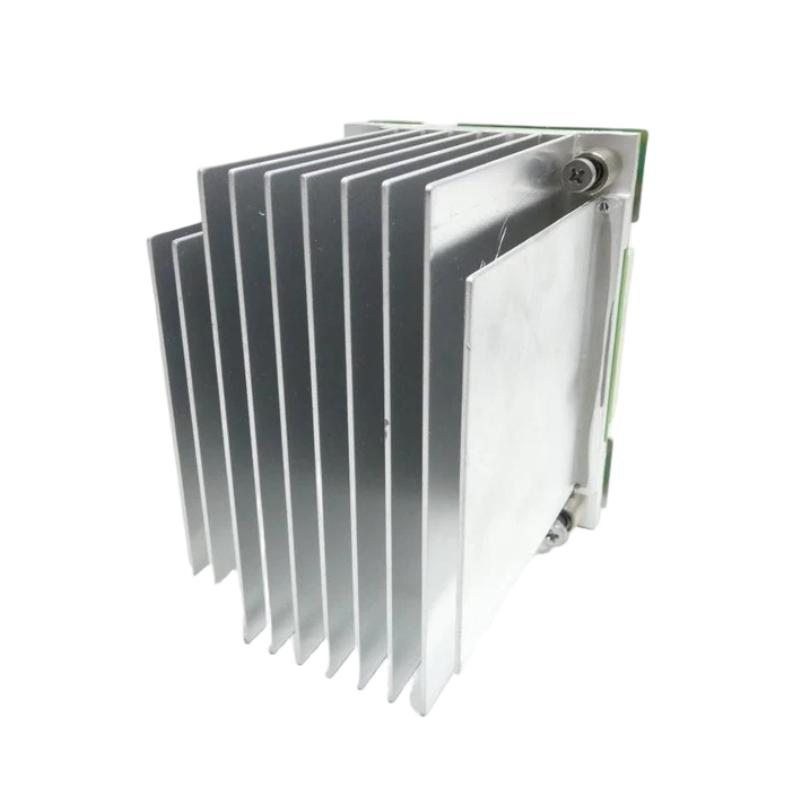

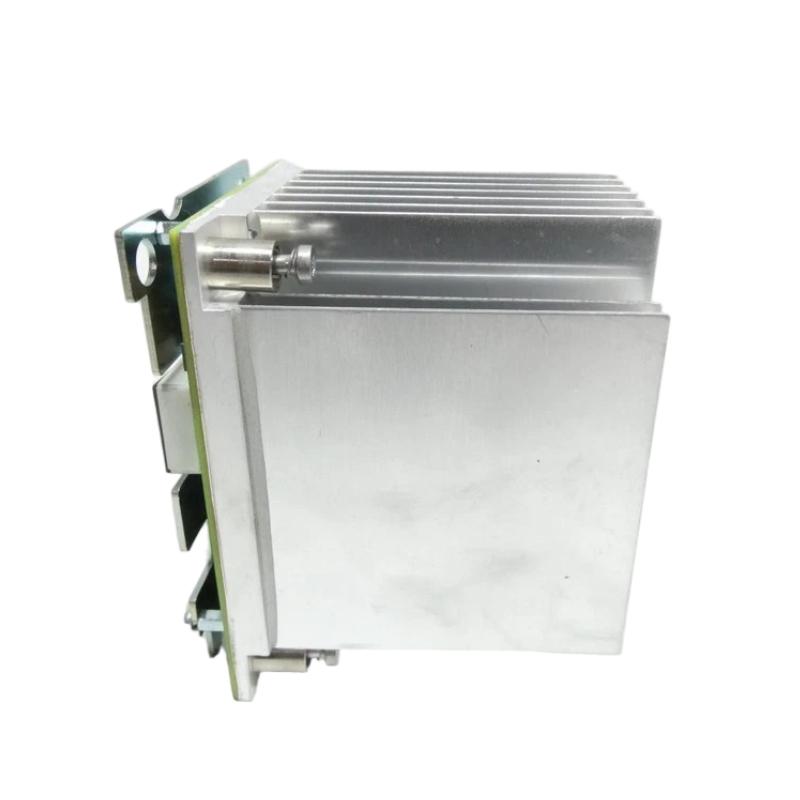

The GE IS210WSVOH1AE is a circuit board heat sink assembly used in GE Mark VIe and EX2100 excitation and turbine control systems. It dissipates heat from high-power control boards, ensuring stable operation of power electronics and preventing thermal overload in the excitation system.
General Information

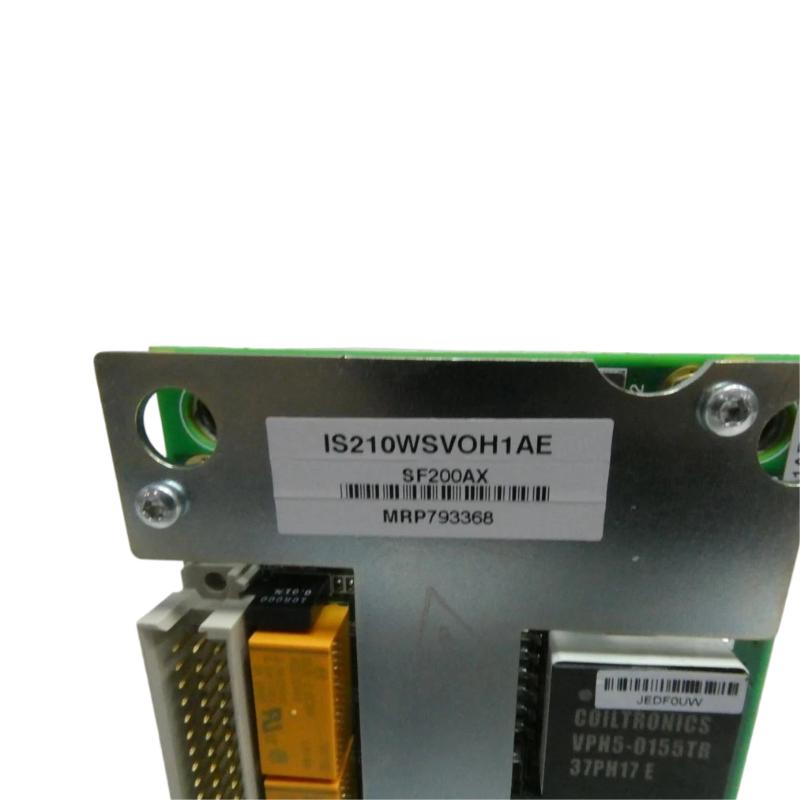

Part Number: IS210WSVOH1AE
Brand / Country of Origin: GE / United States
Manufacturer: General Electric
Series: Mark VIe / EX2100 Excitation Control
Type: Heat Sink Assembly
Mounting: Attached to circuit boards within control chassis
Function: Provides efficient thermal management for power and control electronics
Power Specifications
Supply Voltage: Passive component, no electrical supply required
Power Dissipation: Designed to handle thermal load from connected boards
Protection: Built-in thermal design prevents overheating of adjacent components
Indicators: None
Communication & Interface
Interface Type: Mechanical mounting interfaces for circuit boards
Role: Transfers heat from high-power electronics to chassis or cooling system
Diagnostics: Thermal performance monitored indirectly via system sensors
Operator Access: Serviceable during routine maintenance
Environmental
Operating Temperature: Suitable for industrial control cabinet environments
Humidity: Up to 95% RH, non-condensing
Installation Environment: Enclosed control cabinet
Durability: Resistant to vibration and mechanical stress
Dimensions & Weight
Dimensions (L × W × H): 280 × 150 × 35 mm
Weight: ~0.55 kg
