GE IC200ALG432 | Analog Mixed Module Rave reviews

Overview

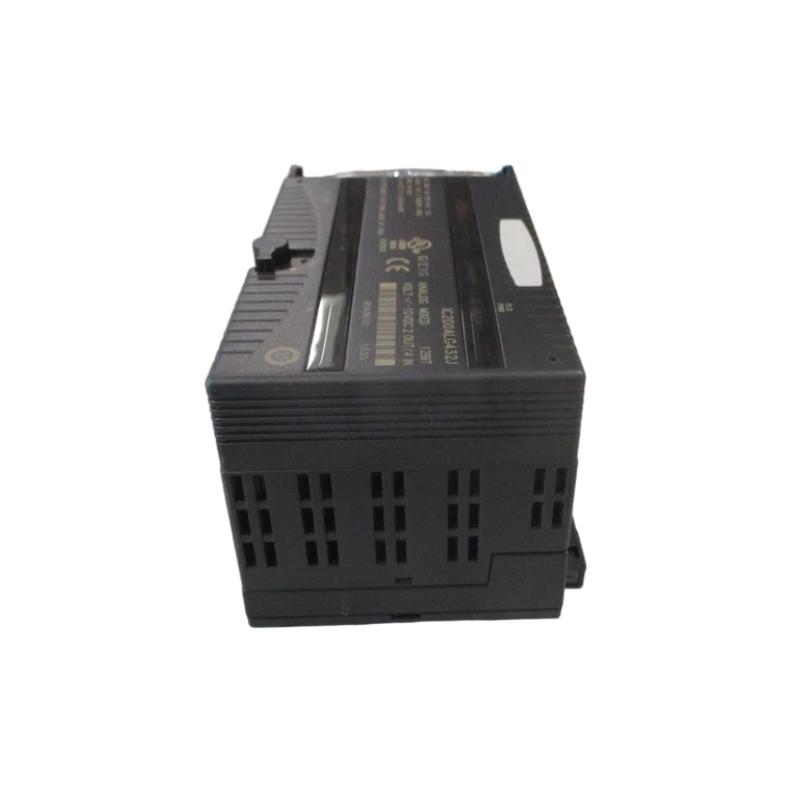

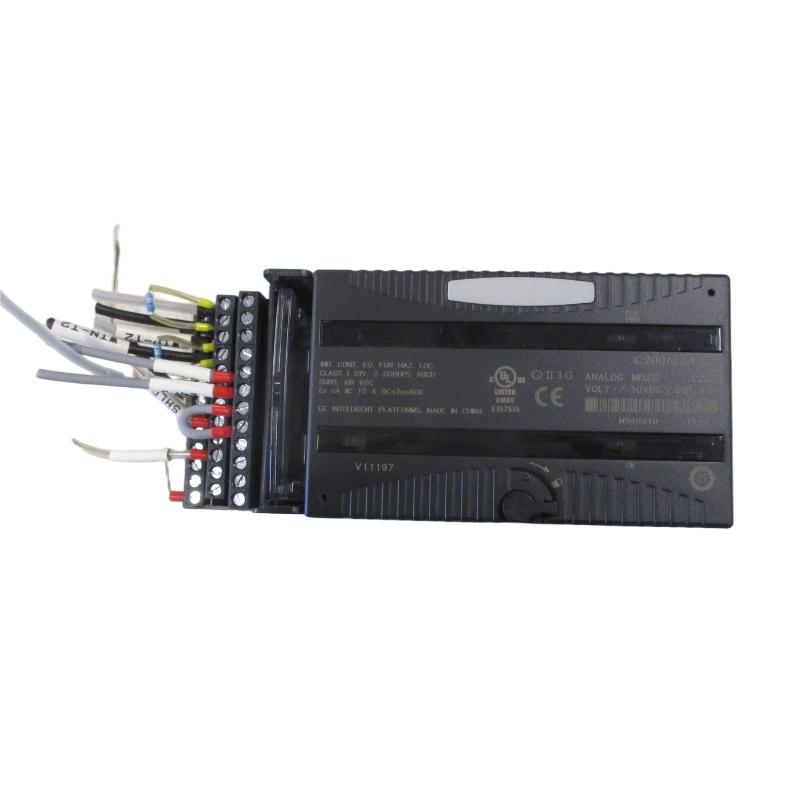

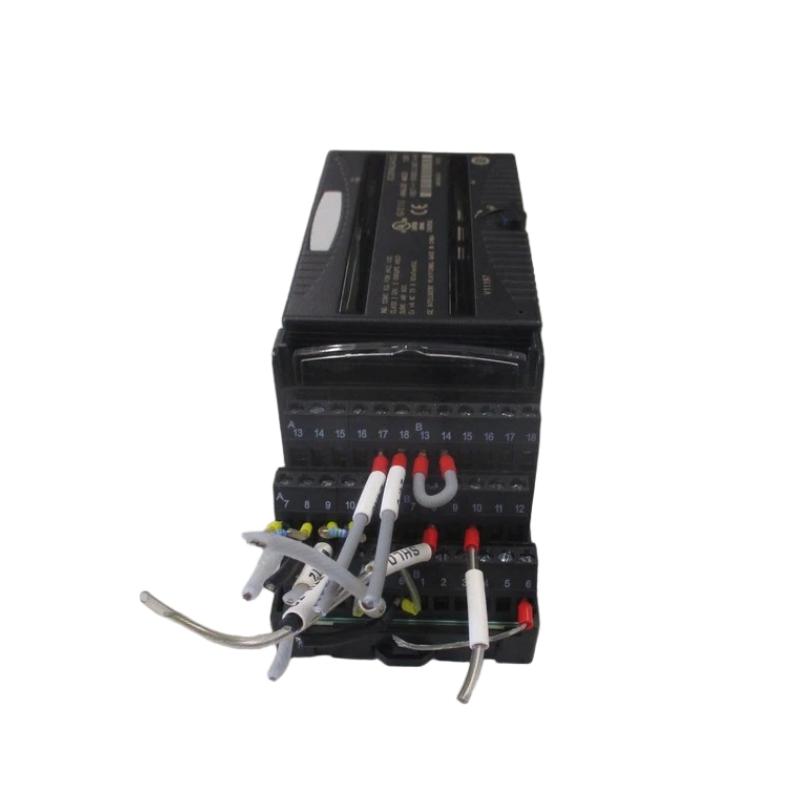

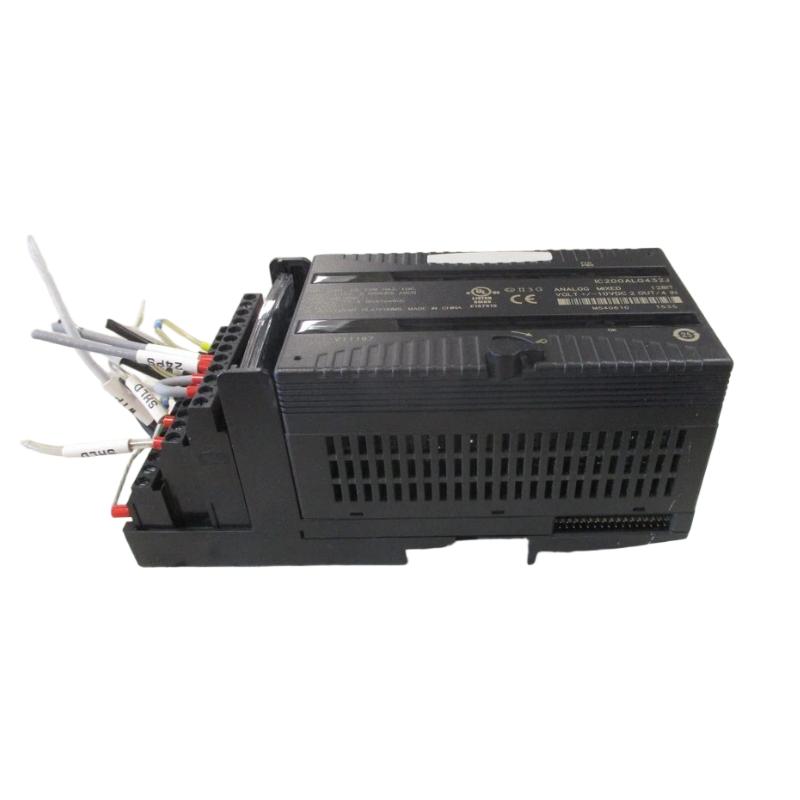

The GE IC200ALG432 is a mixed analog I/O module from the VersaMax series. It provides four analog input channels and two analog output channels, all with 12-bit resolution. This module is suitable for applications that require both voltage inputs and voltage outputs within a single module.

General Information

Part Number: IC200ALG432
Brand: GE (General Electric)
Country of Origin: USA
Series: VersaMax
Type: Analog Mixed I/O Module

Input / Output Specifications

The input range is –10 V to +10 V DC, and the output range is also –10 V to +10 V DC. The module supports four single-ended input channels and two single-ended output channels. External 18–30 V DC power is required to drive the outputs, while the inputs are powered from the backplane. The module has 12-bit resolution, with input steps of about 2.5 mV and output steps of about 5 mV. The analog update rate is up to 0.3 ms. Typical accuracy at 25 °C is ±0.3% of full scale, maximum ±0.5%. Input impedance is up to 200 Ω.

Power & Performance

The module draws up to 125 mA from the external 18–30 V DC analog power supply. It supports fault detection for loss of field power. LED indicators show the presence of field power and backplane power.

Environmental

Operating Temperature: 0 to +60 °C
Humidity: 5–95% RH, non-condensing

Dimensions & Weight

Dimensions (L × W × H): 49 x 133.4 x 39 mm
Weight: ~ 0.109 kg
