GE IS220PDIIH1A | Discrete Input/Output Module 30-Day Returns

Overview

The GE IS220PDIIH1A is a discrete input/output module used in GE’s Mark VIe Speedtronic control system. It combines 24 contact inputs with 12 relay (form‑C) outputs, allowing both signal acquisition and control in a single module.

General Information

Part Number: IS220PDIIH1A
Brand: GE (General Electric)
Country of Origin: USA
Series: Mark VIe
Type: Discrete I/O Pack (PDIO)
Mounting: Fits onto GE terminal board for simplex or TMR applications

Input / Output Specifications

The module supports up to 24 discrete contact inputs and 12 relay command outputs. Input isolation is approximately 1500 V optical to reduce noise. Each input has a hardware filter of about 4 ms. Contact input voltage ranges up to 32 V DC, and outputs can handle up to 250 V AC depending on the terminal board. Relay contacts are rated for approximately 5 A.

Power & Communication

Power is supplied via a 3-pin connector, with the module operating at 27.4–28.6 V DC at up to 0.81 A. Communication is provided through two 100 Mbps full-duplex Ethernet ports for network connection.

Diagnostics & Features

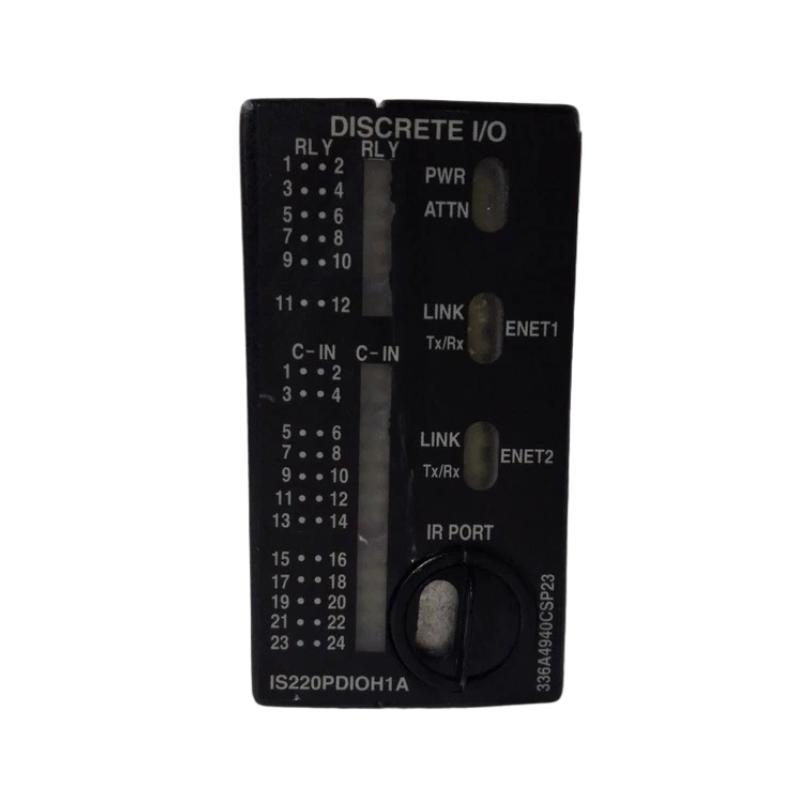

Front-panel LED indicators show power, Ethernet link status, and attention/fault conditions. The module performs self-tests on power-up and loads application-specific firmware from flash memory.

Environmental

Operating Temperature: –40 to +70 °C
Humidity: 5–95% RH, non-condensing
Protection: Typically mounted in a cabinet (IP20)

Dimensions & Weight

Dimensions (L × W × H): 158.75 x 107.95mm
Weight: ~ 4.5 kg
