Overview

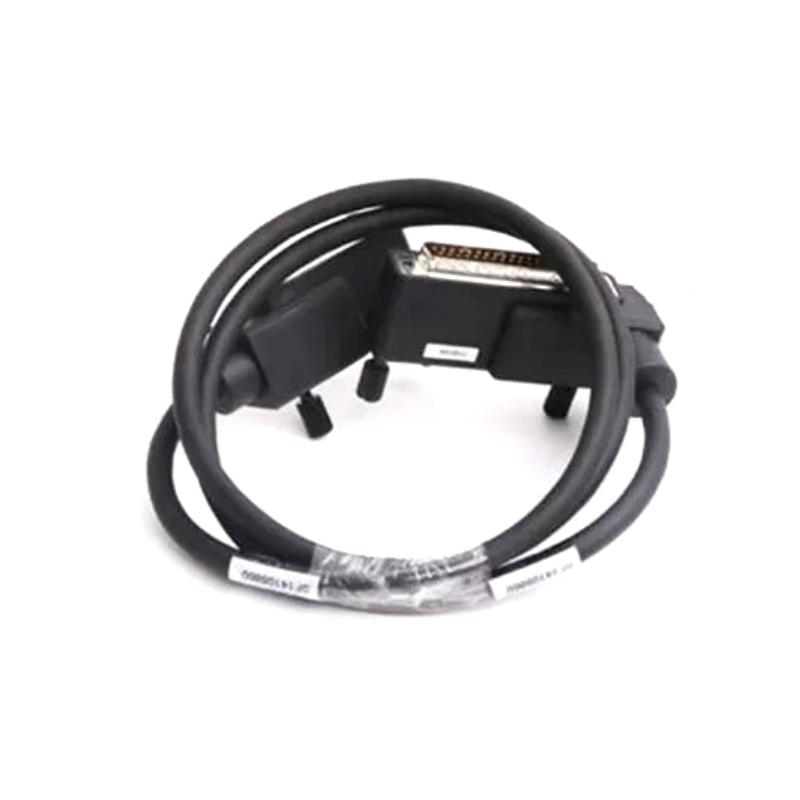

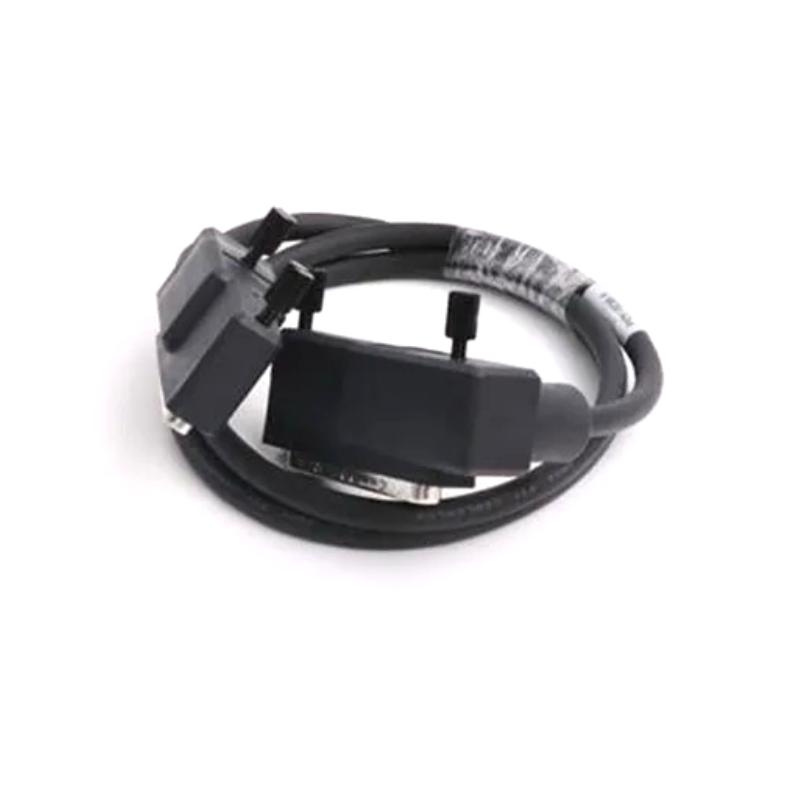

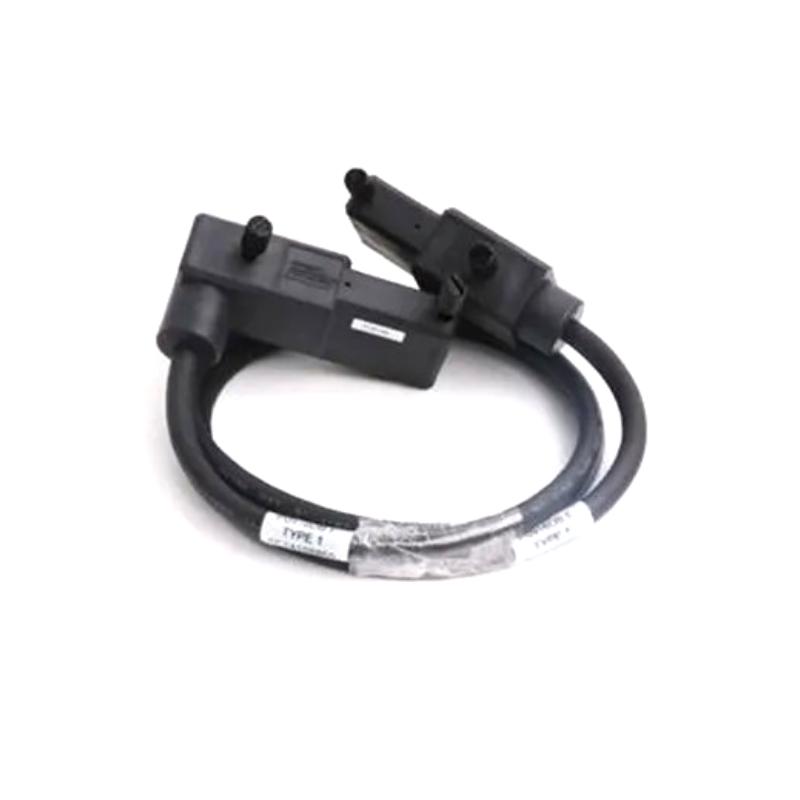

The Foxboro P0916DB is a termination cable used in Foxboro I/A-Series distributed control systems. It connects the DIN-rail mounted terminal assembly (TA) or field termination blocks to the FBM baseplate. Designed for industrial automation and DCS wiring, this cable ensures reliable signal transmission between field wiring and control modules.
General Information
Brand: Foxboro
Country of Origin: USA
Product Type: DIN-FBM Termination Cable
System Use: Connects field termination terminal assembly to FBM backplane in I/A-Series systems
Application: Process control, instrumentation wiring, industrial automation DCS setups
Cable Specifications
Conductor: 22 AWG copper wires
Insulation / Jacket: PVC insulation with braided shield; overall jacket diameter ~ 6.4 mm
Rated Voltage: up to 300 VAC
Operating Temperature: –40 °C to +85 °C
Usage: Supports analog and digital I/O signal wiring between field terminations and FBM modules
Environmental
Suitable for installation inside control cabinets or protected wiring conduits
Cable withstands industrial ambient conditions including standard humidity and potential vibration
Compatible with hazardous-area classification: Type-1 cable suitable for Class I, Division 2 or Zone 2 environments
Cable Length & Weight
Cable Length: 1.0 m
Weight: ~ 0.295 kg
