Overview

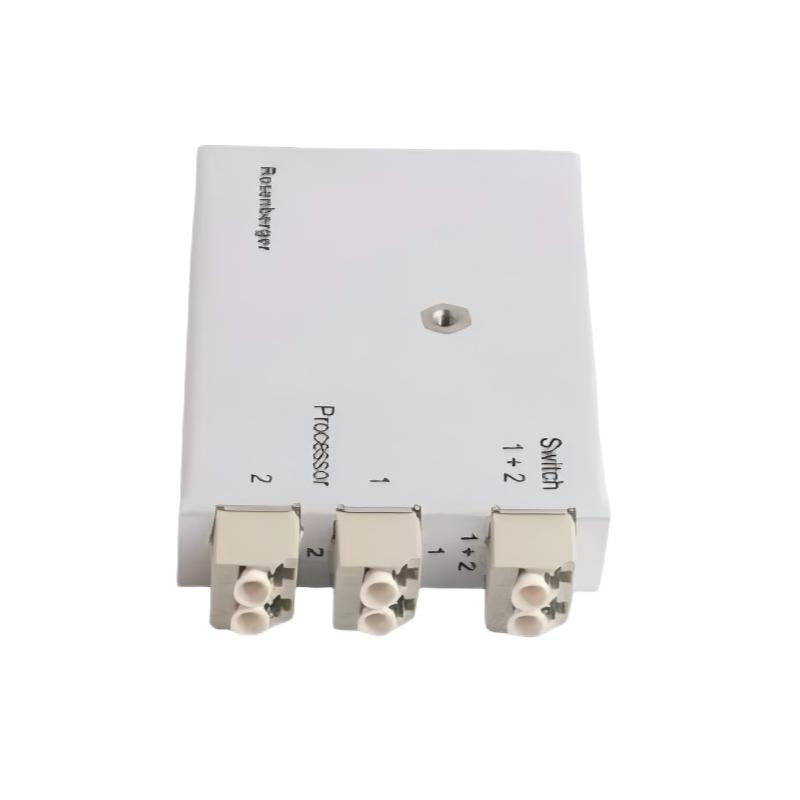

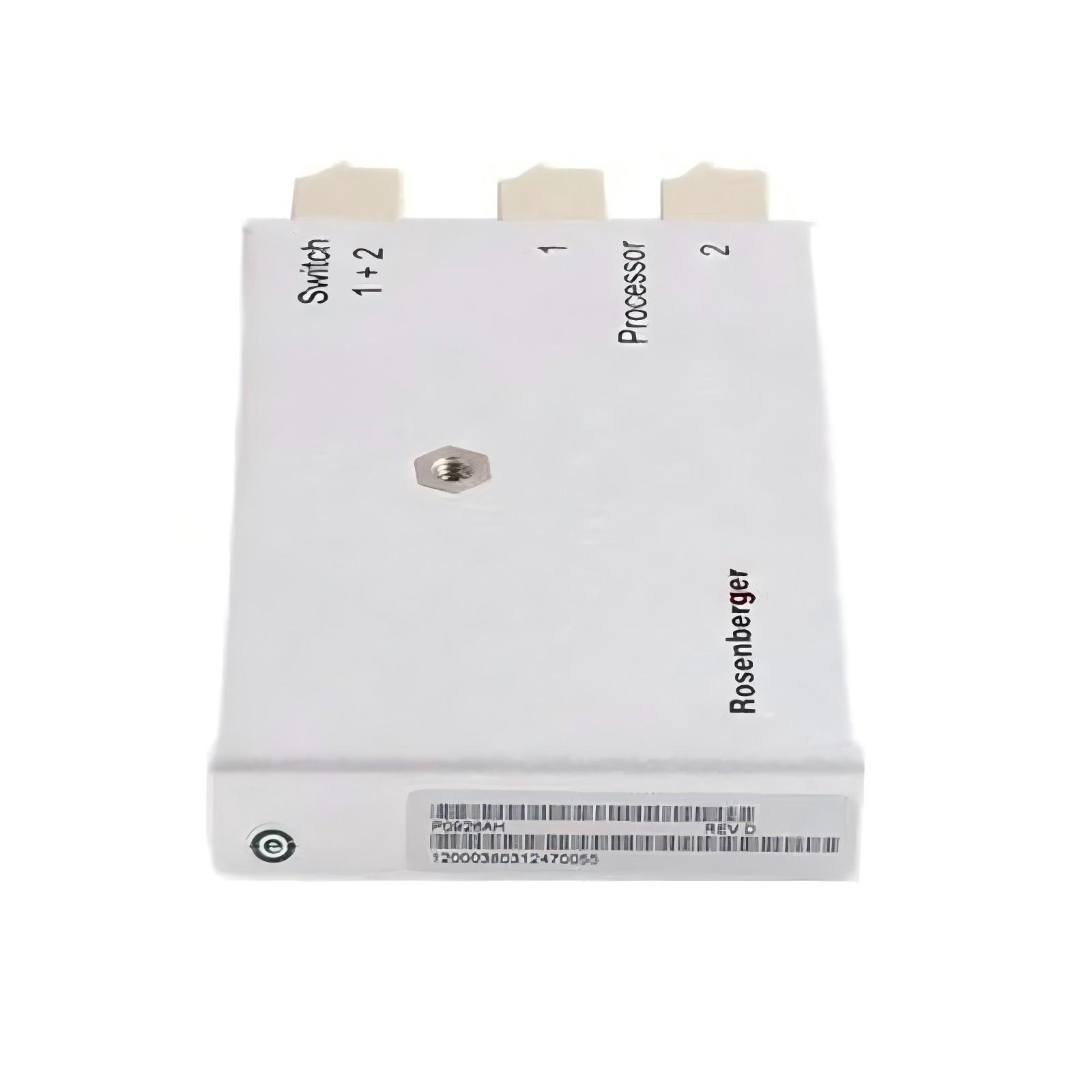

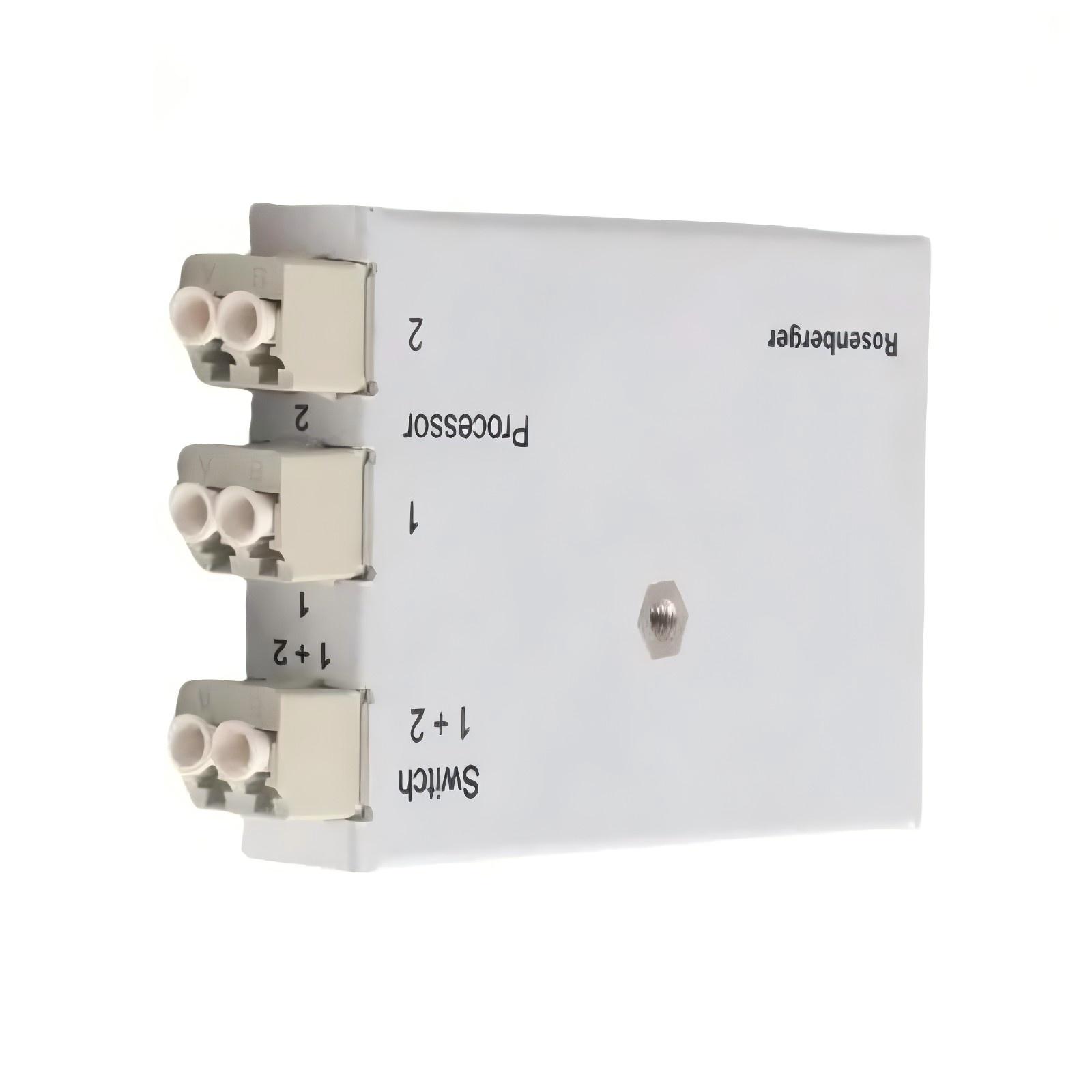

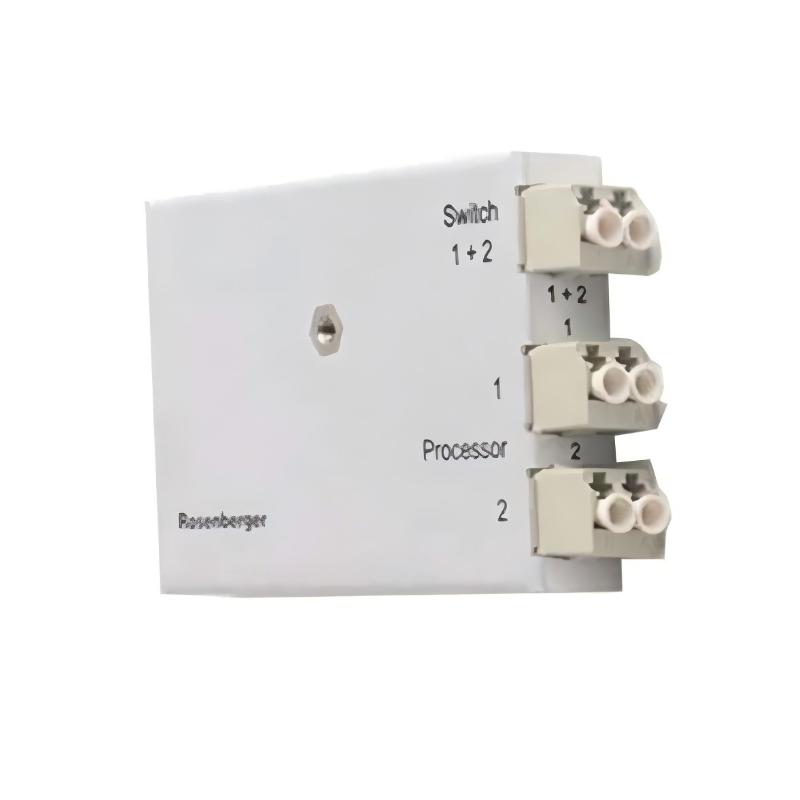

The Foxboro P0926MX is a 2-port signal splitter used in Foxboro I/A Series and related industrial control systems. It allows a single input signal to be distributed to two separate outputs, or combines signals as required, facilitating flexible signal routing in process control environments.
General Information
Brand: Foxboro
Country of Origin: USA
Product Type: Signal Splitter / Interface Module
Function: Splits or duplicates input signals (analog or digital) for use by multiple I/O modules or subsystems
Applications: Distributed control systems (DCS), process automation, instrumentation signal distribution
Signal & Interface Specifications
Input Signal Types: Analog (e.g. 4–20 mA) or digital/discrete as compatible with the host system
Output Channels: Two independent ports, each carrying the split or duplicated signal
Signal Conditioning: Maintains signal integrity and isolation consistent with industrial standards
Compatibility: Designed for integration with Foxboro I/A wiring architecture and module backplanes
Environmental
Operating Temperature: –40 °C to +80 °C
Installation Environment: Industrial control cabinets, protected wiring trays or conduits
Humidity & Conditions: Suitable for standard industrial ambient conditions, non-condensing
Durability: Built for reliable performance in harsh industrial environments with noise suppression and rugged design
Dimensions & Weight
Dimensions (L × W × H): 240 × 198 × 55 mm
Weight: 0.46 kg
