Overview

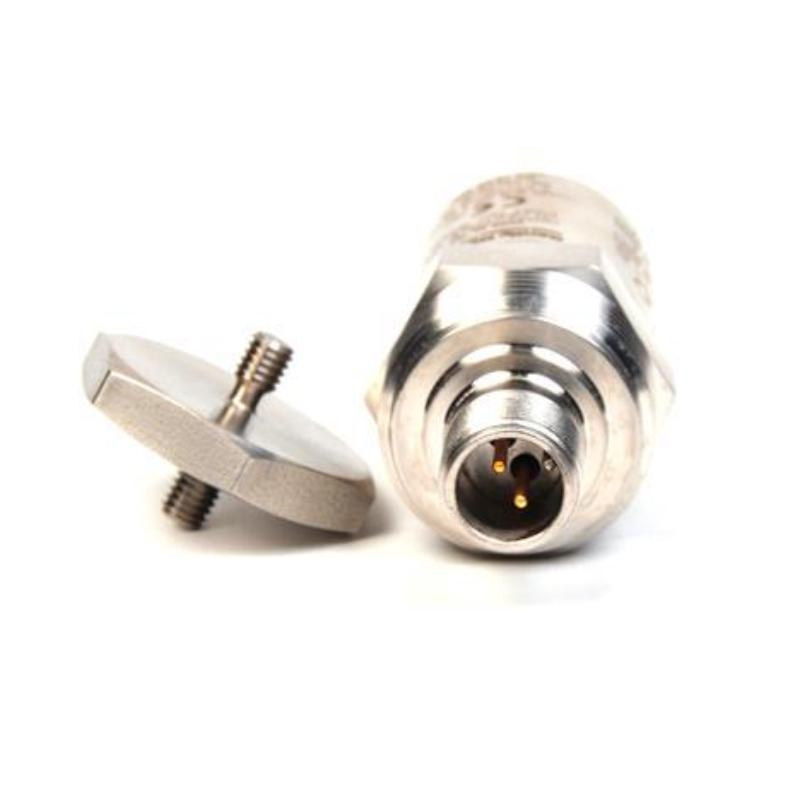

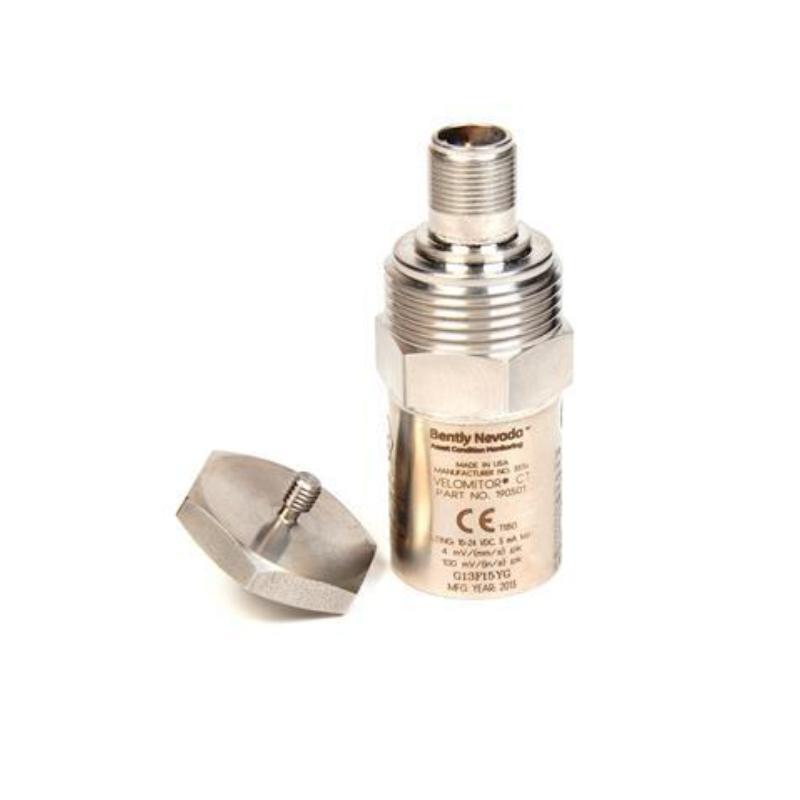

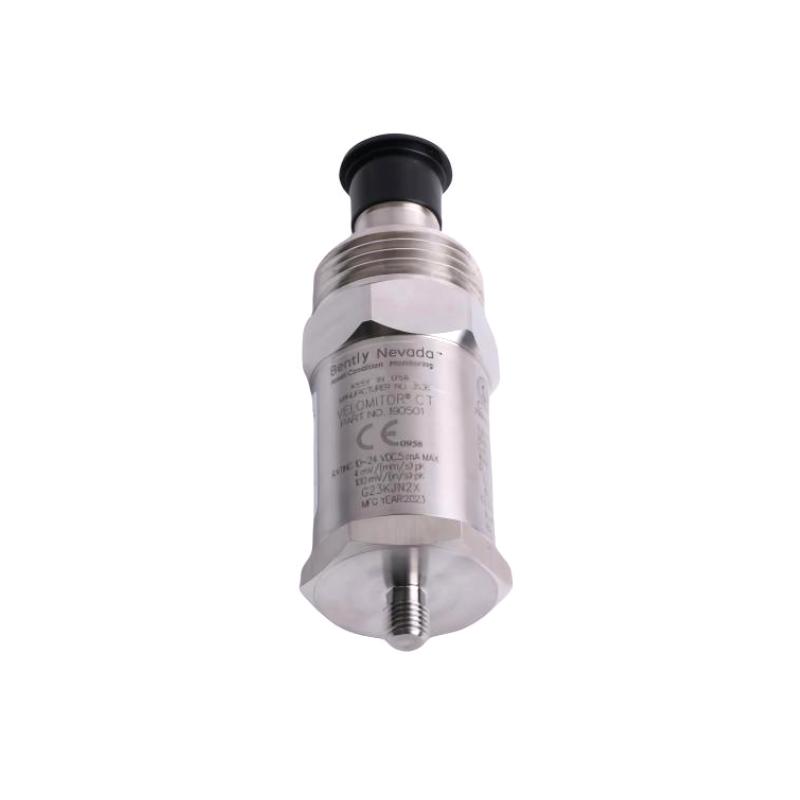

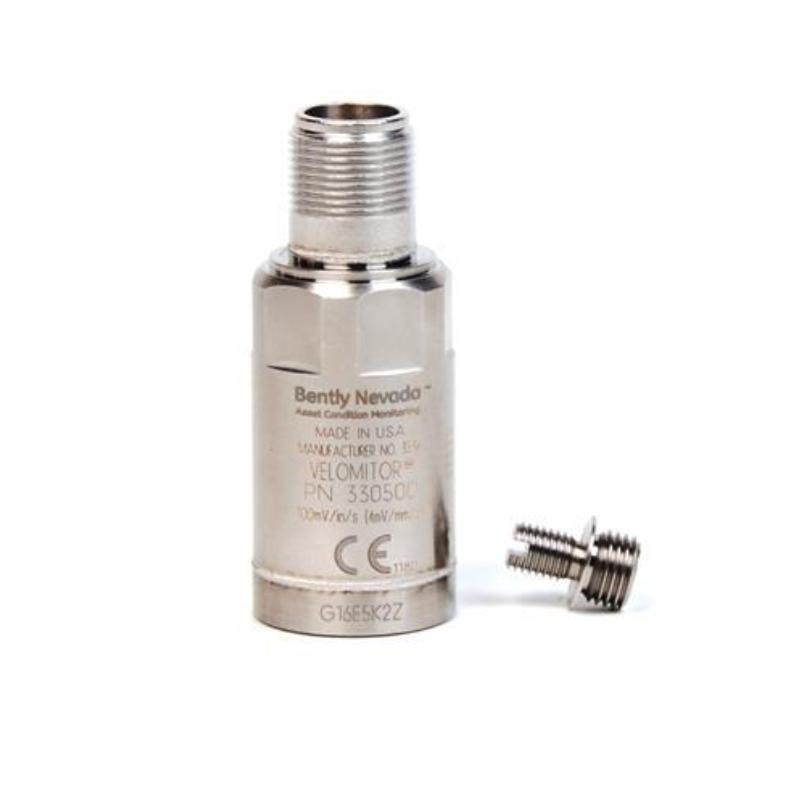

The Bently Nevada 190501-12-00-04 is a vibration velocity sensor (Velomitor CT) using eddy-current technology. It’s designed for monitoring low-frequency vibration in rotating machinery’s casing, enabling early detection of mechanical degradation.
General Information
Part Number: 190501-12-00-04
Manufacturer: Bently Nevada
Series: 190501
Type: Velocity Sensor
Technology: Eddy-current non-contact sensing
Country of Origin: USA
Power Specifications
Supply Voltage: 18–30 V DC
Power Consumption: Low-power design for continuous monitoring
Protection: Built-in transient suppression and circuit isolation
Communication & Interface
Signal Output: 0–10 V or 4–20 mA
Connector: Two-pin stainless-steel connector
Diagnostics: Signal level monitoring by host system
I/O Function: Single analog velocity output
Reset: Not applicable (passive transducer)
Environmental
Operating Temperature: –40 to +85 °C
Storage Temperature: –40 to +100 °C
Humidity: Up to 100% condensing (non-submerged)
Shock Rating: High shock tolerance
Dimensions & Weight
Sensor Diameter: 33 mm
Weight: ~ 0.297 kg
