Overview

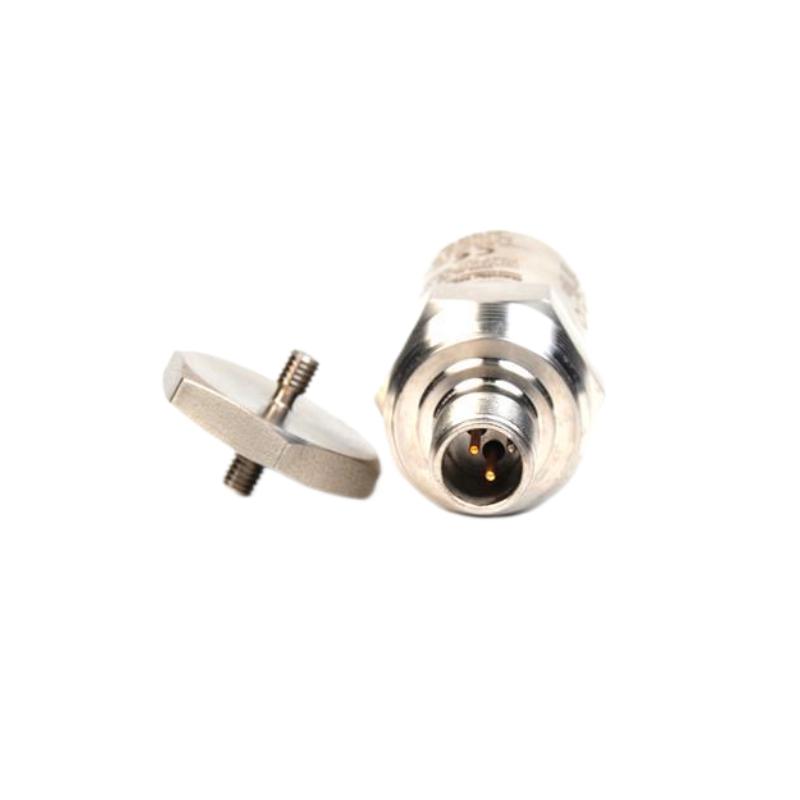

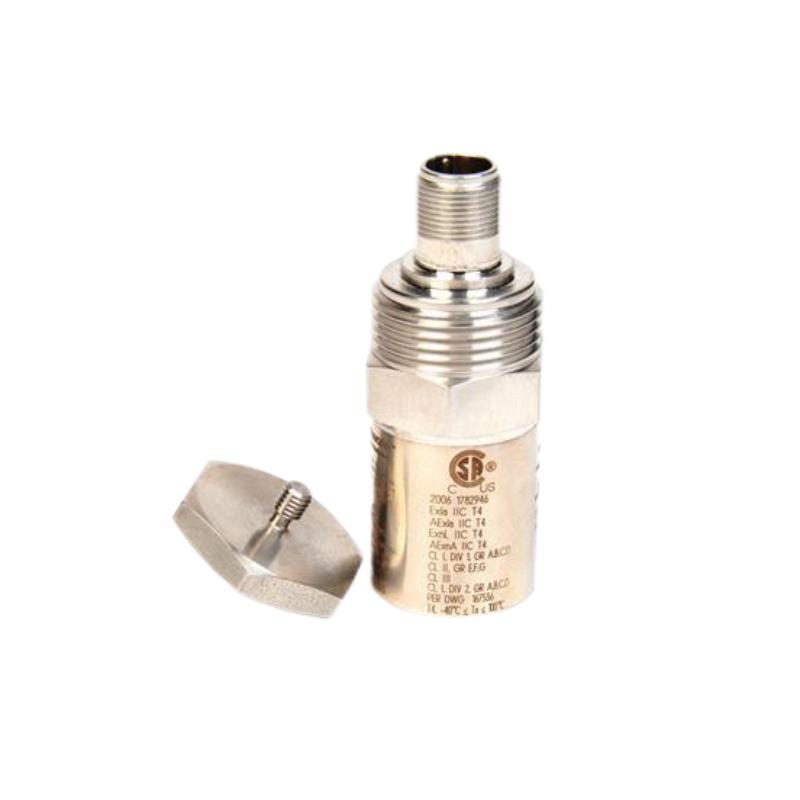

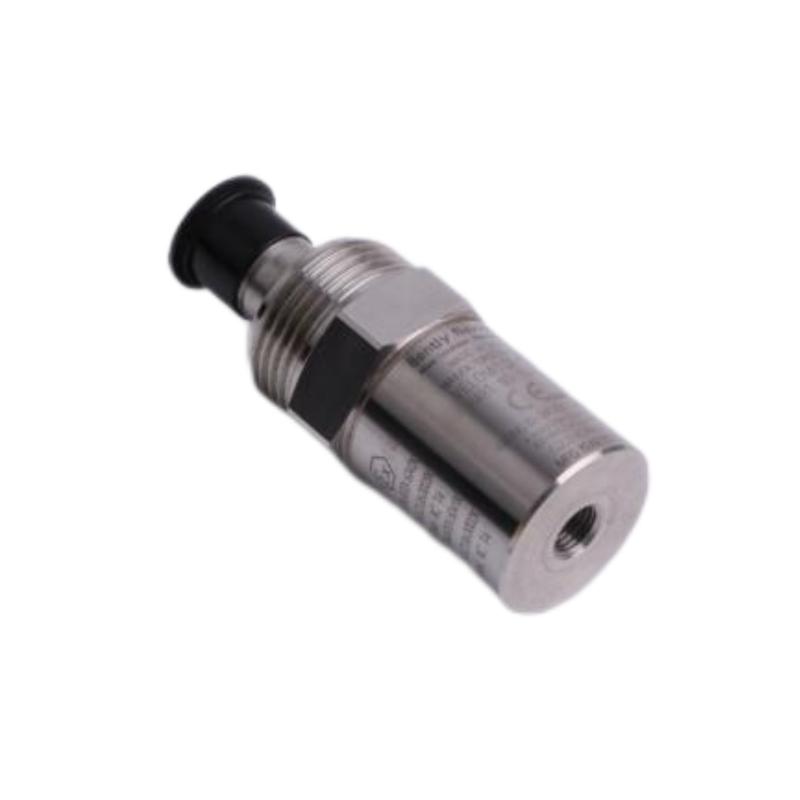

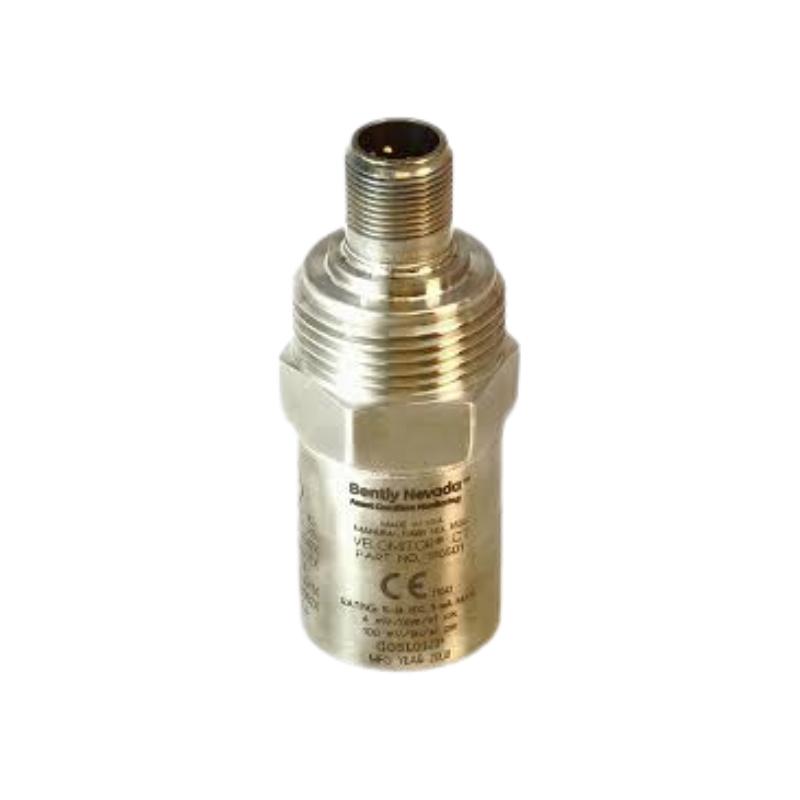

The Bently Nevada 190501-04-00-00 is a high-performance proximity sensor designed for machinery monitoring systems. It measures shaft displacement and vibration using eddy-current technology, offering reliable, non-contact measurement in harsh industrial environments.
General Information
Part Number: 190501-04-00-00
Manufacturer: Bently Nevada
Series: 1900 Series
Type: Proximity / Displacement Sensor
Technology: Eddy-current non-contact sensing
Country of Origin: USA
Power Specifications
Supply Voltage: Compatible with standard eddy-current probe excitation voltage
Power Consumption: Very low; designed for continuous operation
Indicators: None — provides analog measurement output rather than status signals
Communication & Interface
Signal Output: Analog voltage signal proportional to gap displacement
Function: Provides real-time shaft position and vibration data to condition monitoring systems
Diagnostics: Monitored via the connected monitoring hardware (e.g., 3500 series)
Environmental
Operating Temperature: –40 to +125 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Rugged sensor housing designed for industrial environments
Dimensions & Weight
Sensor Diameter: 33 mm
Weight: ~ 0.297 kg
