Bently Nevada 3500/62 133811-03 | Proximity Probe Module Price Advantage

Overview

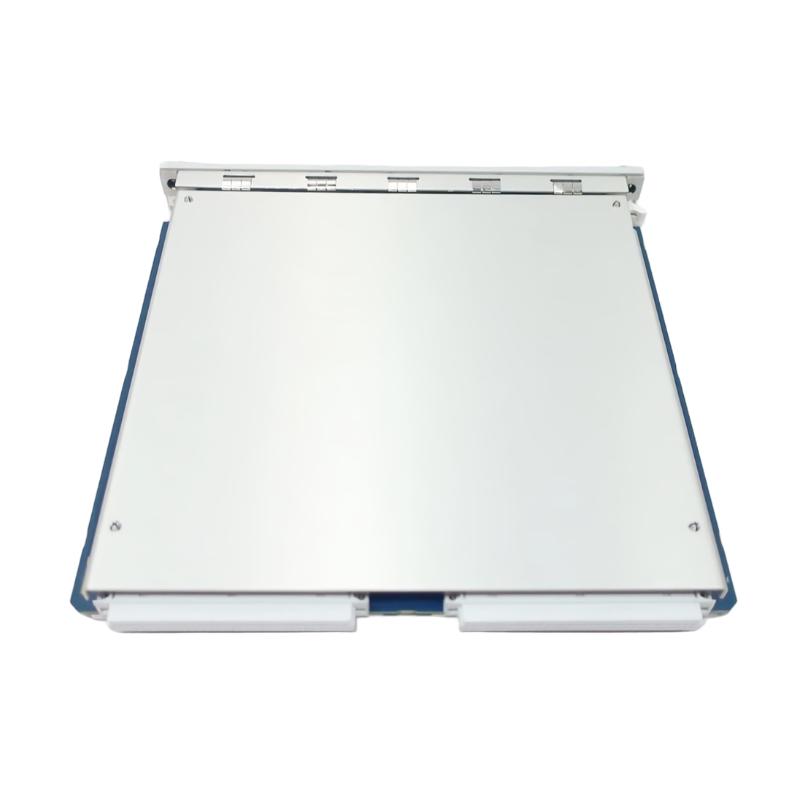

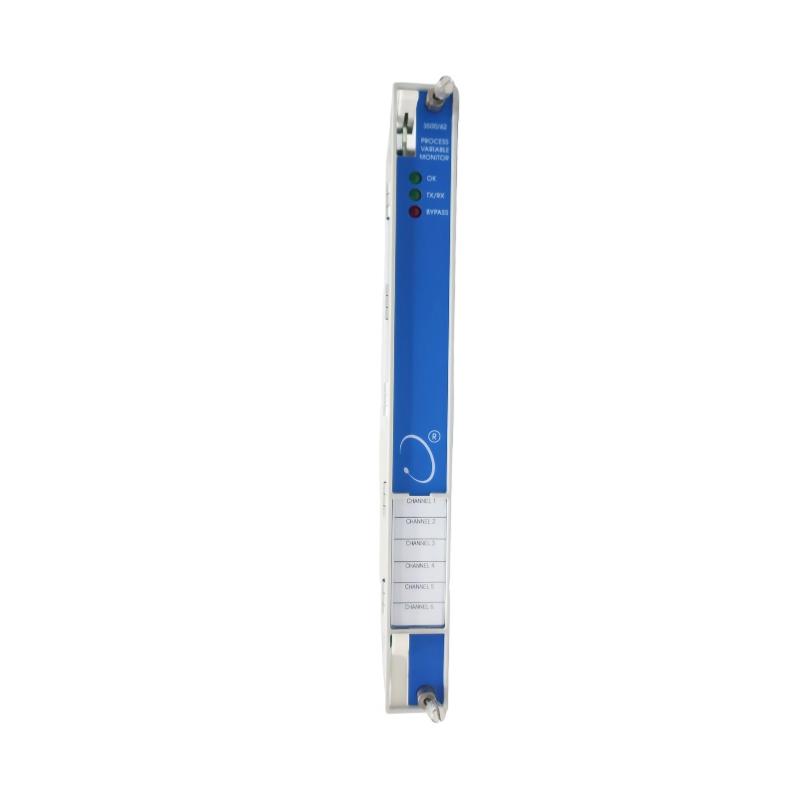

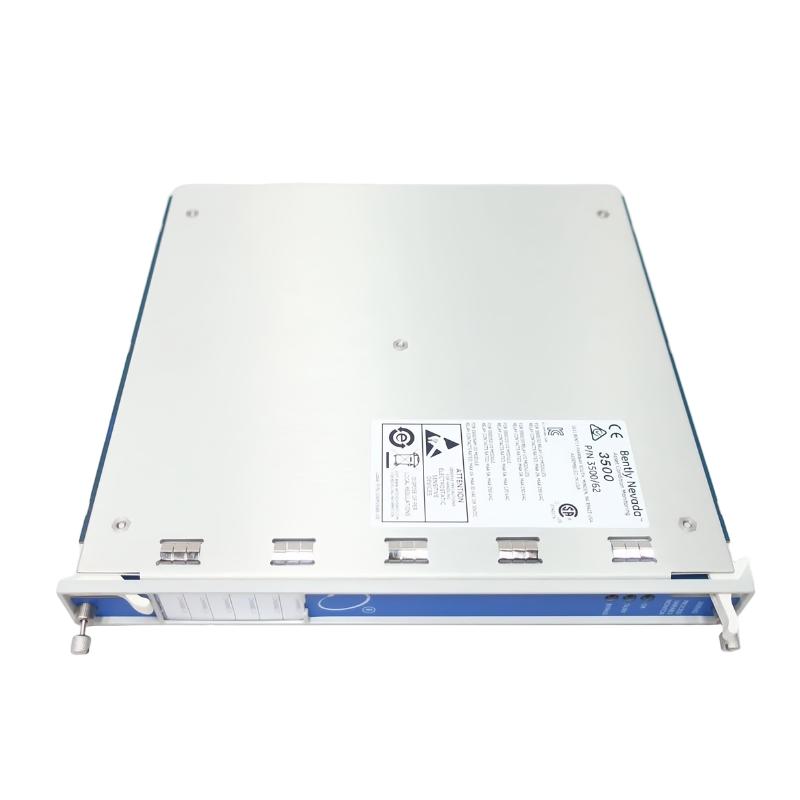

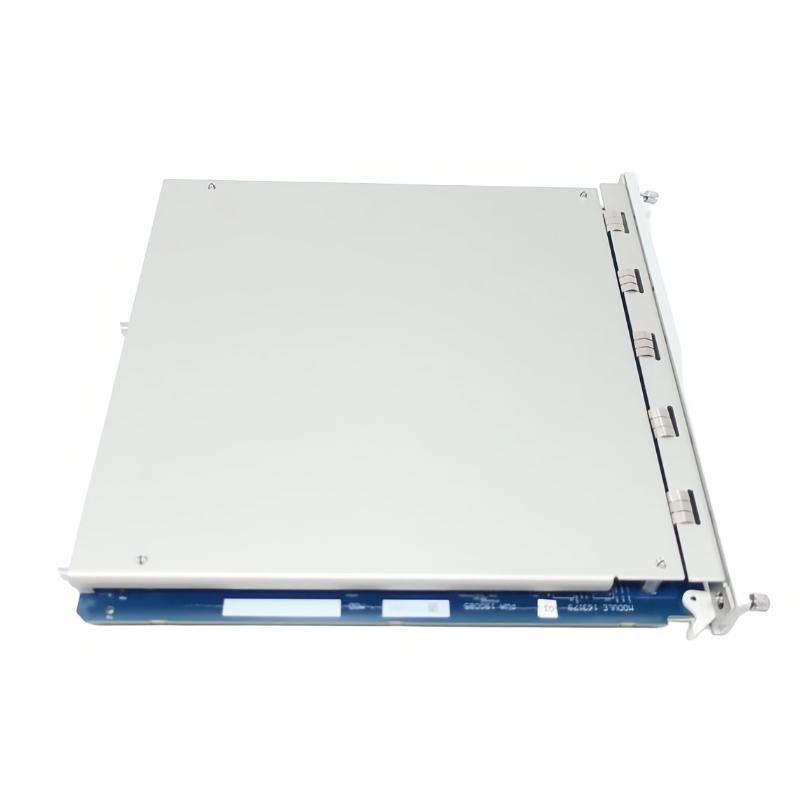

The Bently Nevada 3500/62 (133811-03) is a proximity probe power supply module used in the 3500 series machinery protection system. It provides regulated excitation voltage to eddy-current proximity probes, ensuring accurate shaft vibration and position measurements for rotating machinery protection.

General Information
Part Number: 133811-03

Manufacturer: Bently Nevada

Series: 3500

Type: Proximity Probe Power Supply Module

Mounting: Installed in 3500 series rack or chassis

Brand / Country of Origin: Bently Nevada / United States

Technology: Regulated DC excitation for proximity probes with onboard monitoring and protection

Power Specifications
Supply Voltage: Powered via the 3500 system backplane

Power Consumption: Low, suitable for continuous operation

Input: Accepts signals from the backplane and distributes regulated excitation voltage to probes

Protection: Overcurrent, short-circuit, and EMC protection

Indicators: LED indicators for module and channel health

Communication & Interface
Interface Type: Backplane connector for integration with 3500 system

Module Role: Provides stable excitation voltage to proximity probes and monitors signal health

Diagnostics: Monitors output voltage and probe circuit integrity

Operator Interface: LED indicators for operational and fault status

Reset Features: Manual or system-controlled reset

Environmental
Operating Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for installation in industrial control cabinets

Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm

Weight: 0.82 kg

Authentic brand-new stock, available anytime, supported by a dedicated service team.
