Overview

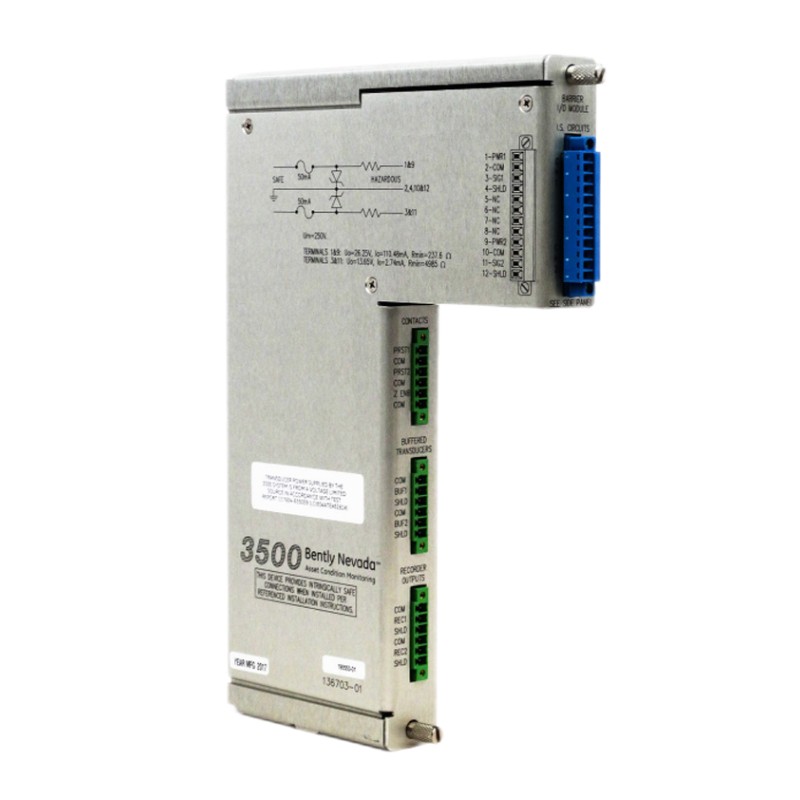

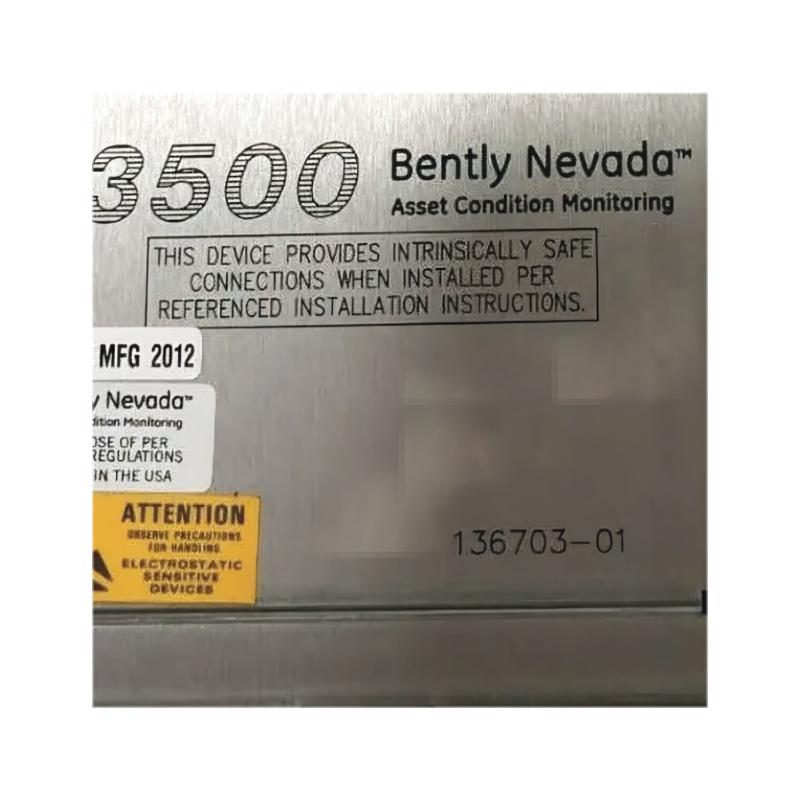

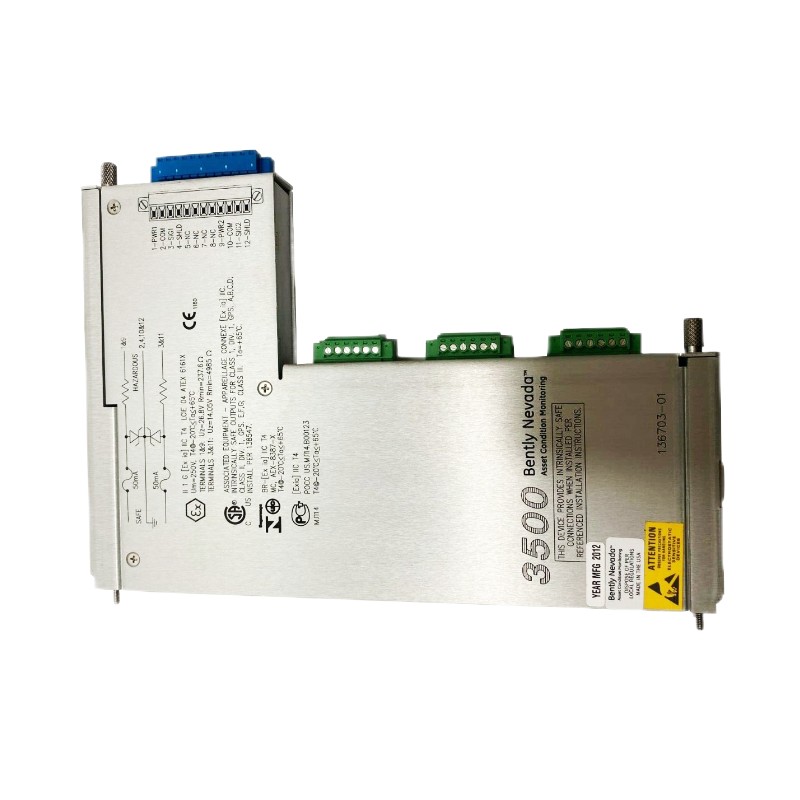

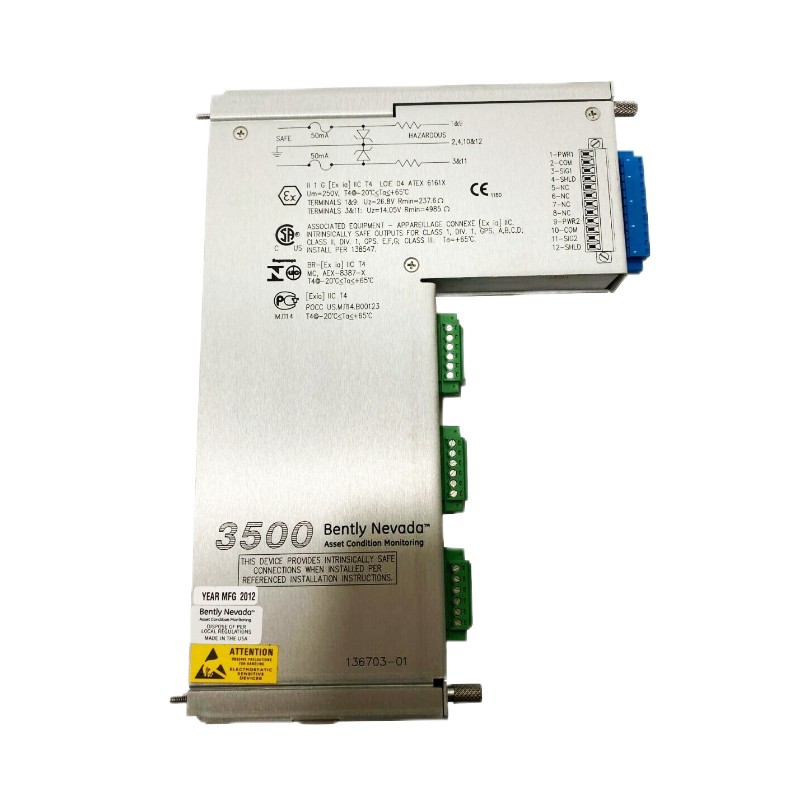

The Bently Nevada 3500/50 136703-01 is a vibration sensor module designed for monitoring rotating machinery. It provides precise measurement of shaft vibration and movement to prevent mechanical failure and ensure reliable operation of turbines, compressors, and other industrial equipment.
General Information
Model: 3500/50 136703-01
Manufacturer: Bently Nevada
Product Type: Vibration Sensor Module
Country of Origin: USA
Application: Shaft vibration monitoring in turbines, compressors, and industrial machinery
Power Specifications
Supply Voltage: Powered via the Bently Nevada 3500 monitoring system
Power Consumption: Low-power operation for continuous monitoring
Protection: Resistant to electrical noise and transients
Indicators: Status monitored through the 3500 system diagnostics
Communication & Interface
Interface: Connects directly to the Bently Nevada 3500 rack system
Signal Type: Analog vibration signals processed by the 3500 system
Channels: Single-channel input per module
Diagnostics: Supports system-level diagnostics and alarm integration
Environmental
Operating Temperature: −40 to +70°C
Humidity: Up to 95% RH, non-condensing
Protection: Industrial-grade construction suitable for harsh environments
Mounting: Installed in the 3500 system rack
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 163.1 mm
Weight: 0.46 kg
