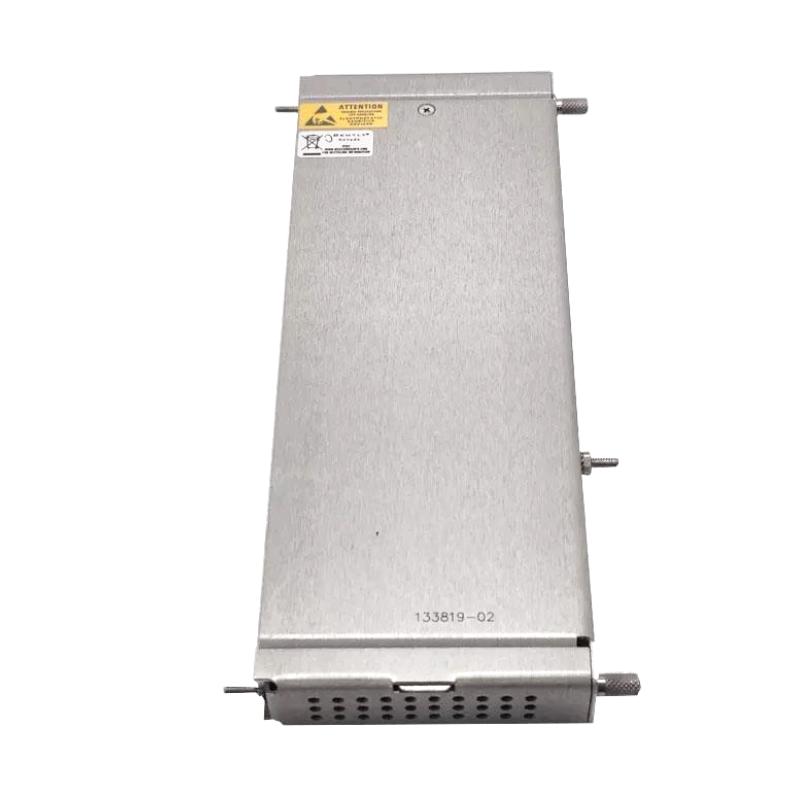

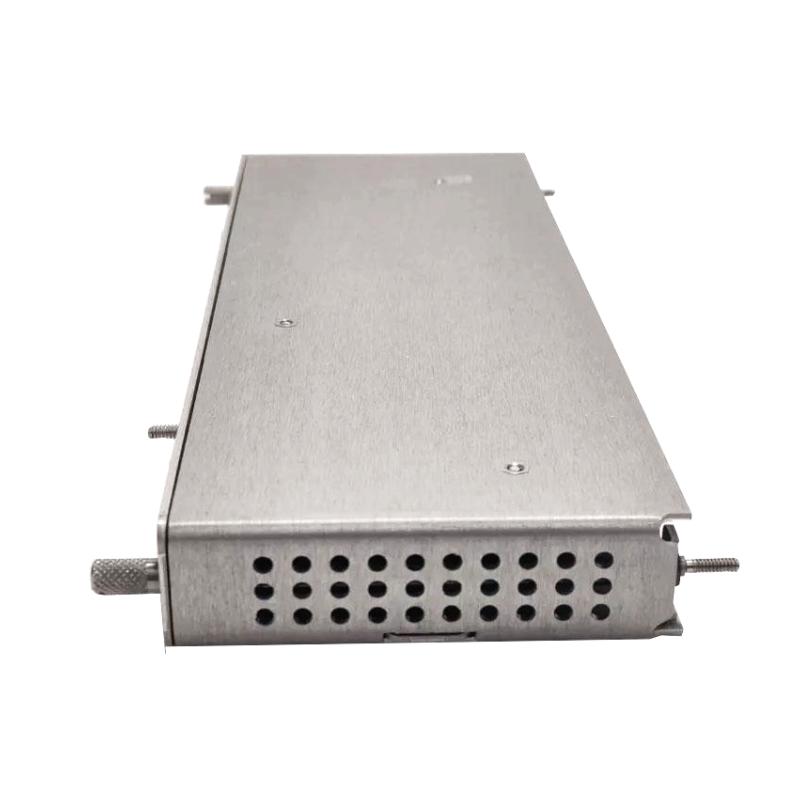

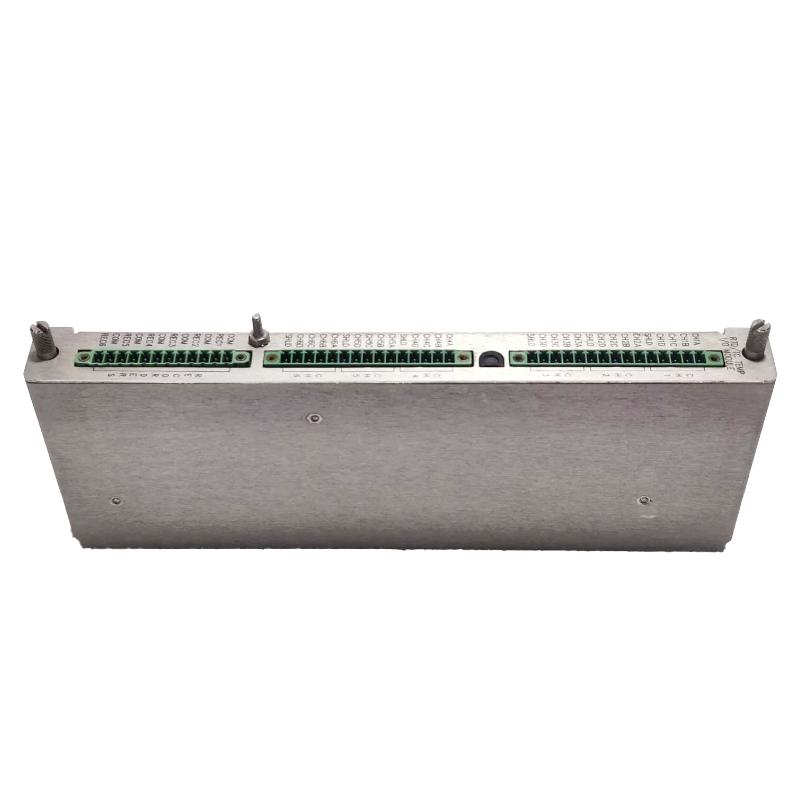

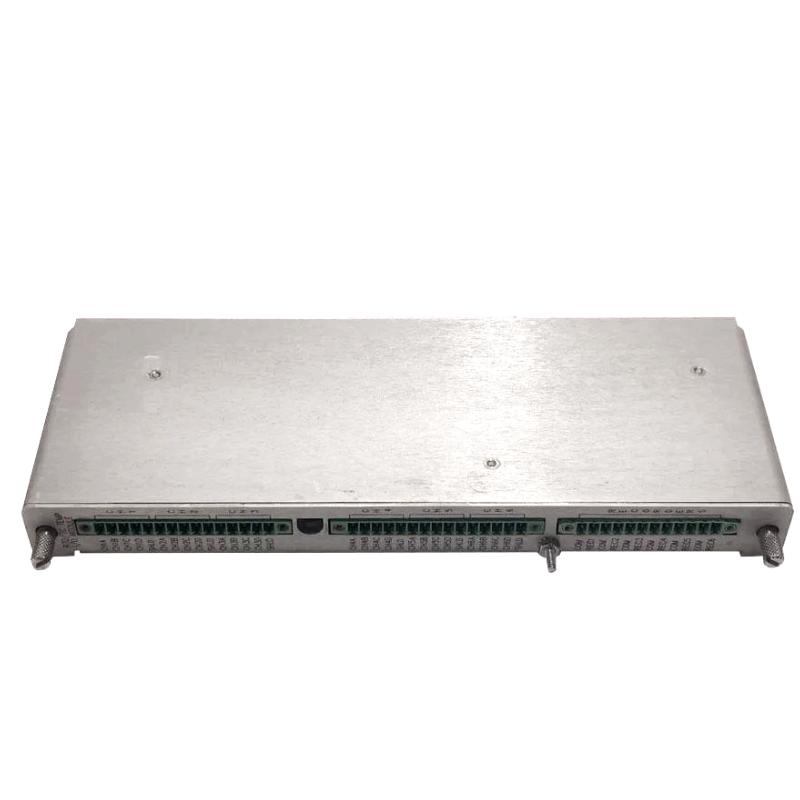

Bently Nevada 3500/61 163179-02+133819-02 | Temperature Module New In Stock

Overview

The module combination 163179‑02 paired with I/O 133819‑02 is part of the 3500/61 series designed for temperature monitoring of machinery. It accepts RTD or thermocouple inputs, performs alarm logic, and provides recorder outputs.

General Information

Brand: Bently Nevada
Country of Origin: United States
Part Numbers: 163179‑02 (monitor) + 133819‑02 (I/O module)
Series / Type: 3500/61 Temperature Monitoring Module
Function: Receives temperature sensor signals, executes monitoring and alarm logic, outputs data to recorder or system interface
Mounting: Rack‑mounted module

Power Specifications

Supply Voltage: 24 V DC (via rack backplane)
Power Consumption: Approximately 9 W (typical for 3500/61 monitors)
Protection: Industrial‑grade protections including reverse polarity and fault handling

Communication & Interface

Interface Type: Monitor plus I/O module combination for temperature monitoring
Signal Types: Accepts RTD and thermocouple inputs via I/O module, and monitor performs logic and outputs
Function: Conditions and routes sensor data, compares against setpoints, outputs alarm/recorder signals

Environmental

Operating Temperature: −30 °C to +65 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or rack

Dimensions & Weight

Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: Approx. 0.91 kg

Brand-new products with immediate stock access, supported by service.
