Overview

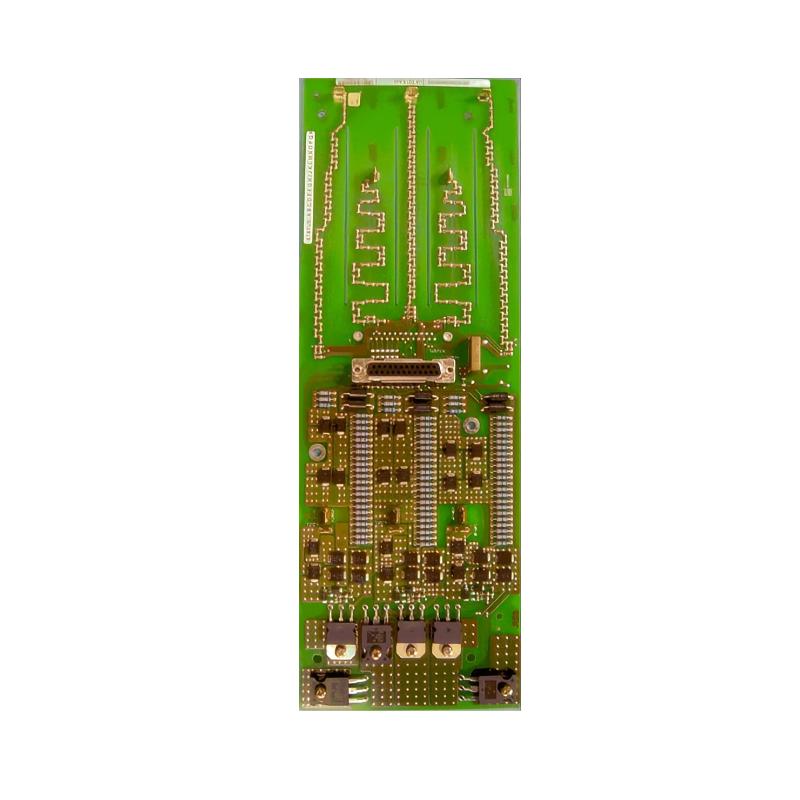

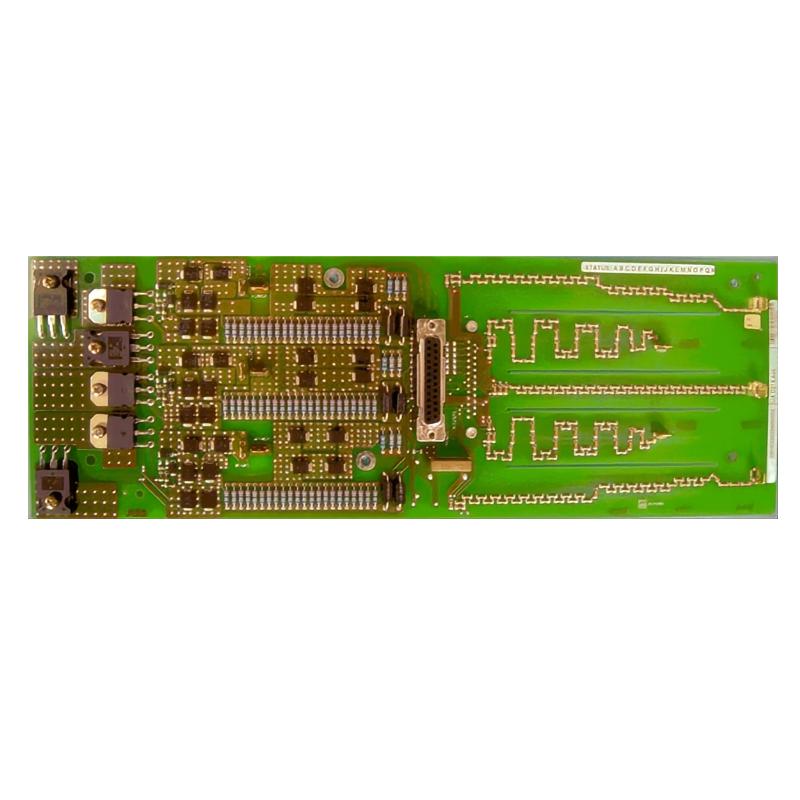

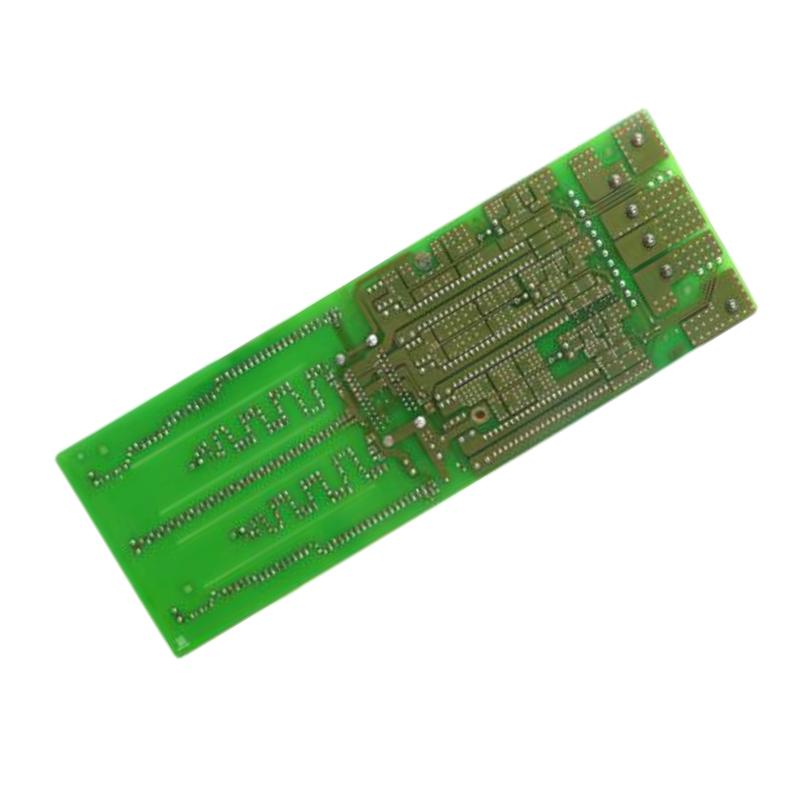

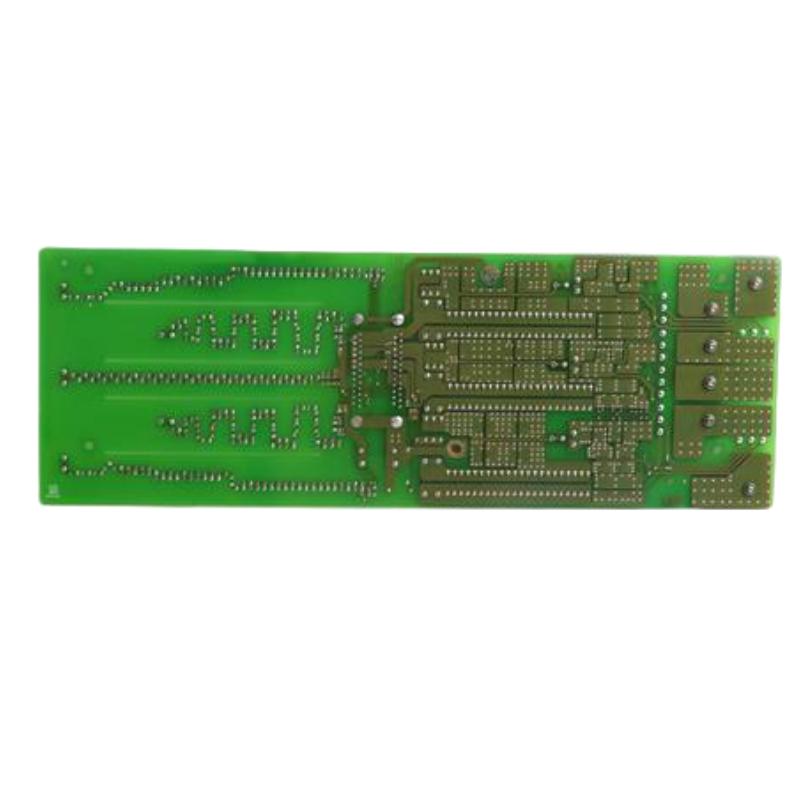

The ABB UA D215 A106 is a signal converter module used in PEC80 control systems. It provides reliable signal conversion and electrical isolation between field devices and system components.
General Information
Part Number: 3BHE026284R0106
Manufacturer: ABB
Brand: ABB
Country of Origin: Germany
Model: UA D215 A106
Type: Signal Converter Module
Function: Converts and isolates analog or digital signals for precise control communication.
Power Specifications
Rated Voltage: 30 V DC nominal
Isolation Voltage: Up to 1500 V between input, output, and system logic
Power Consumption: Low-power design for industrial control applications
Communication & Interface
Signal Type: Analog or discrete signal conversion
Interface Role: Acts as an intermediary between field signals and PEC80 controller system
Isolation: Provides galvanic isolation for signal integrity and protection
Diagnostics: Basic operational indicators for power and status
Environmental
Operating Temperature: −20 °C to +60 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Designed for use within industrial control enclosures
Dimensions & Weight
Dimensions: 340.08 × 117.5 mm
Weight: 0.7 kg
