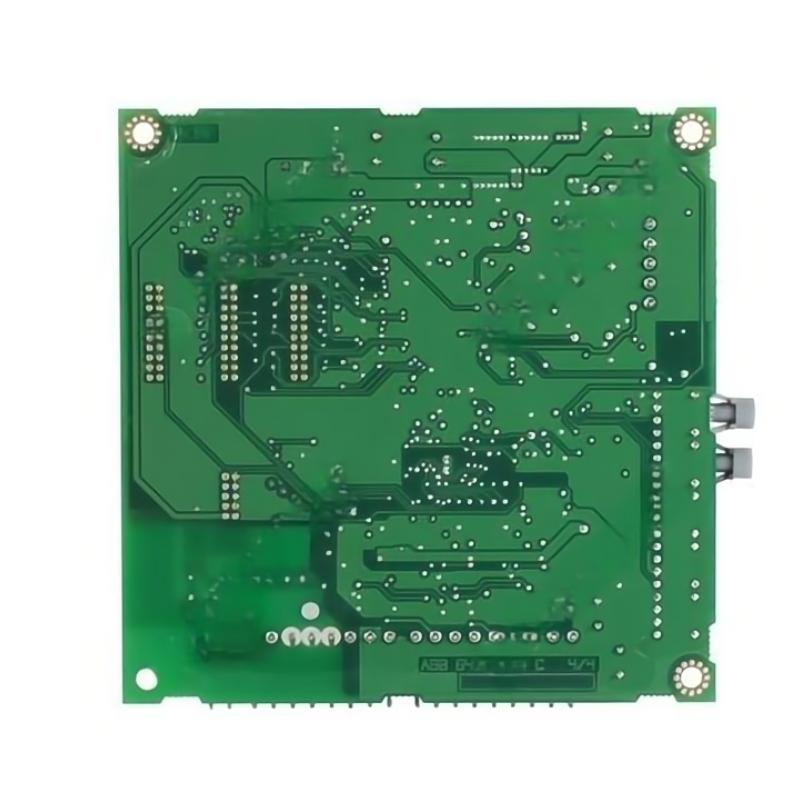

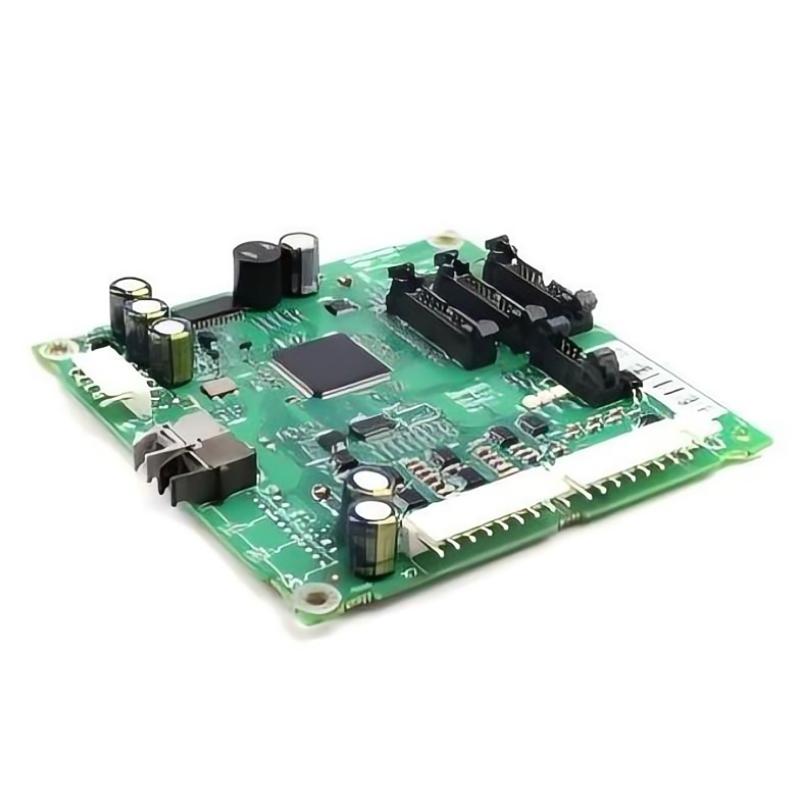

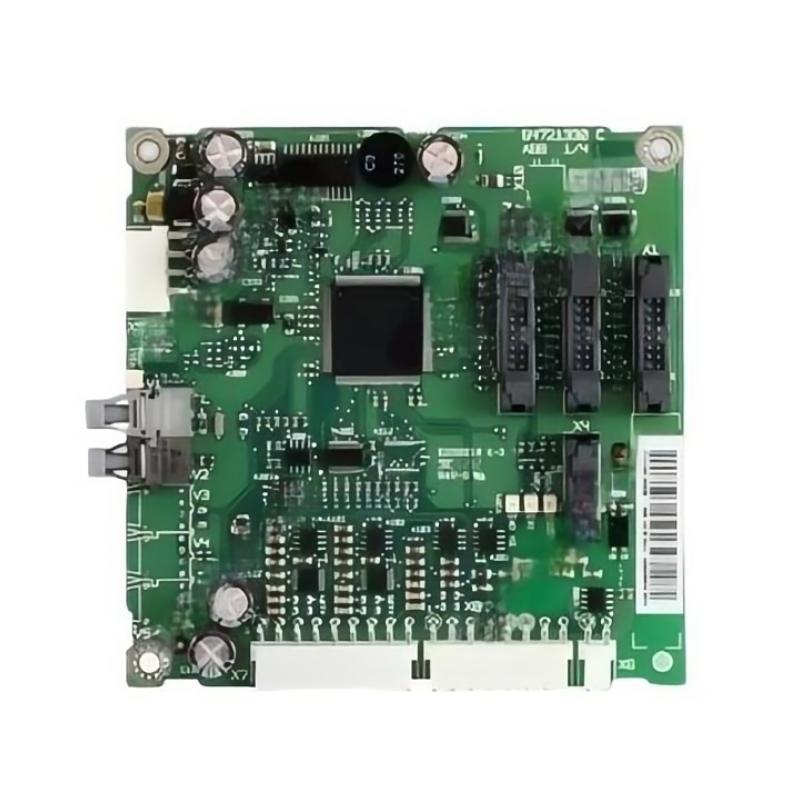

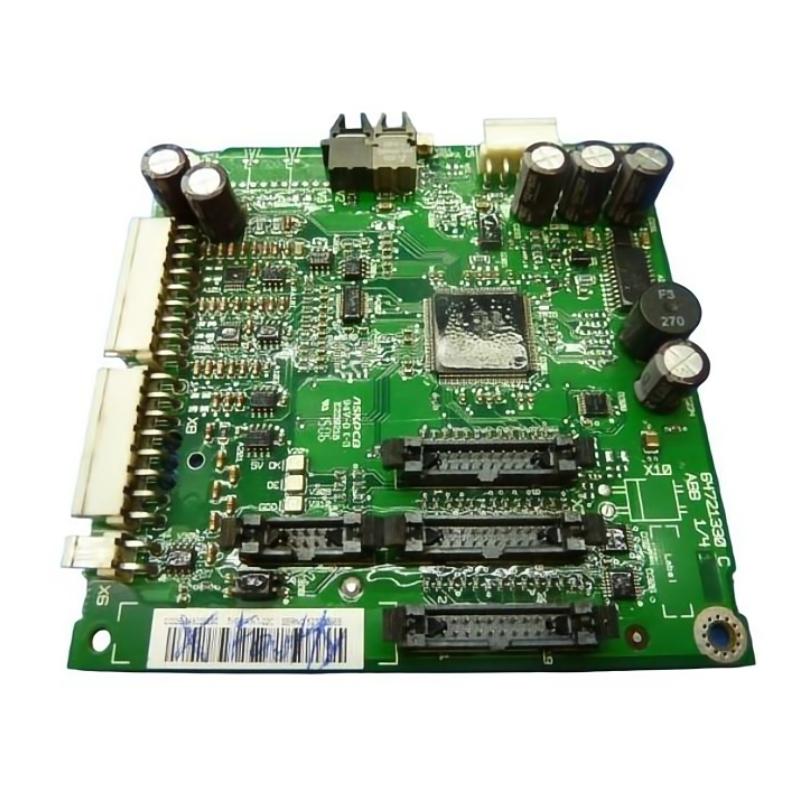

ABB AINT-02C 64802909 SP Kit Main Interface

Overview

The ABB AINT-02C 64802909 SP Kit is a main interface board designed for ABB industrial drive systems. It serves as the primary interface between the control electronics and the power section, ensuring reliable signal processing and system communication. The module is commonly used for maintenance, repair, and replacement in ABB drive applications.

General Information

Part Number: AINT-02C / 64802909

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: Drive Spare Parts (SP Kit)

Product Type: Main Interface Board

Mounting Type: Internal installation within ABB drive system

Function: Provides signal processing and interface communication for drive control

Design: Compact industrial electronic interface board

Power Specifications

Supply Voltage: Powered internally by the drive system

Power Consumption: Low-power electronic circuit

Protection: Electrical isolation and surge protection

Start-Up: Automatic initialization during drive power-up

Communication & Interface

Interface Type: Internal drive control interface

System Role: Main interface between control and power sections

Signal Processing: High-speed digital control signal transmission

Diagnostics: Supports drive status monitoring and fault reporting

System Integration: Compatible with designated ABB drive platforms

Environmental

Operating Temperature: -10 to 50 °C

Storage Temperature: -40 to 70 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade electronic assembly standard

Protection Rating: Designed for installation inside protected drive enclosure

Installation Environment: Industrial control cabinet or drive enclosure

Dimensions & Weight

Dimensions (H × W × D): 140 × 110 × 30 mm

Weight: 0.1 kg
