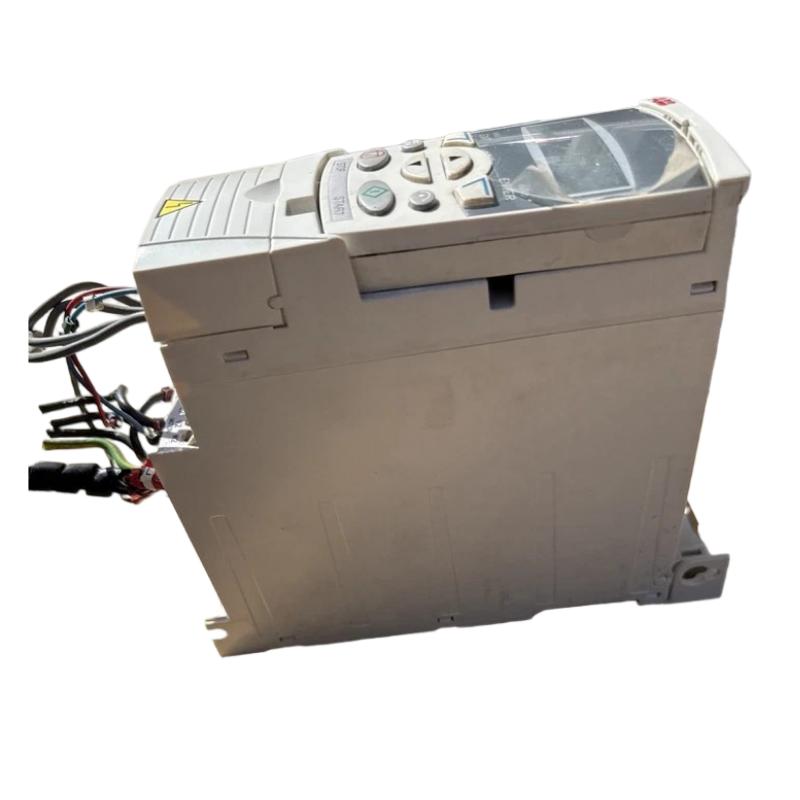

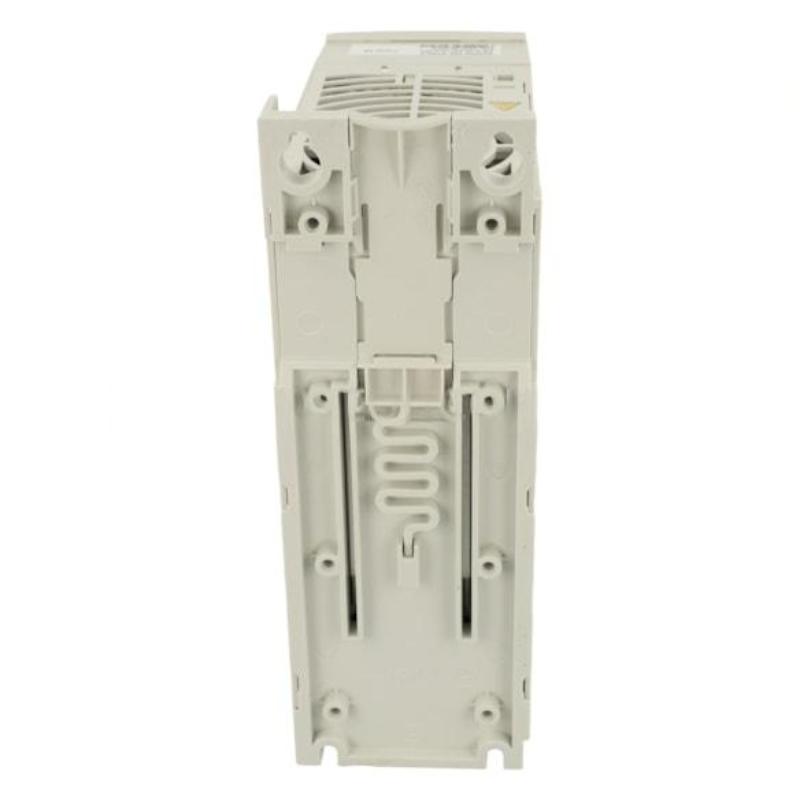

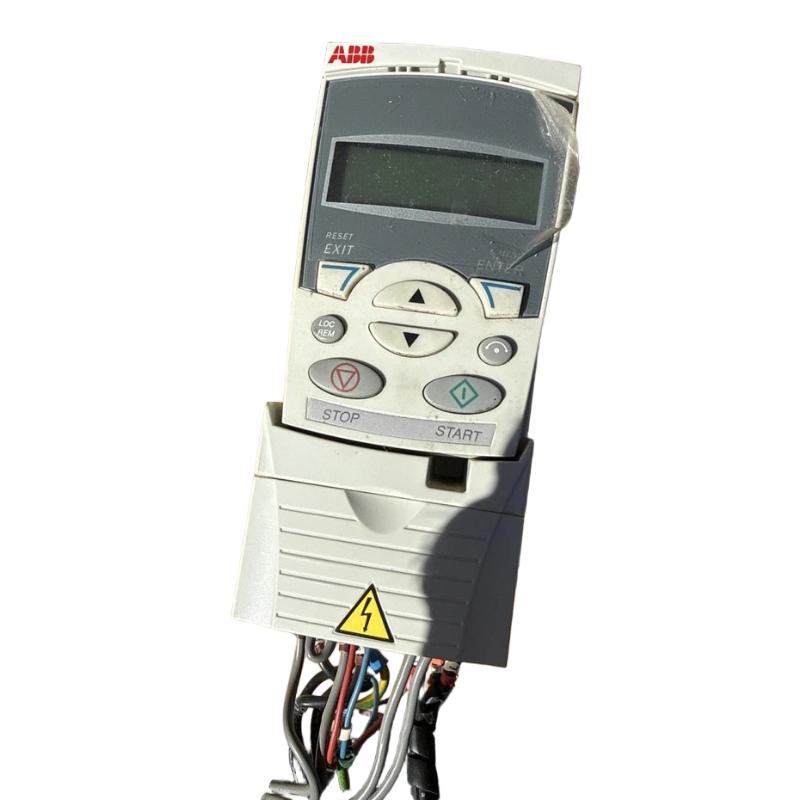

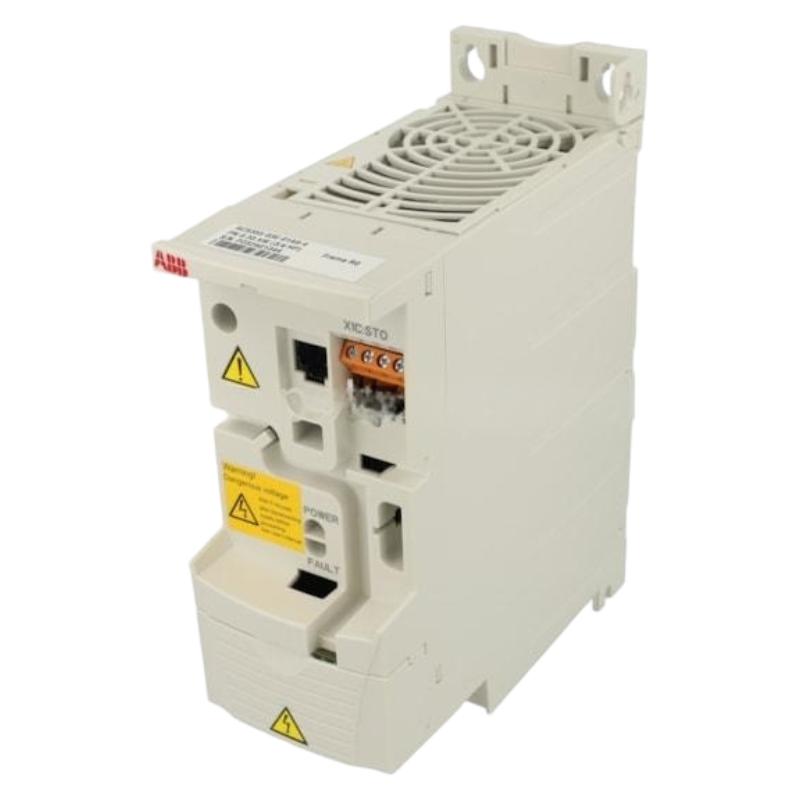

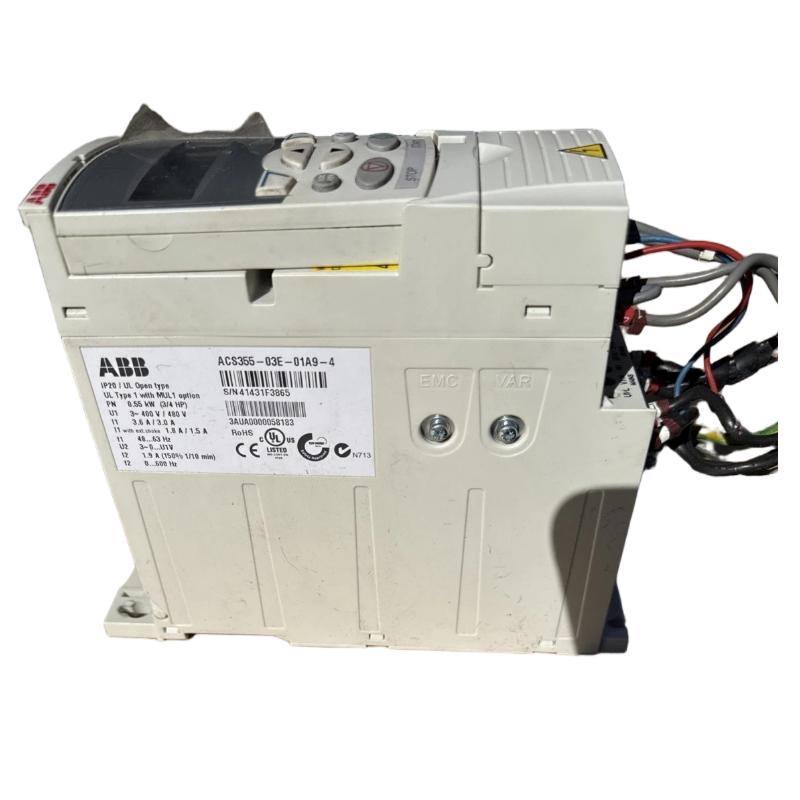

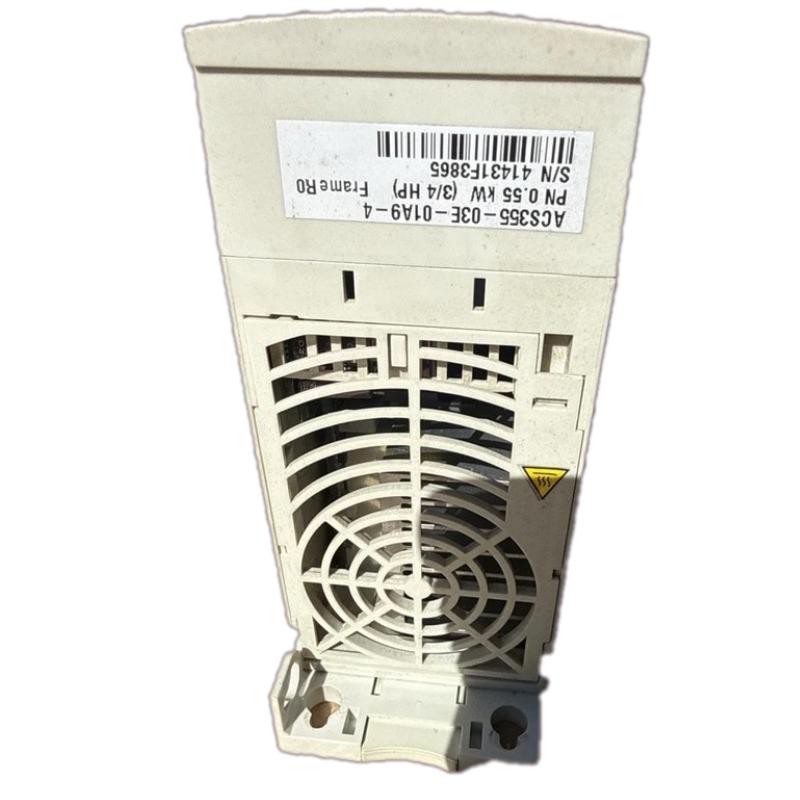

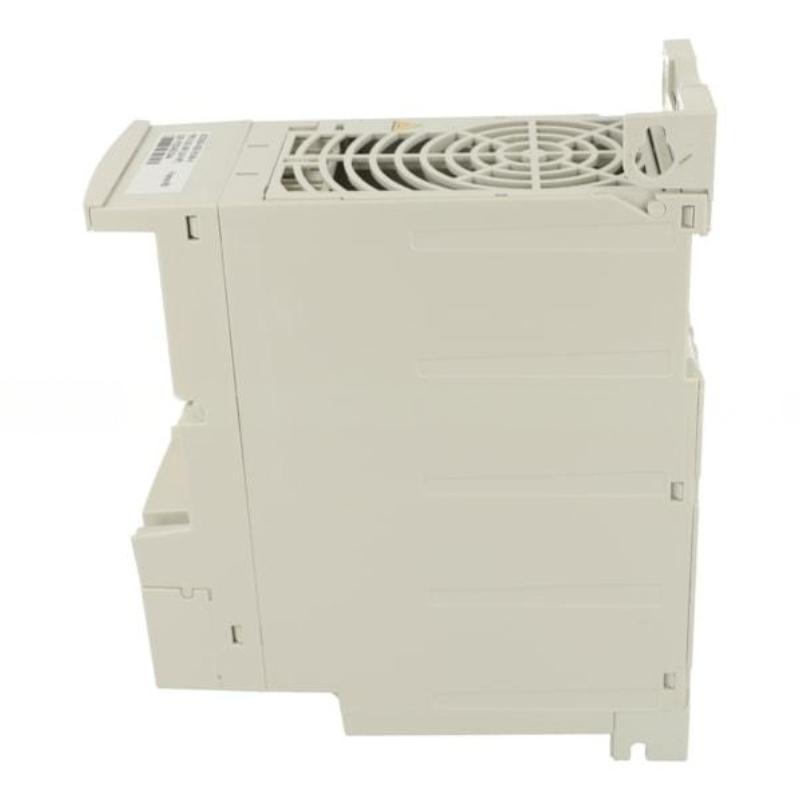

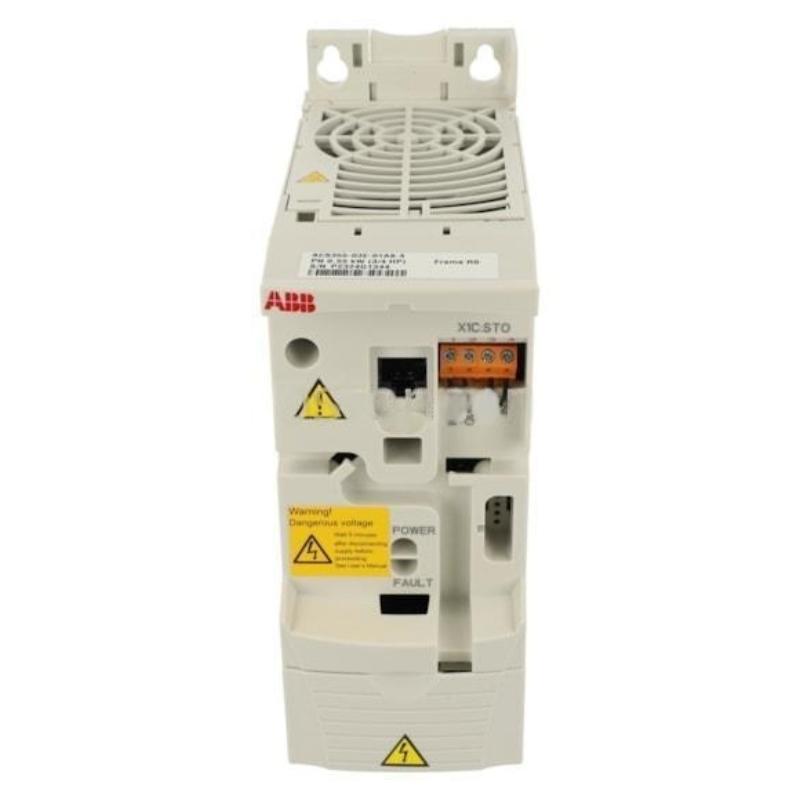

ABB ACS355-03E-01A9-4 3ABD0000058243 General-Purpose Variable Frequency Drive

Overview

The ABB ACS355-03E-01A9-4 (3ABD0000058243) is a compact general-purpose variable frequency drive (VFD) designed for efficient control of three-phase AC motors. It delivers precise speed and torque regulation while improving energy efficiency and machine performance. The drive is widely used in pumps, fans, conveyors, mixers, and other industrial automation applications.

General Information

Part Number: ACS355-03E-01A9-4 / 3ABD0000058243

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: ACS355 Micro Drive Series

Product Type: General-Purpose Variable Frequency Drive

Mounting Type: Wall-mounted or cabinet installation

Function: Controls AC motor speed and torque through variable frequency output

Design: Compact industrial drive for machine-level automation

Power Specifications

Input Voltage: 380–480 V AC, 3-phase

Output Voltage: 0–Input Voltage (variable)

Rated Output Current: 1.9 A

Motor Control: Scalar and sensorless vector control

Protection: Overvoltage, undervoltage, overload, overcurrent, and thermal protection

Communication & Interface

Interface Type: Built-in control terminals and keypad interface

Communication Options: Optional fieldbus communication modules

Control Inputs: Digital and analog I/O for motor control and monitoring

Diagnostics: Integrated fault diagnostics and status indication

System Integration: Compatible with a wide range of industrial automation systems

Environmental

Operating Temperature: -10 to 40 °C (without derating)

Storage Temperature: -40 to 70 °C

Humidity: Up to 95% non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 for cabinet installation

Installation Environment: Indoor industrial control enclosure

Dimensions & Weight

Dimensions (H × W × D): 169 × 70 × 161 mm

Weight: 1.2 kg
