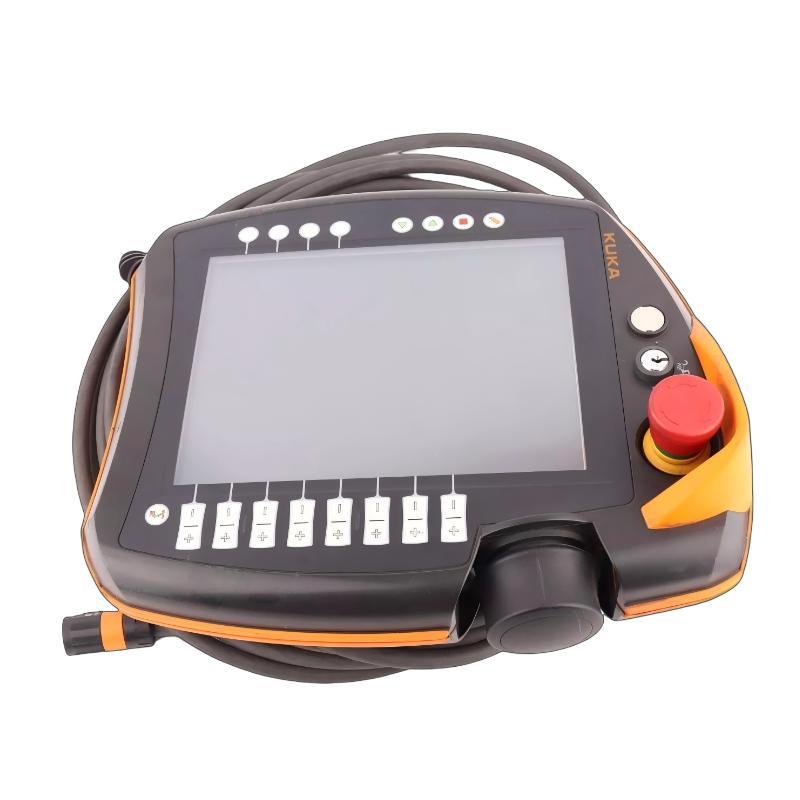

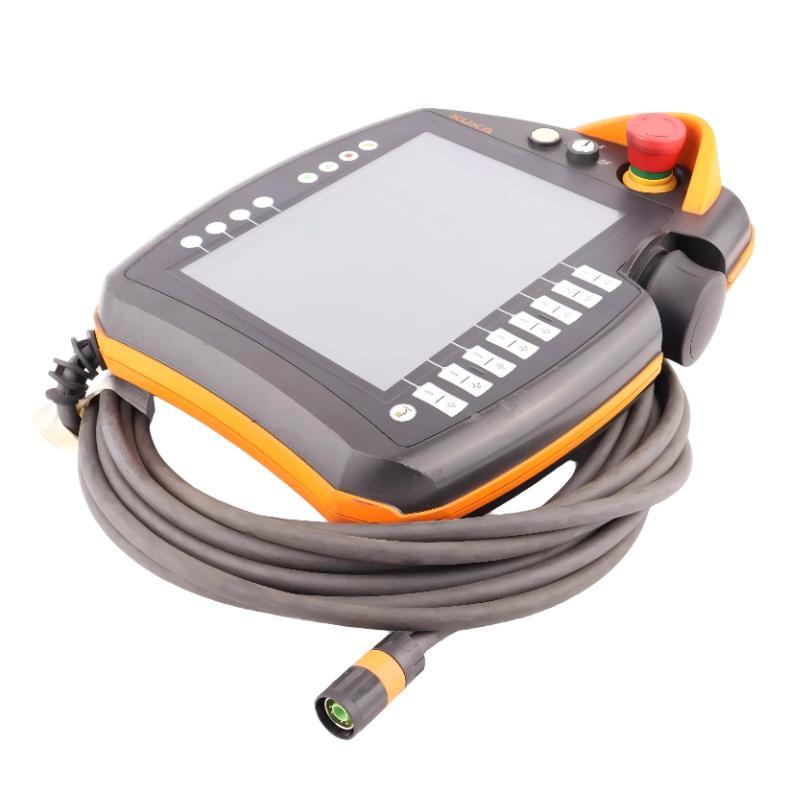

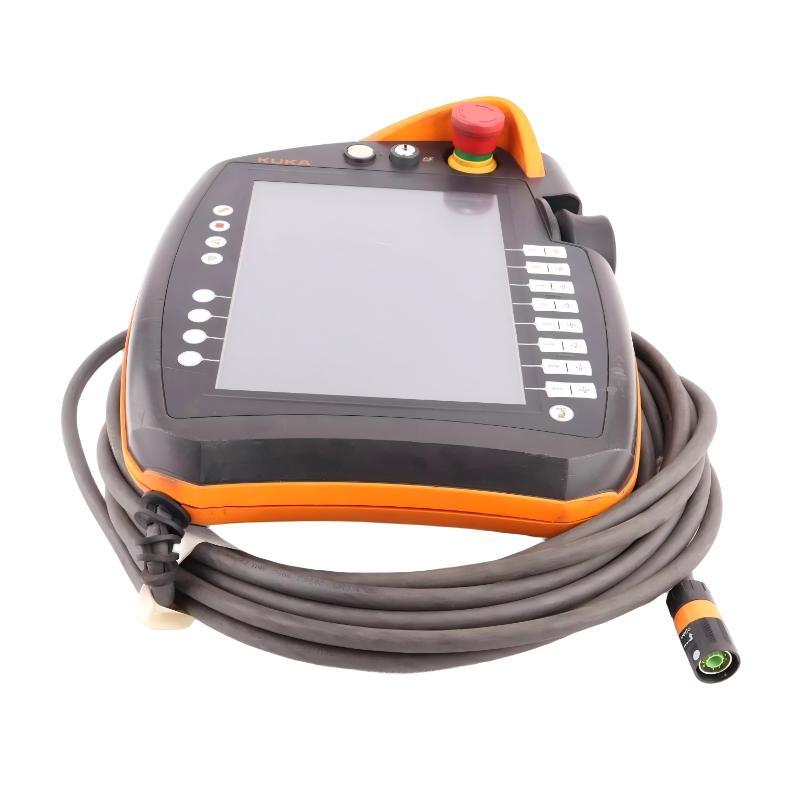

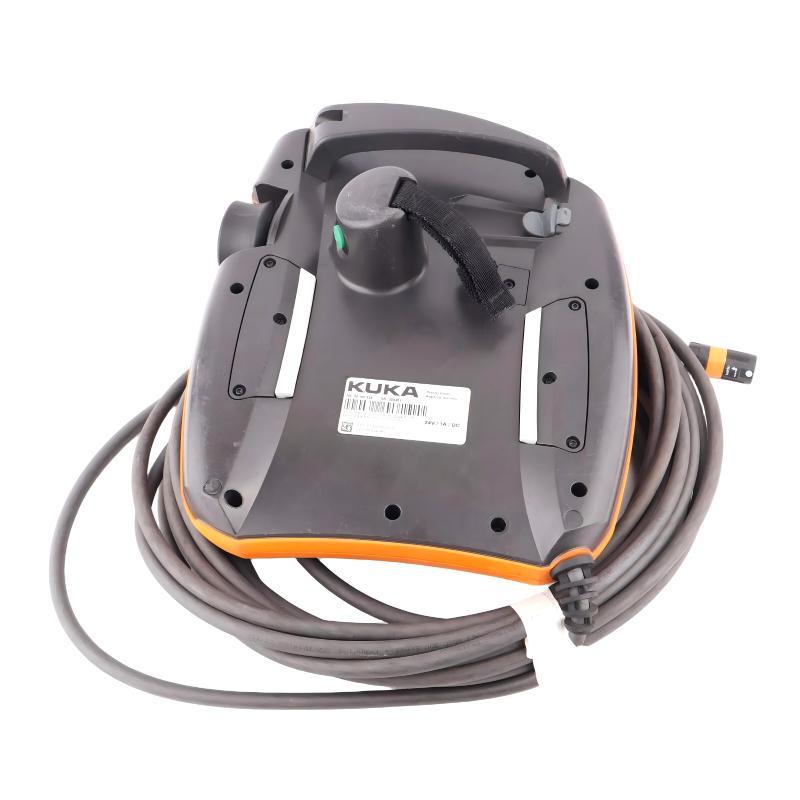

ABB(KUKA) 00-168-334 Teach Pendant Control Panel

Overview

The ABB (KUKA) 00-168-334 is a teach pendant control panel designed for industrial robot operation, programming, and system monitoring. It provides a dedicated human–machine interface for controlling robot motion, teaching paths, and managing automation tasks in real time.

General Information

Part Number: 00-168-334

Brand: ABB / KUKA

Country of Origin: Germany

Series: Robot Teach Pendant Systems

Type: Teach Pendant / Control Panel

Installation: Handheld unit connected to robot controller via cable

Function: Robot teaching, programming, and operational control

Application: Industrial robotics, automation systems, maintenance, commissioning

Power Specifications

Supply Method: Powered via robot controller connection cable

Input Voltage: Low-voltage DC supplied by controller

Power Consumption: Low-power HMI device for continuous industrial use

Protection: Industrial-grade enclosure with impact and interference resistance

Battery Support: Internal backup battery for system memory retention (system dependent)

Communication & Interface

Communication Type: Dedicated robot controller communication link

Interface: Integrated display, joystick/keypad controls, emergency stop functions

Functionality: Real-time robot control, path teaching, parameter adjustment

Data Handling: Continuous bidirectional communication with controller

Diagnostics: System alarms, status display, and fault monitoring

Compatibility: ABB and KUKA robotic platforms (system dependent)

Environmental

Operating Temperature: 0 to 50 °C

Storage Temperature: -20 to 70 °C

Relative Humidity: 5% to 95% non-condensing

Shock & Vibration: Designed for industrial handheld operation

Protection Rating: Rugged industrial enclosure for field use

Dimensions & Weight

Dimensions (L × W × H): 203 × 190 × 60 mm

Weight: 2.44 kg

Advanced Robot Control – Built for Precision, Safety, and Reliable Operation!
