Overview

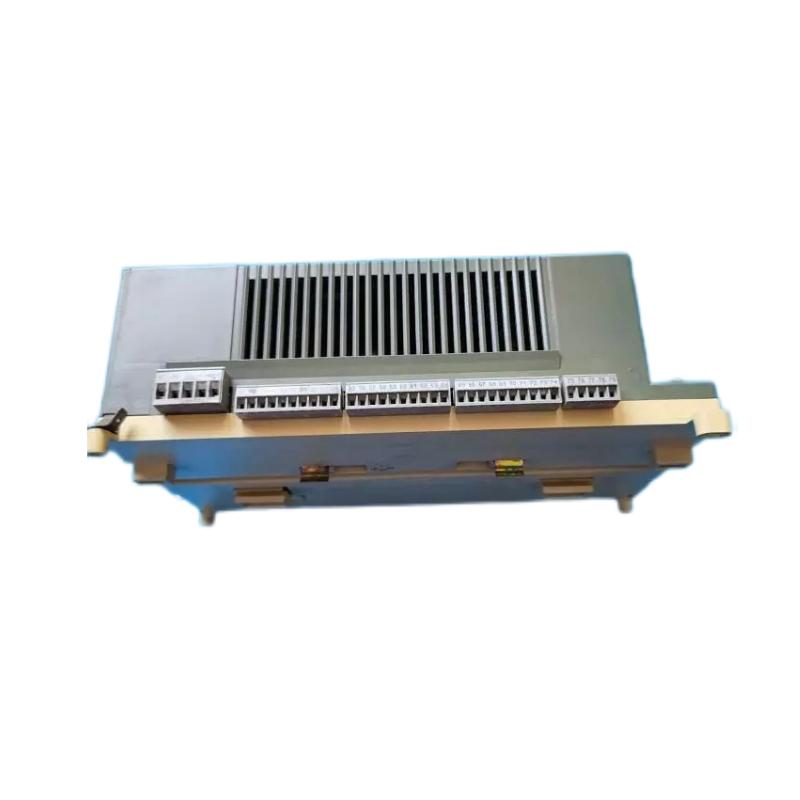

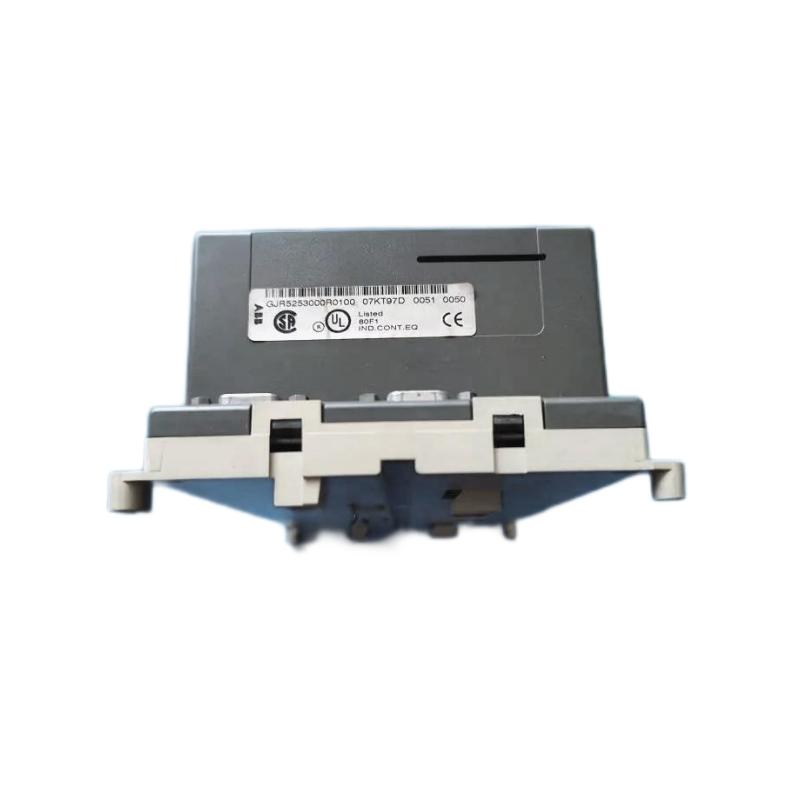

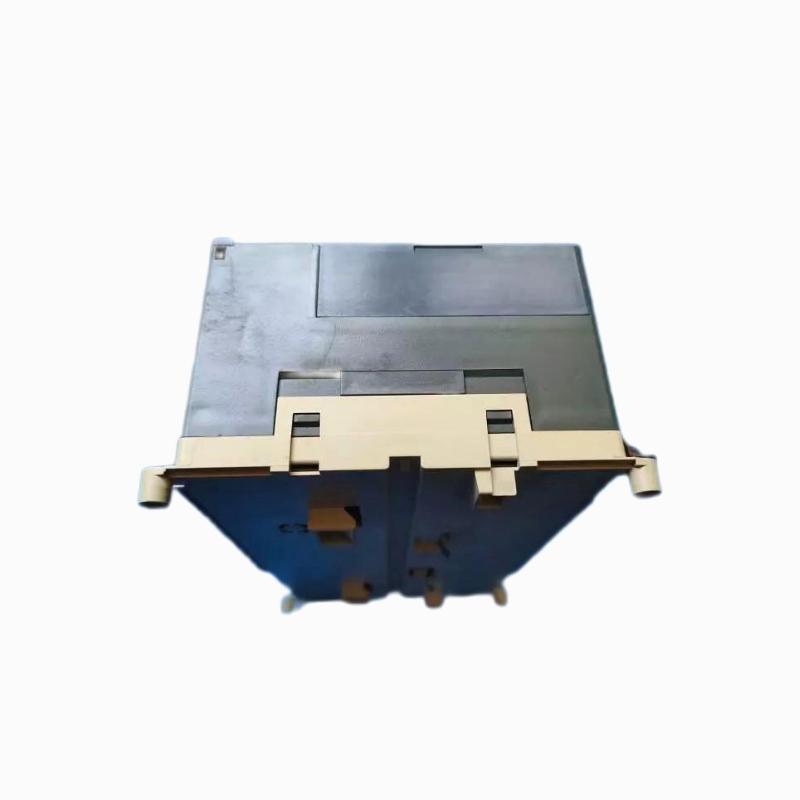

The ABB 07KT97G (GJR5253000R0100) is a central processing unit designed for ABB’s Advant Controller 31 automation system, executing control logic and managing I/O operations. Brand: ABB. Country of Origin: Sweden.
General Information
Part Number: GJR5253000R0100
Manufacturer: ABB
Brand: ABB
Country of Origin: Sweden
Type: Central Processing Unit (CPU)
Function: Executes user program, handles digital and analog I/O, provides system communication
Power Specifications
Supply Voltage: 24 V DC nominal
Program Memory: 480 kB user program + 256 kB user data
Digital Inputs: 24 channels, electrically isolated
Digital Outputs: 16 transistor outputs, electrically isolated
Analog Inputs: Configurable 0–10 V, 0–20 mA, 4–20 mA, Pt100
Analog Outputs: Configurable 0–10 V, 4–20 mA
Communication & Interface
Ports: RS-232, RS-485 interfaces
Bus Interface: CS31 system bus
Features: Real-time clock, high-speed counter up to 10 kHz, smart-card memory support
Environmental
Operating Temperature: −20 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Cabinet or rack-mounted industrial environment
Dimensions & Weight
Dimensions: 240 × 140 × 85 mm
Weight: 1.6 kg
