Overview

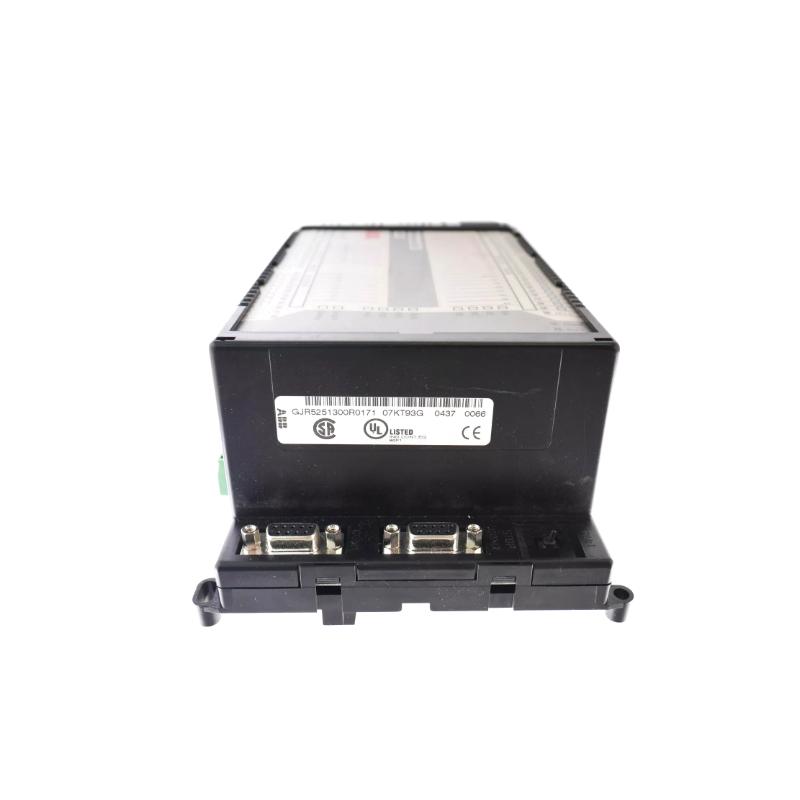

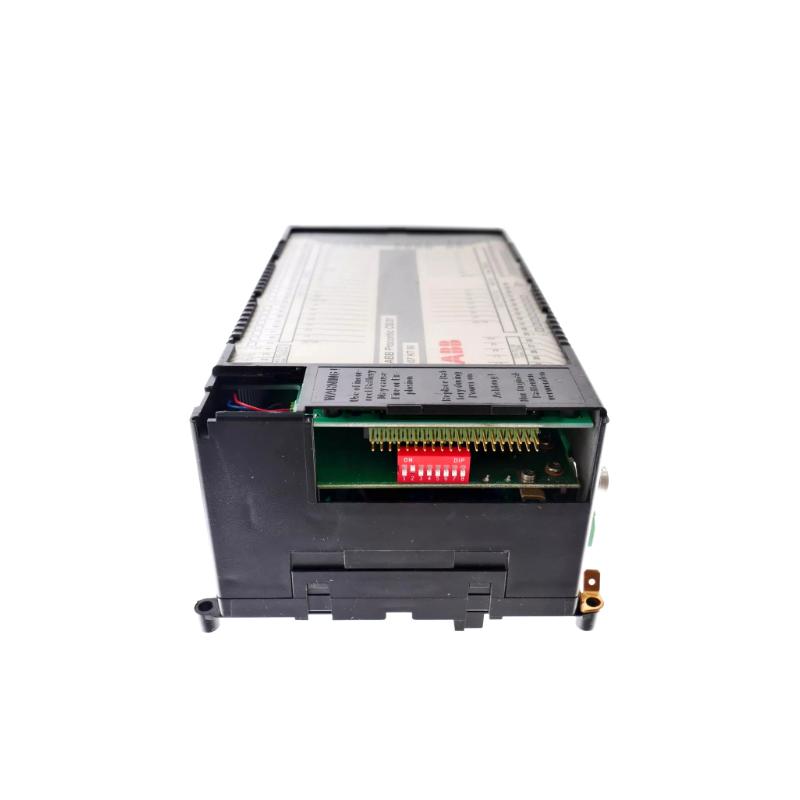

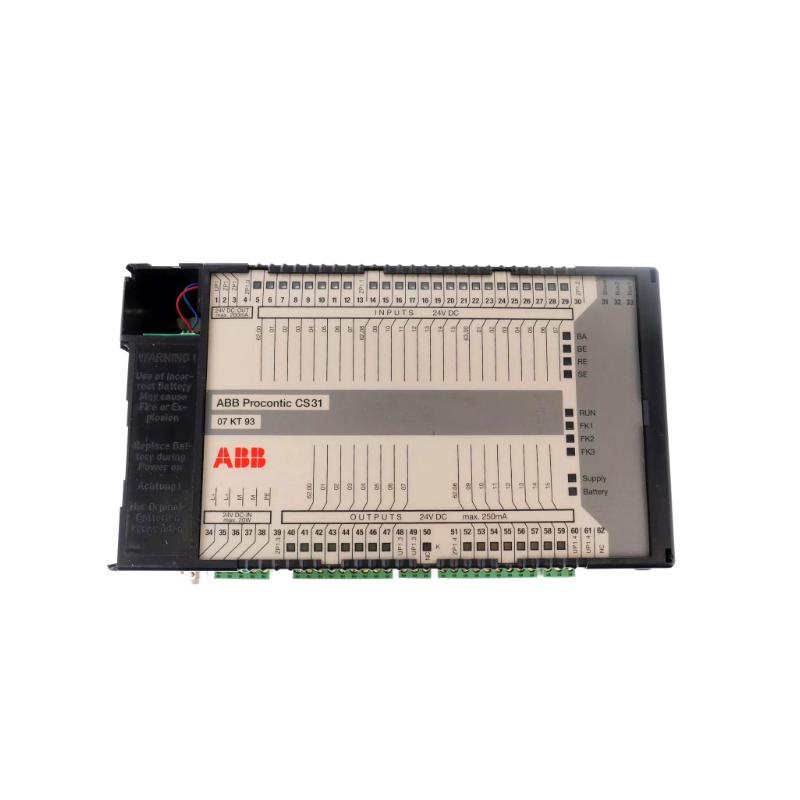

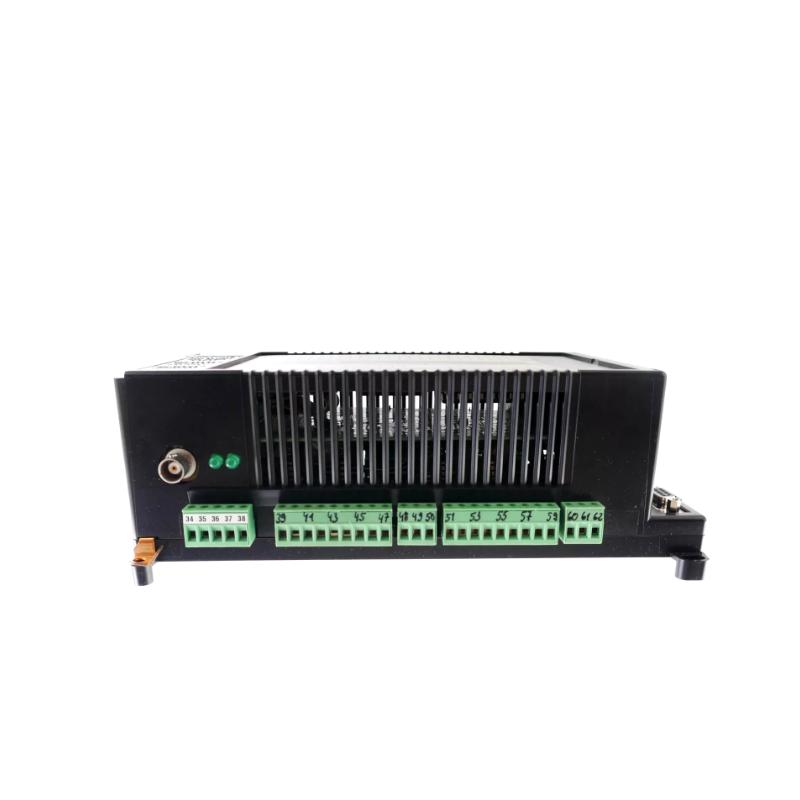

The ABB 07KT93G GJR5251300R0171 is a CPU module for the Procontic series, used in industrial automation to execute control logic, manage interfaces and I/O modules. Brand: ABB. Country of Origin: Sweden.
General Information
Part Number: GJR5251300R0171
Manufacturer: ABB
Brand: ABB
Country of Origin: Sweden
Type: Central Processing Unit (CPU)
Function: Executes program logic, interfaces with I/O modules, provides communication ports and real-time clock
Power Specifications
Supply Voltage: 24 V DC nominal
Memory: 14 kB Flash EPROM
Digital Inputs: 24 channels (24 V DC)
Digital Outputs: 16 transistor outputs (24 V DC, 0.5 A each)
Communication & Interface
Communication Ports: 2 programmable RS-232 ports; RS-485 system bus interface
Functionality: High-speed counter up to 10 kHz; real-time clock; supports PID and advanced functions
Environmental
Operating Temperature: −20 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Dimensions & Weight
Dimensions: 152 × 102 × 254 mm
Weight: 1 kg
