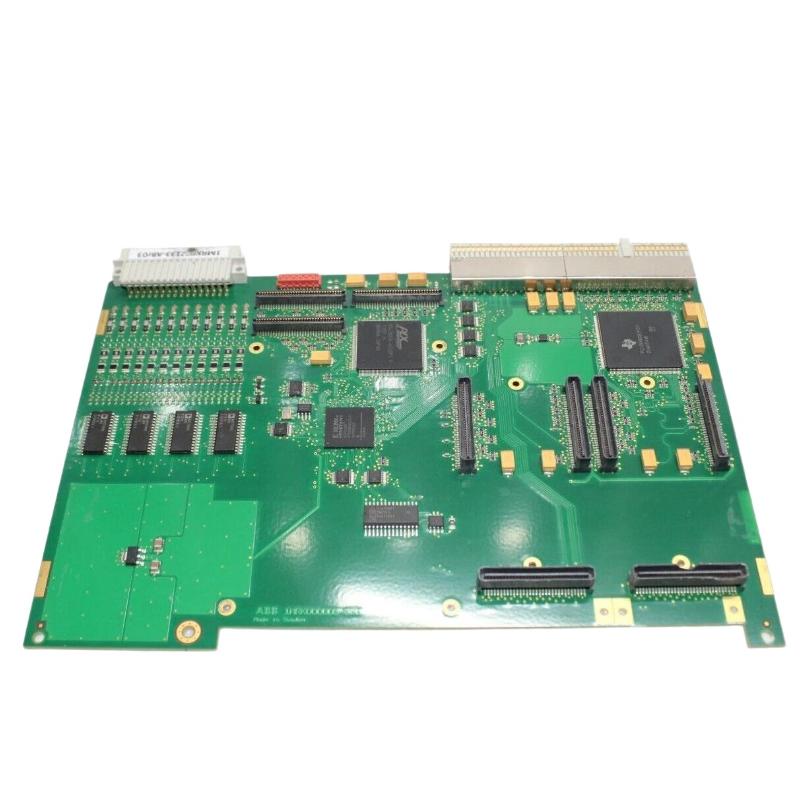

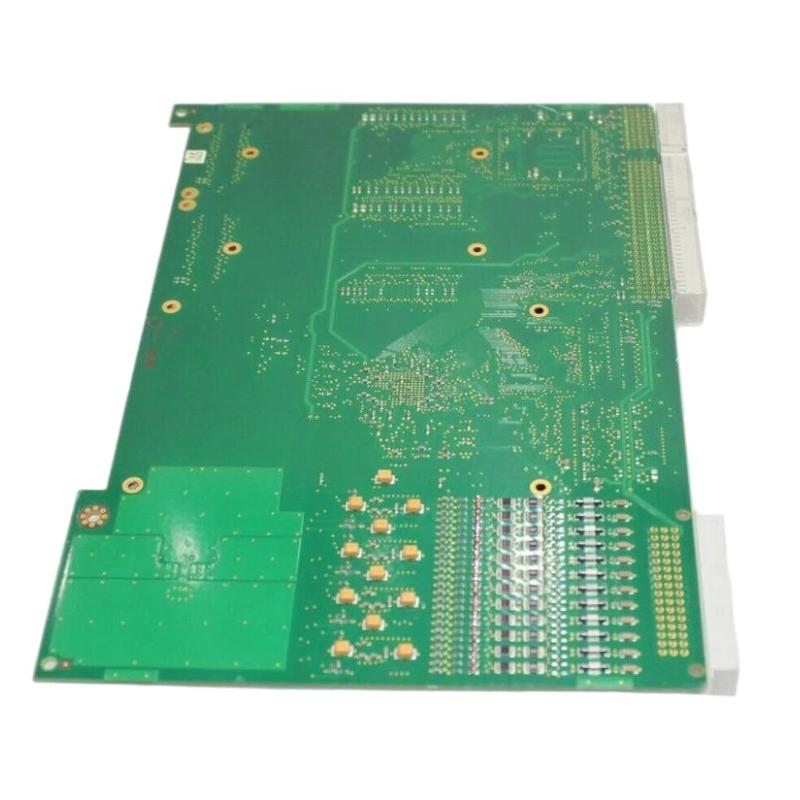

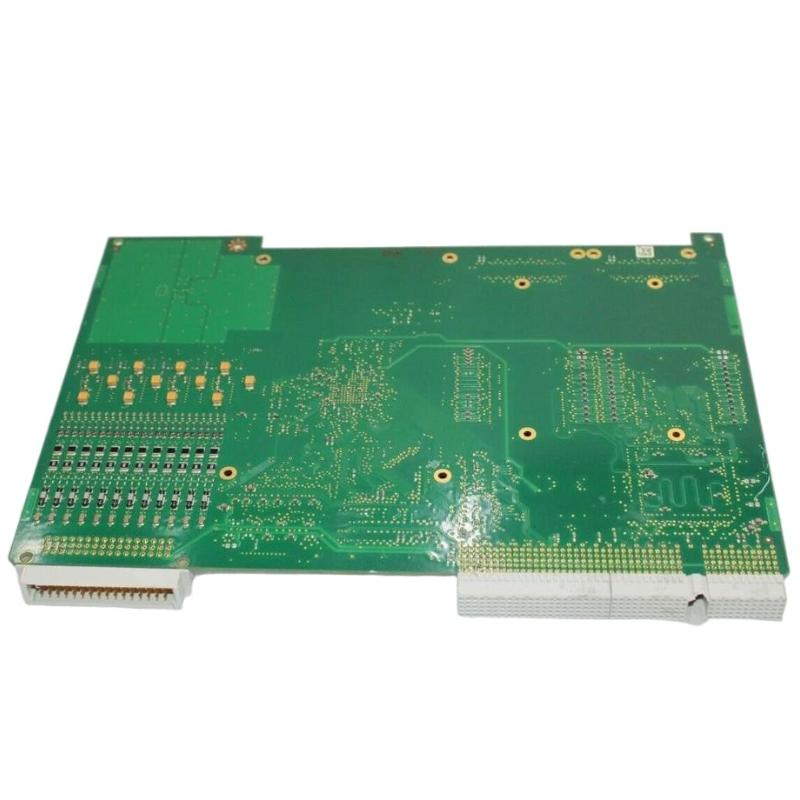

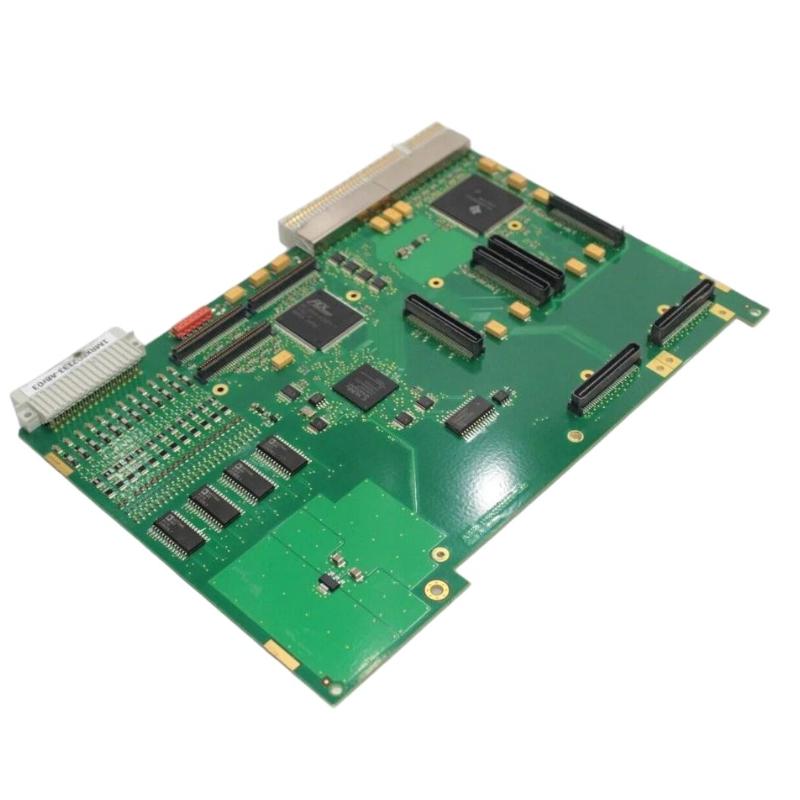

ABB 1MRK002133-ABr03 Control Board

Overview

The ABB 1MRK002133-ABr03 Control Board is a precision electronic module designed for industrial automation and protection systems. It manages signal processing, control logic, and communication between system components, ensuring reliable operation in complex industrial environments. The board is ideal for integration into cabinets or larger control assemblies.

General Information

Part Number: 1MRK002133-ABr03

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland/Sweden

Series: Protection & Control Electronics

Type: Control Board

Function: Signal processing and system control

Application: Industrial automation, protection, and monitoring systems

Compatibility: ABB automation and control platforms

Installation: Panel or rack mounted within control assemblies

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power industrial operation

Input Protection: Electrical isolation and surge protection

Output Protection: Circuit-level protection for reliability

Status Indicators: LED indicators for operational and fault status

Communication & Interface

Interface Type: System-level electronic communication

Signal Processing: Real-time control and monitoring of connected devices

Diagnostics: Built-in status monitoring and fault detection

Configuration: Software-configurable through control system tools

Connectivity: Compatible with ABB protection and automation modules

Environmental

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Industrial-grade durability

Vibration Resistance: Suitable for continuous operation in control cabinets

Protection Rating: Designed for installation in industrial enclosures

Dimensions & Weight

Dimensions (L × W × H): 220 × 120 × 30 mm

Weight: 0.186 kg

Engineered for Reliable Industrial Control!
