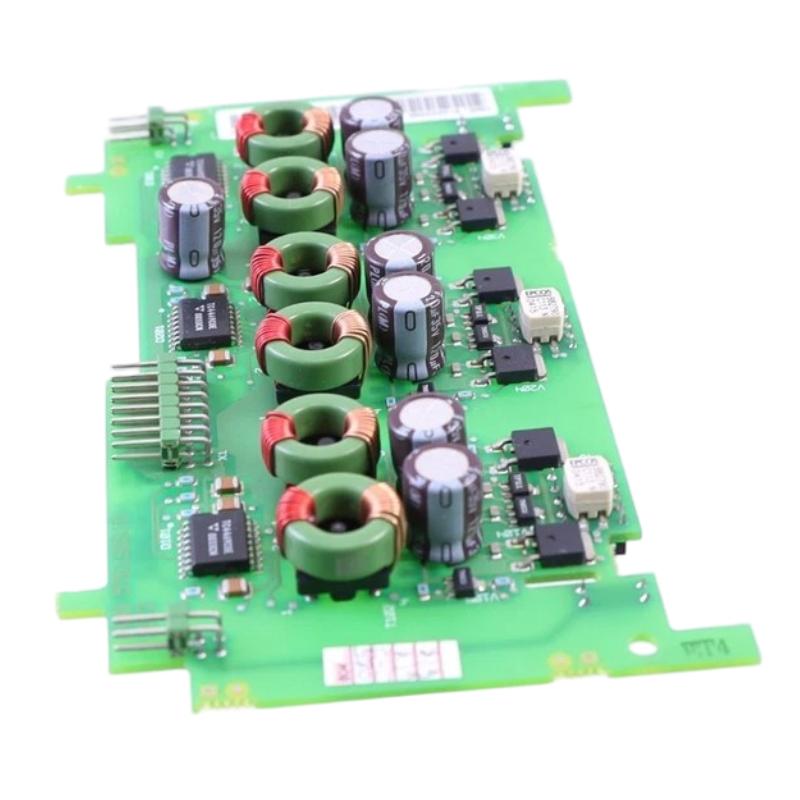

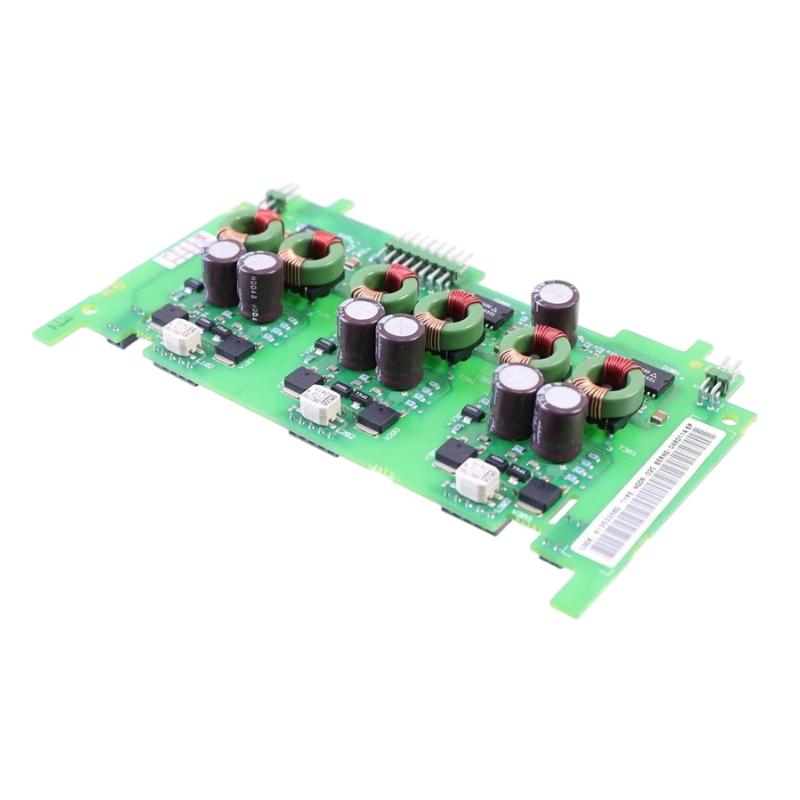

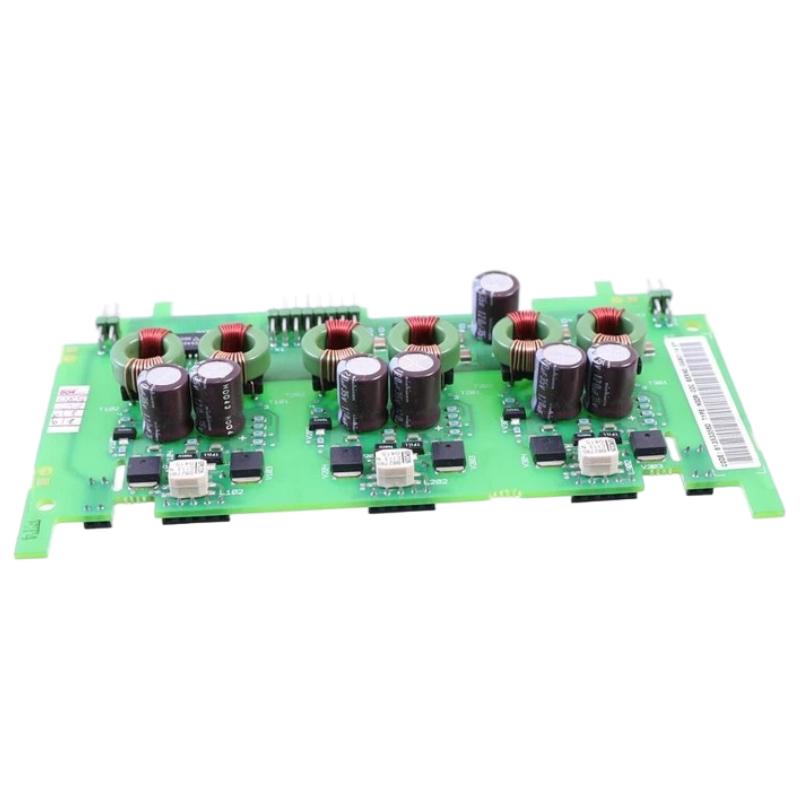

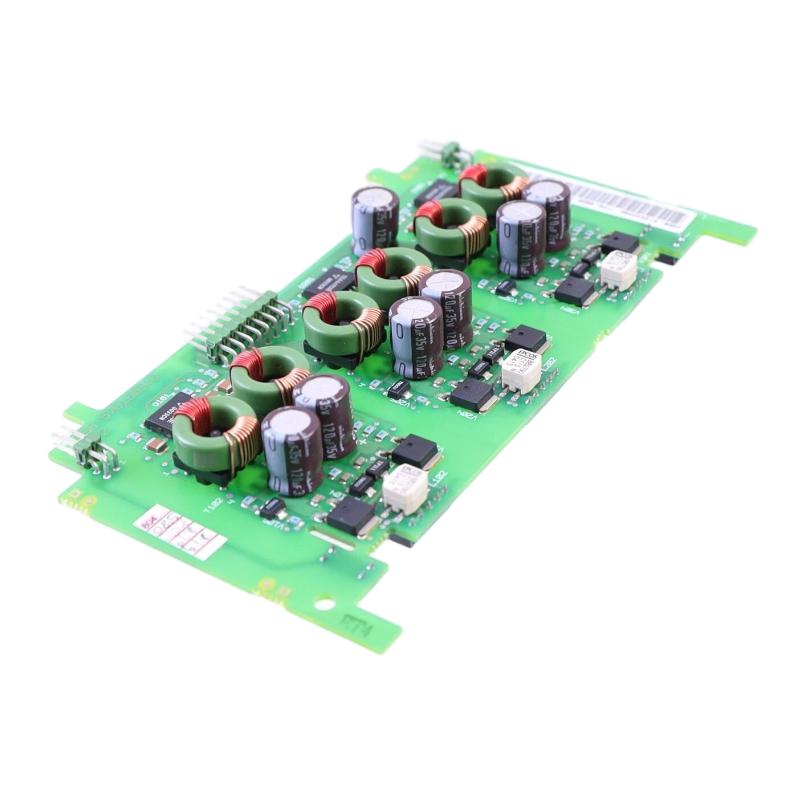

ABB NGDR-02C 61353356D Gate Circuit Driver Card KitGate Circuit Driver Card

Overview

The ABB NGDR-02C 61353356D is a gate circuit driver card kit developed for industrial drive and power control systems. It delivers accurate gate signal control, stable switching operation, and reliable communication between the control unit and power semiconductor components. This module is ideal for demanding motor drive and automation applications requiring high-performance control and protection.

General Information

Part Number: 61353356D

Model: NGDR-02C

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Drive Control Components

Type: Gate Circuit Driver Card Kit

Mounting: Installed within industrial drive or control cabinets

Technology: Gate driver circuitry with signal isolation and semiconductor switching control

Power Specifications

Supply Voltage: Compatible with industrial control system power requirements

Power Consumption: Low-power electronic control design

Protection Features: Integrated overvoltage and signal isolation protection

Indicators: Status and diagnostic indication supported through connected drive systems

Communication & Interface

Control Interface: Gate driver control connections for power switching devices

Function: Provides trigger signal management and drive control communication

Diagnostics: Driver fault monitoring and operational status supervision

Operator Interface: Accessible through connected drive controller systems

Reset Capability: Supports system reset and recovery operations

Environmental

Operating Temperature: 0 °C to +55 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial automation and drive environments

Protection Rating: IP20 when installed in suitable enclosure

Dimensions & Weight

Dimensions (L × W × H): 203.2 × 152.4 × 30 mm

Weight: Approximately 0.76 kg
