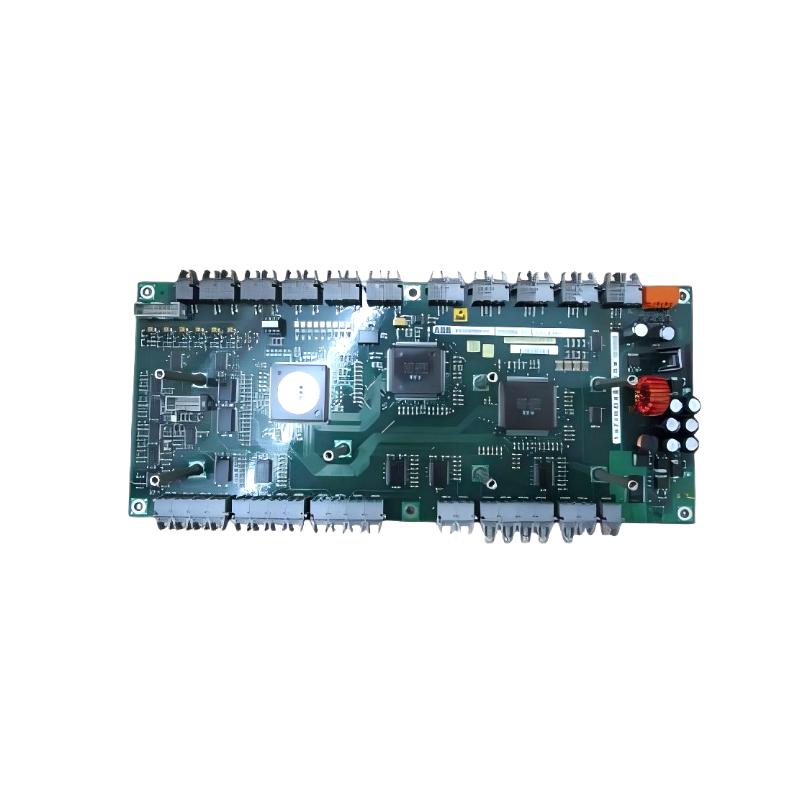

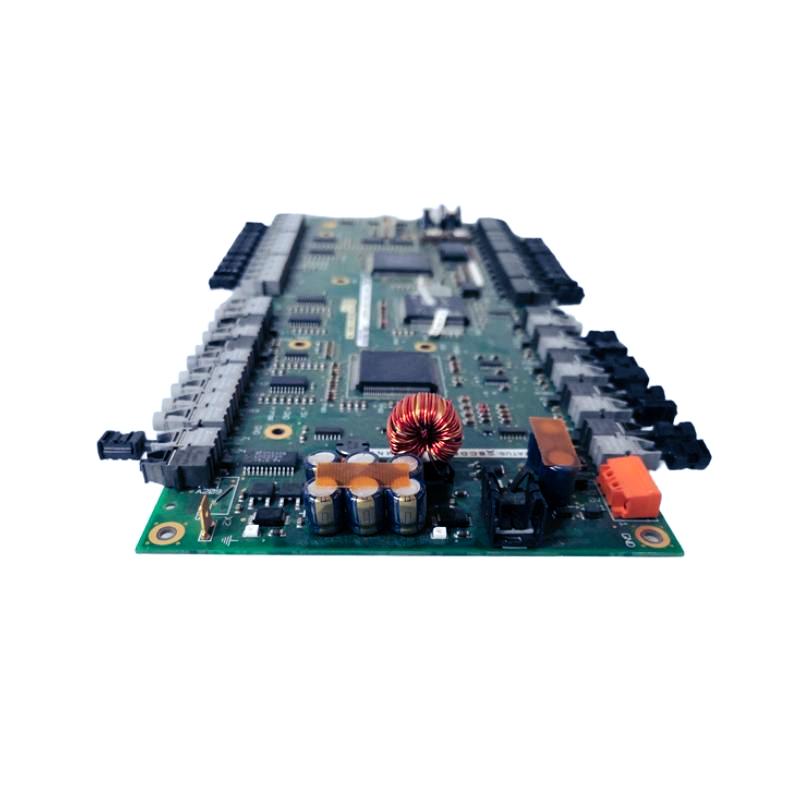

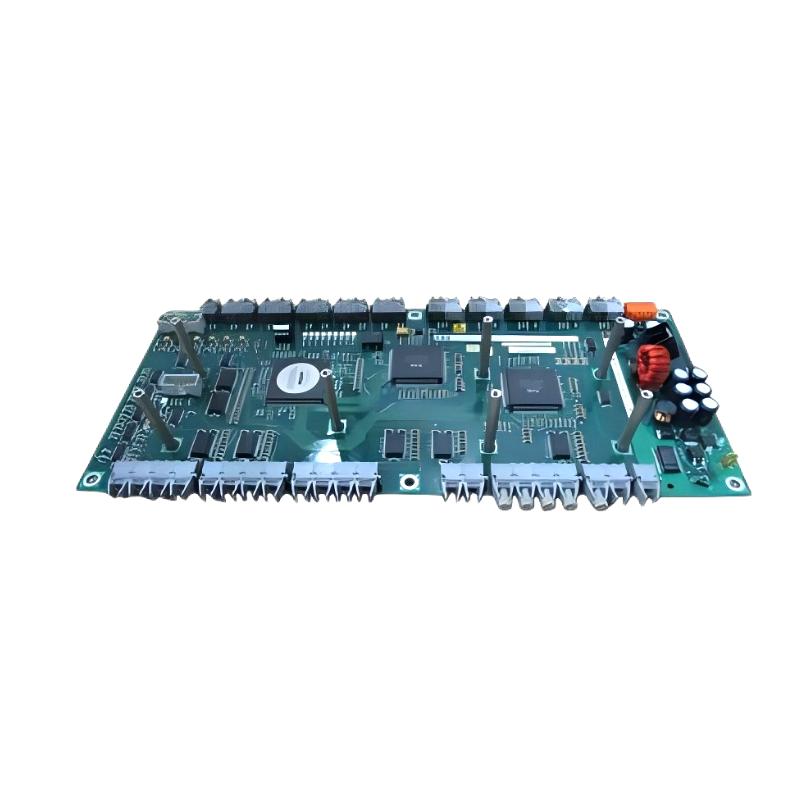

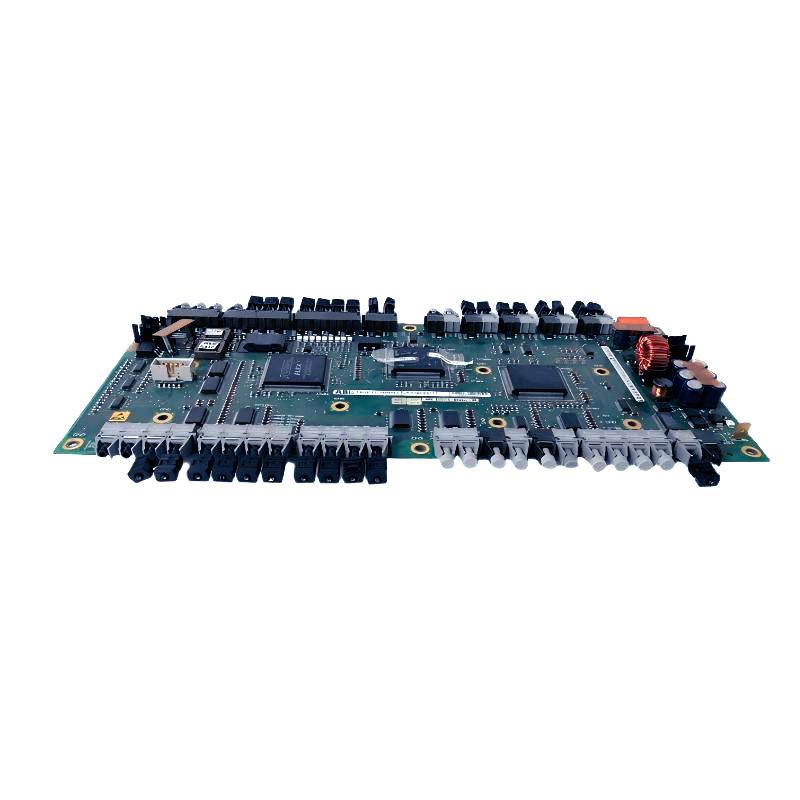

ABB UF C760 BE102 3BHB007030R0102 | Main Circuit Interface Module 100% New

Overview
The ABB UF C760 BE102 (3BHB007030R0102) is a main circuit interface module used in ABB drive and control systems. It bridges high‑power circuits and the control domain, enabling safe communication between power and logic sections. Brand: ABB. Country of Origin: Sweden.

General Information
Part Number: 3BHB007030R0102
Manufacturer: ABB
Brand: ABB
Country of Origin: Sweden
Type: Main Circuit Interface / Bridge Module
Function: Interfaces control logic with main (power) circuits to ensure safe data exchange
Mounting: Plug‑in board for cabinet or chassis installation

Power Specifications
Supply Voltage: Logic side typically 24 V DC
Main Circuit Interface: Supports high-voltage/power signals (details depend on drive series and configuration)
Protection: Industrial safeguards for overvoltage, isolation, and fault handling
Indicators: LED or status signals for interface health and faults

Communication & Interface
Interface Role: Connects control logic domain to power circuits
Signal Types: High-voltage signaling, gate drive, or feedback lines depending on system
Diagnostics: Supports status monitoring, fault signaling, and self‑test routines
Operator Interface: Status LEDs, diagnostic outputs to control system

Environmental
Operating Temperature: –20 °C to +70 °C (typical)
Humidity: Up to 95% RH, non‑condensing
Protection Rating: Designed for use in enclosure environments (e.g. IP20 within cabinet)
Storage Temperature: –40 °C to +85 °C

Dimensions & Weight
Dimensions:  160  x  90  x  30  mm
Weight: 0.6 kg
