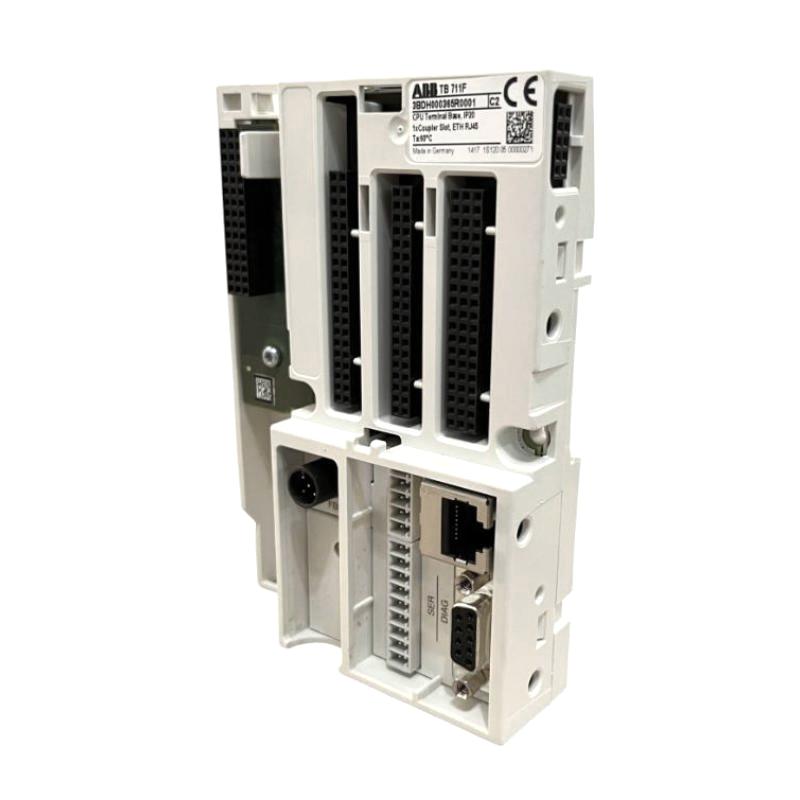

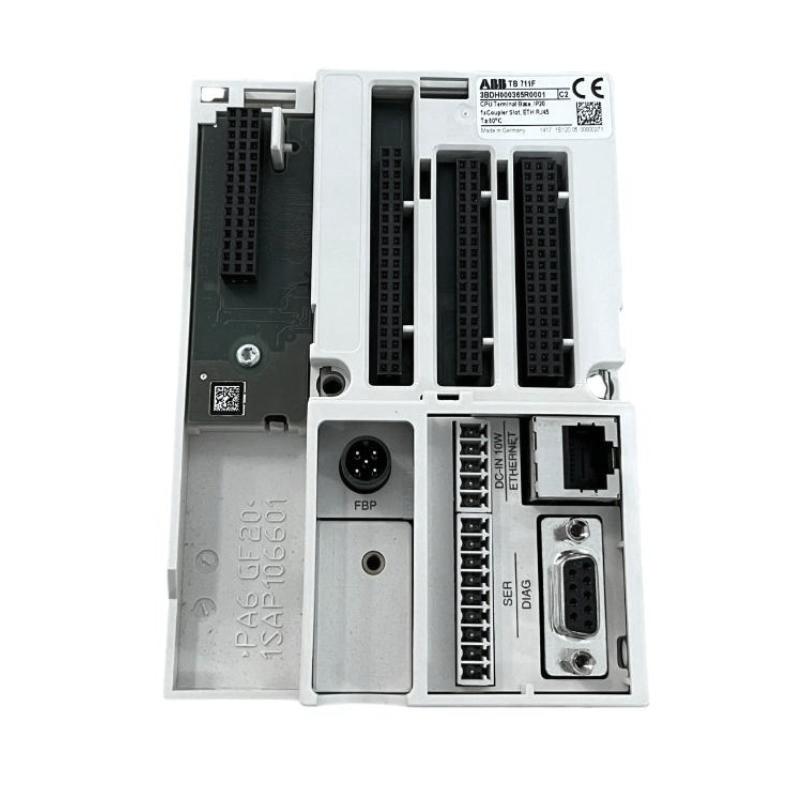

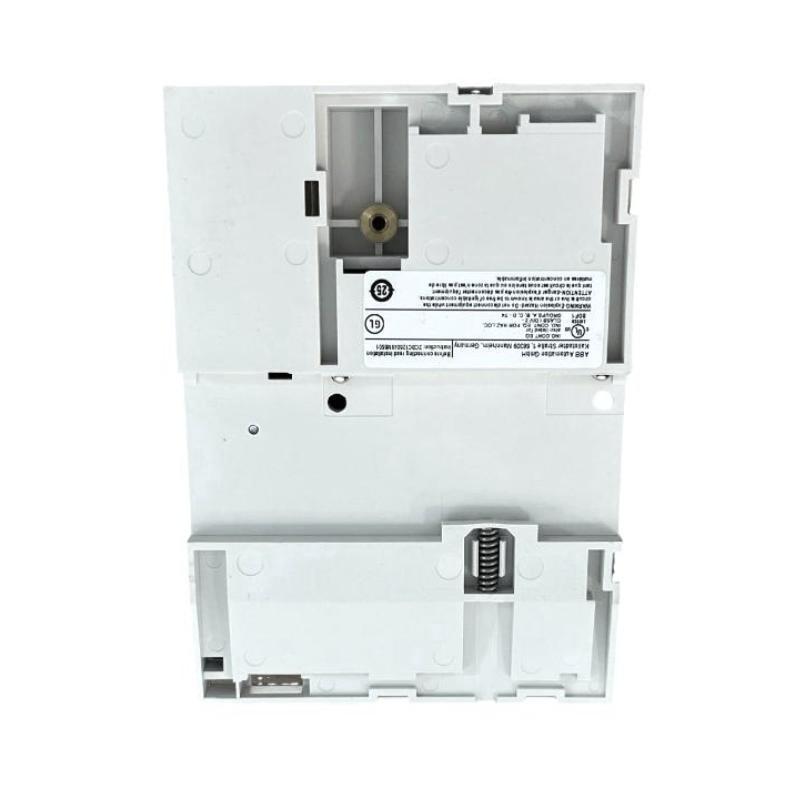

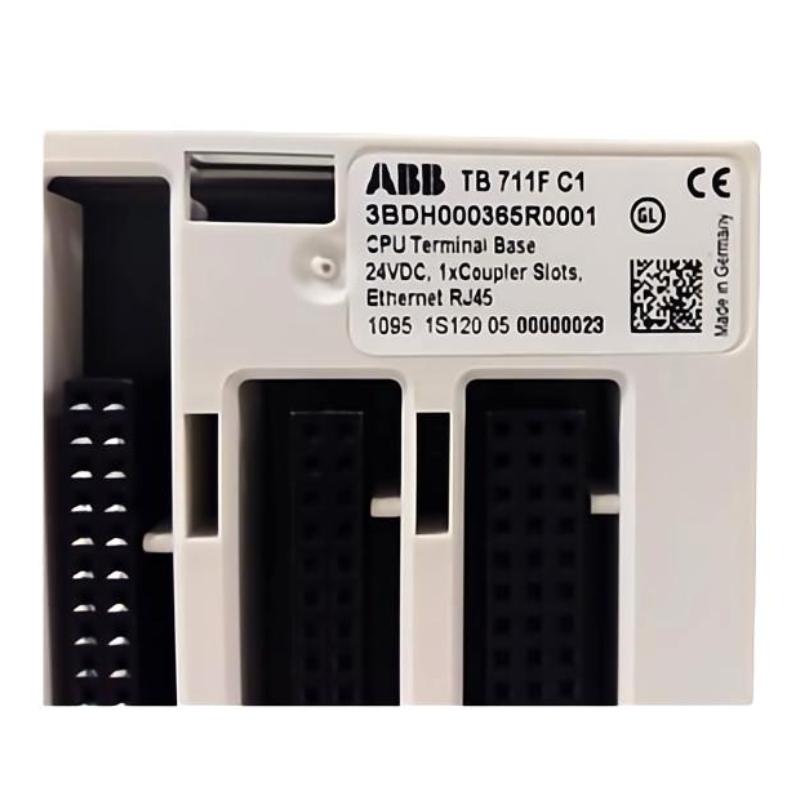

ABB TB711F 3BDH000365R0001 Terminal Base

Overview

The ABB TB711F terminal base is designed for secure and reliable mounting of ABB relay and communication modules. It ensures stable electrical connections, simplifies installation, and supports efficient wiring in industrial automation systems.

General Information

Part Number: 3BDH000365R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Terminal Base

Mounting: DIN rail or panel mount

Construction: Durable thermoplastic housing with high-quality screw terminals

Compatibility: Compatible with ABB TB711 series relay and communication modules

Power Specifications

Rated Voltage: 600 V AC / DC max

Rated Current: 10 A

Terminal Type: Screw terminals for secure copper wire connection

Electrical Protection: Provides safe, insulated connections

Indicators: None (passive module)

Communication & Interface

Interface Type: Electrical terminal interface for relay and communication modules

Connection Method: Screw terminals for copper wiring

Channel Support: Standard module connection points

Diagnostics: Not applicable (passive module)

Compatibility Features: Works seamlessly with ABB TB711 modules and industrial control wiring systems

Environmental

Operating Temperature: −40 to +85 °C

Storage Temperature: −40 to +100 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 30 × 135 × 95.5 mm

Weight: 0.175 kg

Durable Connections, Quick Setup!
