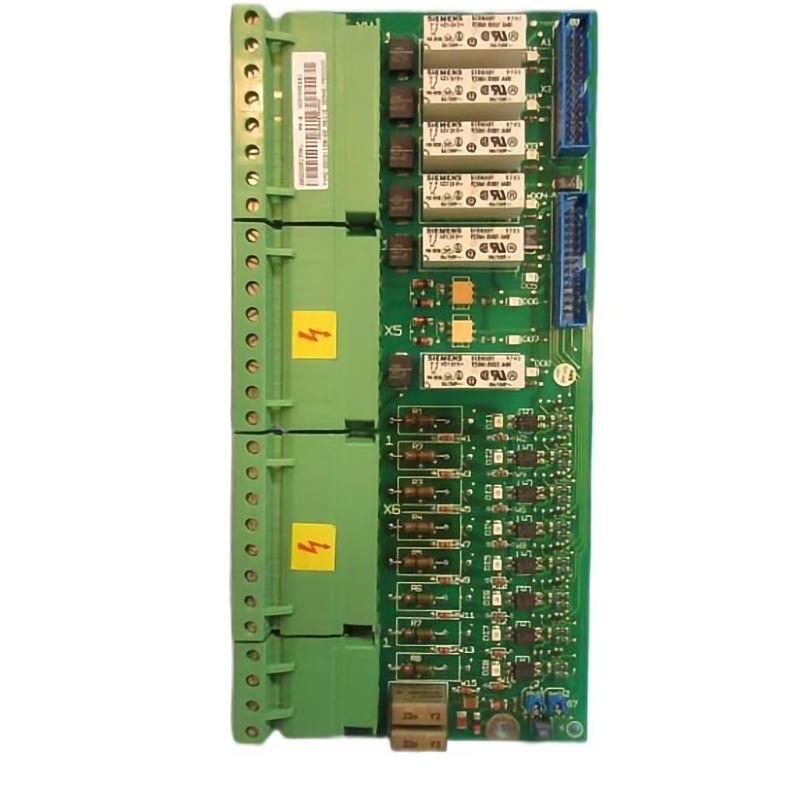

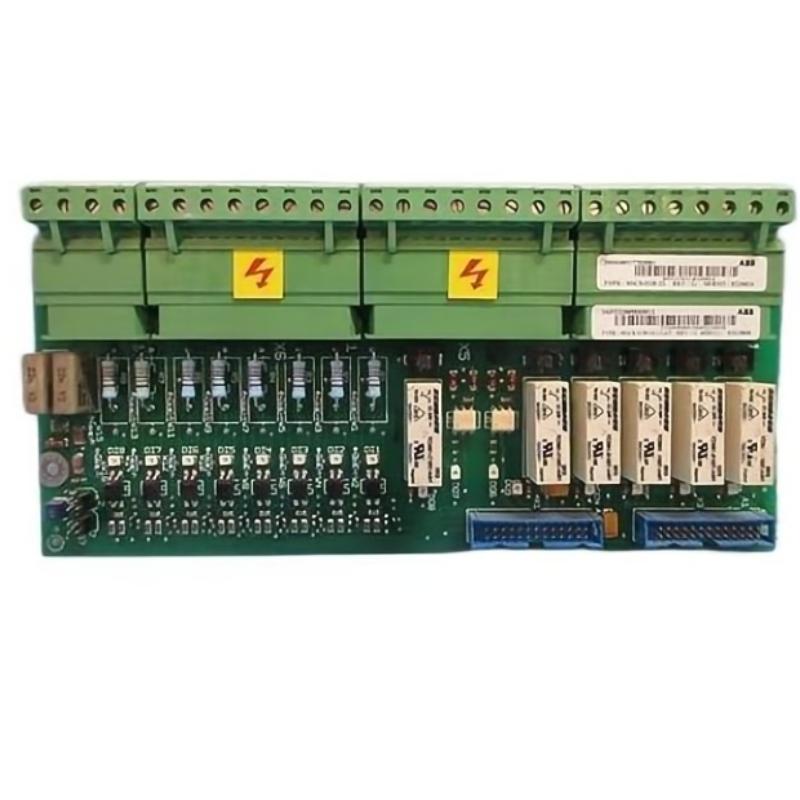

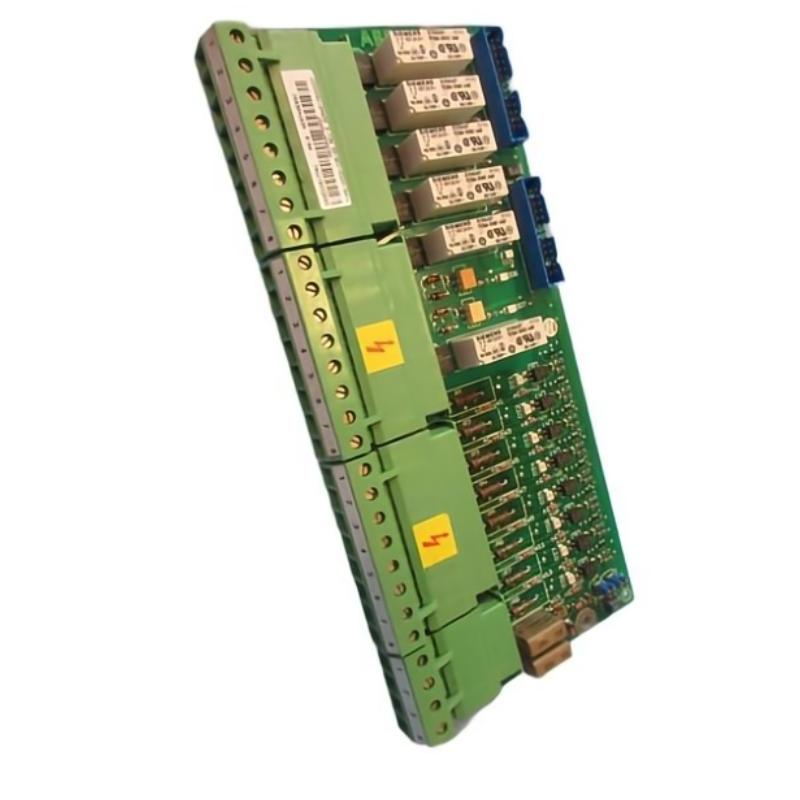

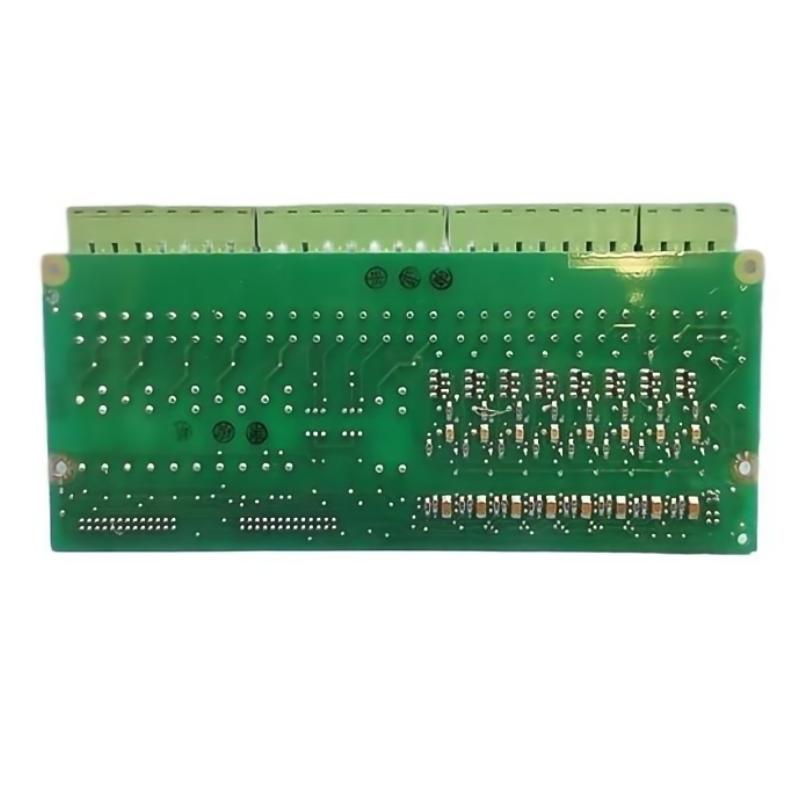

ABB SDCS-IOB-1 3BSE004084R1 I/O Control Board

Overview

The ABB SDCS-IOB-1 (3BSE004084R1) is an I/O control board designed for industrial automation systems. It provides reliable input/output signal management for DC drive and control systems, enabling precise monitoring and control of connected devices, sensors, and actuators.

General Information

Part Number: 3BSE004084R1

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland / Sweden

Series: SDCS (DC Drive Control System)

Type: I/O Control Board / Interface Module

Application: Signal routing and control in DC drive and automation systems

Installation: Mounted inside SDCS drive cabinets or control racks

Technology: Digital and analog signal processing with system feedback

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered from SDCS system backplane

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, communication status, and fault detection

Communication & Interface

Interface Type: Digital and analog I/O channels

Bus Coupler Role: Connects control logic to field devices and sensors

Diagnostics: Provides status monitoring and fault detection

Operator Interface: LED indicators for input/output status

Reset Features: Supports soft and hardware reset via SDCS system

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Cabinet-based forced air cooling

Protection Class: IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 168 × 95 × 20 mm

Weight: 0.3 kg

In-stock and ready to integrate, enhancing your automation control efficiency.
