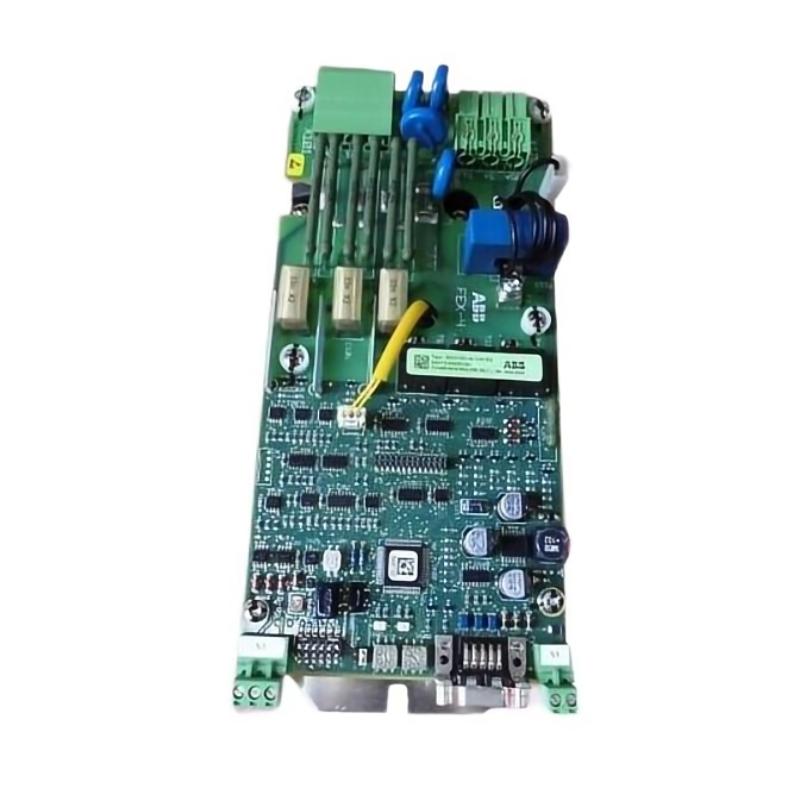

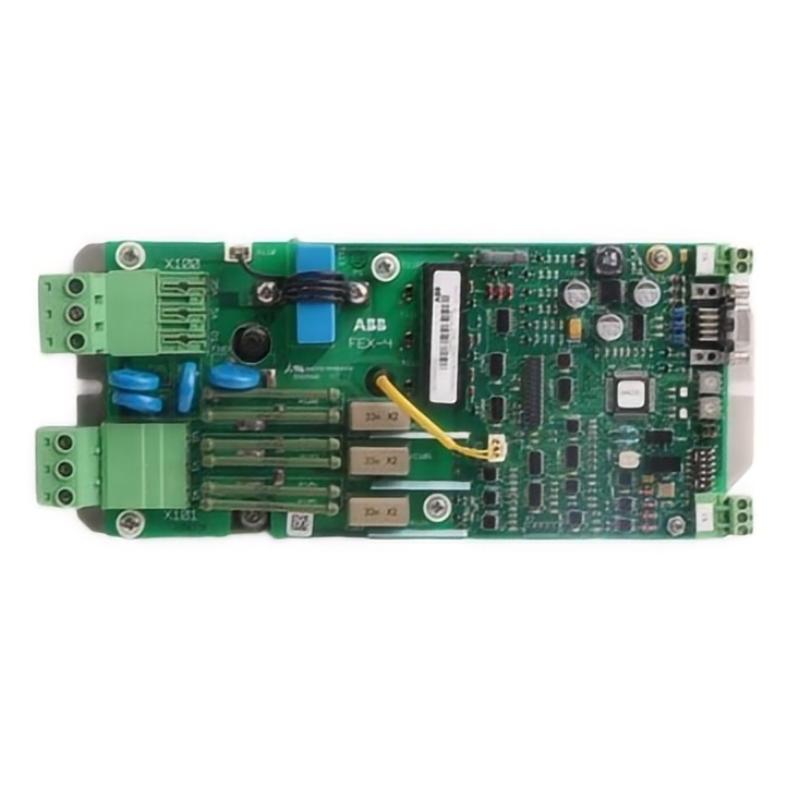

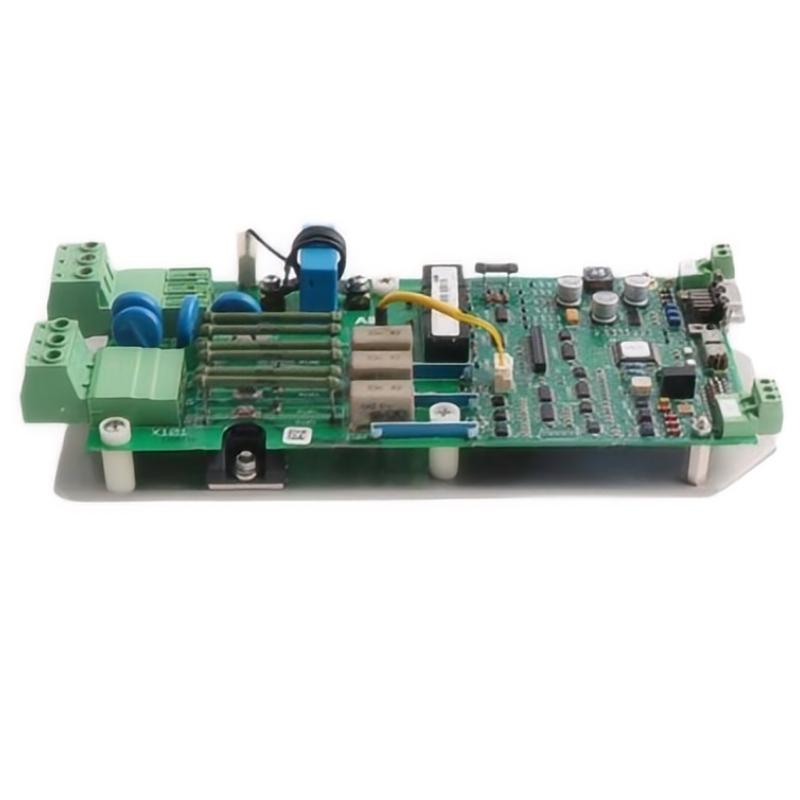

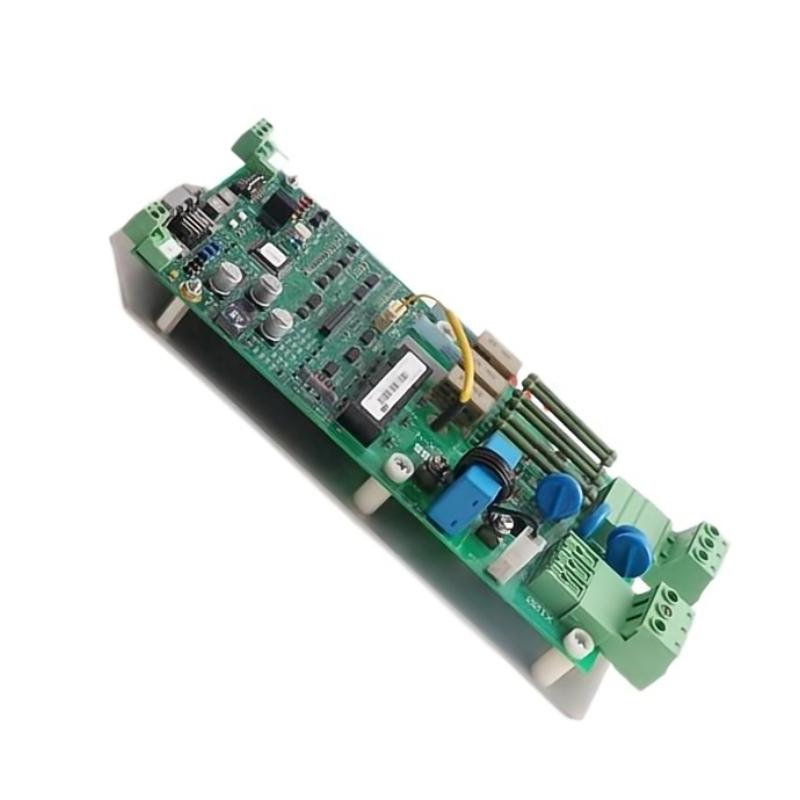

ABB SDCS-FEX-425 3ADT209022R0001 DC Speed Controller Excitation Module

Overview

The ABB SDCS-FEX-425 (3ADT209022R0001) is a DC speed controller excitation module designed for precise field excitation control in industrial DC motor applications. It ensures stable torque generation, accurate speed regulation, and reliable performance under varying load conditions, making it ideal for heavy-duty drive systems.

General Information

Part Number: 3ADT209022R0001

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland / Sweden

Series: SDCS (DC Drive Control System)

Type: Excitation Module / DC Speed Controller Component

Application: Field excitation control for DC motors in industrial drive systems

Installation: Mounted inside SDCS drive cabinets or control racks

Technology: Closed-loop excitation regulation with drive system feedback

Power Specifications

Supply Voltage: Typically 24 V DC control supply (system dependent)

Output: Controlled DC excitation current for motor field winding

Control Method: Closed-loop regulation via drive controller

Power Consumption: Low internal control power, system-handled load output

Protection: Overcurrent and thermal protection integrated at system level

Operation Mode: Continuous industrial duty

Communication & Interface

Control Interface: Connected to SDCS drive system backplane

Signal Type: Analog and digital control signals

Feedback Input: Field voltage and current monitoring

Diagnostics: Status reporting via drive system indicators

Integration: Operates fully with SDCS control logic for synchronized motor operation

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Forced air cooling inside cabinet

Protection Class: Industrial enclosure, typically IP20

Dimensions & Weight

Dimensions (L × W × H): 150 × 100 × 80 mm

Weight: 0.56 kg

Ready for immediate dispatch, perfect for upgrading industrial drive systems.
