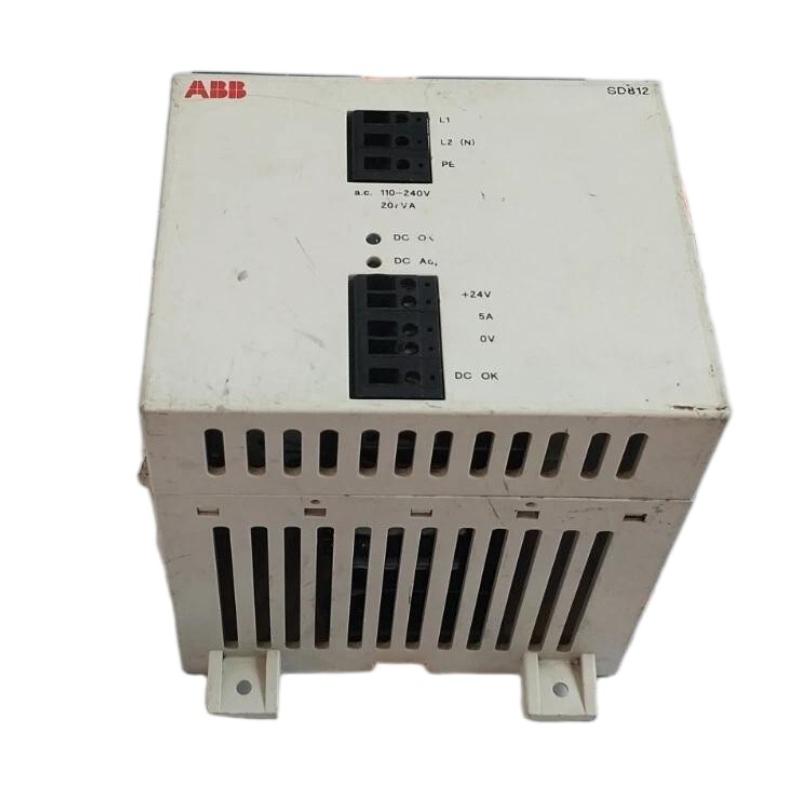

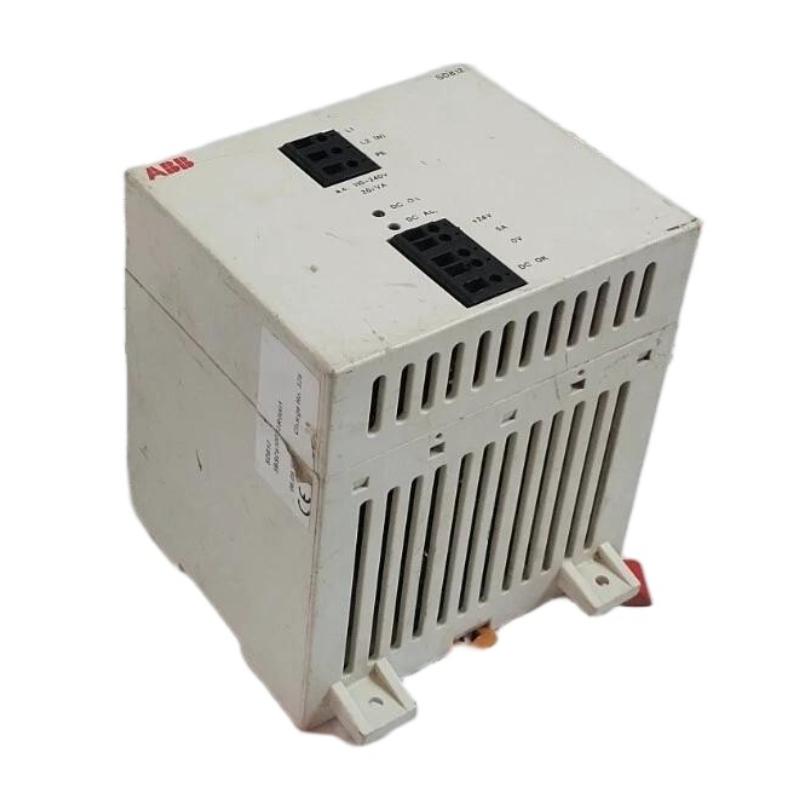

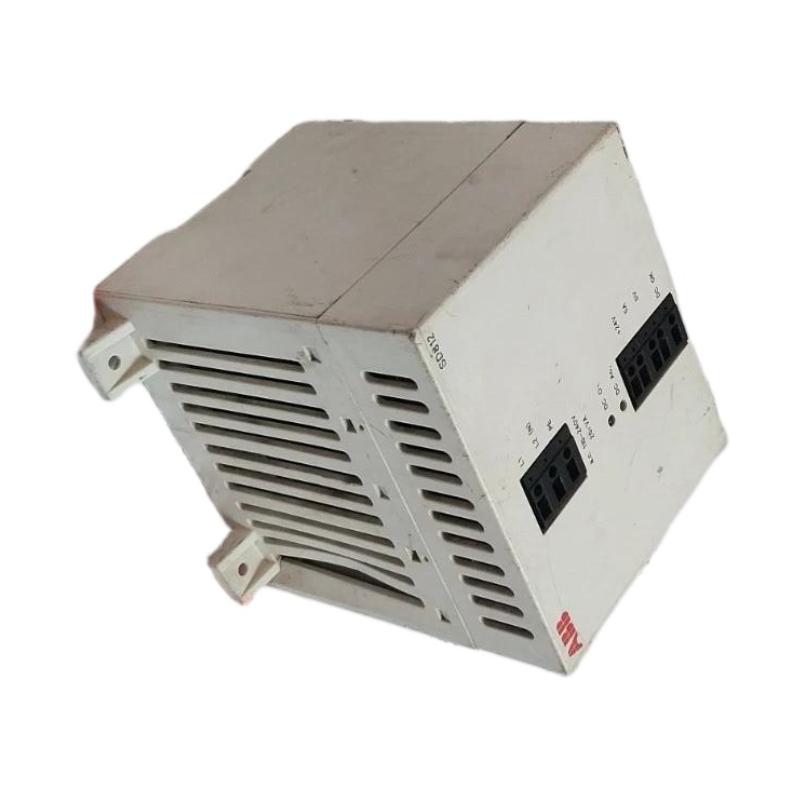

ABB SD812V1 3BSC610045R2 Power Supply

Overview

The ABB SD812V1 is a high-performance industrial power supply designed to deliver stable and reliable DC power to automation and control systems. It ensures efficient operation of connected modules and control units while providing protection against electrical faults, making it ideal for demanding industrial environments.

General Information

Part Number: 3BSC610045R2

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: SD (Switching/Power Supply Module)

Type: Power Supply

Mounting: Panel or DIN-rail installation within industrial control cabinets

Technology: High-efficiency switching power supply, integrated diagnostics, overload and short-circuit protection

Power Specifications

Supply Voltage: 24 V DC output

Power Consumption: ≤ 200 W

Input: AC mains voltage (per system specification)

Protection: Overload, short-circuit, surge, and reverse-polarity protection

Indicators: LED for power and fault status

Communication & Interface

Bus / Interface: Interfaces with connected modules via backplane or wiring

Diagnostics: Monitors power status, detects faults, and reports to system controller

Operator Interface: LED indicators

Reset Features: Automatic recovery after fault or manual reset via system

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 55 × 130 × 125 mm

Weight: 1.25 kg

High-Power Supply, Perfect for Demanding Automation Needs!
