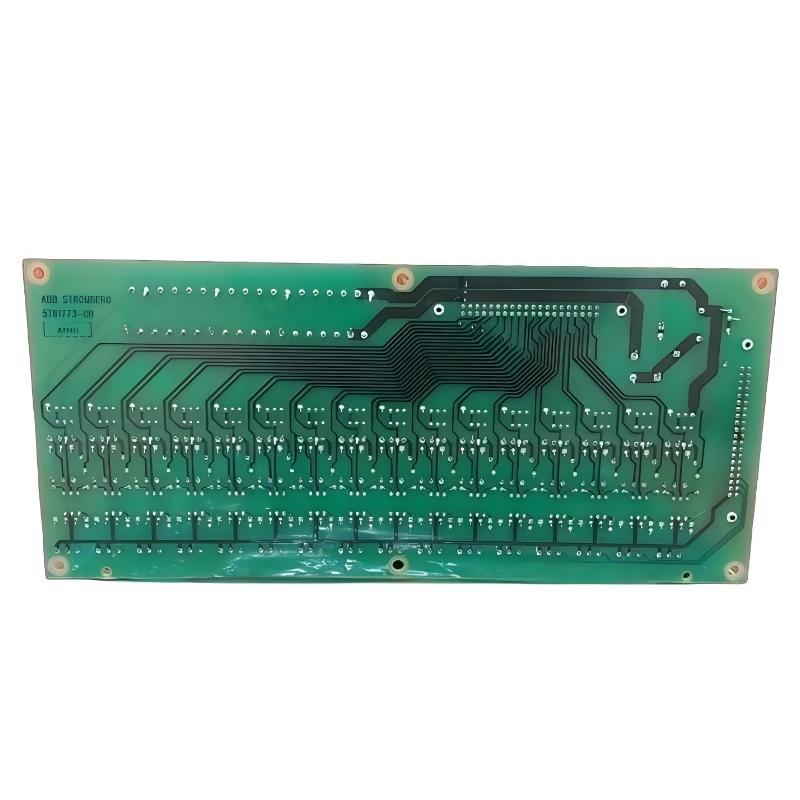

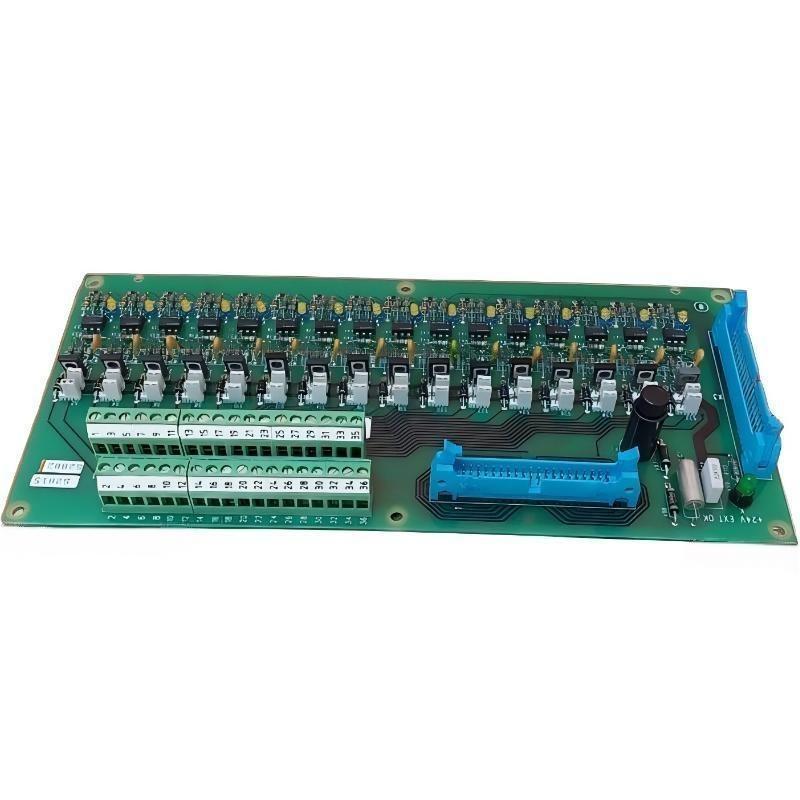

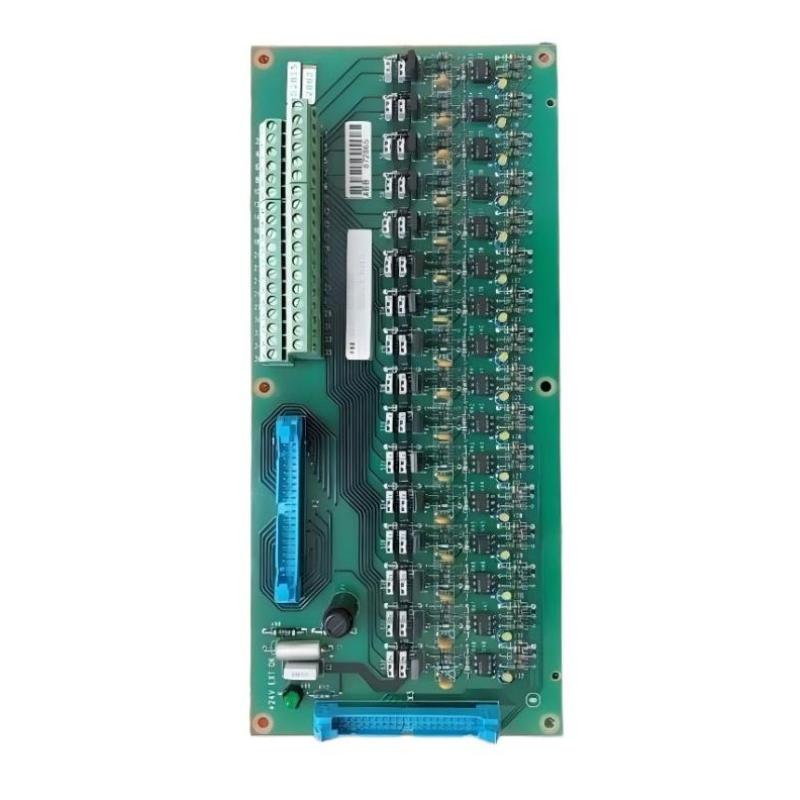

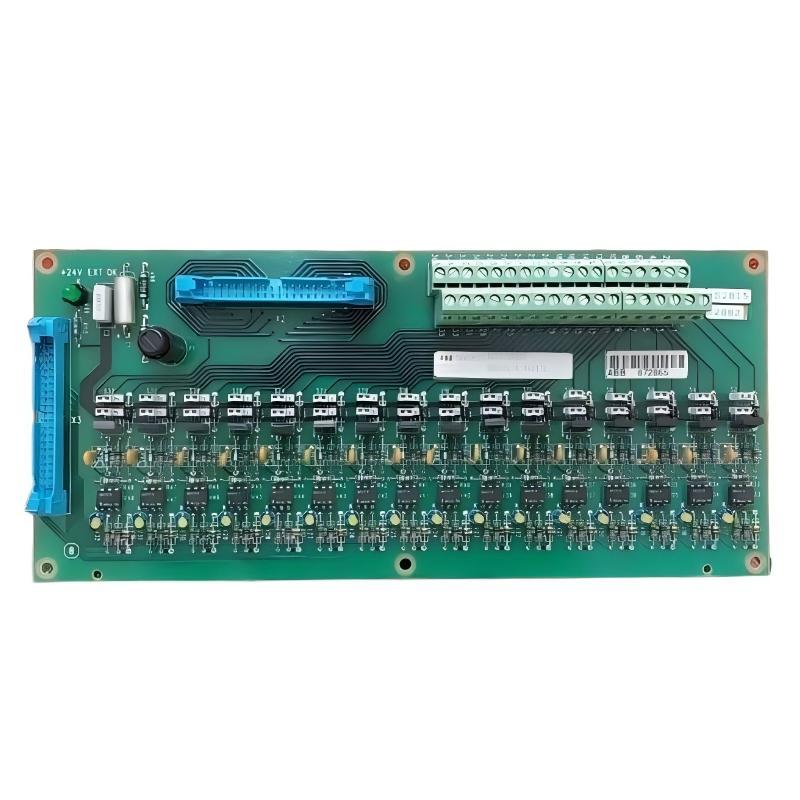

ABB SCYC 55860 Digital Input Card

Overview

The ABB SCYC 55860 is a compact digital input card designed for industrial automation systems. It provides accurate and reliable digital signal acquisition, enabling precise monitoring of connected devices. Its small footprint allows for easy integration into space-constrained control cabinets while maintaining high operational performance.

General Information

Part Number: SCYC 55860

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: SCYC (Signal Control & Input Card)

Type: Digital Input Card

Mounting: Rack or panel-based installation within industrial enclosures

Technology: Industrial-grade electronic components, integrated diagnostics, and signal conditioning

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power and input channel status

Communication & Interface

Bus / Interface: Interfaces with central CPU or controller via backplane

Diagnostics: Monitors input channel status, detects faults, and reports connectivity issues

Operator Interface: LED indicators for each input channel

Reset Features: Supports soft reset via connected CPU

I/O & Channels: Multiple digital input channels for monitoring field devices

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 162 × 98 × 40 mm

Weight: 0.25 kg

Compact Digital Input Card, Perfect for Precise Automation!
