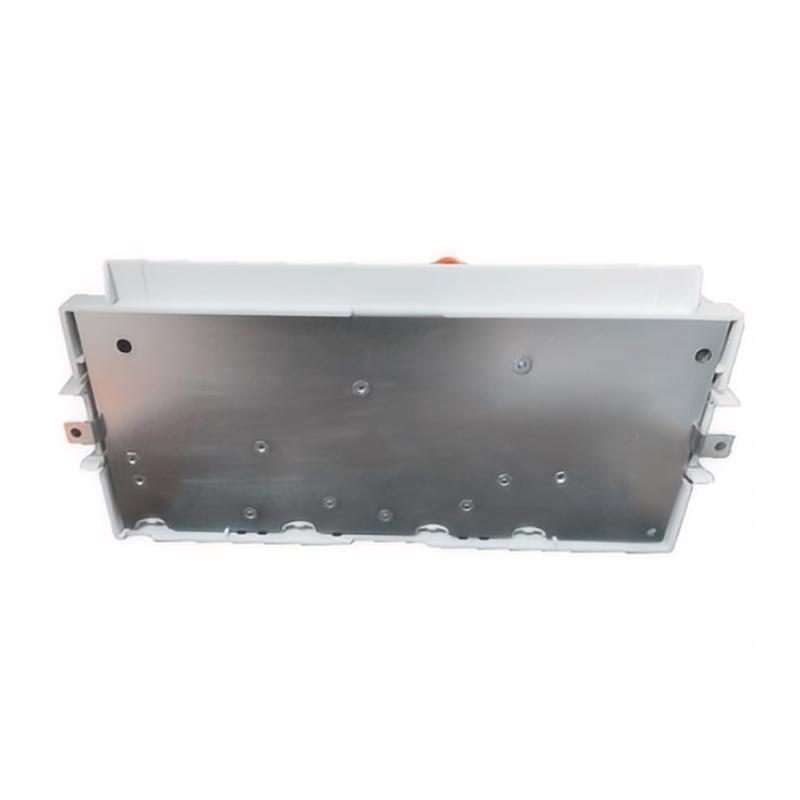

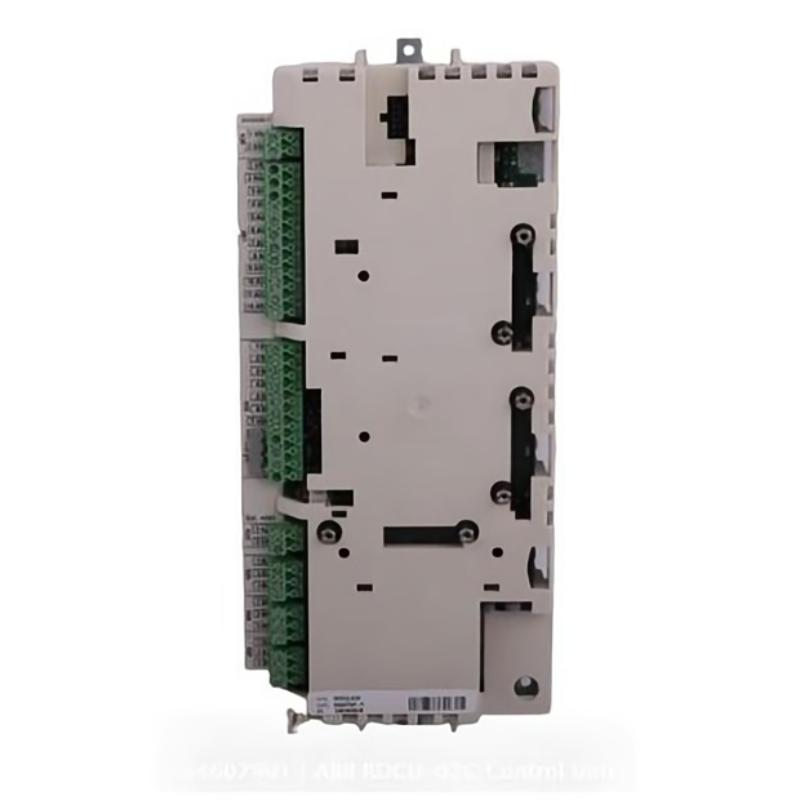

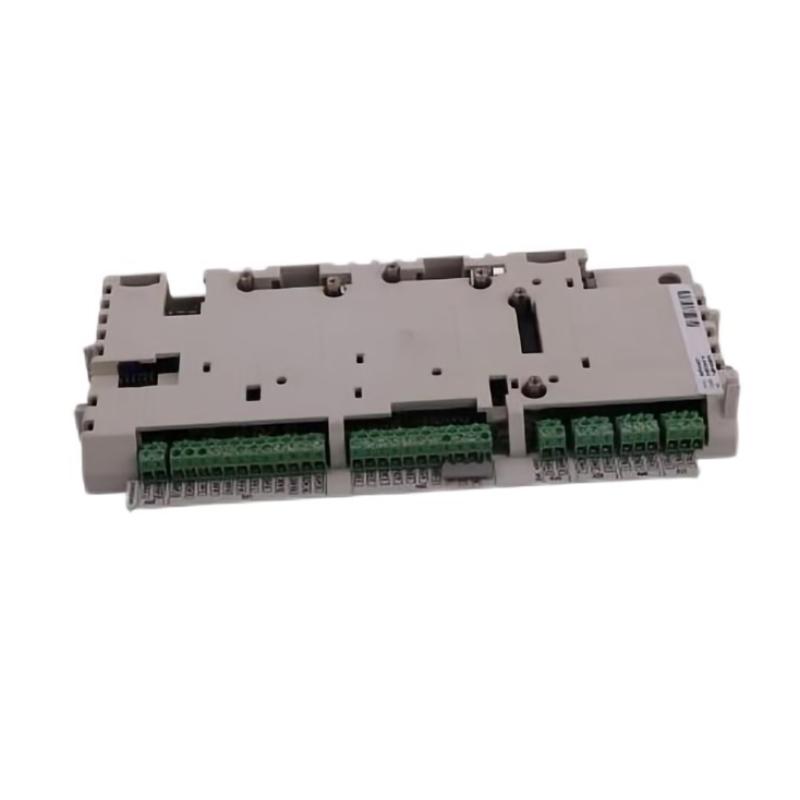

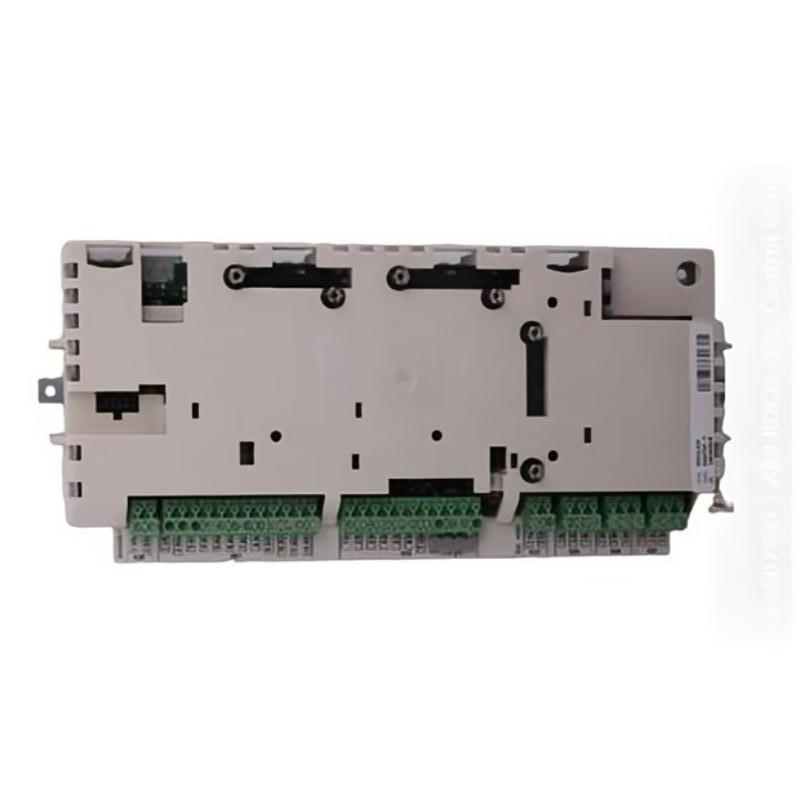

ABB RDCU-02C 64607901 Control Unit

Overview

The ABB RDCU-02C is a versatile control unit designed for industrial automation and monitoring applications. It provides reliable processing and real-time control for various automation tasks, ensuring seamless integration with ABB systems. Its compact design makes it suitable for space-constrained installations while maintaining high operational efficiency.

General Information

Part Number: 64607901

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: RDCU (Remote Data Control Unit)

Type: Control Unit

Mounting: Rack or panel-based installation within industrial enclosures

Technology: Industrial-grade microprocessor, real-time control, integrated diagnostics, and signal processing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 20 W

Input: Powered via backplane or external supply

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, status, and fault

Communication & Interface

Ethernet / Fieldbus Ports: Supports standard industrial communication protocols for monitoring and control

Bus Coupler Role: Connects sensors, controllers, and field devices to central control systems

Diagnostics: Supervises connected devices, logs faults, and provides status reporting

Operator Interface: LED indicators and configuration switches

Reset Features: Supports soft and hardware reset

I/O & Channels: Integrated digital and analog I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 150 × 120 × 40 mm

Weight: 0.45 kg

Compact Control Unit, Ideal for Flexible Automation!
