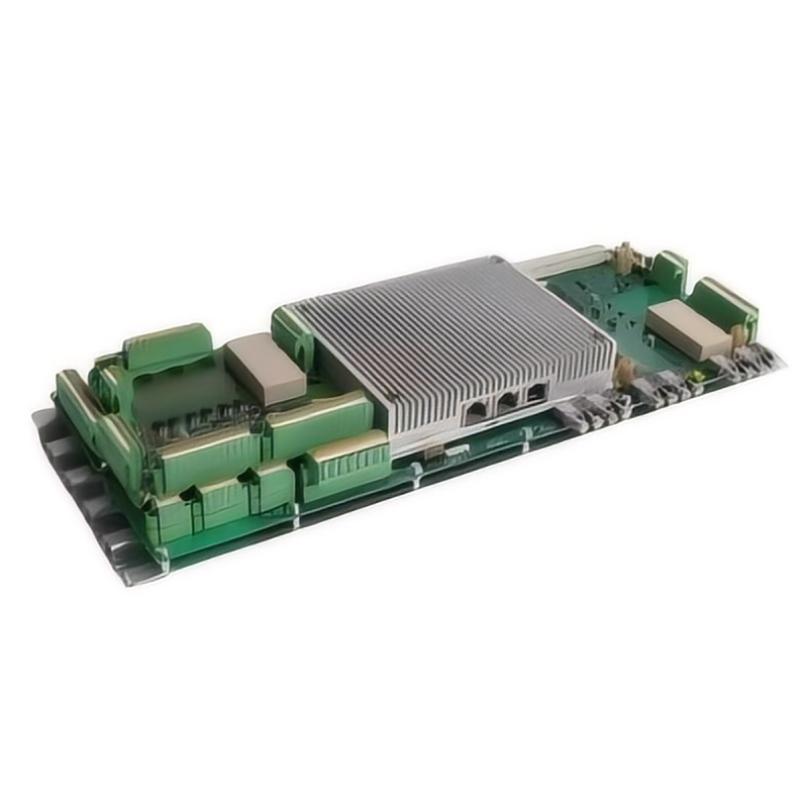

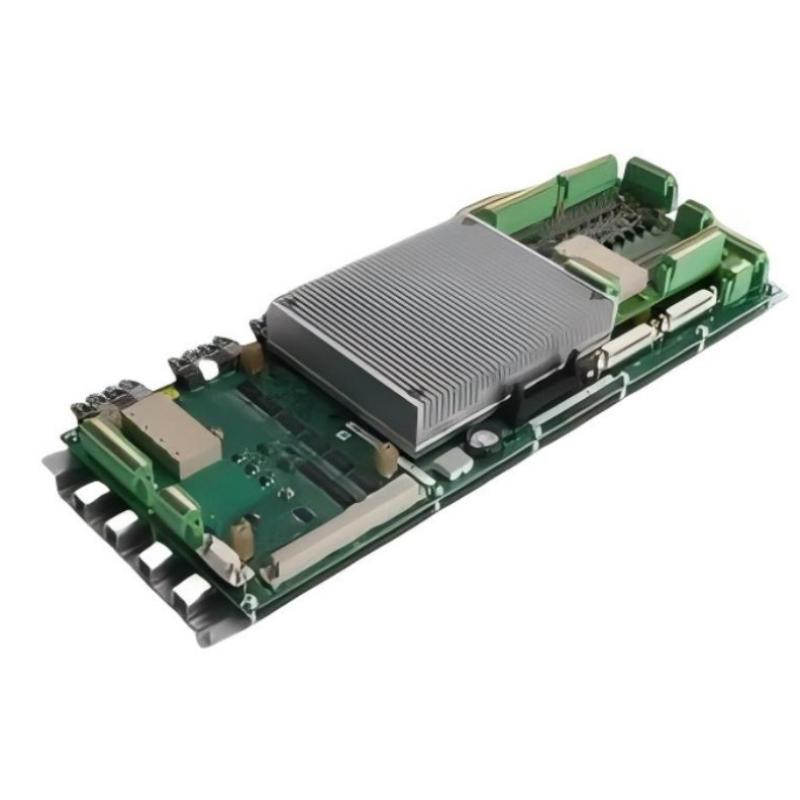

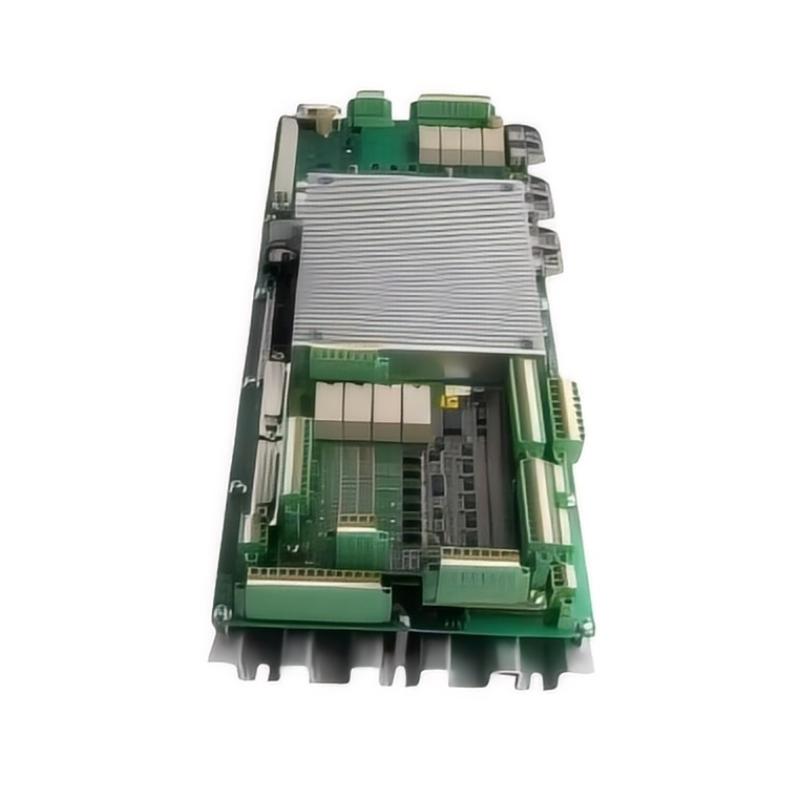

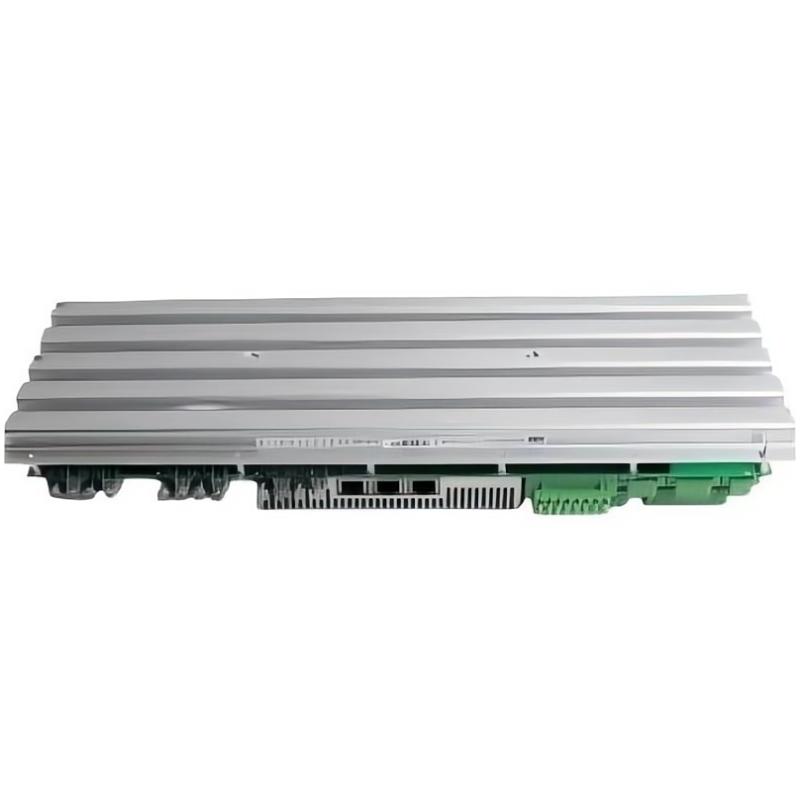

ABB PP D114 B1022 3BHE020570R1022 AC800 Control Module

Overview

The ABB PP D114 B1022 is a compact AC800 control module designed for precise industrial automation applications. It delivers high-speed, reliable processing and real-time control, enabling efficient operation of complex automation systems. The module is engineered for durability and seamless integration within ABB’s AC800 automation platform.

General Information

Part Number: 3BHE020570R1022

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PP / AC800

Type: AC800 Control Module

Mounting: Rack or cabinet-based installation

Technology: Industrial-grade processor, real-time deterministic execution, integrated diagnostics, advanced control logic

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 180 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, status, fault, and activity

Communication & Interface

Ethernet / Fieldbus Ports: Supports PROFIBUS, Modbus, and ABB proprietary networks

Bus Coupler Role: Interfaces control bus with field devices and connected modules

Diagnostics: Module and network supervision, fault logging, and status monitoring

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports soft and hardware reset

I/O & Channels: Multiple integrated digital and analog I/O channels, expandable via connected modules

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 263 × 100 × 50 mm

Weight: 2.8 kg

Compact Yet Powerful, Perfect for Efficient Automation!
