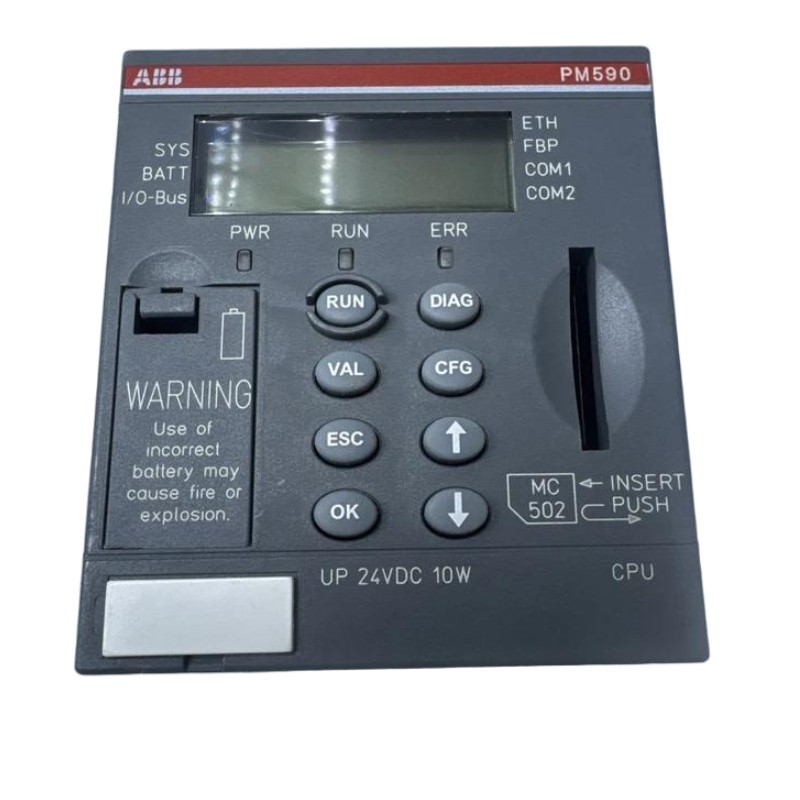

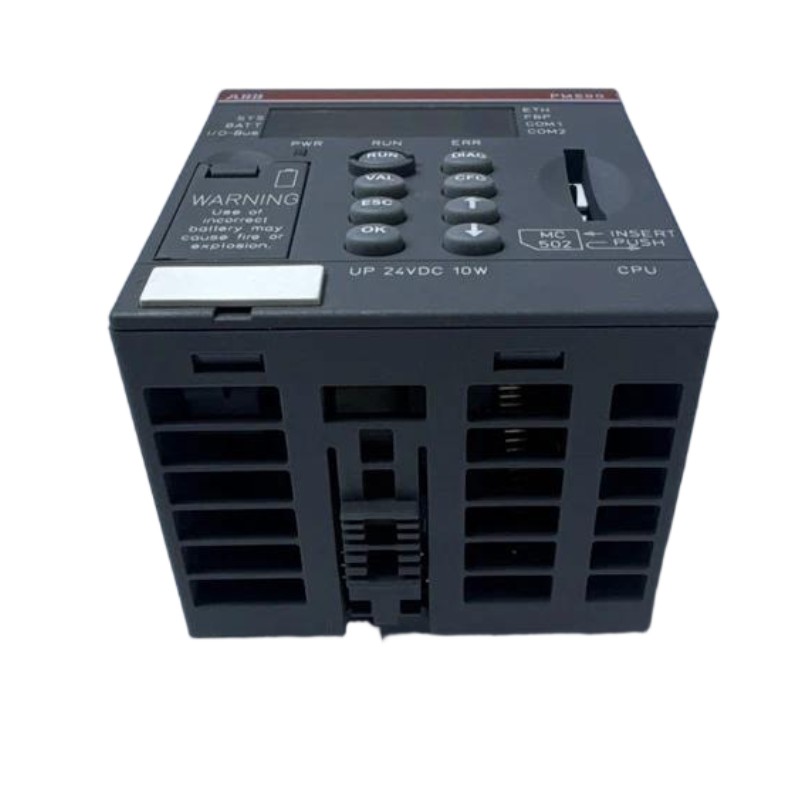

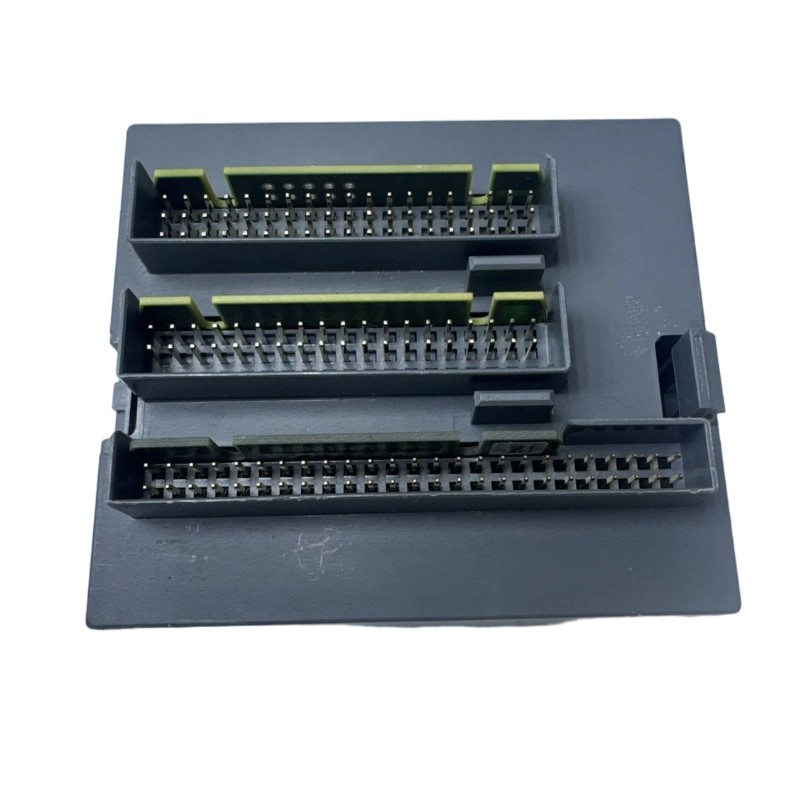

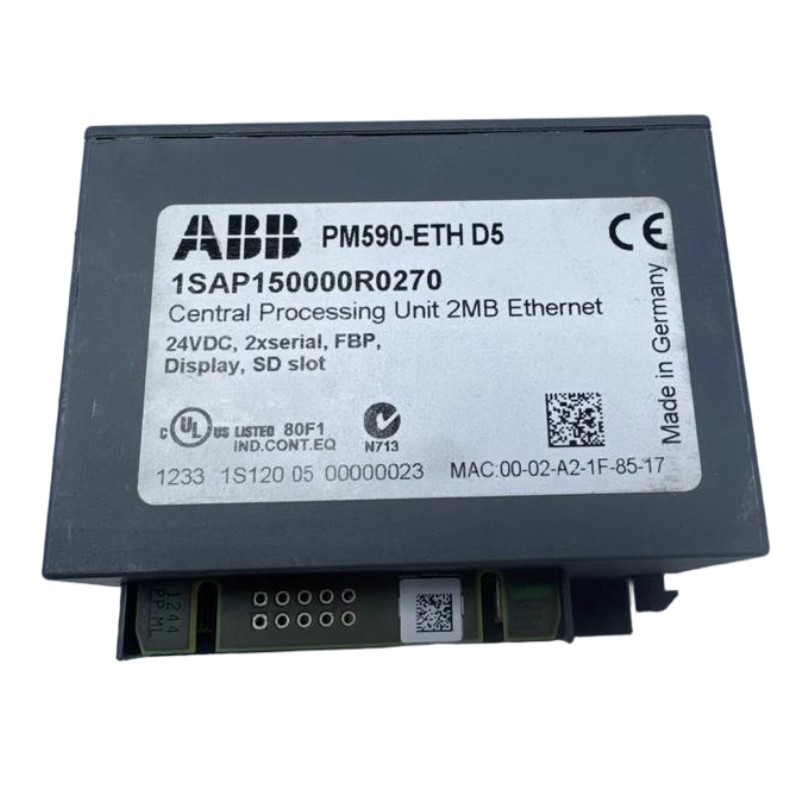

ABB PM590-ETH 1SAP150000R0270 CPU Programmable Logic Controller

Overview

The ABB PM590-ETH is a compact CPU programmable logic controller (PLC) with integrated Ethernet communication. It provides fast, reliable processing and real-time control for industrial automation systems. Designed for space-constrained installations, it ensures seamless connectivity and high-performance operation for small to medium automation projects.

General Information

Part Number: 1SAP150000R0270

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: CPU Programmable Logic Controller

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, deterministic real-time execution, Ethernet-enabled communication, integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, and network activity

Communication & Interface

Ethernet / Fieldbus Ports: Integrated Ethernet port, supports Modbus TCP/IP and ABB proprietary bus systems

Bus Coupler Role: Interfaces controller bus with field devices and I/O modules

Diagnostics: CPU and network supervision, fault logging, status monitoring

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 62 × 76 × 67.5 mm

Weight: 0.137 kg

Compact Design, Maximum Ethernet Automation!
