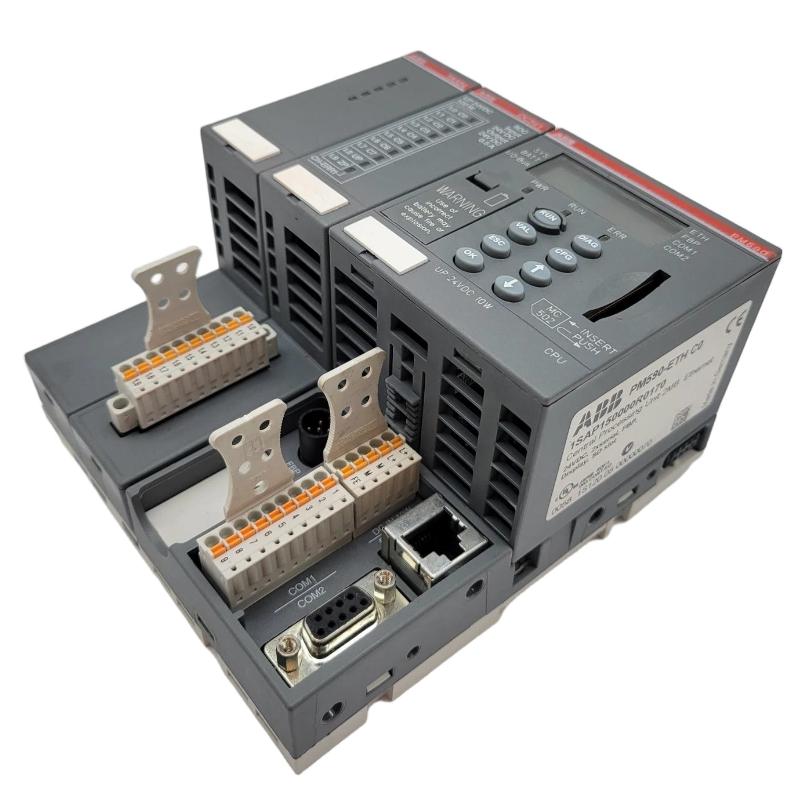

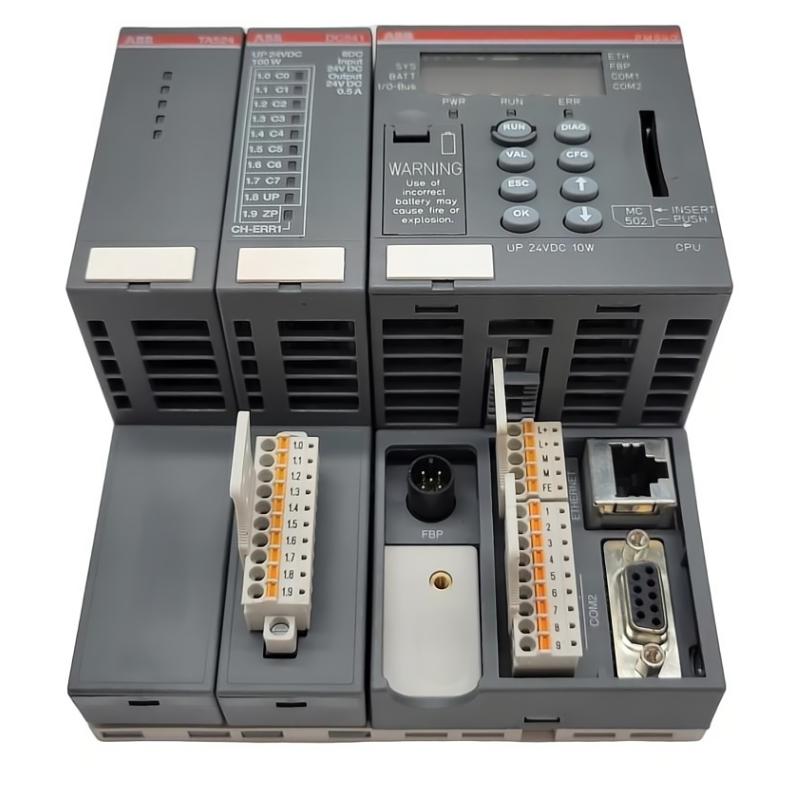

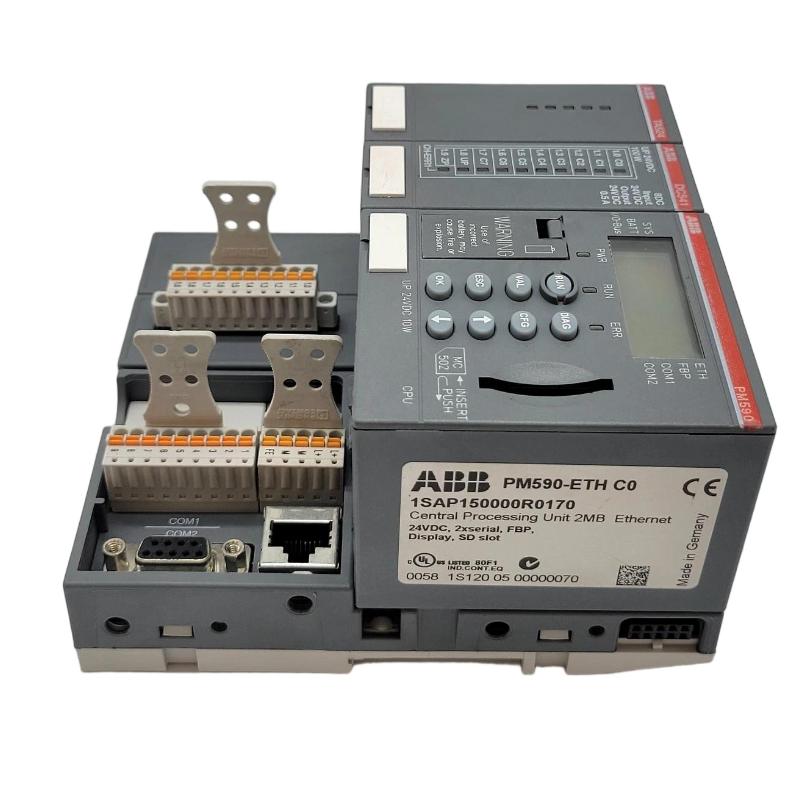

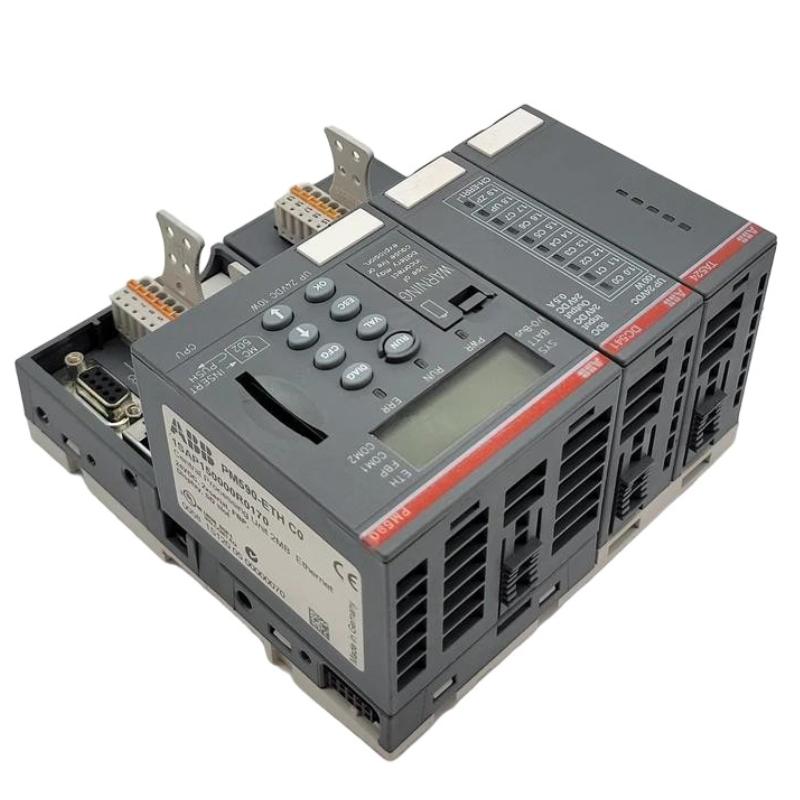

ABB PM590-ETH 1SAP150000R0170 Central Processing Unit With Communication Module

Overview

The ABB PM590-ETH is a compact central processing unit (CPU) featuring an integrated communication module. Designed for industrial automation, it delivers fast, reliable processing and real-time control with Ethernet connectivity. This CPU is ideal for small-scale installations requiring high-speed network communication and robust automation performance.

General Information

Part Number: 1SAP150000R0170

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: PM (Process Module)

Type: Central Processing Unit with Communication Module

Mounting: Rack or card-based installation within control cabinets

Technology: Industrial-grade microprocessor, real-time deterministic execution, integrated Ethernet communication, diagnostics support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 14 W

Input: Powered via backplane connection

Protection: Surge and reverse-polarity protection

Indicators: LEDs for power, CPU status, fault, and network activity

Communication & Interface

Ethernet / Fieldbus Ports: Integrated Ethernet port, supports Modbus TCP/IP and ABB proprietary bus systems

Bus Coupler Role: Connects controller bus to field devices and I/O modules

Diagnostics: CPU and network supervision, fault logging, status monitoring

Operator Interface: LED indicators and onboard configuration switches

Reset Features: Supports both soft and hardware reset

I/O & Channels: Integrated digital I/O channels, expandable via connected modules

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for industrial cabinet mounting)

Shock & Vibration: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 62 × 76 × 67.5 mm

Weight: 0.15 kg

High-Speed Ethernet, Perfect for Compact Automation Systems!
