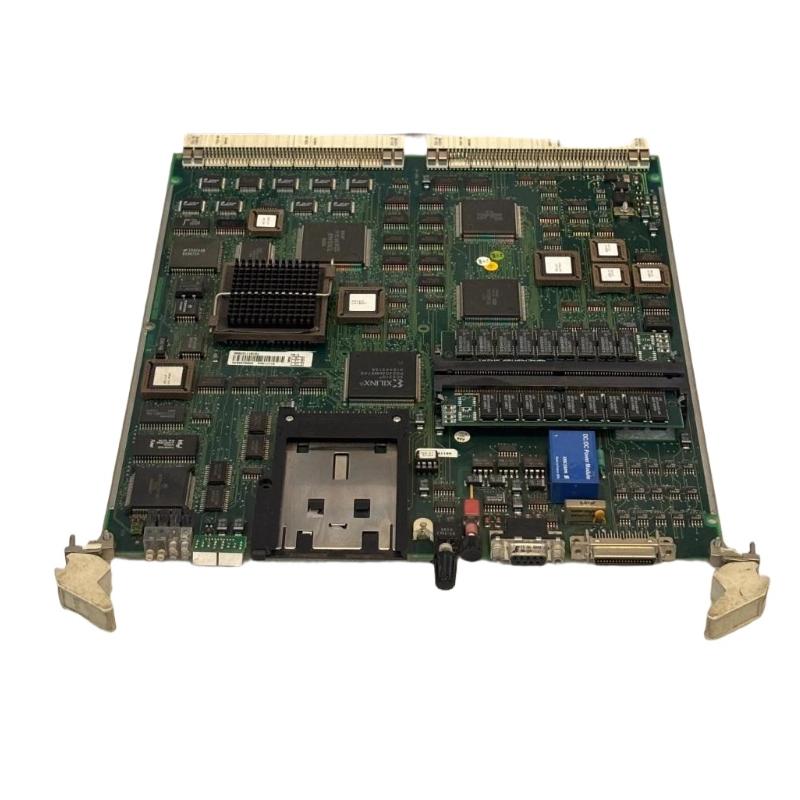

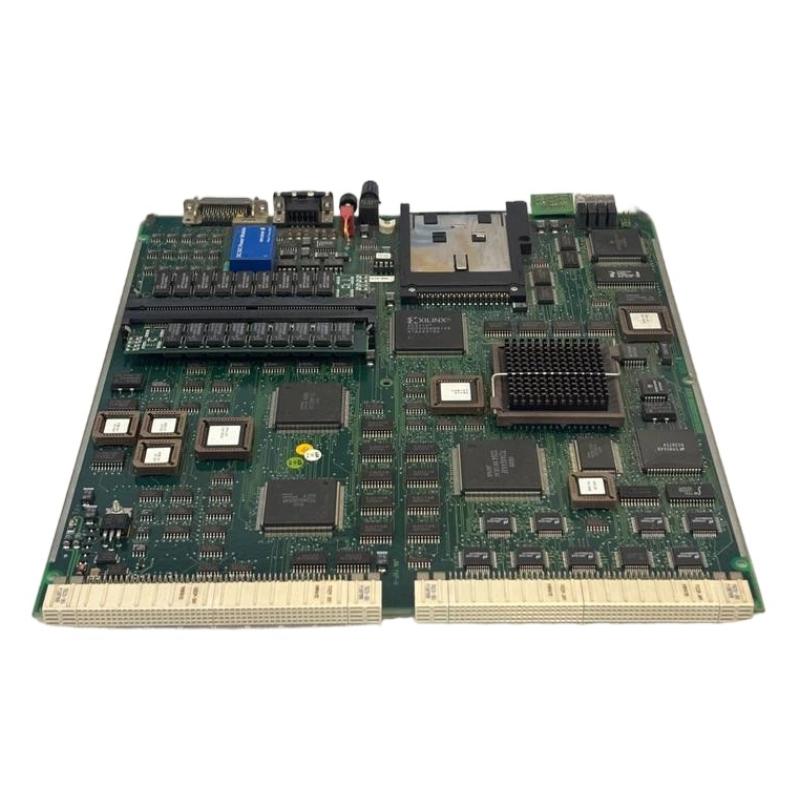

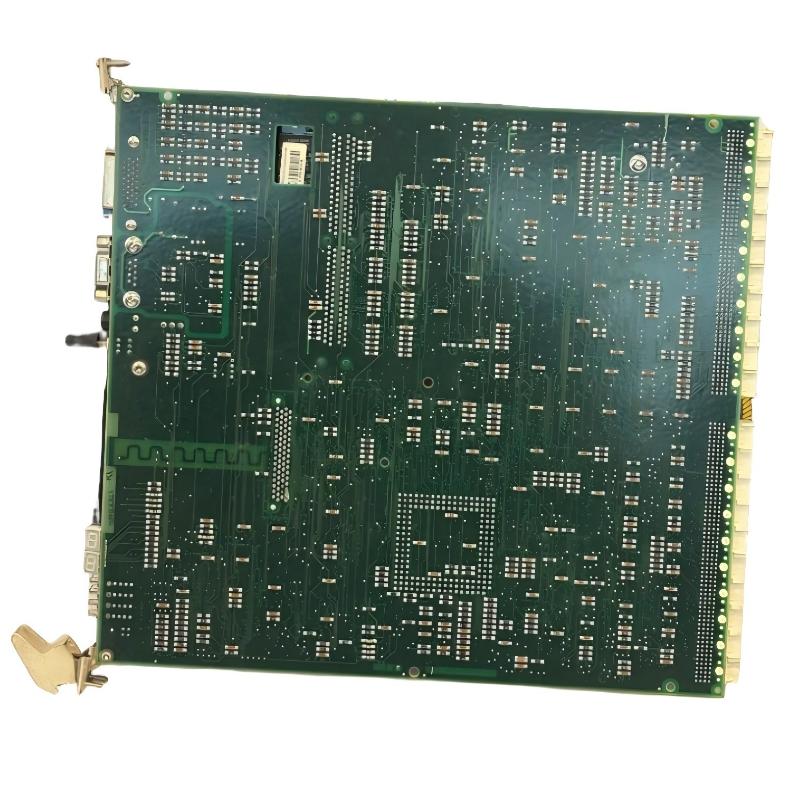

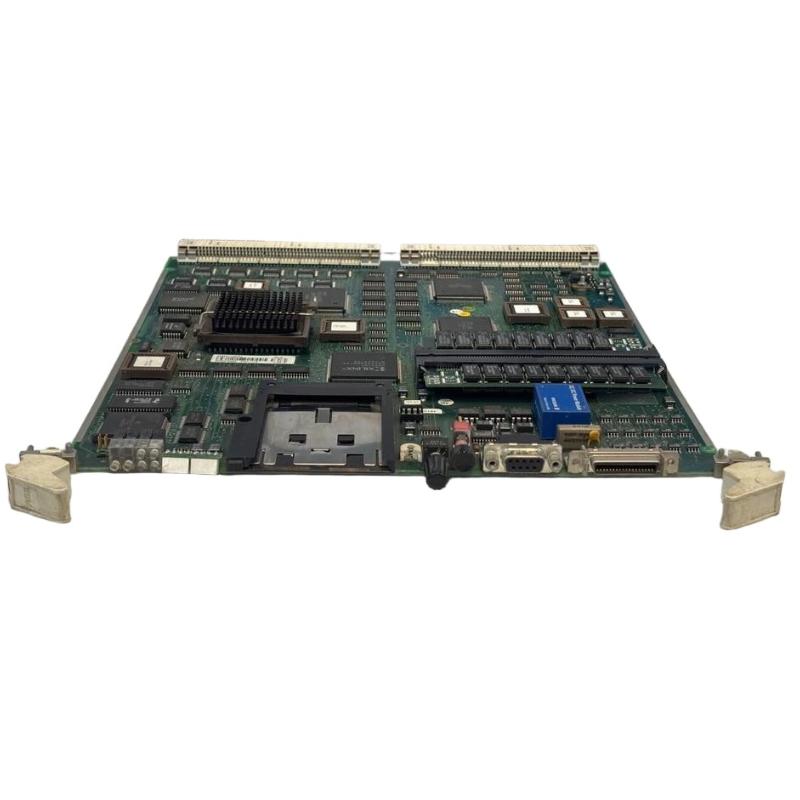

ABB PM511V16 3BSE011181R1 CPU Processor Module

Overview

The ABB PM511V16 3BSE011181R1 is a compact and efficient CPU processor module engineered for industrial automation systems. It provides reliable real-time control, fast data processing, and stable system performance, making it suitable for a wide range of control applications.

General Information

Part Number: 3BSE011181R1

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland / Sweden

Series: AC 800M / PM5xx Controller Series

Type: CPU Processor Module

Installation: Rack-mounted or control cabinet integration

Function: Central processing unit for automation and control systems

Technology: Real-time processing with integrated diagnostics and redundancy capability

Power Specifications

Supply Voltage: 24 V DC (via backplane)

Power Consumption: Typically ≤ 15 W

Power Input: Supplied through system backplane

Protection Features: Overvoltage, undervoltage, and reverse polarity protection

Status Indicators: LED indicators for power, run status, fault, and communication

Communication & Interface

System Bus: High-speed internal backplane communication

Field Communication: Supports industrial Ethernet-based networks

Integration: Compatible with ABB distributed I/O and control modules

Diagnostics: Real-time system monitoring, fault detection, and logging

Service Interface: Access via engineering and configuration tools

Redundancy: Supported in redundant system configurations

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Industrial Suitability: Designed for continuous operation in industrial environments

Dimensions & Weight

Dimensions (L × W × H): 185 × 133 × 42 mm

Weight: 0.65 kg

Limited Stock
