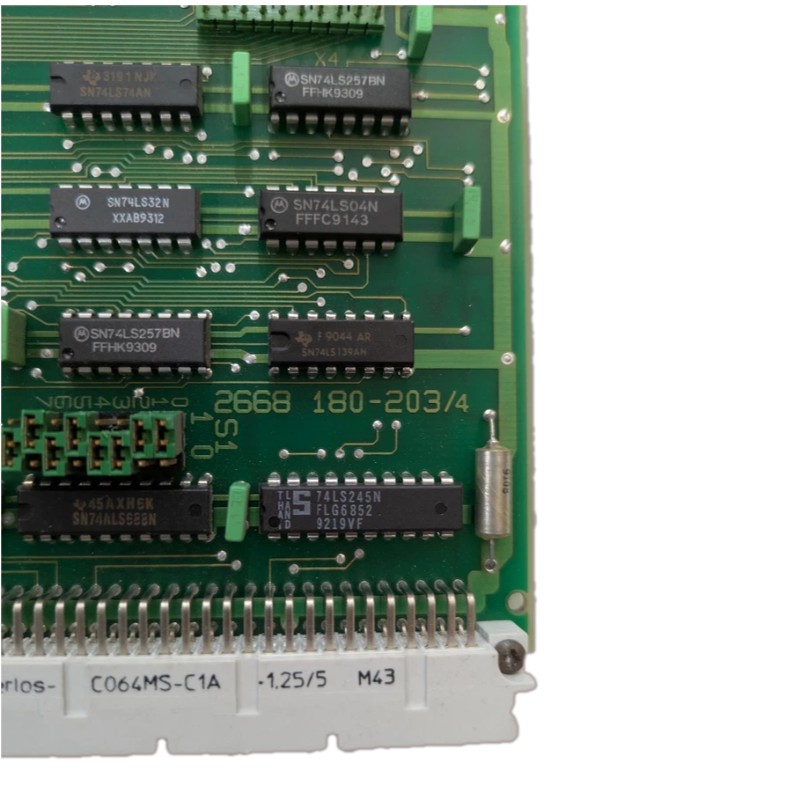

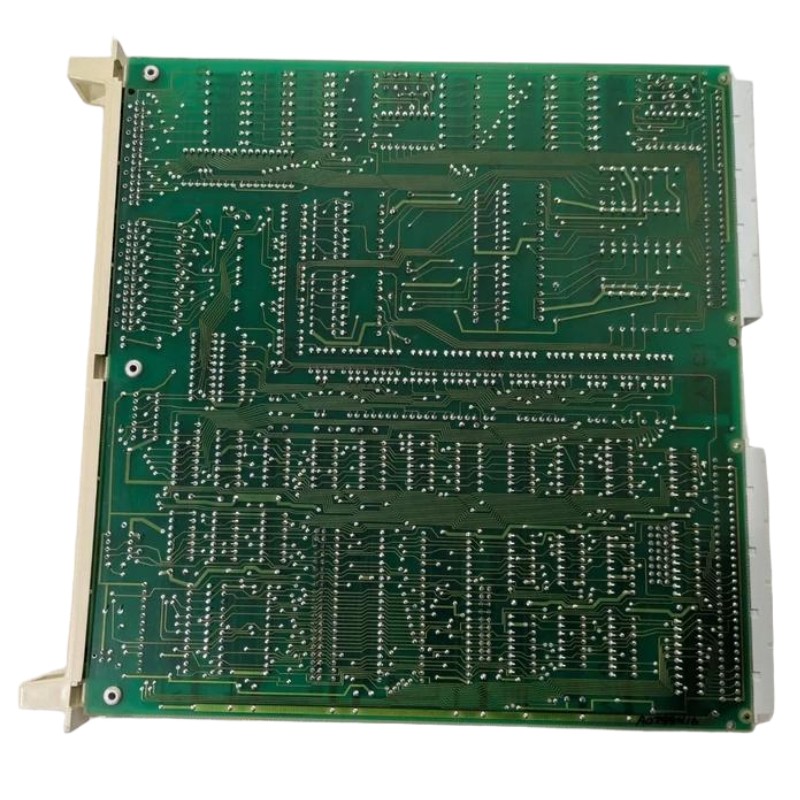

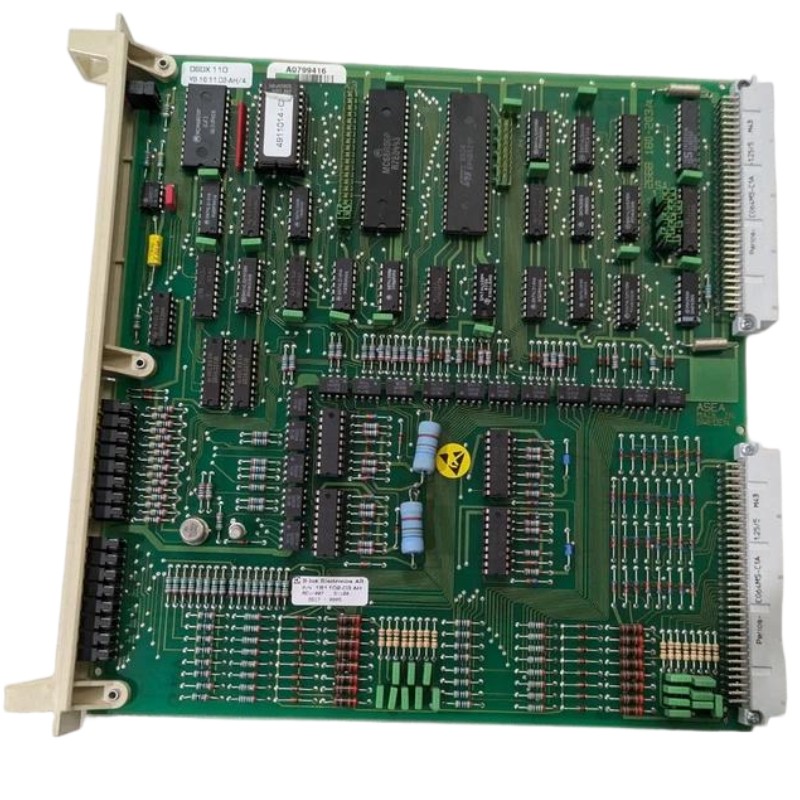

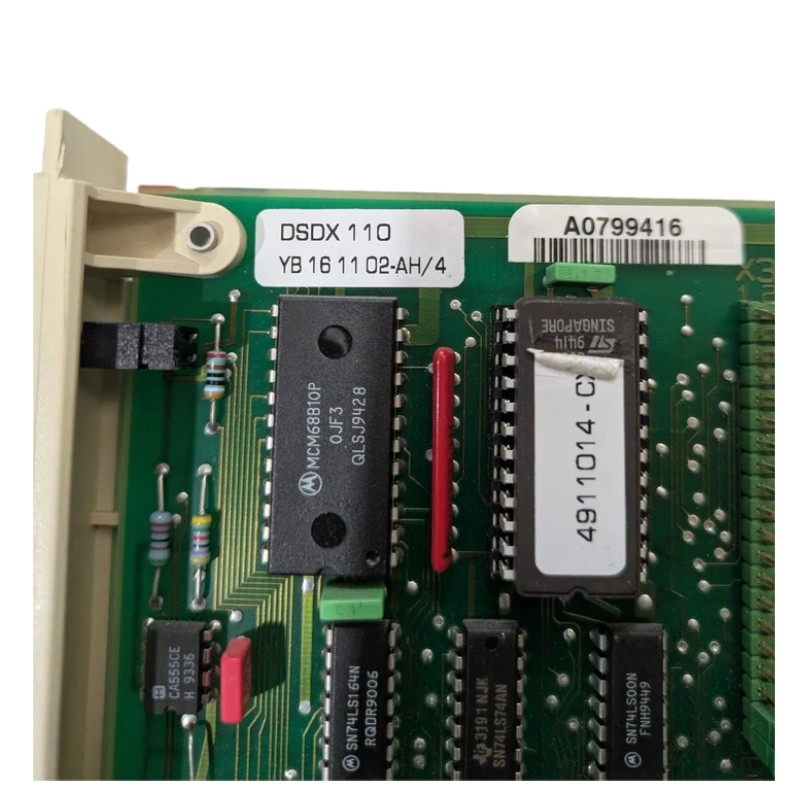

ABB DSDX 110 YB161102-AH/4 DS Digital Input/Output Module

Overview

The ABB DSDX 110 is a robust digital input/output module engineered for dependable signal handling in industrial automation systems. It facilitates accurate transmission of digital signals between field equipment and control systems, ensuring stable and efficient process control operations.

General Information

Part Number: YB161102-AH/4

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: DS (Distributed System I/O)

Type: Digital Input/Output Module

Application: Industrial automation, process control, and signal interfacing

Mounting: Rack-mounted installation within control system framework

Technology: Digital I/O processing with integrated diagnostics and protection features

Power Specifications

Supply Voltage: 24 V DC (via system backplane)

Power Consumption: ≤ 6 W

Input Power Source: Backplane-powered module

Protection: Overvoltage and reverse polarity protection

Indicators: LED indicators for power, channel activity, and fault status

Communication & Interface

System Interface: Direct integration with ABB control system backplane

I/O Interface: Digital input and output channels for field device connection

Signal Type: Discrete ON/OFF signals

Diagnostics: Continuous status monitoring and fault reporting

Configuration: Software-based configuration through control system tools

Isolation: Electrical isolation between channels and system circuitry

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (suitable for cabinet installation)

EMC Compliance: Meets industrial electromagnetic compatibility standards

Dimensions & Weight

Dimensions (L × W × H): 324 × 18 × 238.5 mm

Weight: 0.4 kg
