Overview

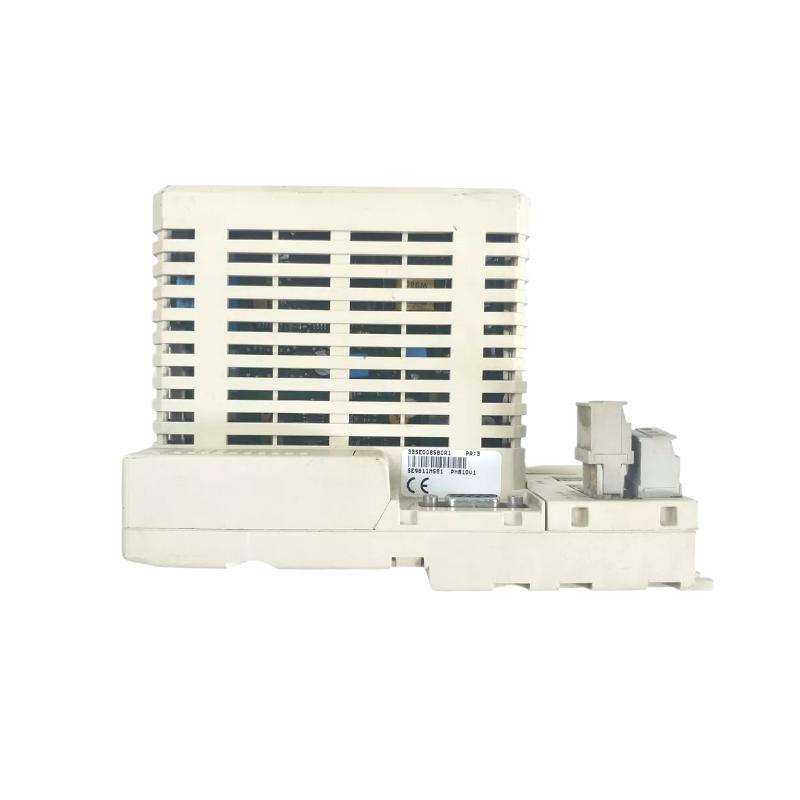

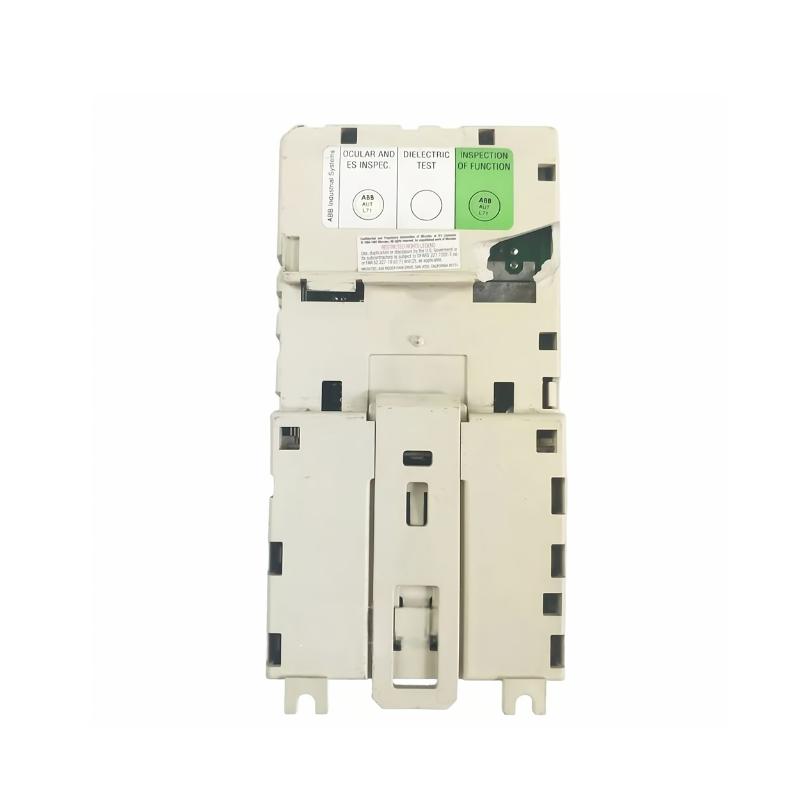

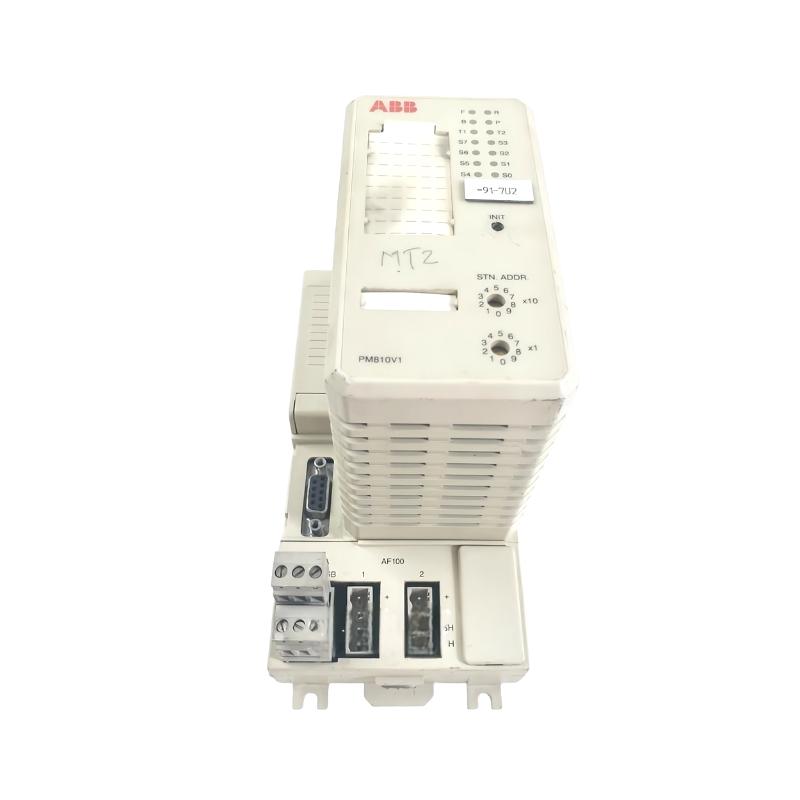

The ABB PM810V1 3BSE008580R1 is a processor module designed for ABB’s AC 800M control system. It performs key control, monitoring, and communication functions within industrial automation environments, ensuring high reliability and fast data processing for complex process applications.
General Information
Part Number: 3BSE008580R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Sweden
Series: PM800 Series
Type: Processor Module
Mounting: DIN-rail or rack installation
Technology: High-performance microprocessor for industrial control
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input: From system backplane
Protection: Overvoltage and reverse polarity protection
Indicators: LEDs for power, status, and communication
Communication & Interface
Communication Ports: Ethernet, RS-232, and system bus interface
Protocols Supported: MODBUS, TCP/IP, and ABB proprietary communication
Diagnostics: Built-in self-diagnostic and communication monitoring
Operator Interface: LED indicators and service port
Reset Features: Hardware and software reset supported
Environmental
Operating Temperature: 0 to +55 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (for control cabinet installation)
Dimensions & Weight
Dimensions (L × W × H): 185 × 59 × 127 mm
Weight: ~0.4 kg
