Overview

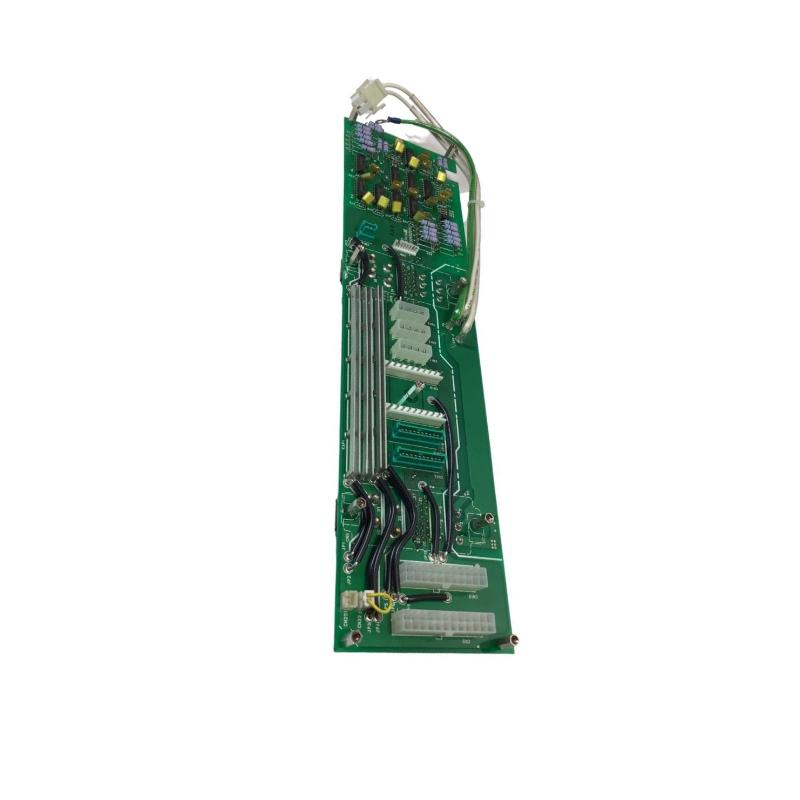

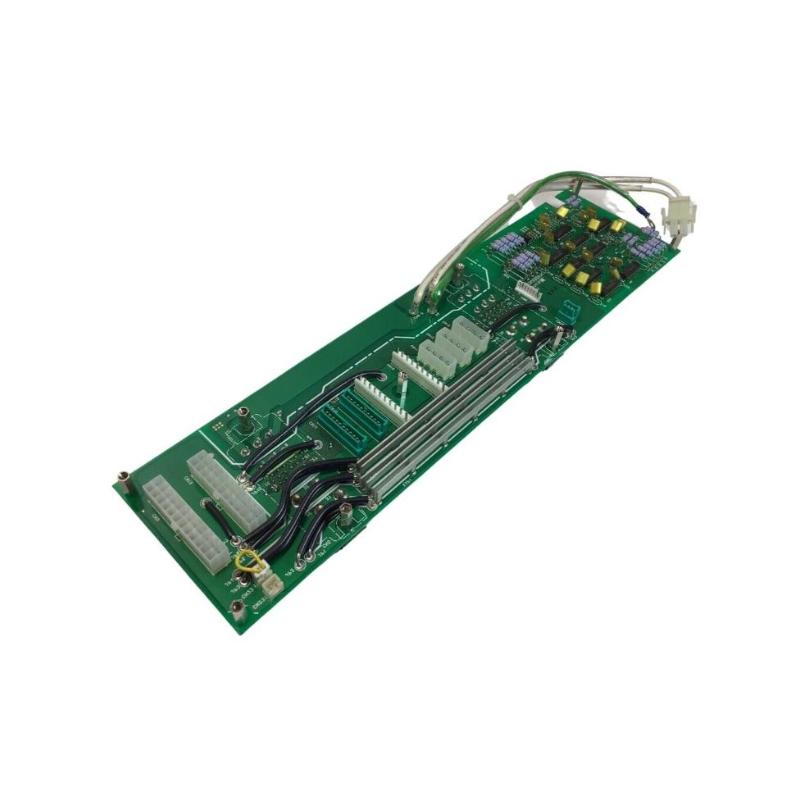

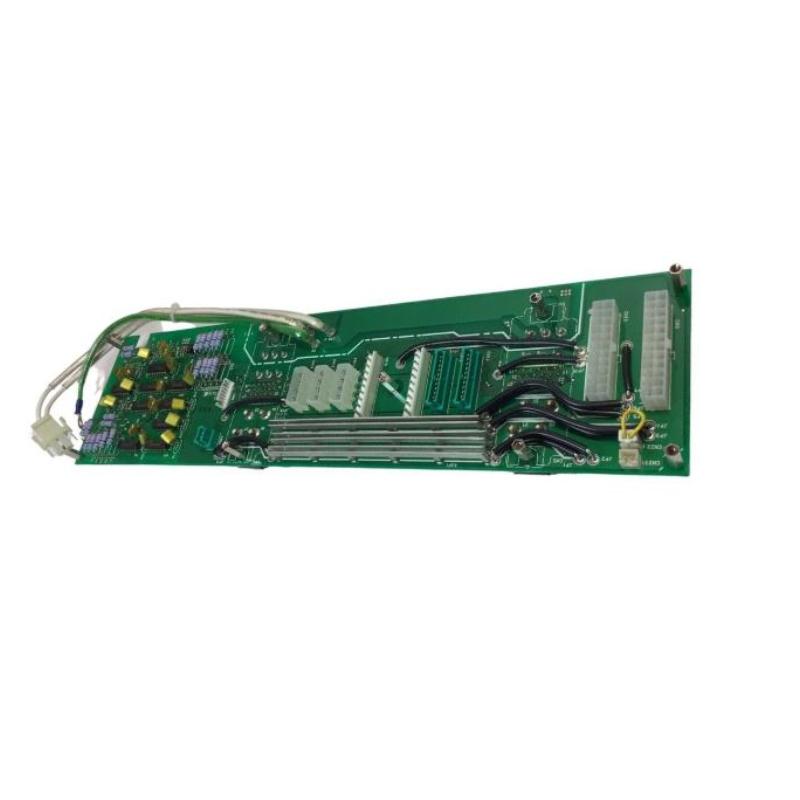

The ABB 3BHE024855R1101 is an interface board assembly used in ABB motor-control and drive systems, designated UF C921 A101: INT-2 with firmware for ACS. It serves as a main control interface board in the drive’s electronic architecture.

General Information

• Part Number: 3BHE024855R1101

• ABB Type / Model: UF C921 A101: INT-2 (with firmware for ACS)

• Manufacturer: ABB

• Country of Origin: Sweden (or USA depending on source)

• Product Category: Interface Board Assembly – Drive Control / MC Interface Board

• Approximate Weight: 0.3 kg

Electrical & Functional Specifications

• Designed for integration into ABB ACS series drive systems and motor-control architecture.

• Provides the main control interface between drive logic modules and peripheral components.

• Firmware pre-loaded for ACS control-functions, facilitating communication and control within the drive rack.

• Inputs/outputs, control logic, and inter-module communication handled via this board.

Environmental Conditions

• Intended for mounting inside a drive cabinet or enclosure; thermal, vibration and shock specs align with industrial drive electronics.

• Typical ambient operating temperature range: 0-60 °C (exact value depends on drive thermal design).

• Storage conditions in accordance with standard electronics module guidelines.

Dimensions & Weight

• Dimension: 120 × 90 × 45 mm

• Weight: Approx. 0.3 kg
