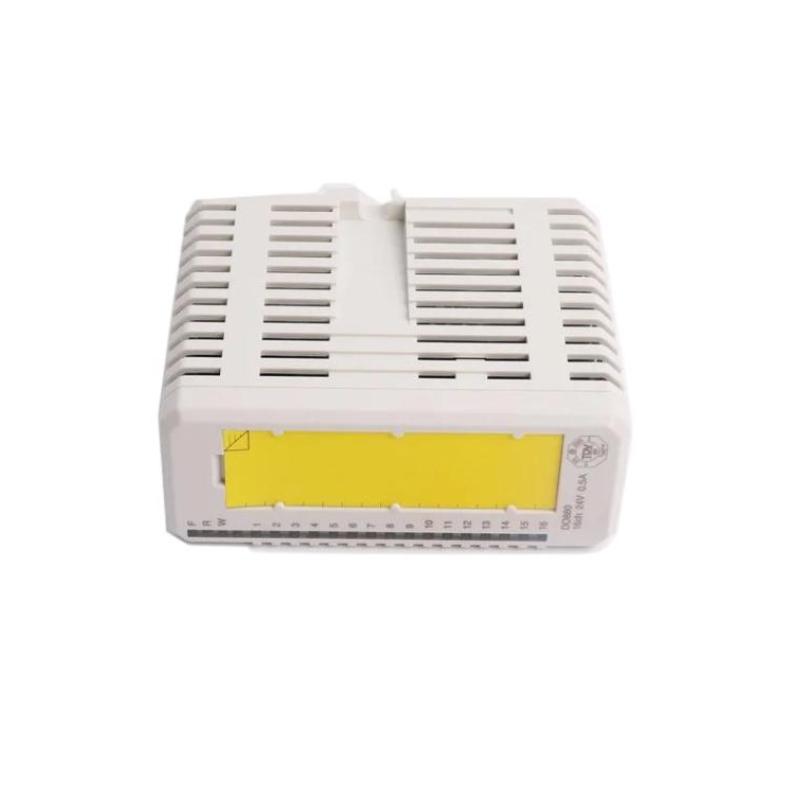

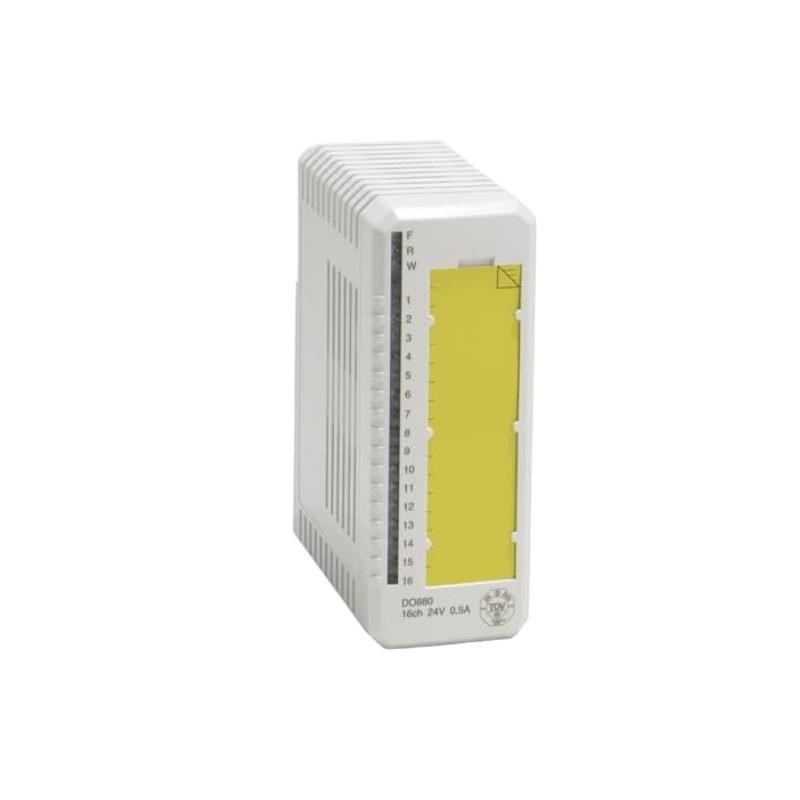

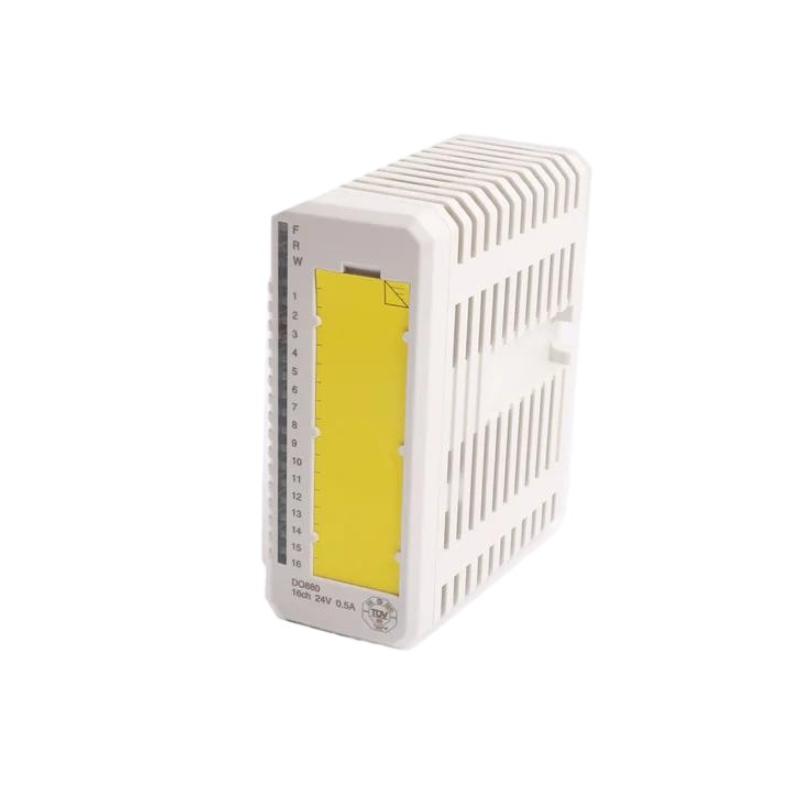

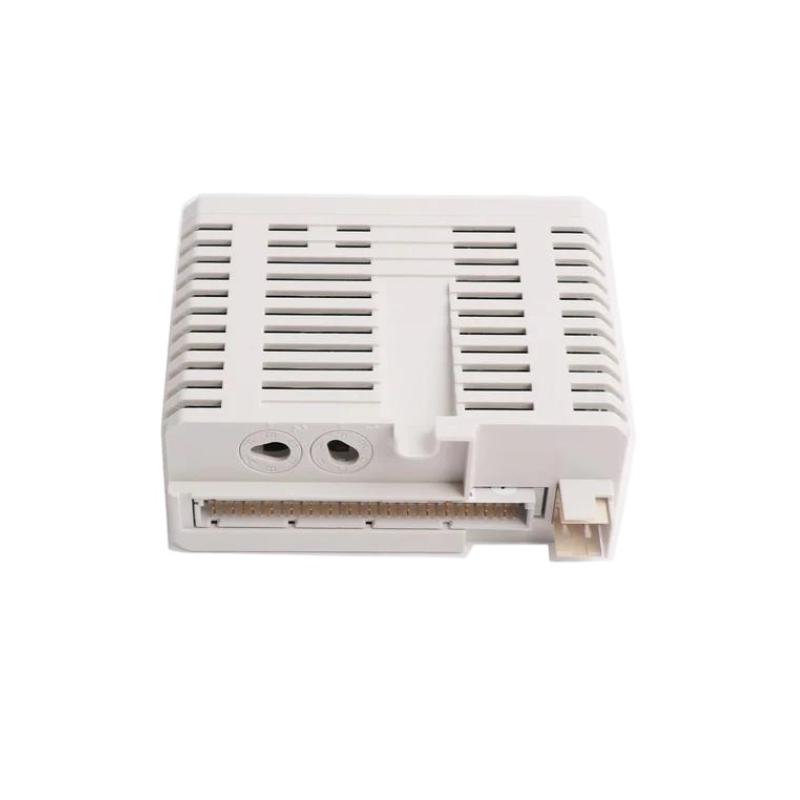

ABB DO880-2 3BSE028603R1 | 16-Channel 24V High-Side Digital Output Module

Overview

The ABB DO880-2 (Part No. 3BSE028603R1) is a 16-channel 24V high-side digital output module designed for ABB’s S800 I/O and AC 800M control systems. It provides reliable and efficient control of field devices in industrial automation applications, supporting both single and redundant configurations. The module is suitable for applications requiring high integrity and safety standards.

General Information

• Part Number: 3BSE028603R1

• Manufacturer: ABB

• Series: DO880 Series

• Type: Digital Output Module

• Channels: 16

• Signal Type: Current sourcing, current limiting

• Configuration: Single or redundant

Power Specifications

• Supply Voltage: 24 V DC

• Maximum Output Current per Channel: 0.5 A

• Power Consumption: 5.6 W (0.5 A × 16 channels)

• Current Consumption:

• +5 V Modulebus: 45 mA

• +24 V Modulebus: Max. 50 mA

• +24 V External: 10 mA

Communication & Interface

• Interface Type: ModuleBus

• Isolation: Groupwise isolated from ground

• Rated Insulation Voltage: 50 V

• Dielectric Test Voltage: 500 V a.c.

Environmental

• Operating Temperature: −25 °C to +70 °C

• Storage Temperature: −40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20

Dimensions & Weight

• Dimensions (H x W x D): 45 x 102 x 119 mm

• Weight: 0.2 kg

We provide brand-new, high-quality original parts, all in stock with immediate pricing.
