ABB CI820V1 | PROFIBUS DP Communication Interface Module Efficient delivery

Overview

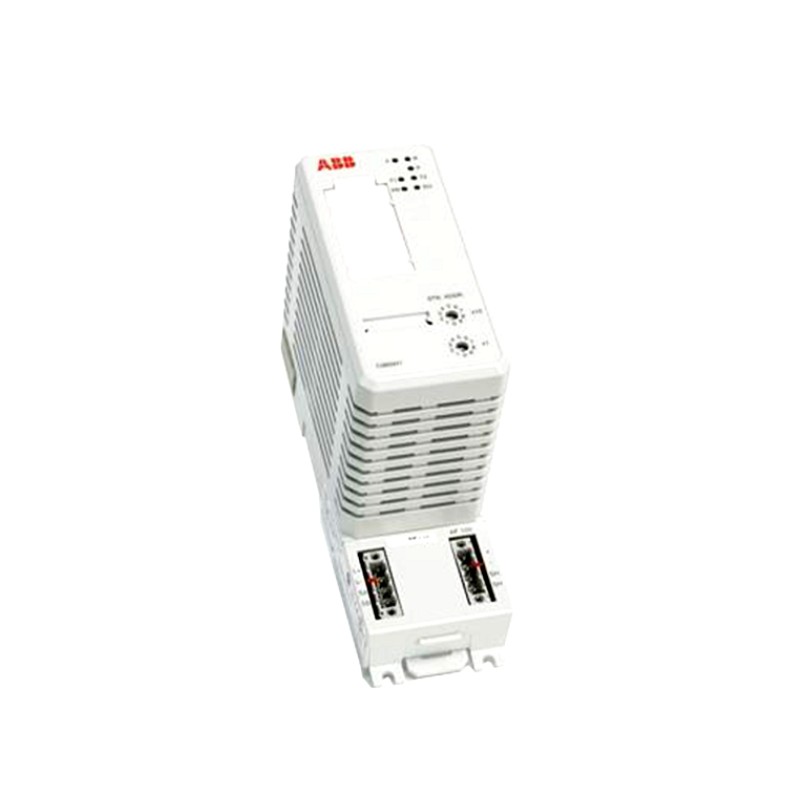

The ABB CI820V1 (Part No. 3BSE025255R1) is a PROFIBUS DP Communication Interface Module designed for ABB’s S800 I/O and 800xA control systems. It enables seamless communication between the controller and PROFIBUS DP networks, supporting high-speed and reliable data exchange. The module ensures efficient integration of distributed I/O devices and intelligent field instruments within complex automation environments.

General Information

Part Number: 3BSE025255R1
Manufacturer: ABB
Series: CI820 Series
Type: PROFIBUS DP Fieldbus Communication Interface
Mounting: Rack or chassis installation in ABB S800 I/O system
Technology: PROFIBUS DP protocol support, automatic baud rate detection, redundancy capability, and diagnostic LED indicators

Power Specifications

Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Input Source: Backplane power from S800 I/O system
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for Power, Communication Link, and Fault

Communication & Interface

Protocol: PROFIBUS DP
Data Rate: 9.6 kbps to 12 Mbps (auto-detect)
Channels: One PROFIBUS DP channel
Interface Type: PROFIBUS connector and backplane interface
Diagnostics: Network error detection, communication monitoring, and device status reporting
Operator Interface: LED indicators for status and activity
Reset Options: Supports both software and hardware reset

Environmental

Operating Temperature: −25 °C to +70 °C
Storage Temperature: −40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20, suitable for control cabinet installation

Dimensions & Weight

Dimensions: 54 x 170 x 122 mm

Weight: 0.6 kg

Authentic new stock always available, with prompt and professional assistance.
