Overview

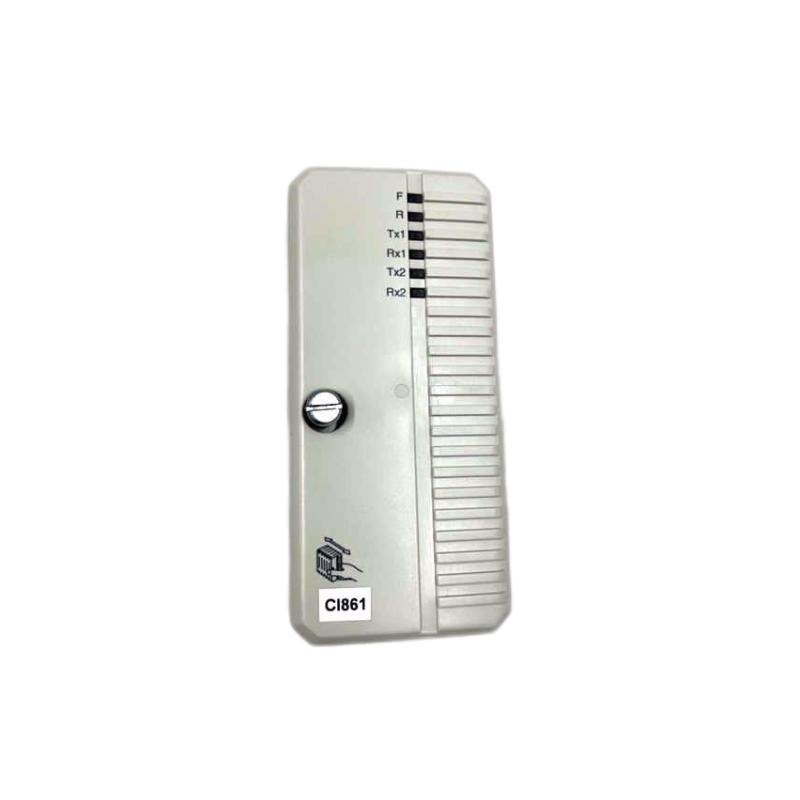

The ABB CI861K01 3BSE058590R1 is a reliable communication interface module designed for industrial automation and control systems. It provides seamless data exchange between ABB controllers and field networks, ensuring stable and efficient communication performance.
General Information
Brand: ABB
Country of Origin: Sweden
Model: CI861K01
Part Number: 3BSE058590R1
Product Type: Communication Interface Module
System Compatibility: AC 800M Series Controllers
Mounting Method: Rack or backplane installation
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 3 W
Power Input: From control system backplane
Protection: Overvoltage and reverse polarity protection
Communication & Interface
Interface Type: PROFIBUS-DP / MODBUS
Transmission Rate: Up to 12 Mbps
Connection Type: Plug-in terminal
Diagnostics: Communication status and fault indication via LEDs
Configuration: Compatible with ABB engineering tools
Environmental
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +70°C
Relative Humidity: 5–95% non-condensing
Protection Rating: IP20 (when installed in cabinet)
Dimensions & Weight
Dimensions: 59 x 185 x 127.5 mm
Weight: 0.621 kg
